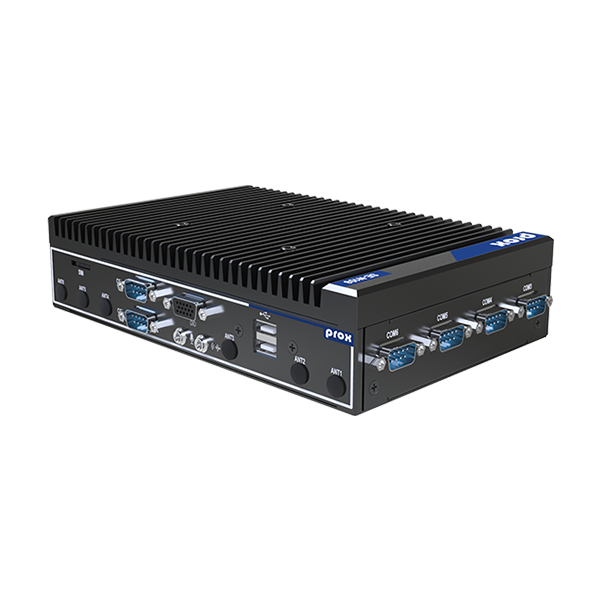

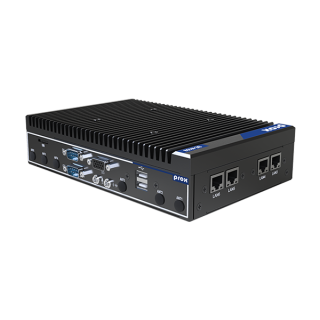

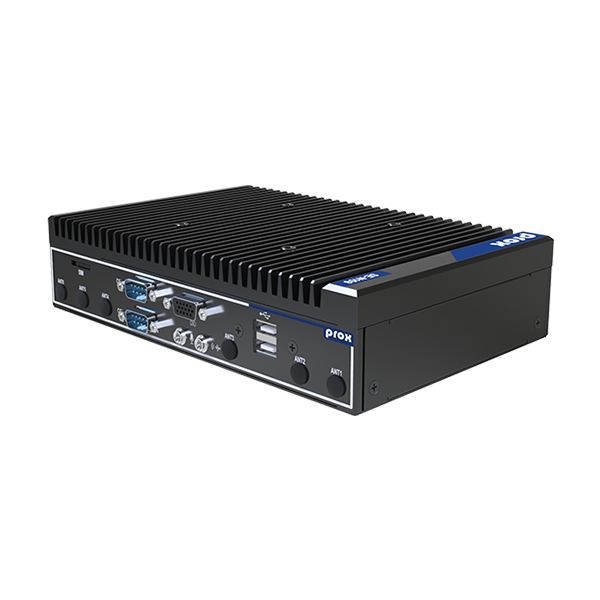

SE-N108
Fanless Compact and Flexible I/O Expansion Embedded PC with Intel® 12th Gen. Processor
•Intel® 12th Gen. Core™ i7 / i5 / i3 / Celeron® processor
•Triple m.2 sockets for different function expansions
•Max. 8 x USB, 2 x RS232/422/485, 8bit DIO
•Dual 2.5 GbE LAN ports

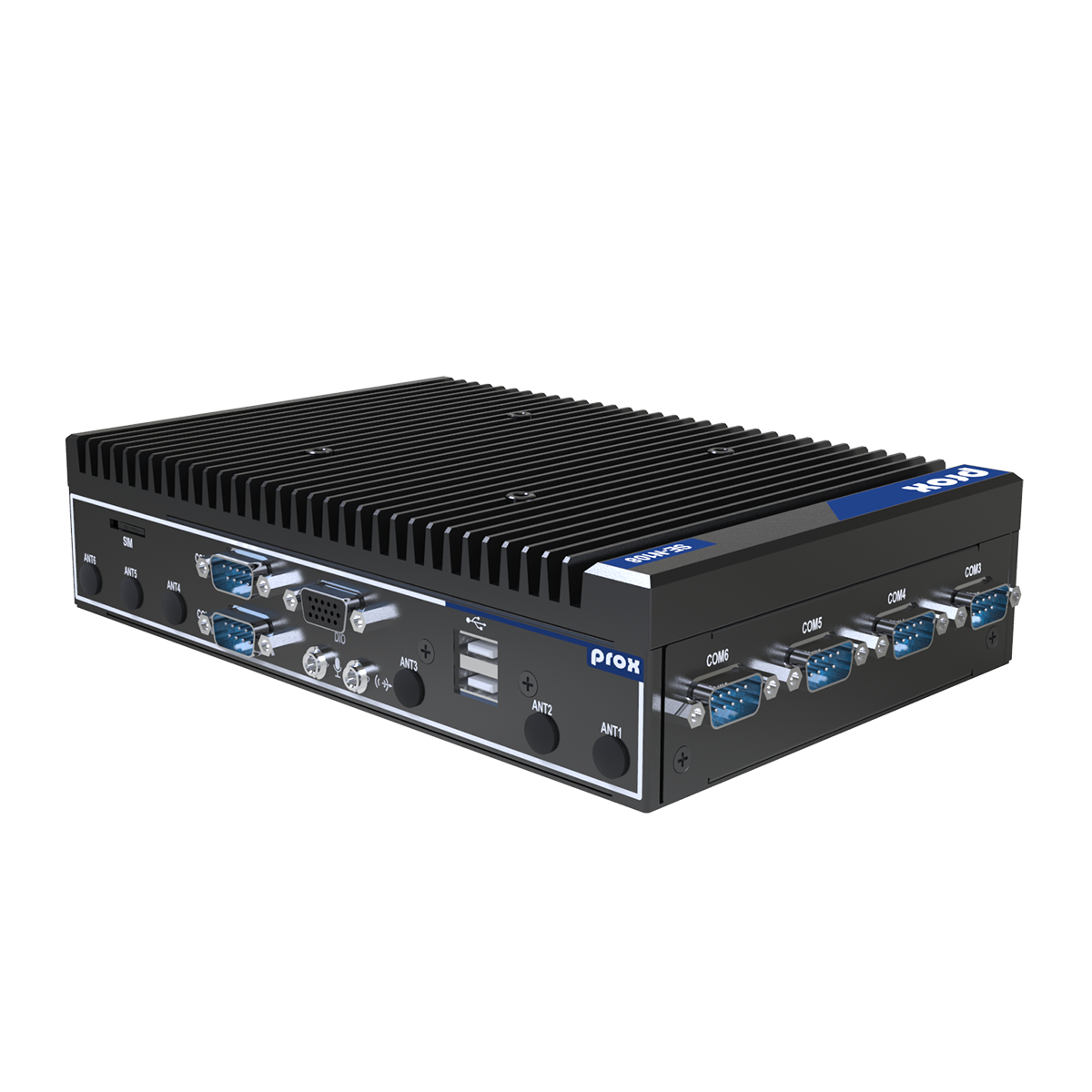

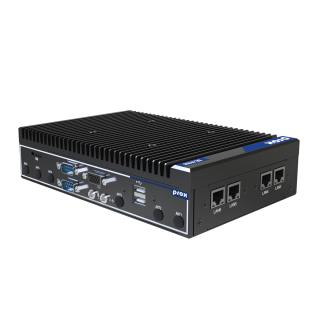

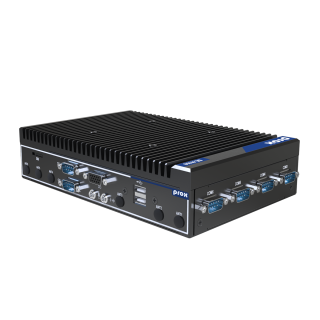

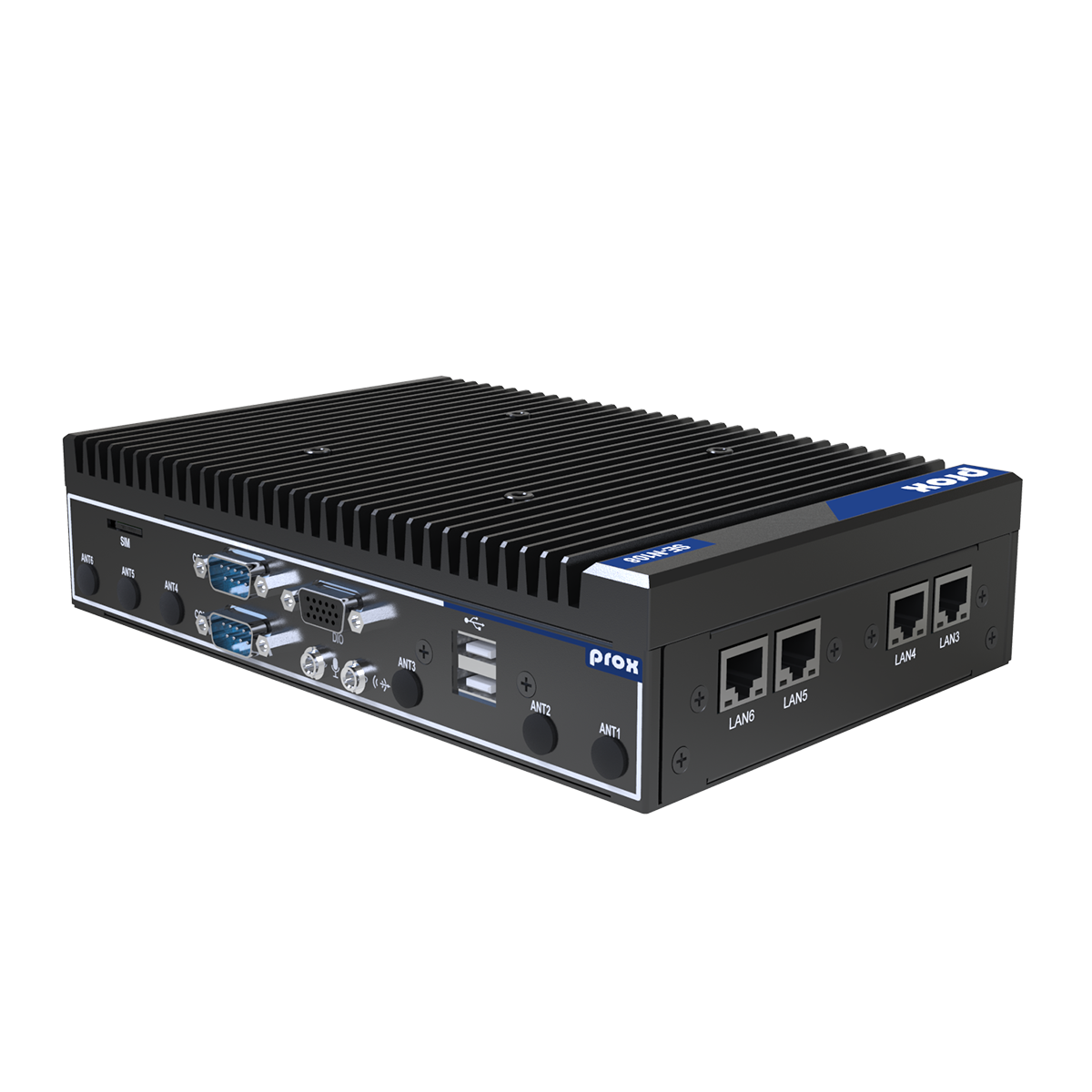

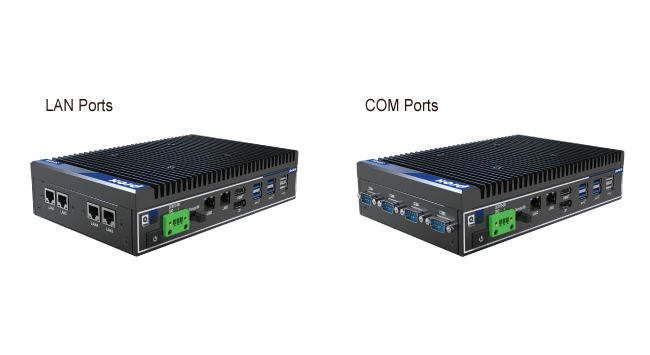

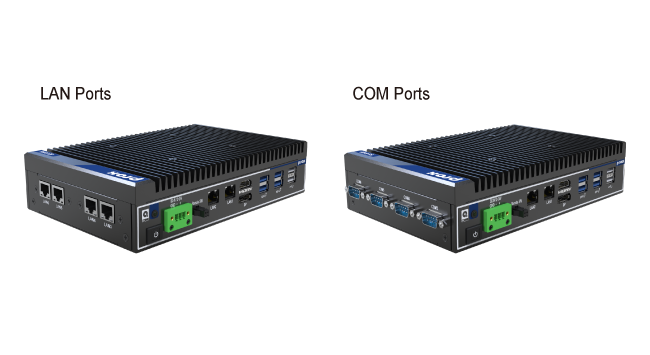

•Expansion Side I/O for extra COM, DIO, LAN
•Secure platform with TPM 2.0 support
•Wide-ranged voltage DC In 12~24V
•Support remote switch
•Triple m.2 sockets for different function expansions
•Max. 8 x USB, 2 x RS232/422/485, 8bit DIO
•Dual 2.5 GbE LAN ports
•Expansion Side I/O for extra COM, DIO, LAN
•Secure platform with TPM 2.0 support
•Wide-ranged voltage DC In 12~24V
•Support remote switch
| System | ||
| CPU Support | LGA1700 for Intel® 12th & 13th & 14th Gen. Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron® CPU | |
| CPU List |
Target TDP 65W i9-13900TE/E, i9-12900TE/E i7-13700TE/E, i7-12700TE/E i5-13500TE, i5-13400E, i5-12500TE/E i3-13100TE/E, i3-12100TE/E Pentium: G7400TE/E Celeron: G6900TE/E |
|
| Chipset | Intel® H610E/Q670E | |
| Memory Support | 2 x DDR4 SO-DIMM, 3200MT/s up to 64GB (non-ECC) | |
| BIOS | AMI UEFI BIOS | |
| Watchdog | 1~255 seconds watchdog timer selectable | |
| Power Supply | Support DC12/24V input with 3-pin terminal block | |
| Dimensions | 170 x 170 mm (6.69" x 6.69") | |
| Certifications | CE / FCC | |
| O.S. Support |
Windows 10 LTSC 2021, Windows 11 IoT Enterprise (GAC), Ubuntu 22.04 LTS |
|
| Certifications |
FCC / CE |
|
|

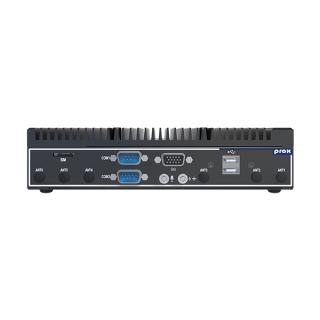

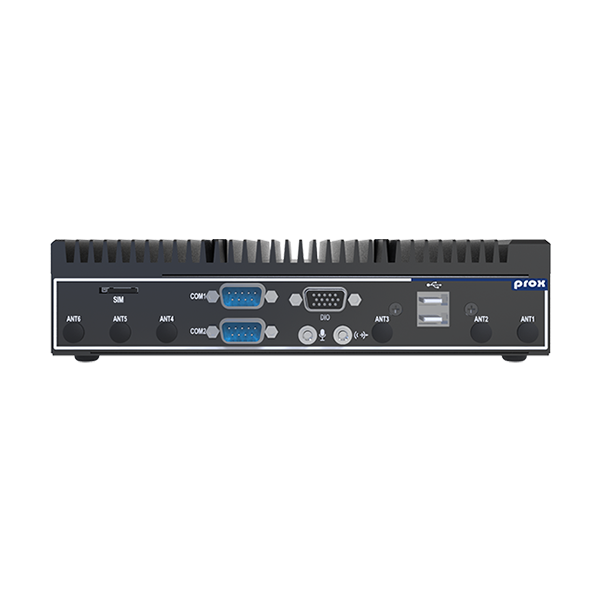

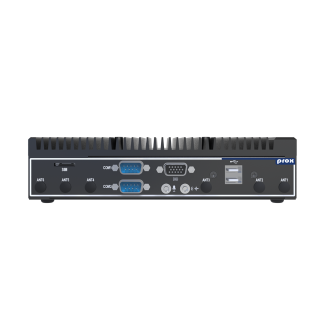

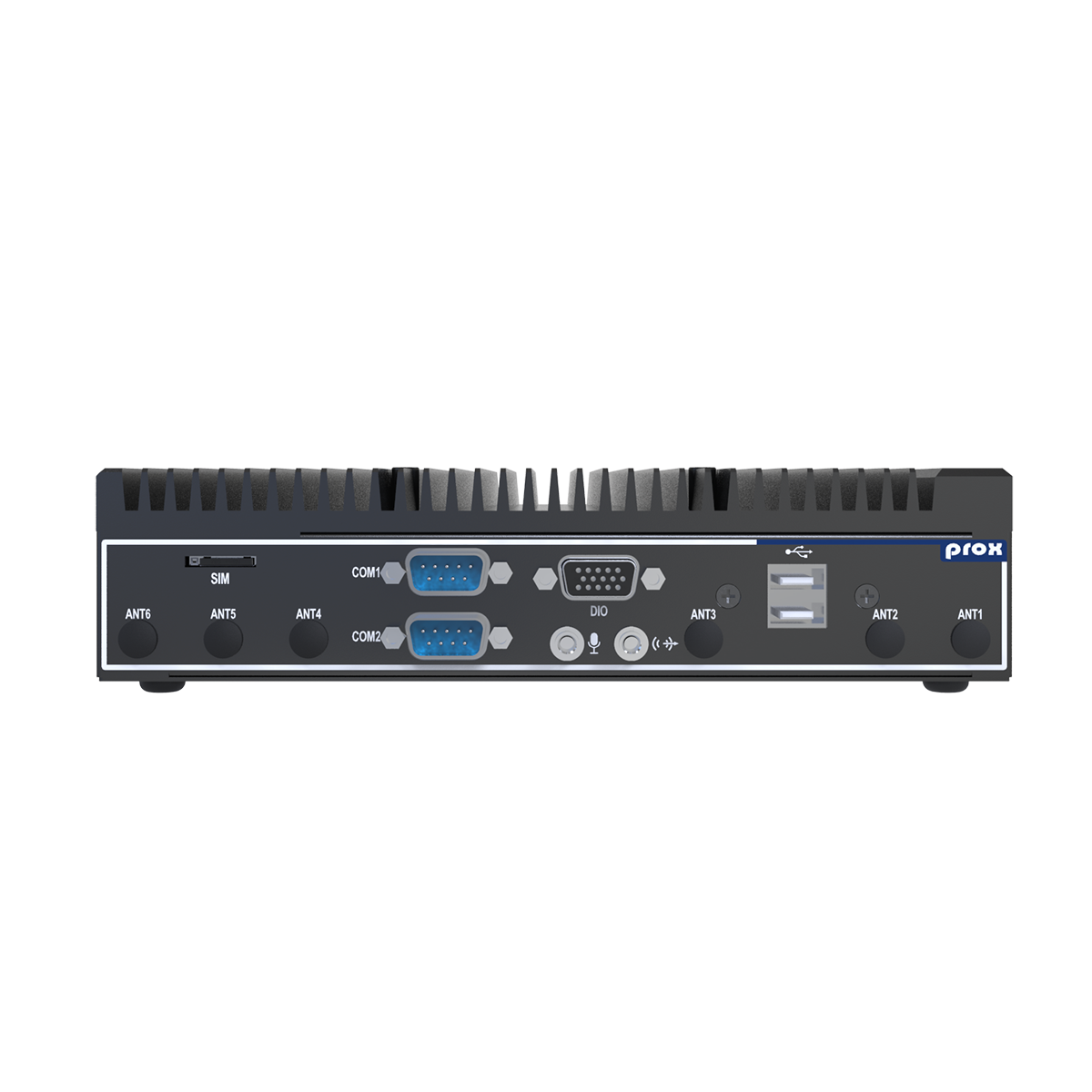

I/O Ports (Front Side) |
||
| USB |
2 x USB 2.0 (optional) |
|
| Serial Ports |
2 x D-sub9, RS-232/422/485 selectable via BIOS |
|
| Digital I/O |
1 x D-sub15, 4-IN/4-OUT, provides 5V and GND |
|
| SIM Slot |
1 x Nano SIM Slot with Tray |
|
| Audio |
1 x Mic in phone jack 1 x Line out phone jack
|
|
| Antenna Hole |
6 x Antenna holes |
|

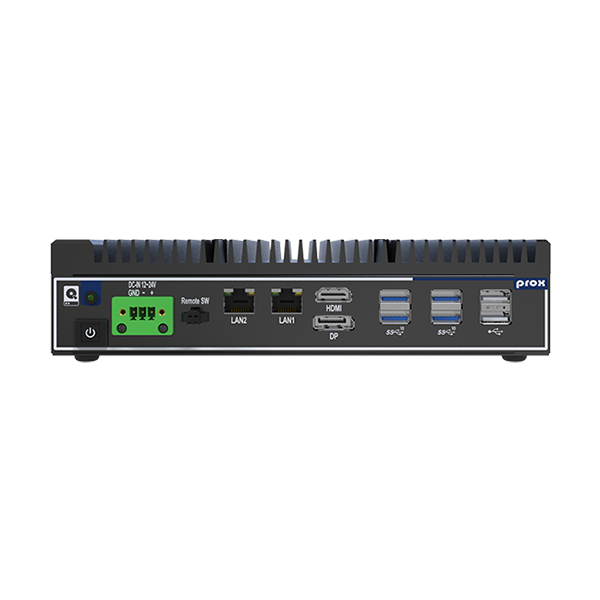

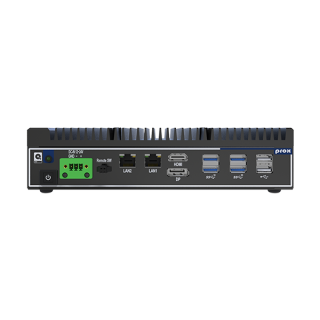

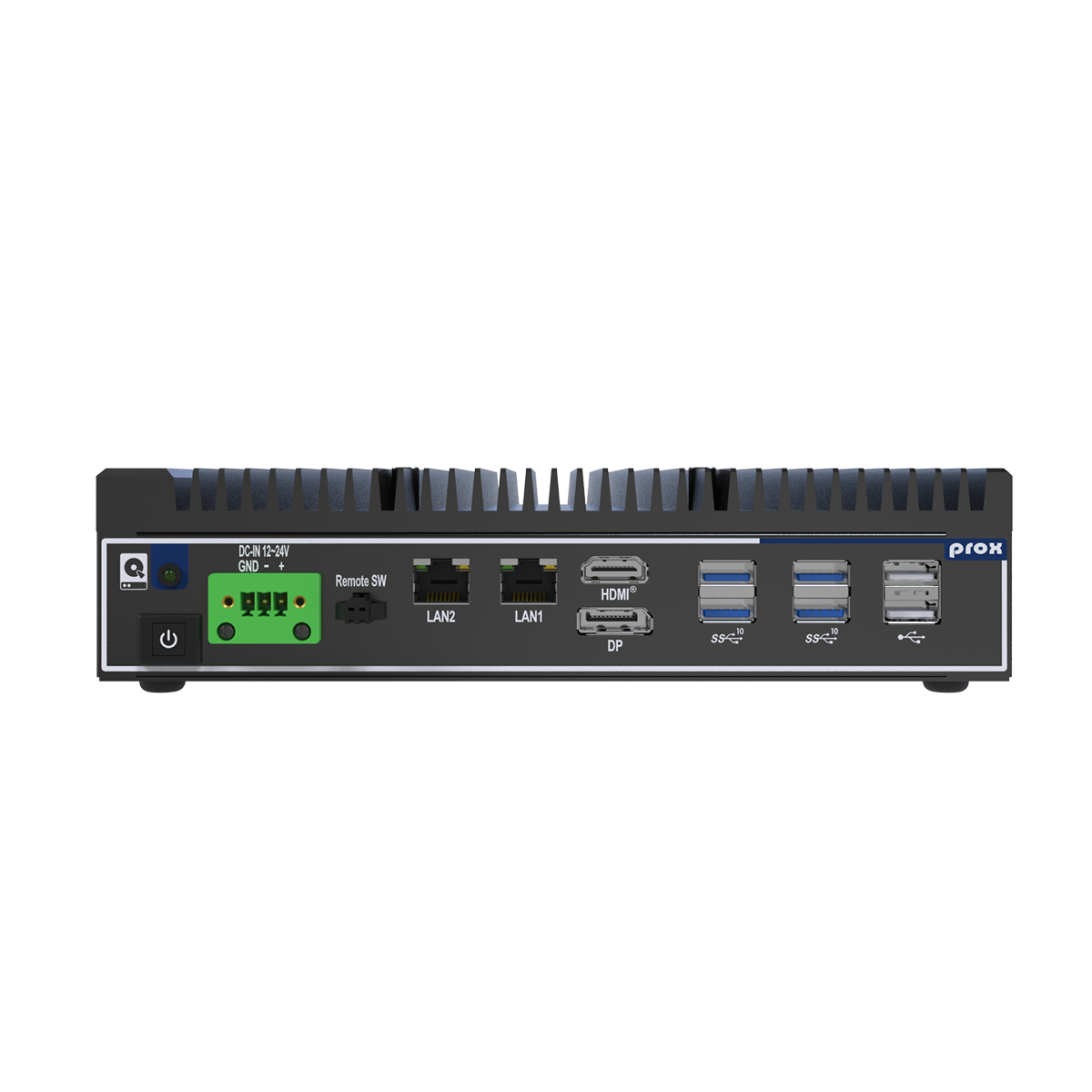

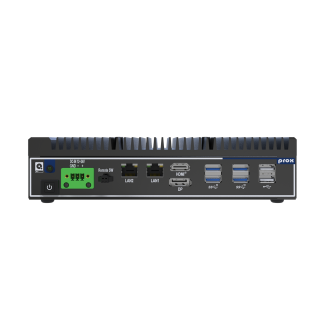

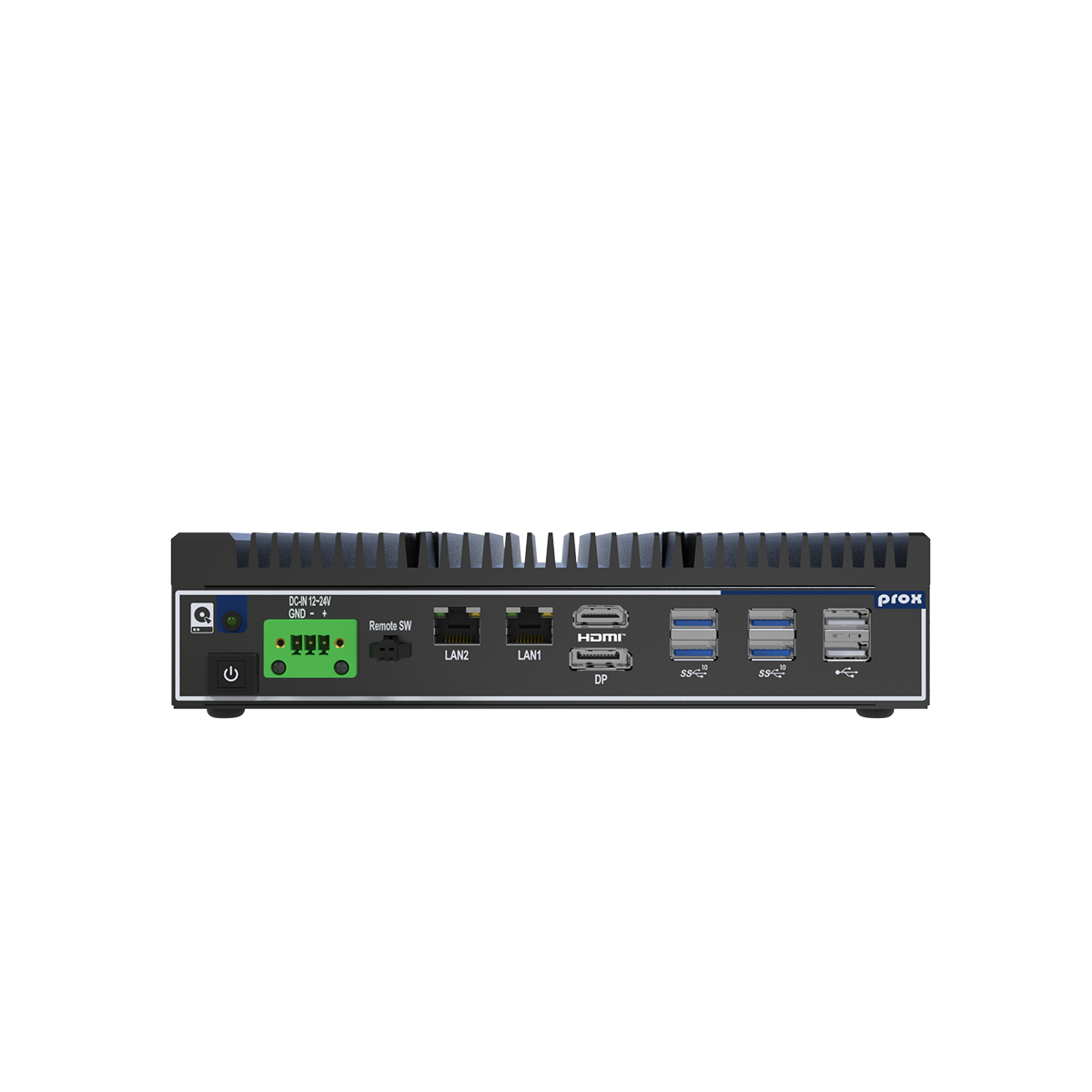

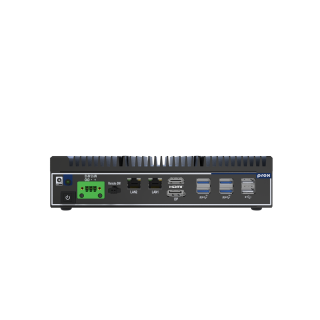

| I/O Ports (Rear Side) | ||
| Power Input |
1 x 3 pin DC power connector support 12~24V |
|
| Display |
2 x RJ45 2.5GbE LANs |
|
| LAN |
8 ports 4 x external USB 3.0 (on the edge) 2 x external USB 2.0 (on the edge) 2 x internal USB 2.0 (wafer) |
|
| USB |
6 x Ports (4 x USB 3.2 Gen2; 2 x USB 2.0) |
|
| Power Button |
1 x Power Button with LED Indicator |
|
| Remote Switch |
1 x 2 pin Remote Switch |
|
| LED Indicator |
1 x HDD LED |
|
| Environment | ||
| Operating Temp.
(Ambient with airflow)
|
-20°C~70°C (-4°F~158°F) with W.T. SSD | |
| Storage Temp. | -40°C~85°C (-40°F~185°F) | |
| Humidity | 20%~95% | |
| Vibration (Random) | IEC60068-2-64, random, 5G@5~500Hz, 1hr/axis with SSD | |
| Vibration (Operating) | MIL-STD-810H, 514.8 Category 4 | |
| Shock (Operating) | MIL-STD-810H, 516.8 Procedure I | |

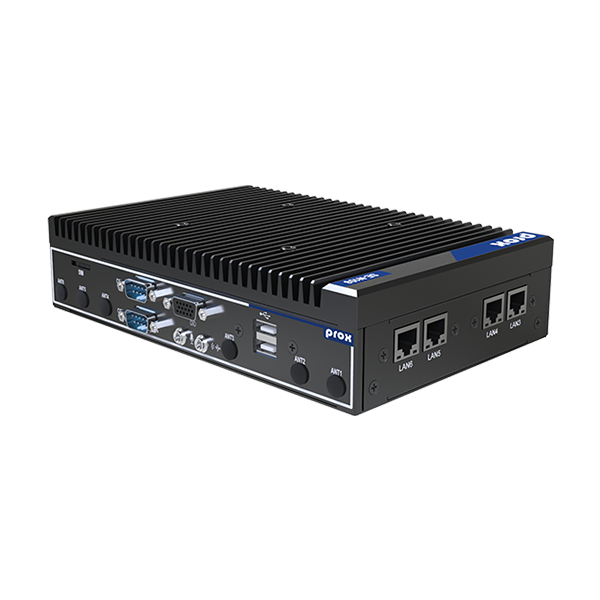

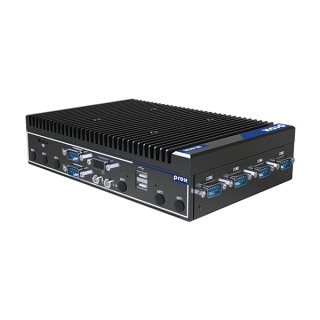

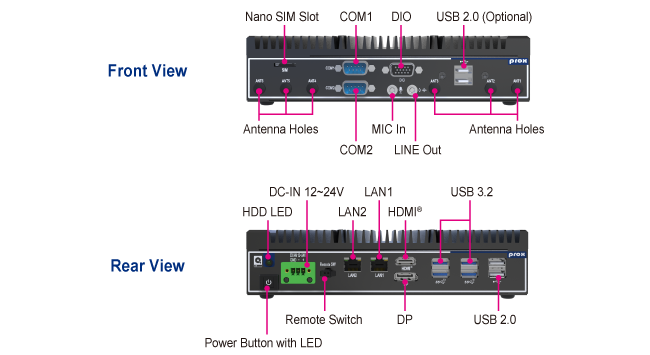

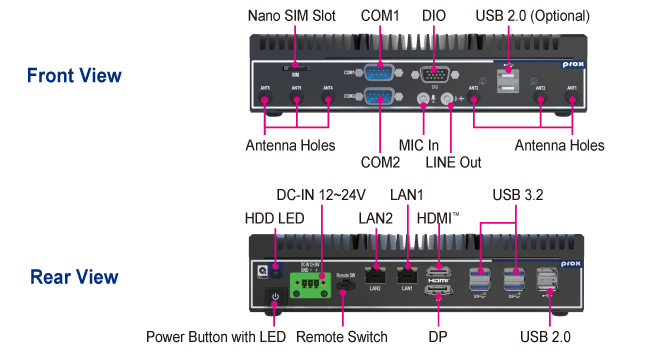

SE-N108 IO

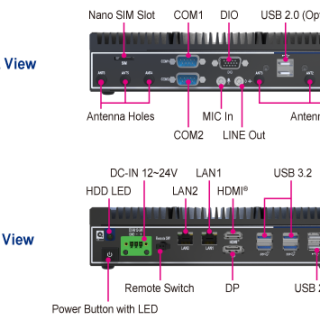

SE-N108 IO

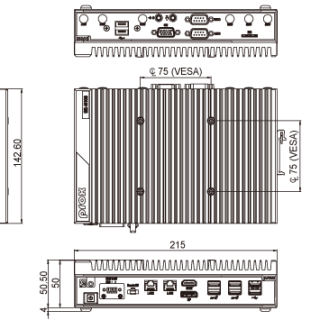

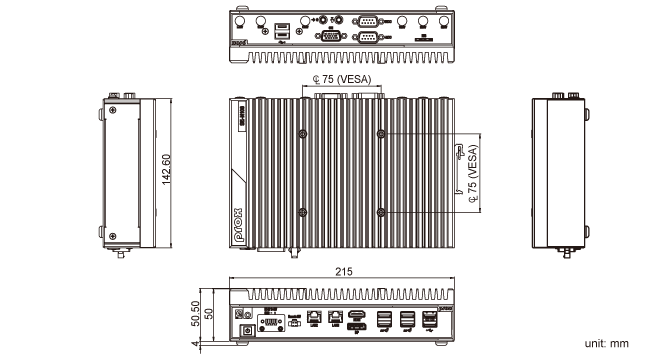

SE-N108 Dimensions
