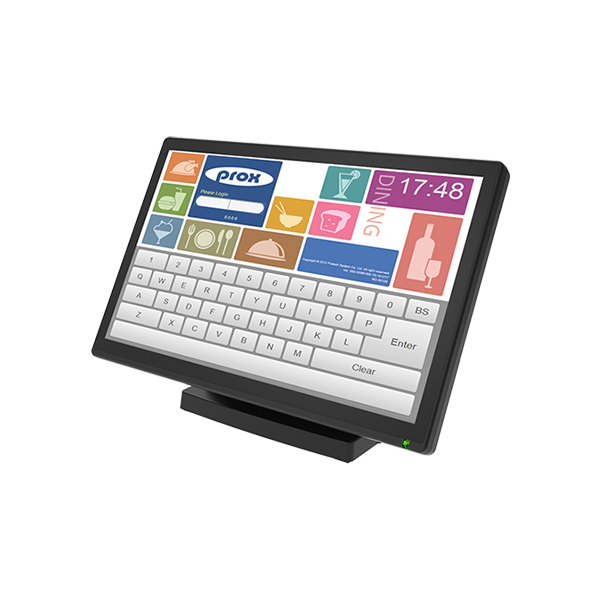

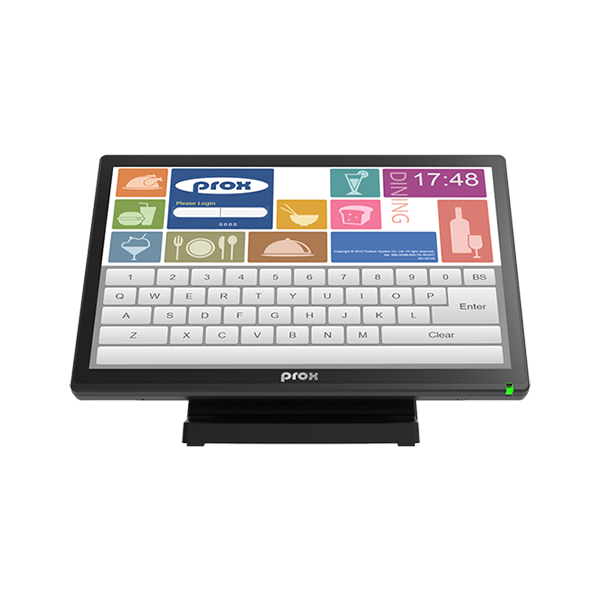

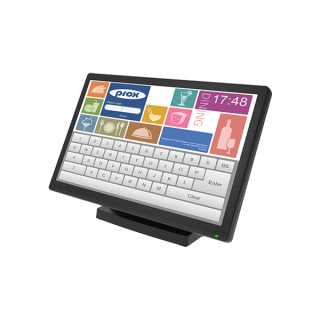

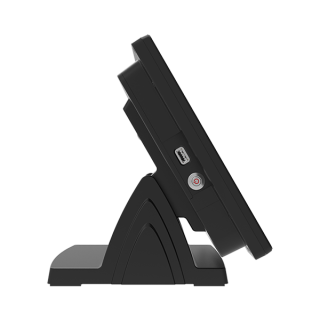

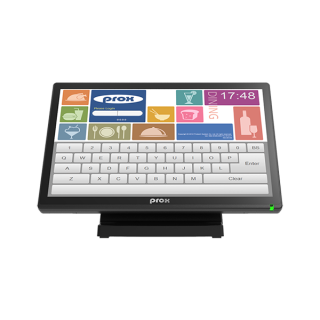

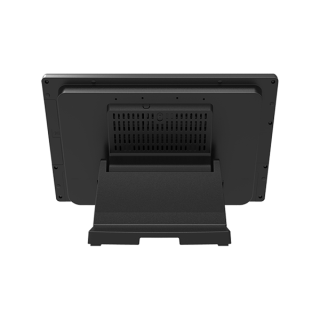

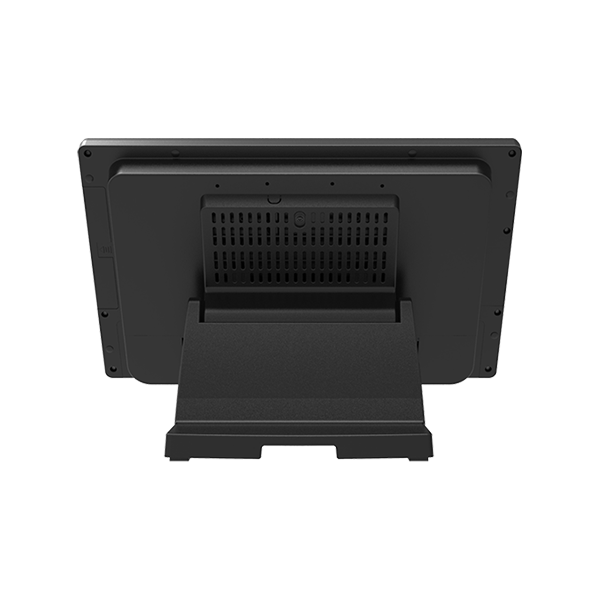

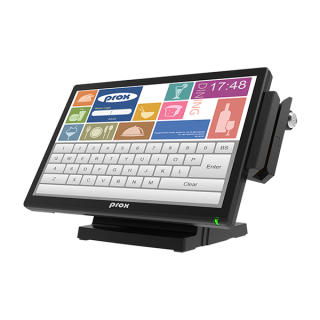

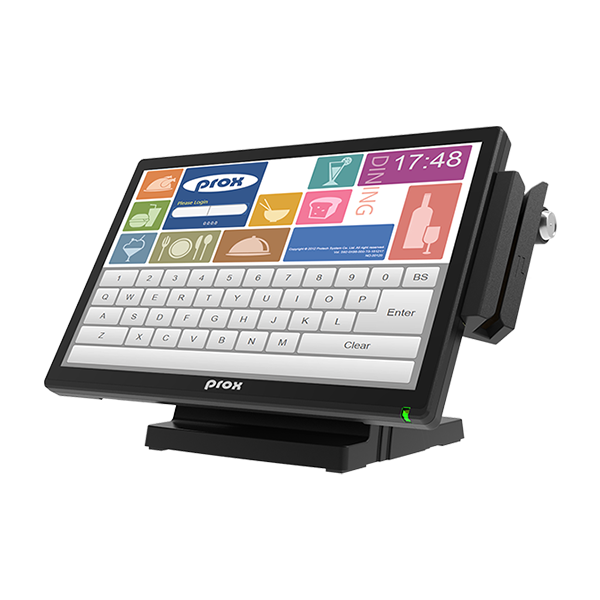

PA-J560
15.6" Fanless Slim POS Terminal
•Fanless design
•15.6’’ LCD display with bezel-free capacitive touch
•Versatile design for multiple applications
•Optional MSR / i-Button / Fingerprint / VFD / RFID / 2” or 3” Thermal Printer / Barcode Scanner / Wireless LAN
•15.6’’ LCD display with bezel-free capacitive touch
•Versatile design for multiple applications
•Optional MSR / i-Button / Fingerprint / VFD / RFID / 2” or 3” Thermal Printer / Barcode Scanner / Wireless LAN
System | ||
CPU Support |
Intel® Core™ i5-1245UE / Core™ i3-1215UE / Celeron® 7305E |
|
Memory | DDR4, 1 x 260-pin SO-DIMM, Max.up to 32GB | |
Network |
10/ 100/1000/2.5G Mbps
|
|
Power Supply | 60/90 watt power adapter | |
Audio | 2.5W speaker | |
System Weight | With power adapter approx. 6 kg | |
Dimensions (W x H x D) |
391 x 247 x 48 mm
|
|
O.S. Support |
Windows® 11 / Windows® 10
|
|
Storage
|
||
SATA |
SATA III
M.2, Key M, 2242/2280 with PCIe x4 / SATAIII
|
|
I/O Ports | ||
USB |
Rear: 2 x USB 2.0 / 2 x USB 3.1 Side: 1 x USB 2.0
|
|
Serial Ports | 3 x RJ-45 (COM1,2 support 5V/12V selectable by jumper), RS232 interface | |
LAN | 1 x 2.5 GbE LAN (RJ45) | |
HDMI | 1 x HDMI® | |
Cash Drawer | 1 x RJ11 (+12V or +24V selectable) (default at +24V) | |
DC In | 1 x 4-pin DC power jack (4pin, DIN) | |
Option | USB 2.0 x 1 or 24V Power USB x 1 or DC-out x 1 or RJ-45 x 1 (RS232 interface) | |
Add-ons | ||
Customer Display | VFD, 20 columns and 2 lines, each column is 16 x16 dots | |
Printer | 2" or 3" easy loading thermal printer with auto-cutter | |
MSR & iButton | MSR: JIS I or II, ISO Track1+2+3 (USB interface); iButton: USB/RS-232/PS/2 interface | |
Fingerprint | 8 bits, 256 level for Gray Scale | |
Display | ||
LCD | 15.6" TFT LCD | |
Resolution | 1366 x 768 | |
Brightness | 220 cd/m² | |
Touchscreen | 15.6" capacitive touch panel, USB interface | |
Tilt Angle | 40 degree | |
Environment | ||
EMC & Safety | CE / FCC | |
Operating Temp. | 0°C~35°C | |
Storage Temp. | -20°C~85°C | |
Humidity | 20%~90% |
PA-J560 Highlight

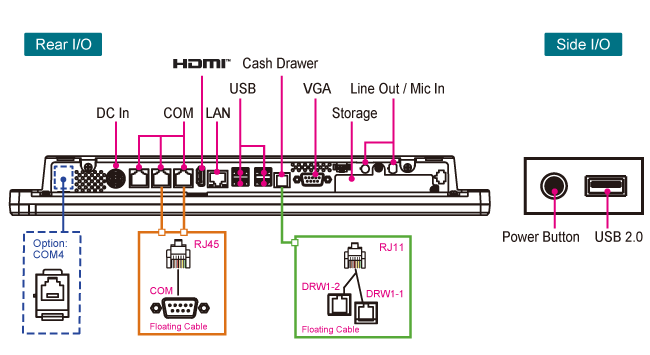

PA-J560 IO
PA-J560 Dimensions
