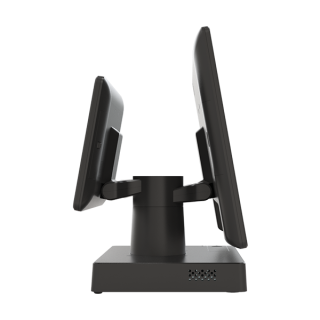

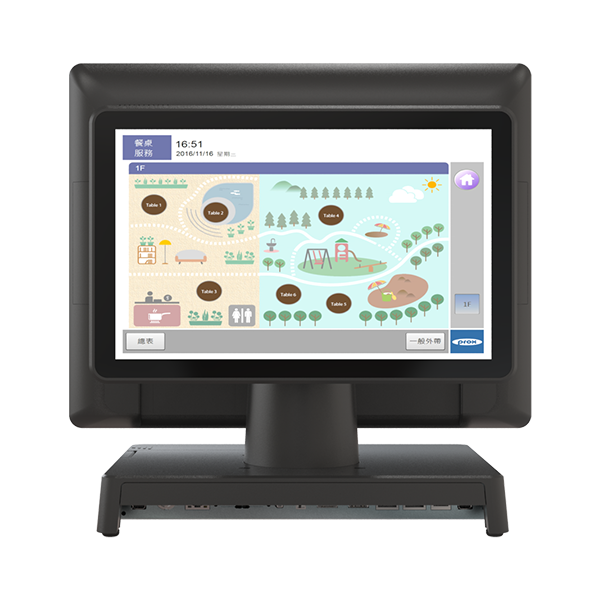

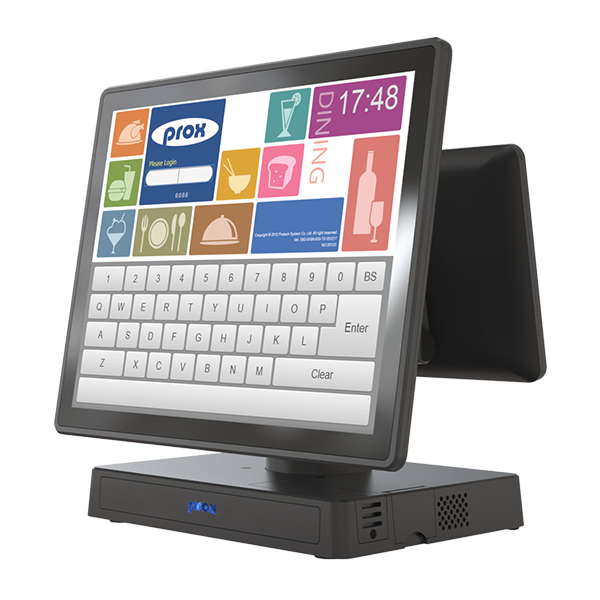

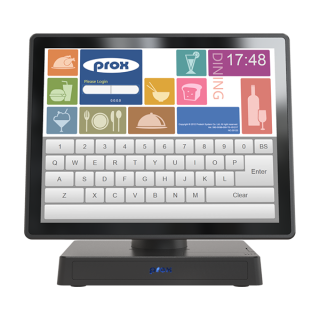

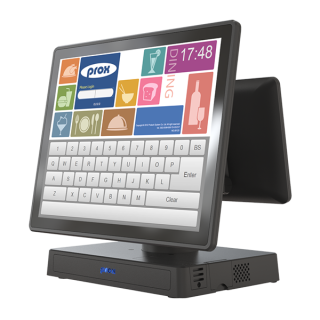

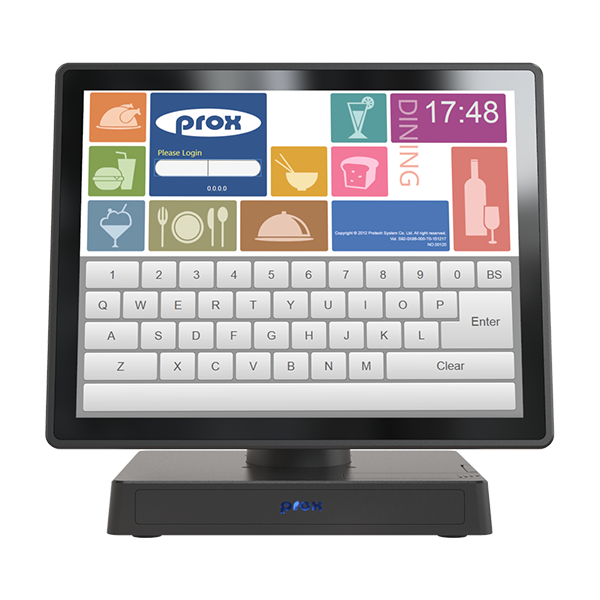

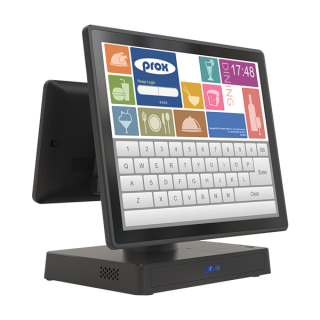

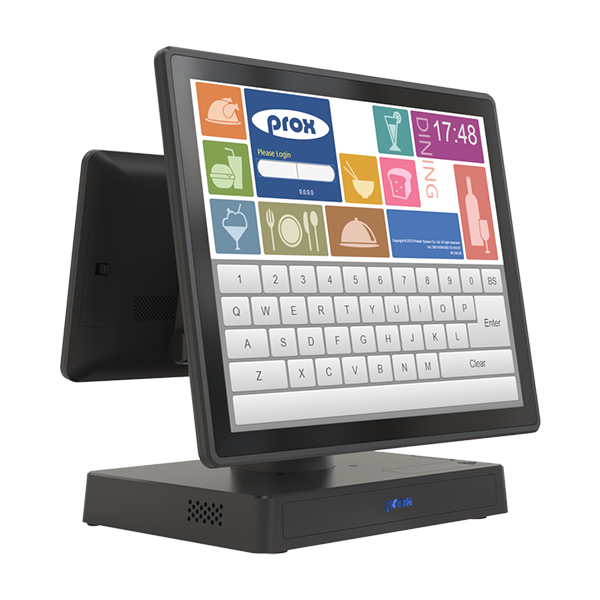

PA-J511

15" Fanless Slim POS Terminal
•Fanless design with Intel® Celeron® J6412
•15" LCD display with bezel-free touchscreen
•Thin and light panel appearance.
•SSD easy maintenance design
•Versatile design for multiple applications
•MSR / i-Button / Fingerprint
/ 2D Barcode Scanner / 2nd Display / VFD (optional)
•VESA 75 x 75 standard
 System
 CPU Support

Intel® Celeron® J6412

 Memory 1 x DDR4 SO-DIMM (up to 16GB)
 HDD

1 x M.2 2280 SATA III or NVME SSD (default 128GB)

 Network

Intel®I225 2.5GbE

1 x M.2 (Key E, 2230)
 Power Supply 60/90 watt power adapter
 Audio 2W speaker
 System Weight W/o power adapter approx. 5.3 kg (POS+ 2 display) / 4.3 kg (POS) / 3.9 kg (PPC)
 Dimensions (W x H x D)

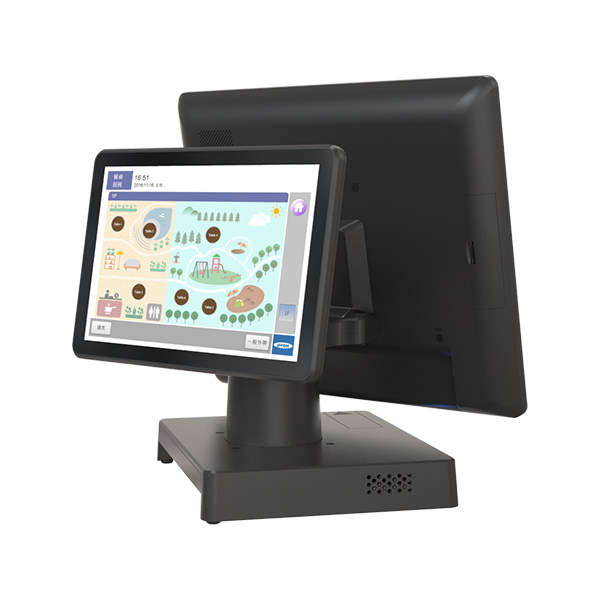

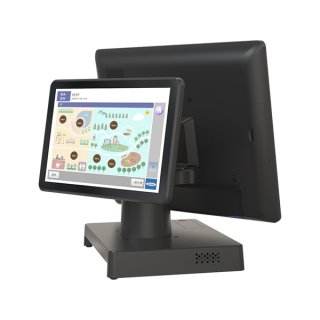

POS + 2 Display: 342 x 291 x 237 mm (with 45 degree)

POS: 342 x 270 x 195 mm (with 45 degree)

PPC type: 342 x 270 x 60 mm

 O.S. Support Windows® 11 IoT Enterprise / Windows® 10 IoT Enterprise
 Storage
 M.2 1 x M.2 2280
 I/O Ports
 USB Rear I/O: 3 x USB 2.0 +1 (optional) / 2 x USB 3.1
Side I/O: 1 x USB 2.0
 Serial Ports 2 + 1 (Optional) x RJ45
 LAN 1 x 2.5 GbE LAN (RJ45)
 HDMI 1 x HDMI®
 Cash Drawer 1 x RJ11 (+12V or +24V selectable)
 DC In 1 x 4-pin DC power jack
 Add-ons
Customer Display

20 columns x2 lines STN LCD display

MSR & i-Button
ISO I,II,III; JIS II and support information key (USB interface)
 Fingerprint

Silicon fingerprint module

 Barcode Scanner

1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11.

2D: PDF417, QR Code, Micro QR, Data Matrix, Chinese sensible code
 Display
 LCD 15" IPS LCD
 Max. Resolution 1024 x 768
 Brightness 400 cd/m²
 Touchscreen Bezel-free projected capacitive
 Tilt Angle 0~50 degree
 Environment
 EMC & Safety CE / FCC
 Operating Temp. 0°C~35°C
 Storage Temp. -20°C~60°C
 Humidity 20%~90%



PA-J511_highlight-1300-710

PA-J511  Highlight

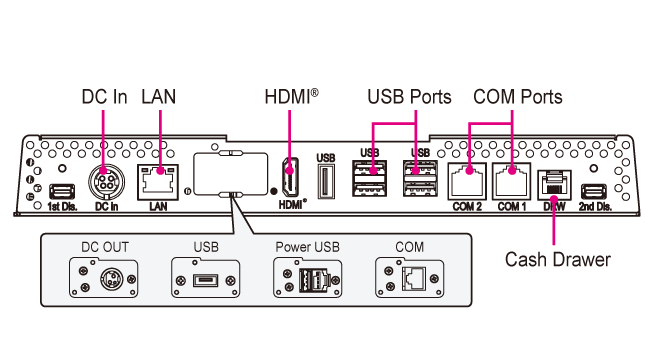

PA-J511 IO


PA-J511_Dimension-1300-710

PA-J511 Dimensions

PA-J511 Dimensions

PA-J511_Dimension-1300-710-2

PA-J511

15" Fanless Slim POS Terminal
