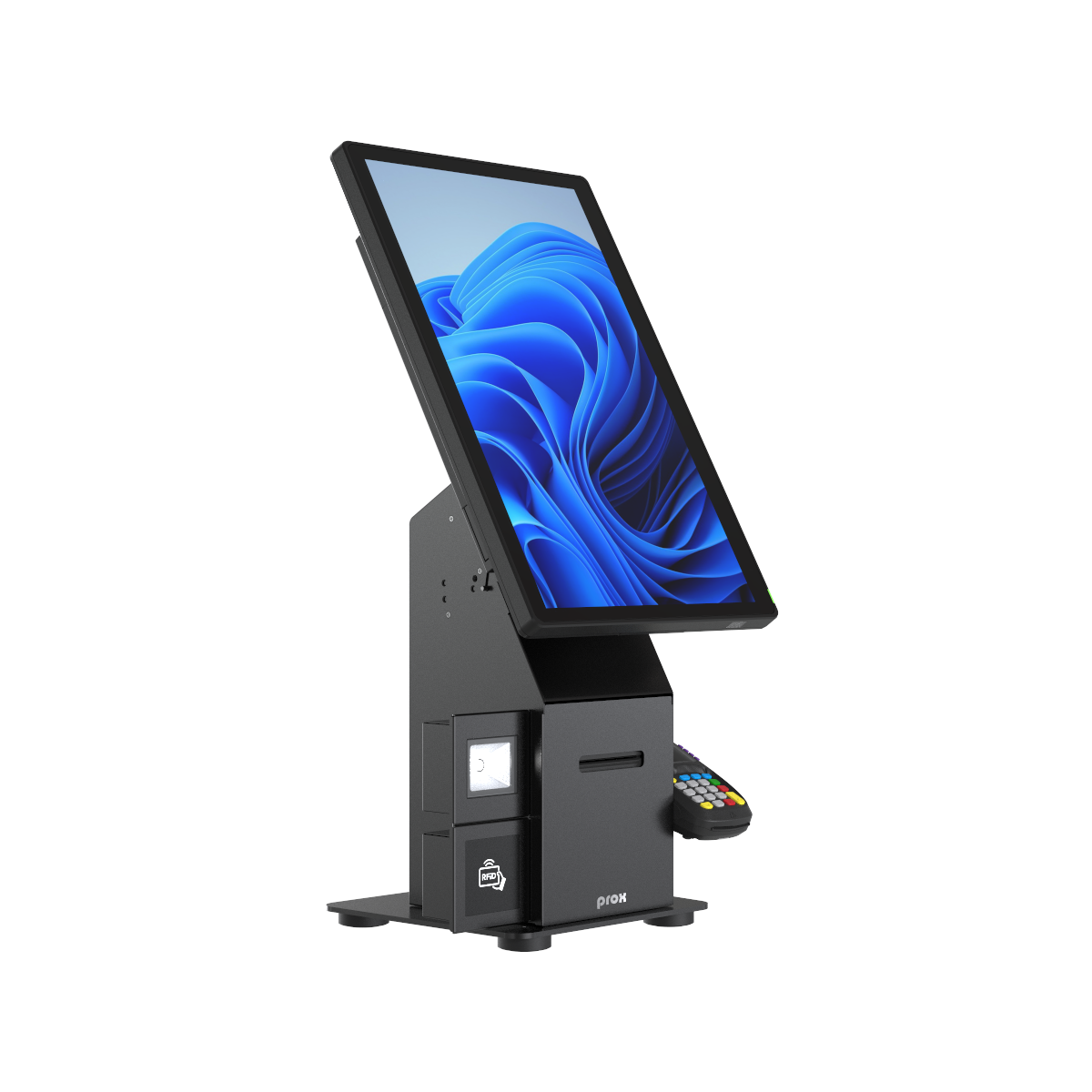

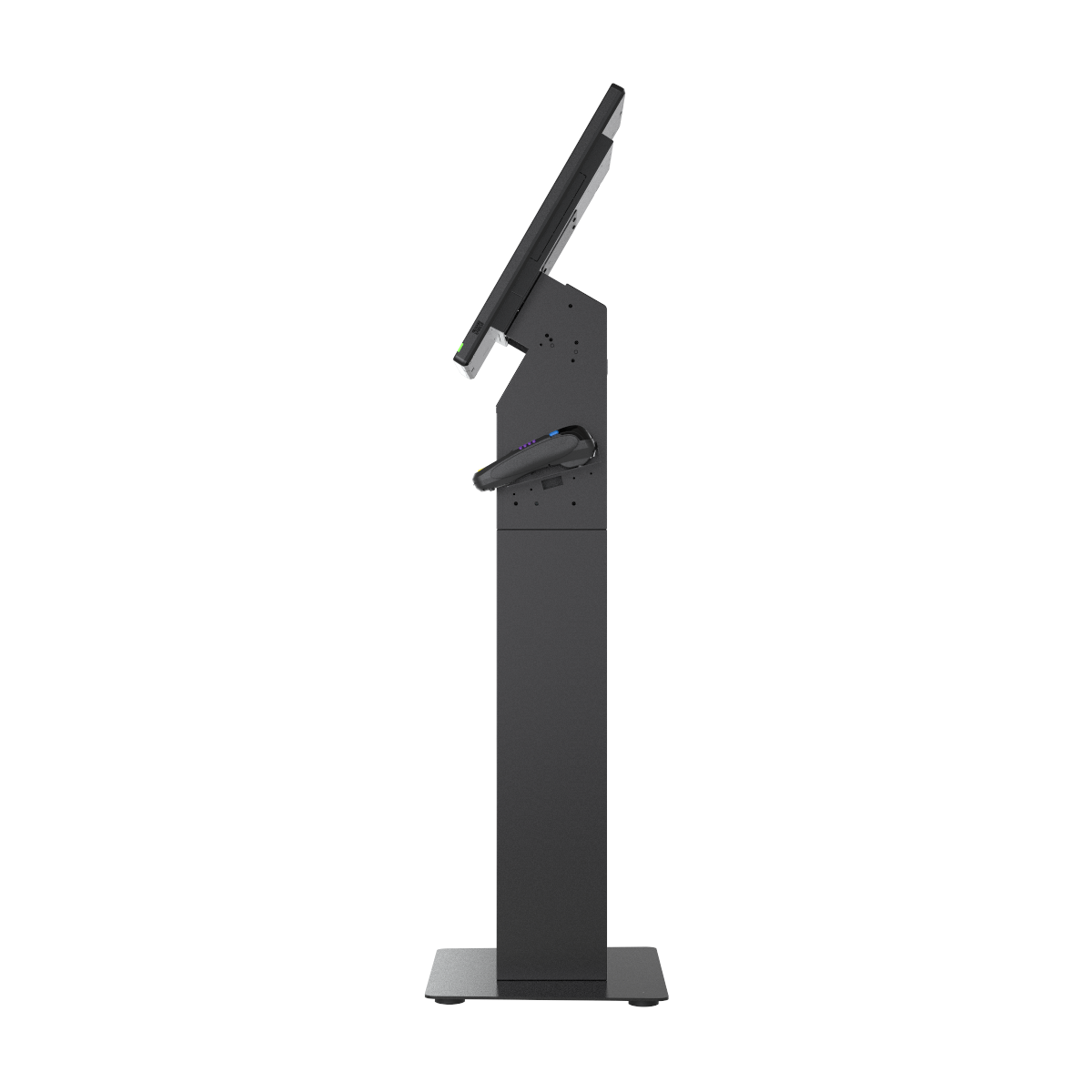

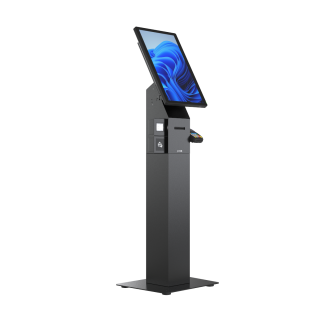

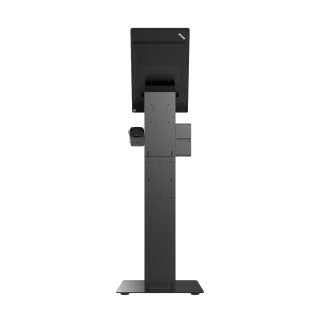

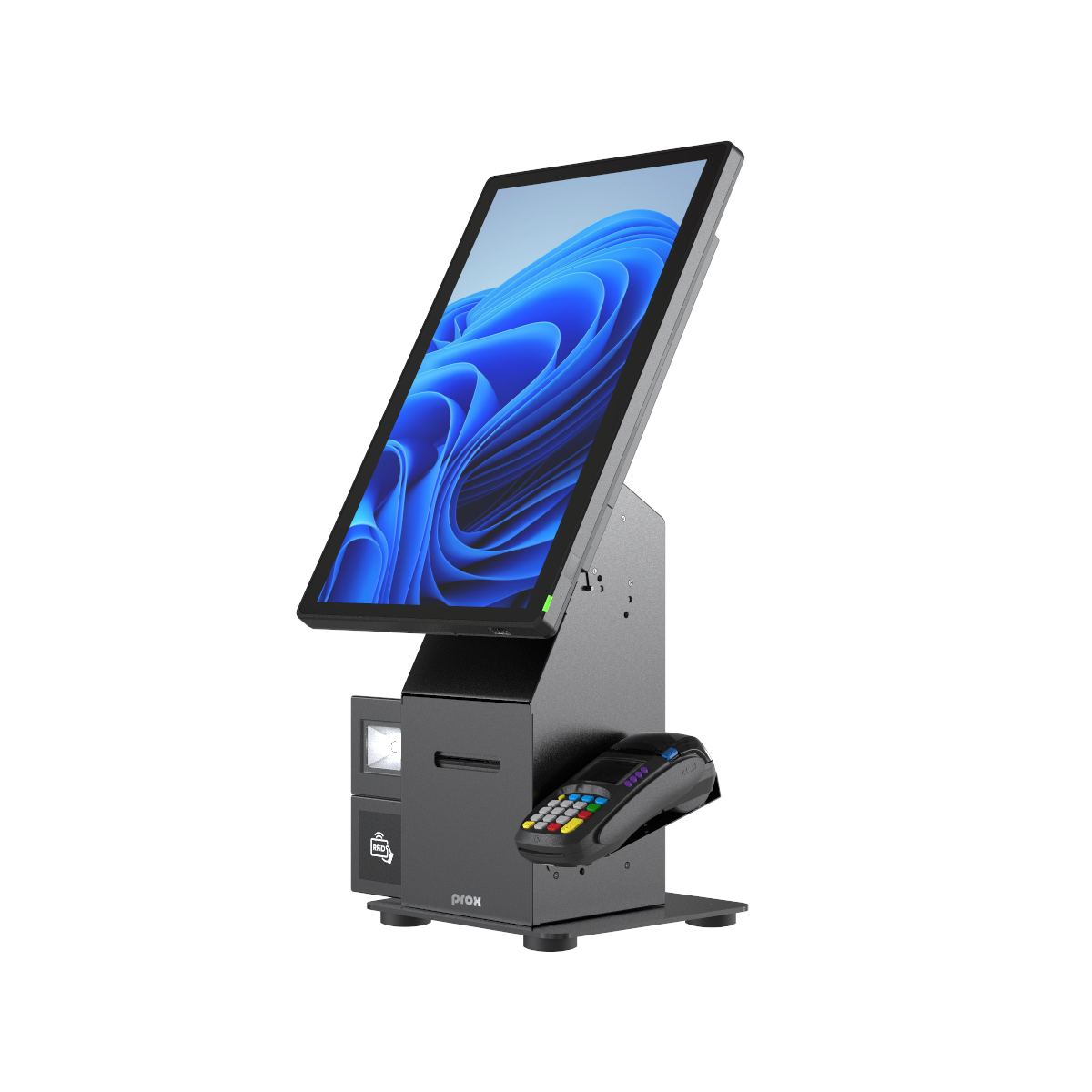

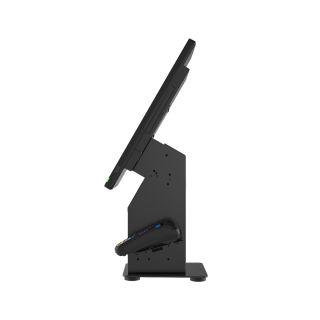

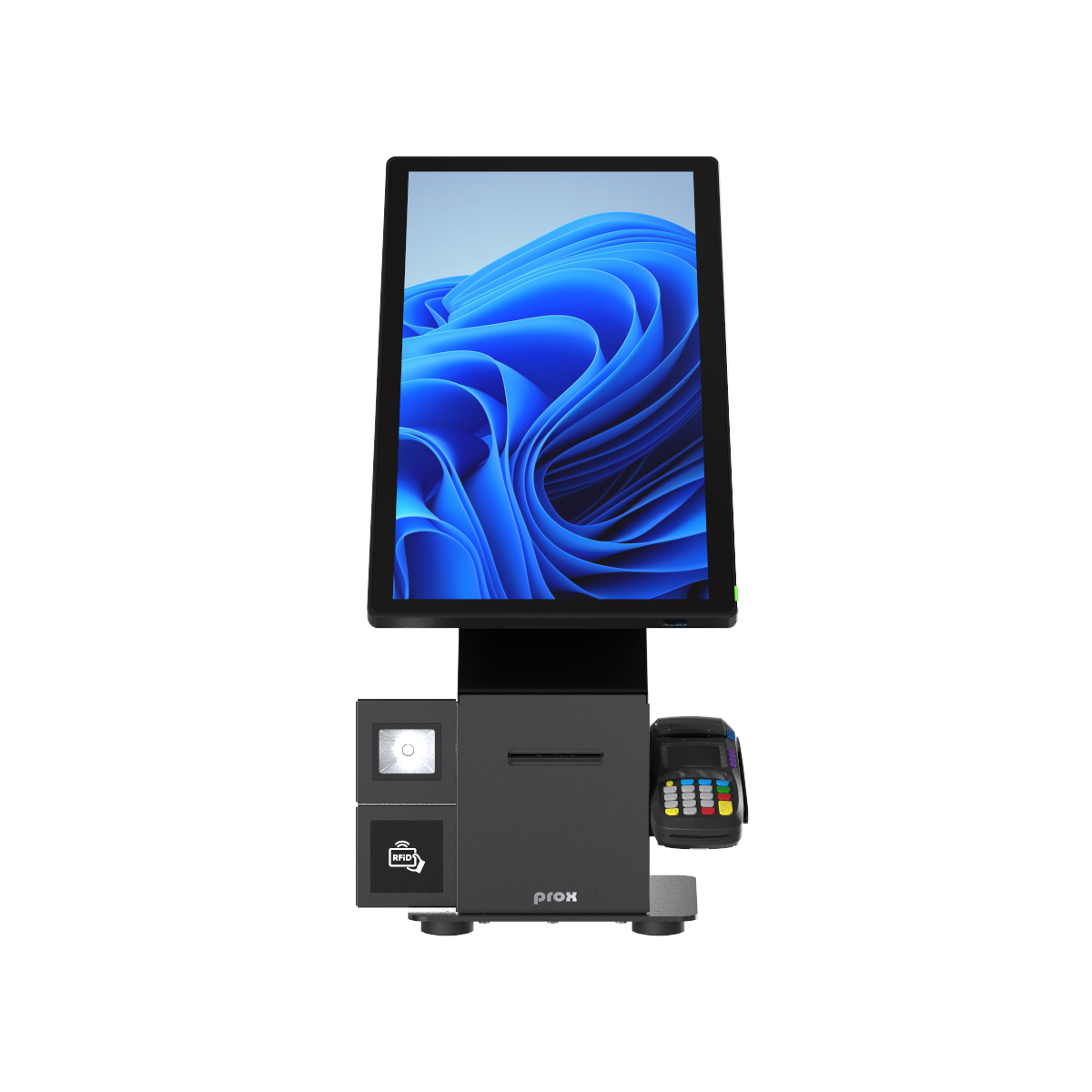

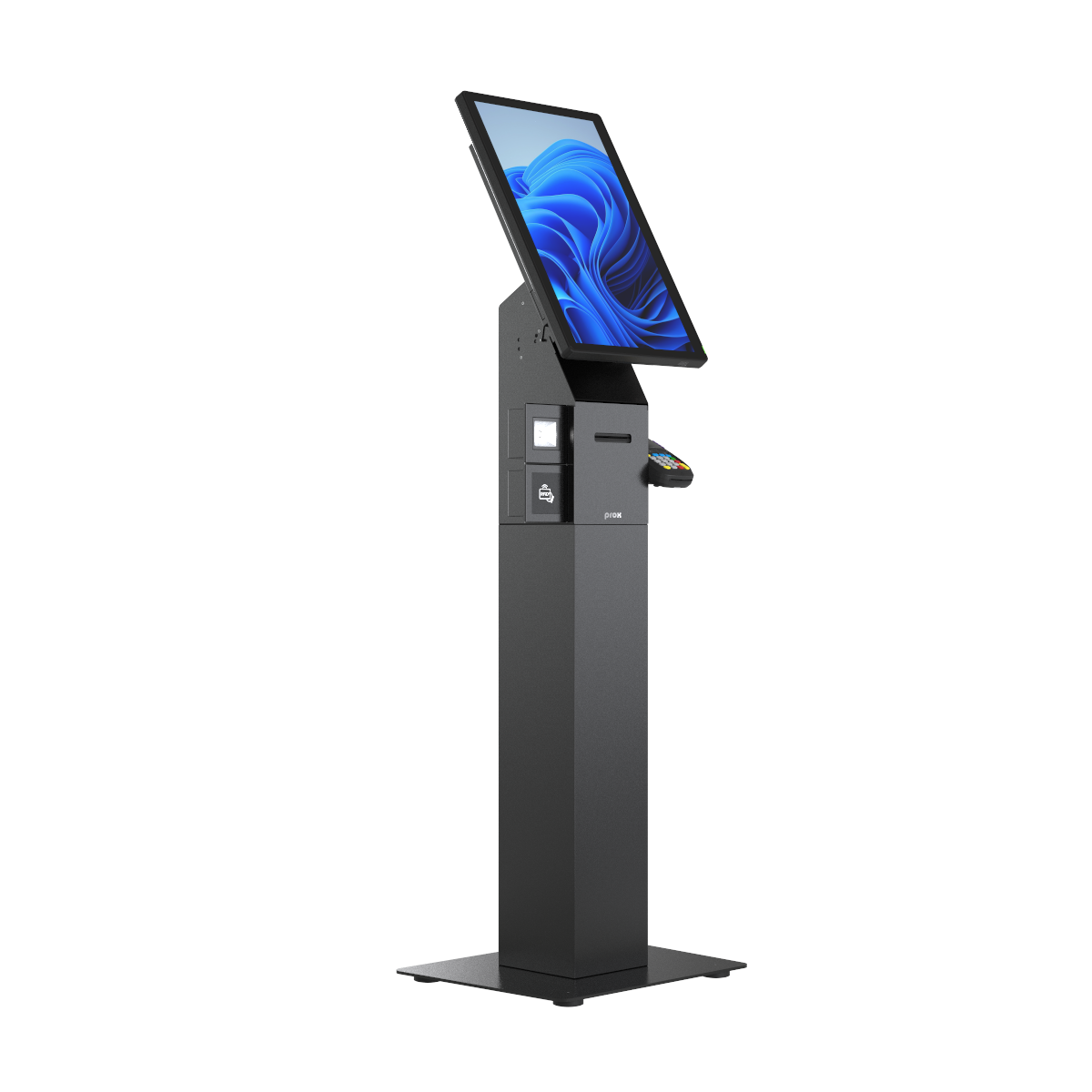

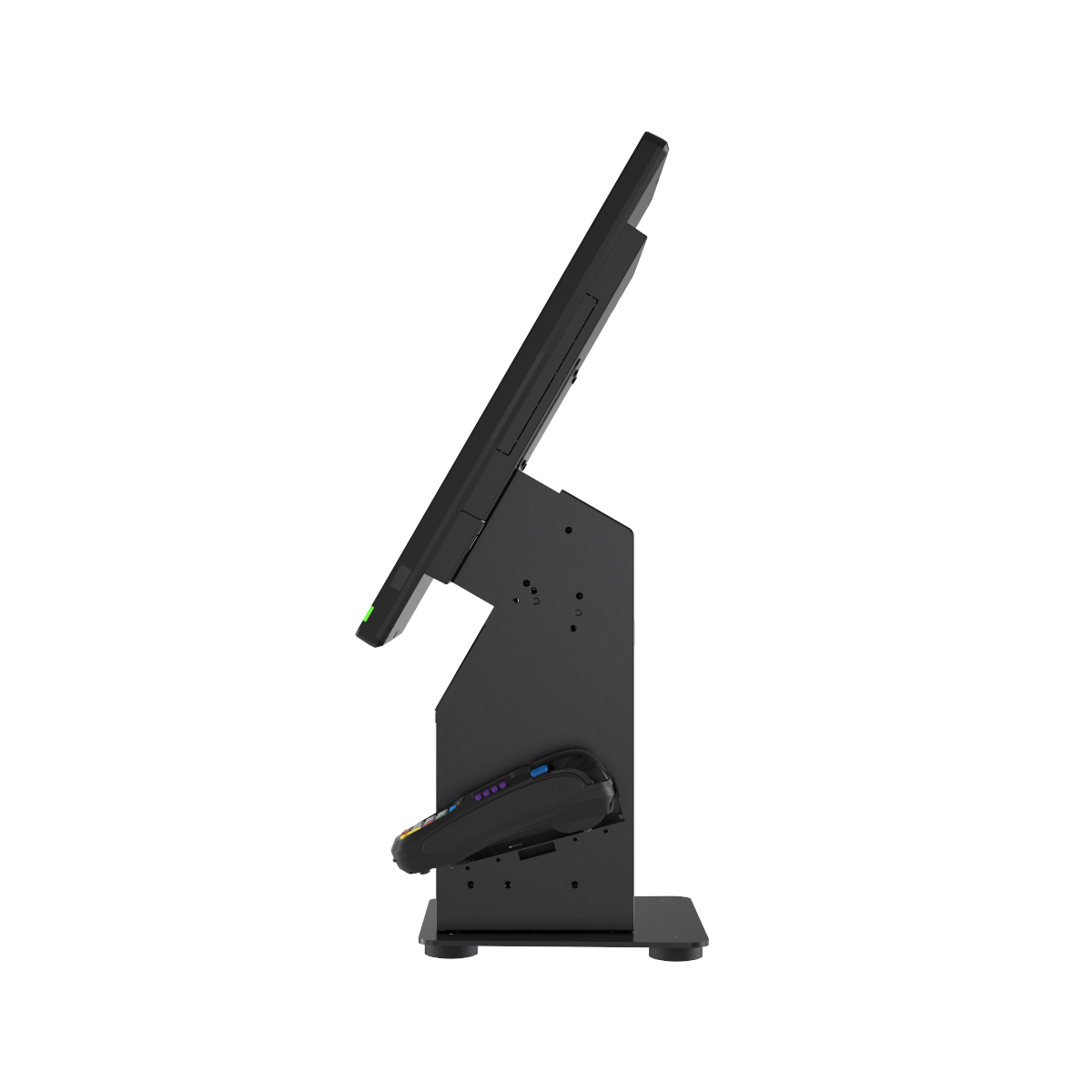

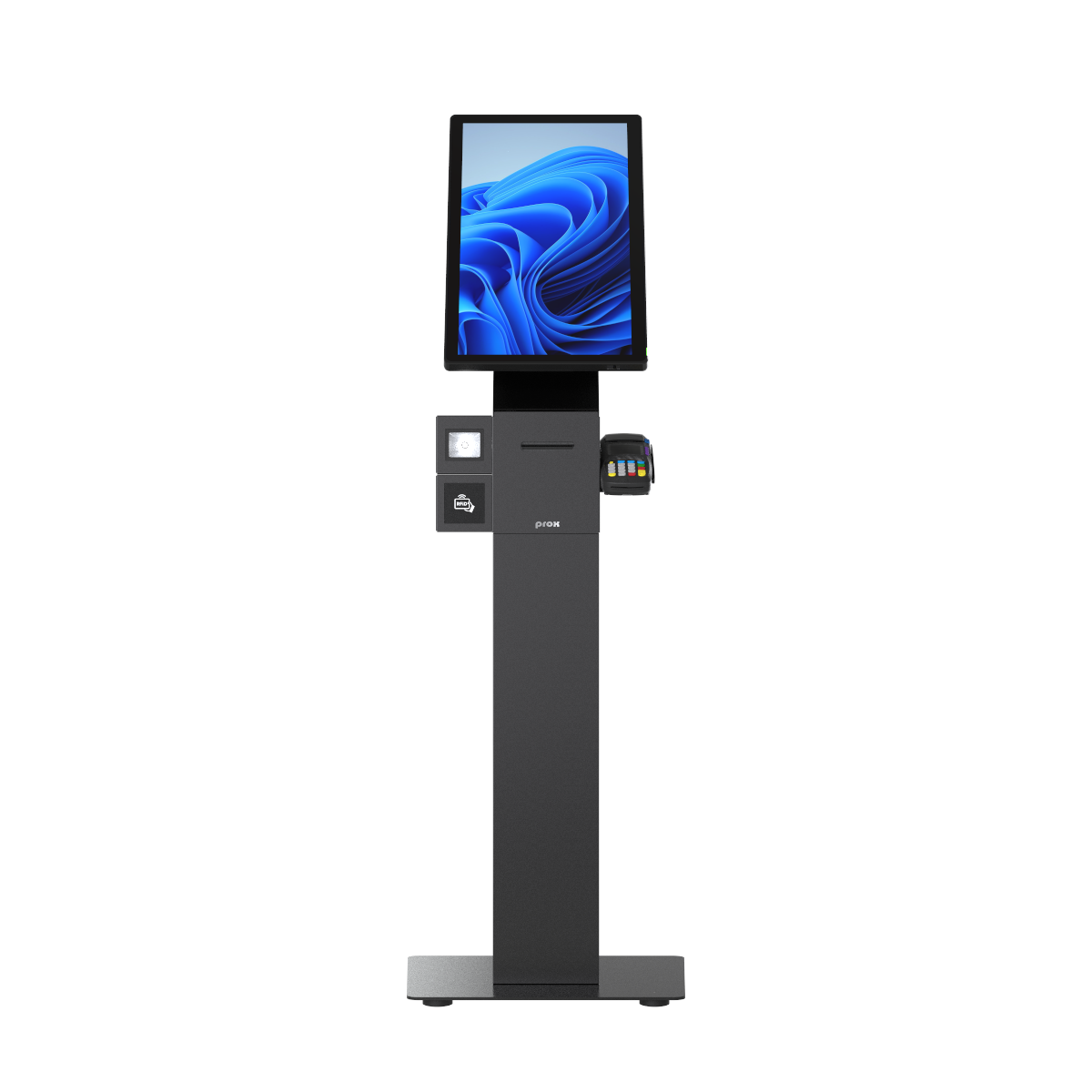

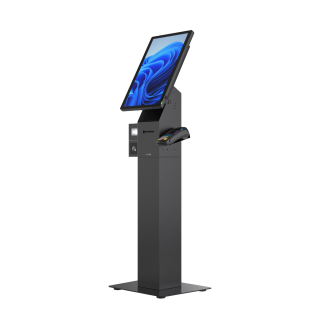

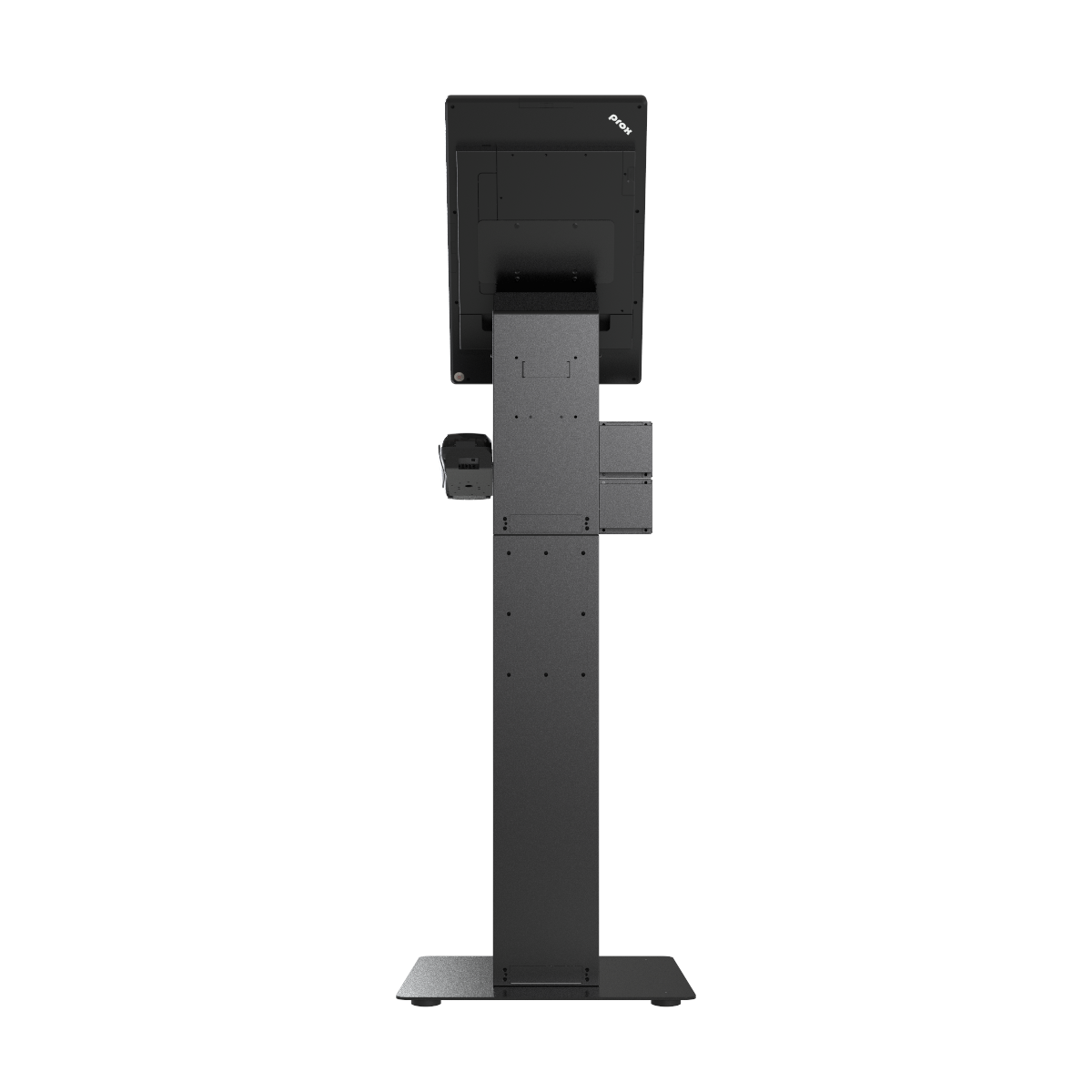

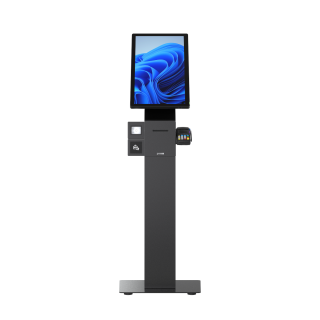

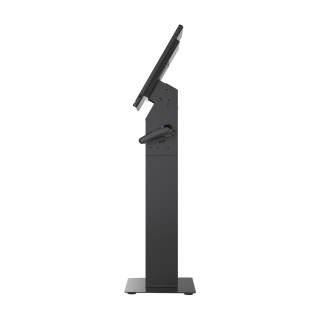

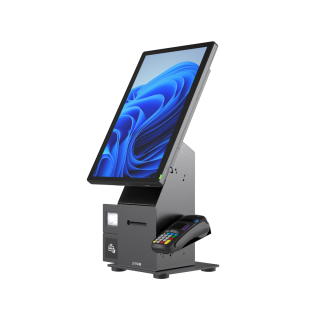

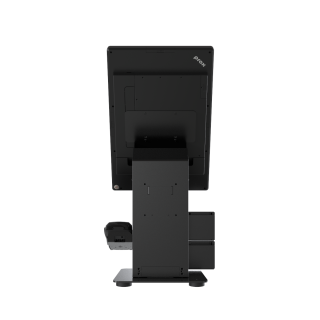

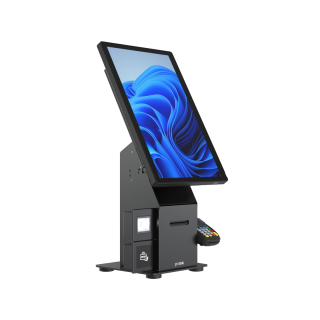

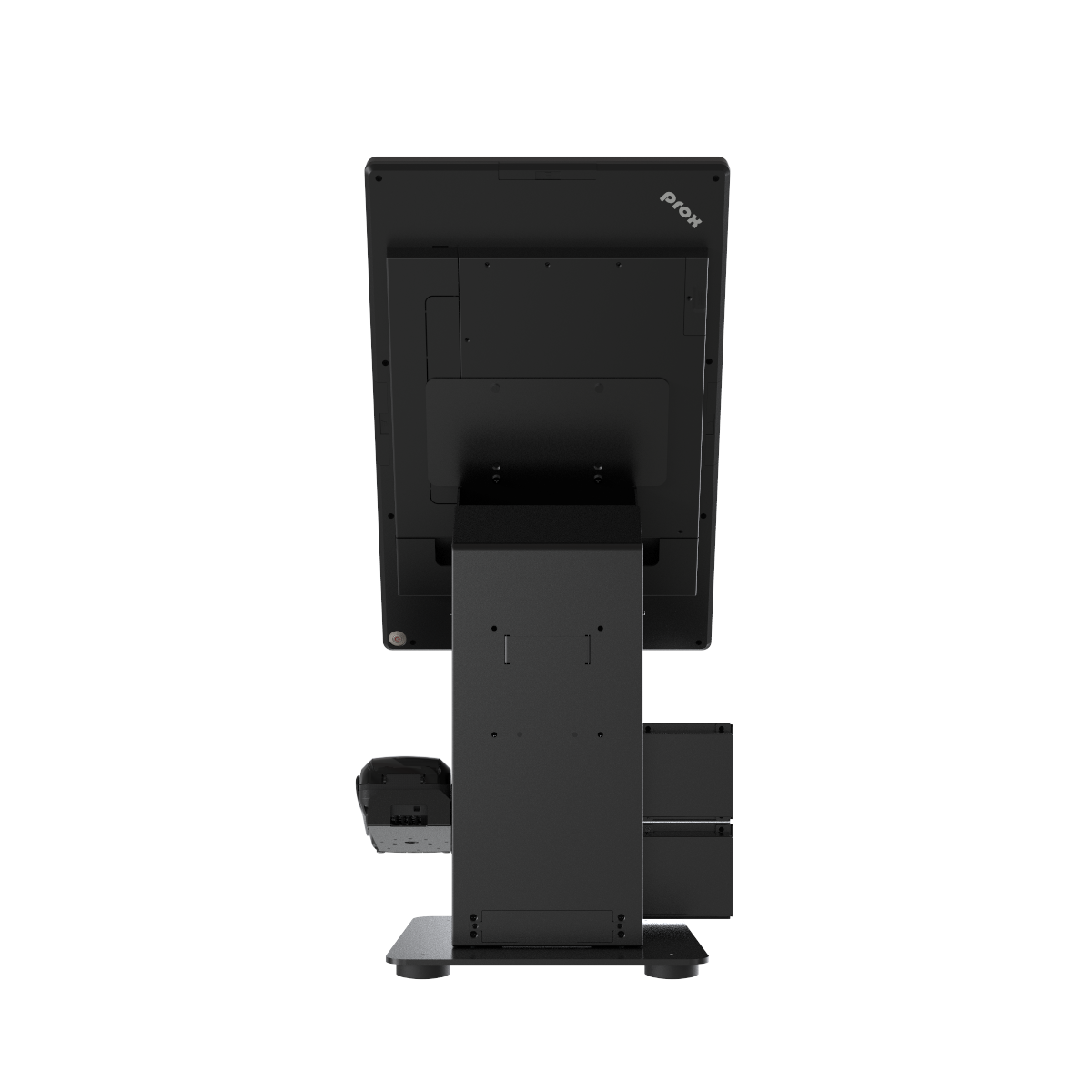

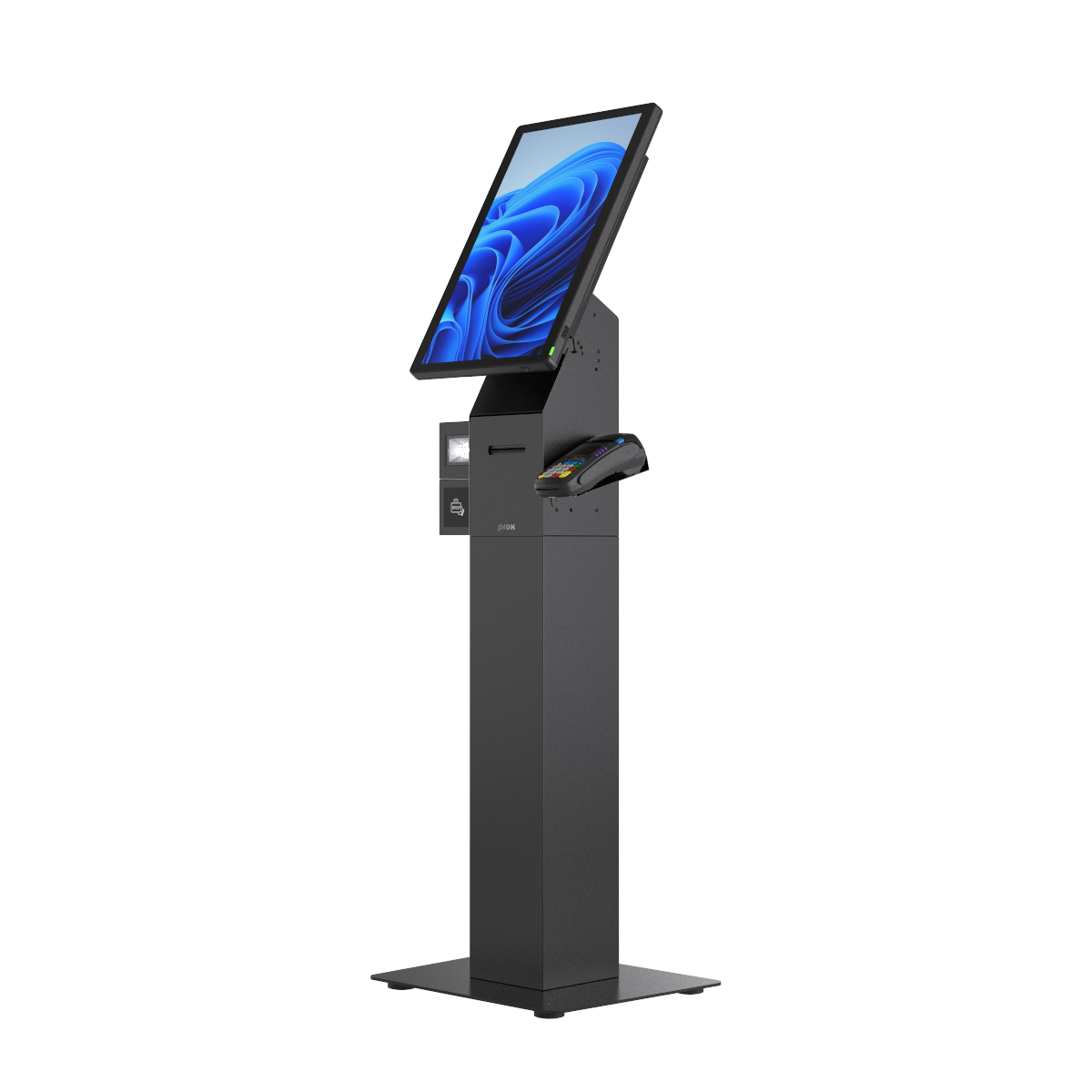

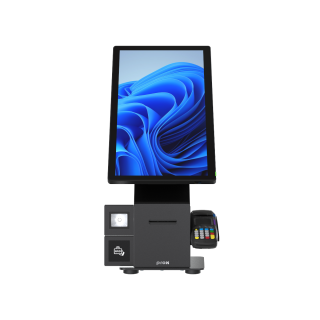

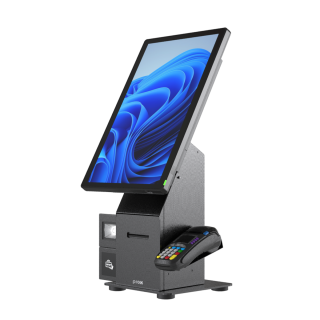

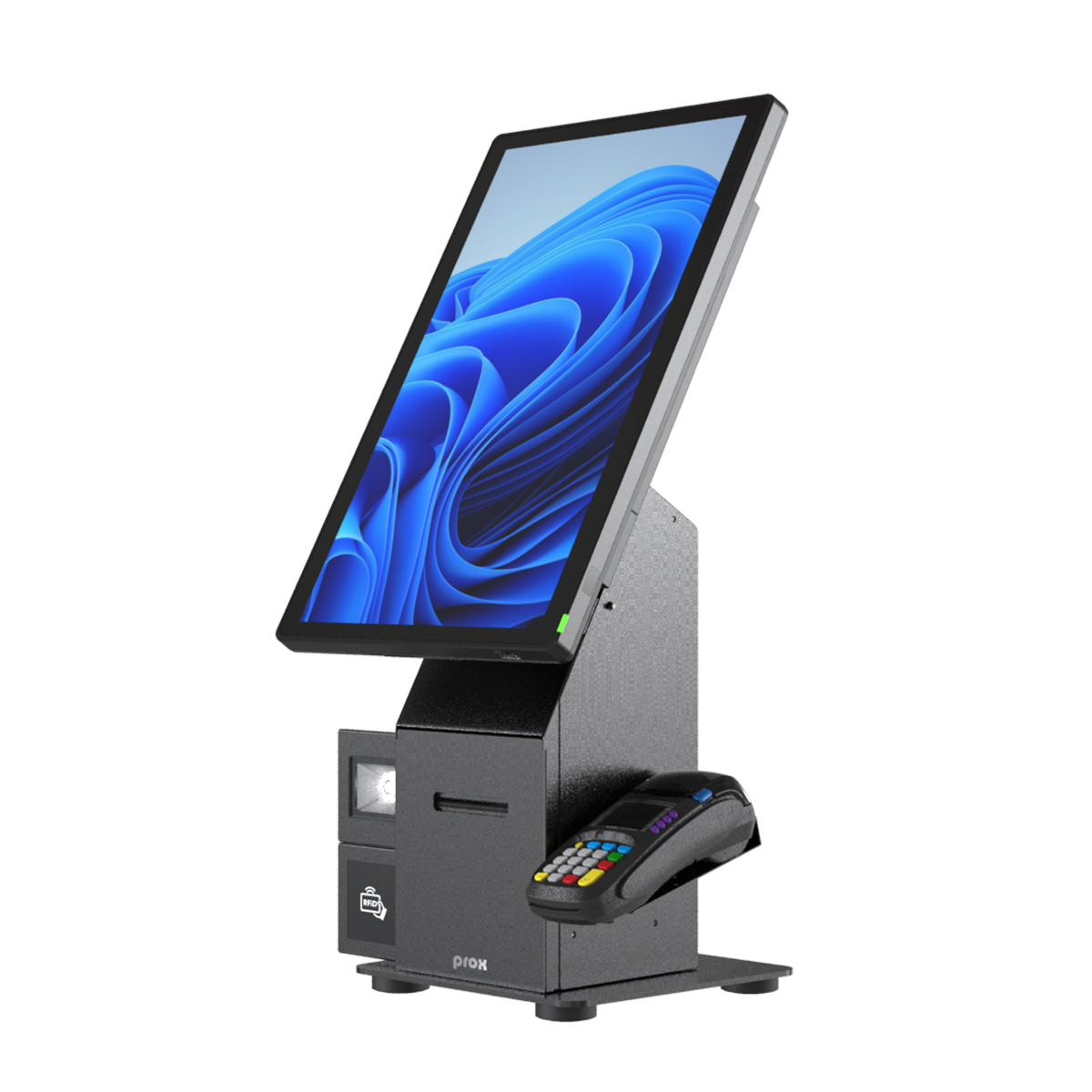

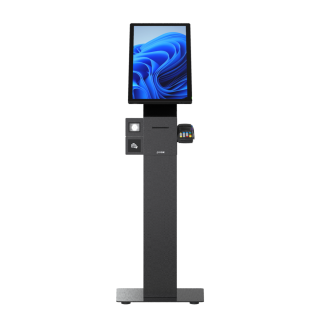

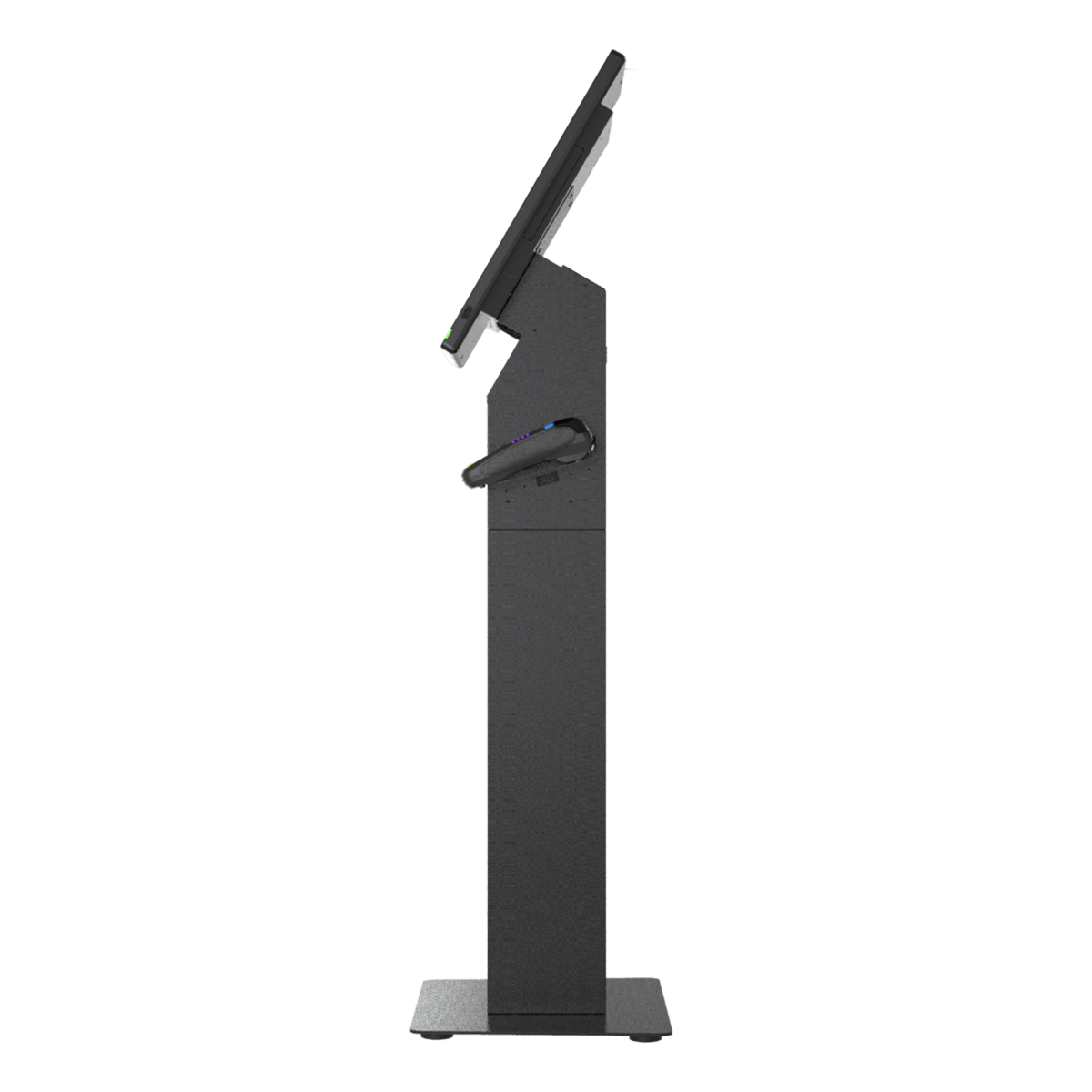

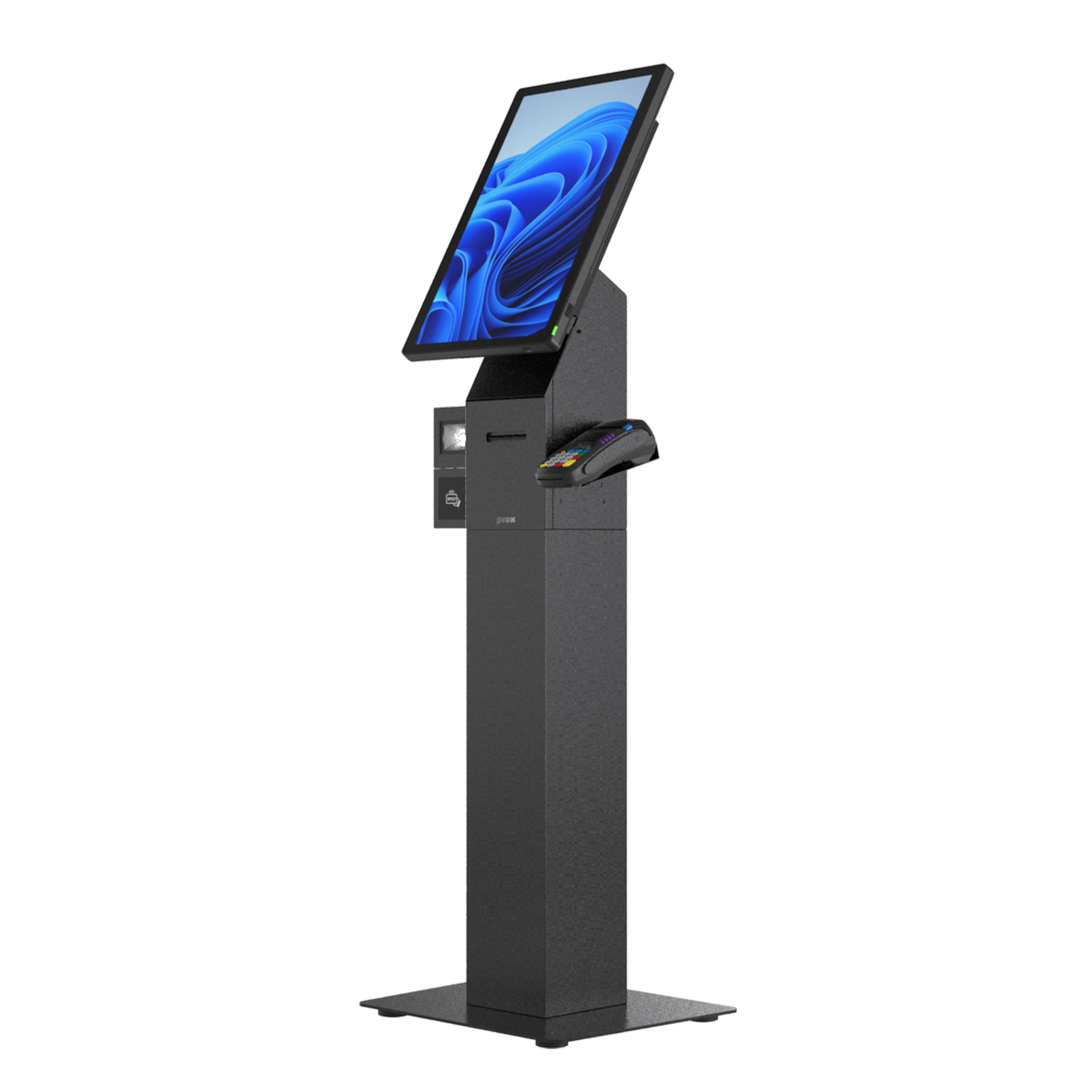

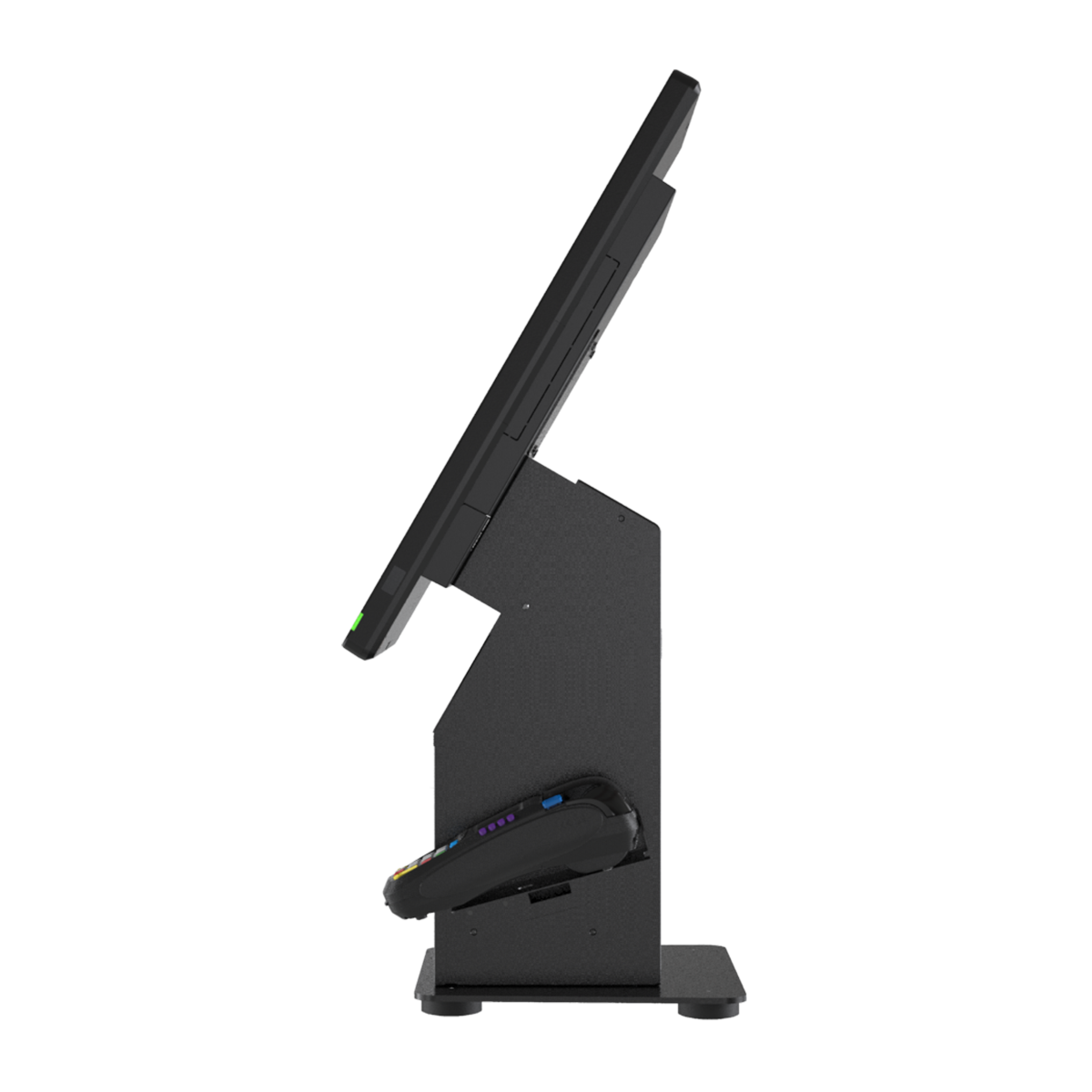

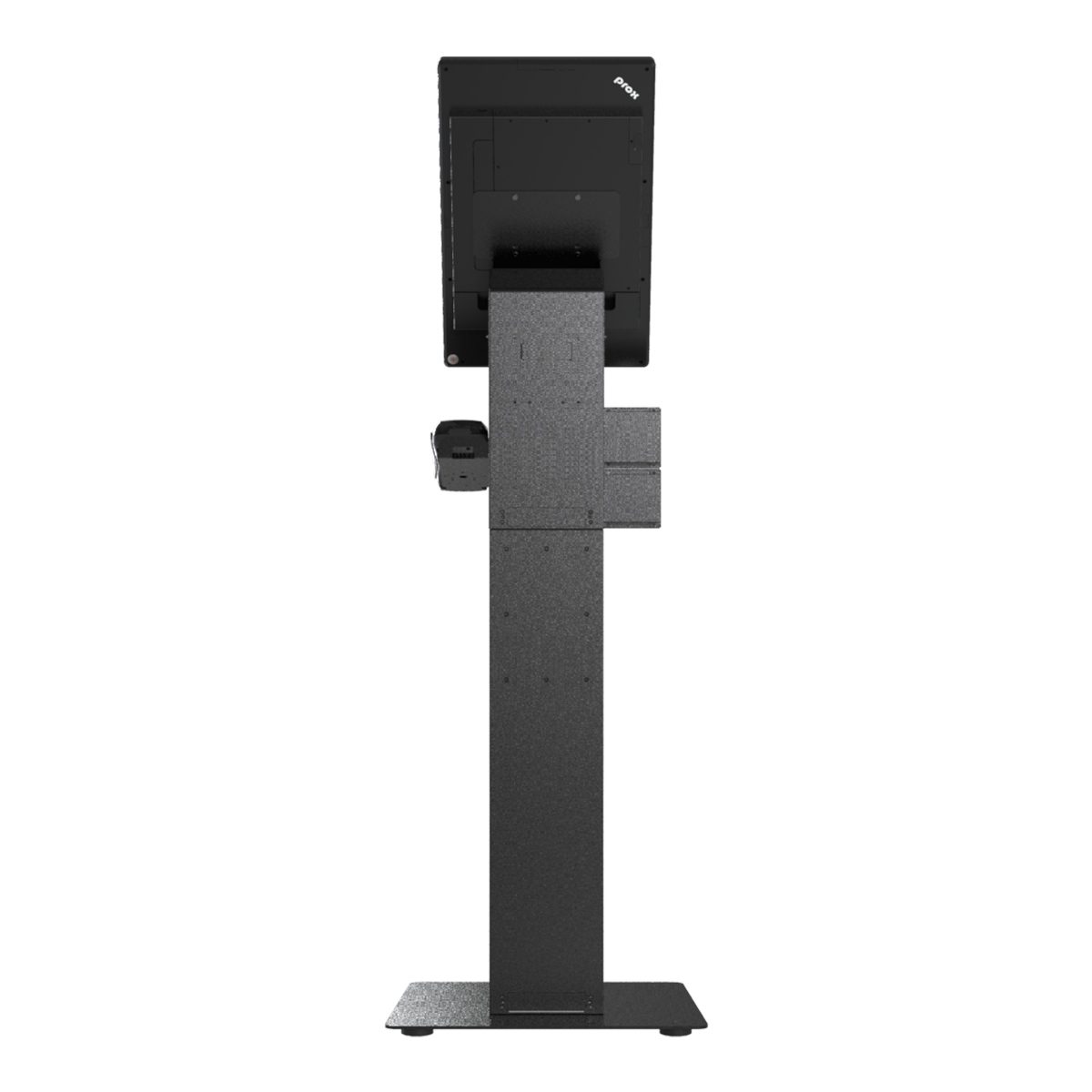

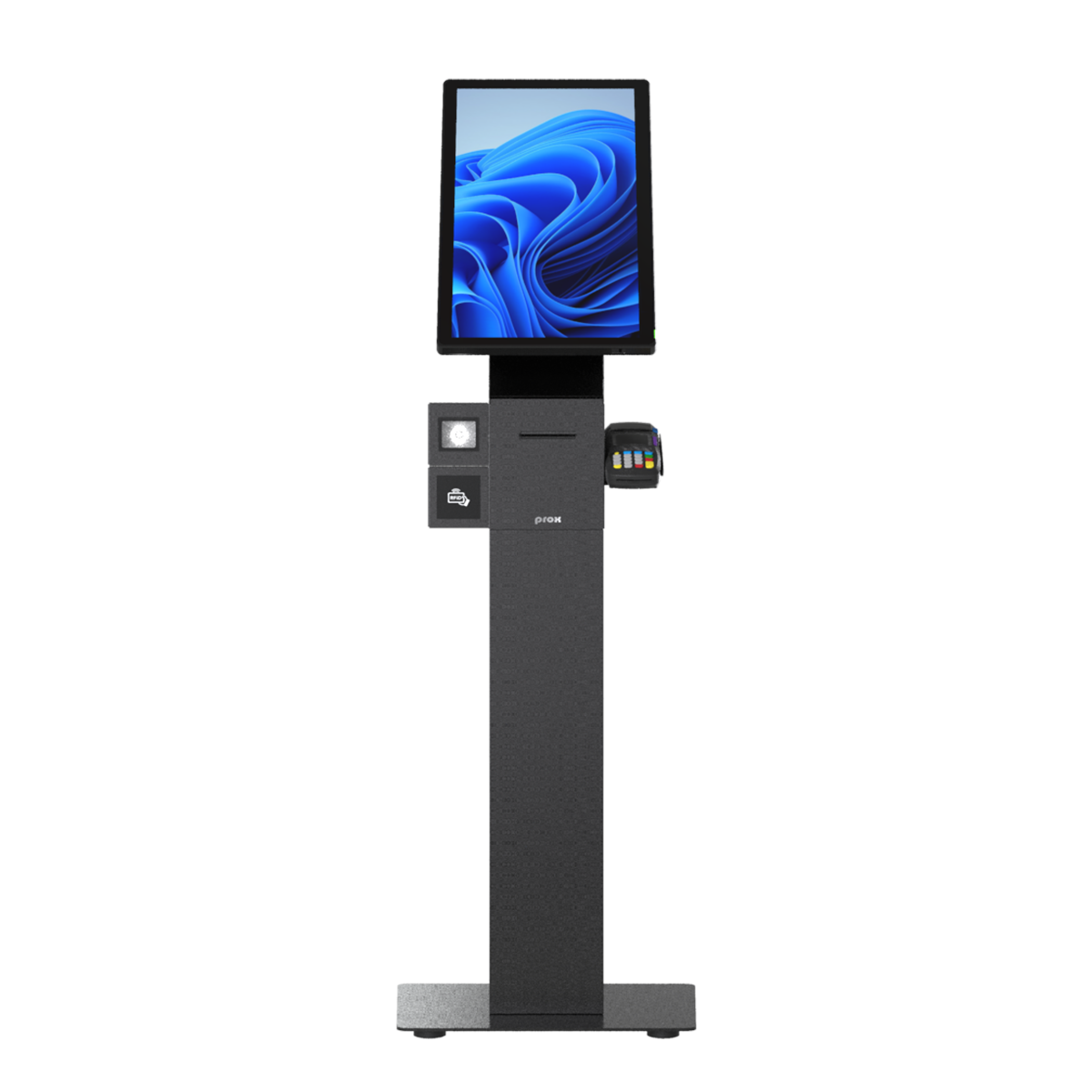

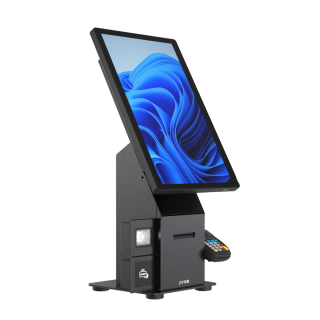

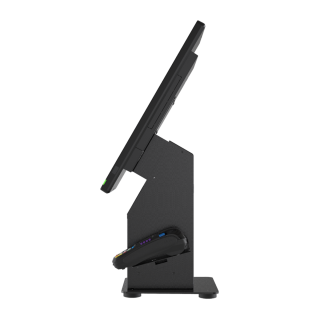

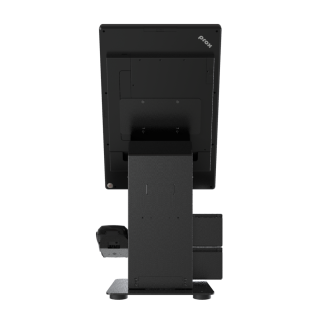

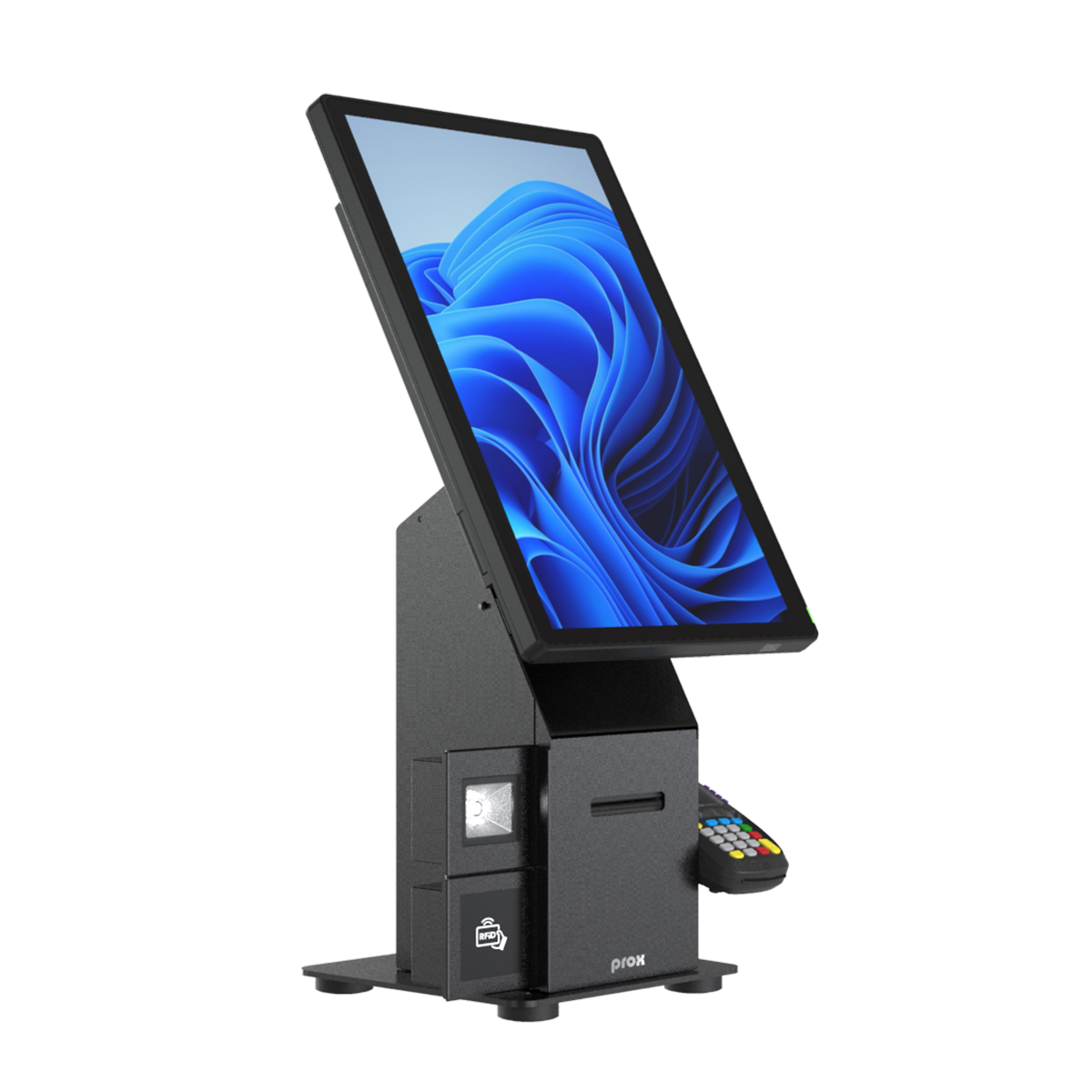

KS-Y600
21.5" / 15.6" Configurable Kiosk with Intel® Core™ Processors
•Intel® Core™ i5-1245UE / i3-1215UE / Celeron® 7305E processor options
•21.5" / 15.6" touchscreen with portrait / landscape flexibility and 3-level tilt adjustment (60°/75°/90°)

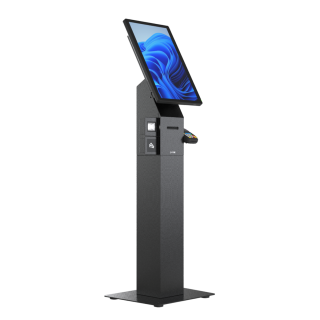

•Convertible Countertop or Floor-Standing configuration with optional lockable casters
•Modular barcode scanner, RFID reader, thermal printer, and side-mounted credit card reader
•Optional noise-reduction omni-directional array microphone and 4W Speakers for advanced voice interaction
•21.5" / 15.6" touchscreen with portrait / landscape flexibility and 3-level tilt adjustment (60°/75°/90°)
•Convertible Countertop or Floor-Standing configuration with optional lockable casters
•Modular barcode scanner, RFID reader, thermal printer, and side-mounted credit card reader
•Optional noise-reduction omni-directional array microphone and 4W Speakers for advanced voice interaction
| CPU Support | |||
| Display | Size |
15.6” (Landscape / Portrait Display) |
21.5”
(Landscape / Portrait Display)
|
| Resolution | HD (1366 x 768) / FHD (1920 x 1080) | FHD (1920 x 1080) | |
| Brightness | HD: 220 nits / FHD: 300 nits | 250 nits | |
| Touchscreen | Projective capacitive | ||
| CPU Support |
Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE |
||
| Memory | 1 x DDR4L SODIMM (up to 32GB) | ||
| Storage | 1 x 2.5” SATA
1 x M.2 2280/2242 M key
|
1 x 2.5” SATA
1 x M.2 2280 M key
|
|
| Power Adapter | 60W / 90W (if printer is equipped) | ||
| Audio |
2W speaker (optional 4W speakers) |
||
| Weight | Countertop Type: 18.95 kg
Floor-Standing Type: 31.28 kg
|
Countertop Type: 19.15 kg
Floor-Standing Type: 31.48 kg
|
|
| Dimensions (W x H x D) | Countertop Type:
357.2 x 628.8 x 304.4 mm (Portrait) 391 x 487.8 x 299.4 mm (Landscape) Floor-Standing Type: 497.8 x 1392.3 x 400 mm (Portrait) 497.8 x 1251.3 x 400 mm (Landscape) |
Countertop Type:
357.2 x 767.5 x 291.5 mm (Portrait) 535 x 585.7 x 291.5 mm (Landscape) Floor-Standing Type: 497.8 x 1530.7 x 400 mm (Portrait) 535 x 1349.2 x 400 mm (Landscape) |
|
| O.S. Support | Windows® 11 / Windows® 10 | ||
| I/O Ports | |||
| USB | 3 x USB 2.0 / 2 x USB 3.1 | 2 x USB 2.0 / 2 x USB 3.1 | |
| Serial Ports | 3 x COM (RJ-50) + 1 x COM (optional)
COM1 & COM2: 5V/12V selectable by jumper
|
3 x COM (RJ-50)
5V/12V selectable by jumper
|
|
| Display |
1 x HDMI™ 1 x VGA (DB-15, optional)
|
1 x HDMI™ |
|
| Audio | Line out / Mic in (optional) | ||
| Ethernet | 1 x 2.5GbE (RJ45) | ||
| Add-ons (optional) | |||
| Printer | Standalone thermal printer, supporting 2” (58 mm) / 3” (80 mm) paper roll | ||
| RFID | ISO14443A MIFARE® Ultra-Light /1K / PRO | ||
| Barcode Scanner | 1D / 2D Barcode Scanner | ||
| Microphone | Omni-directional array microphone with noise reduction up to 3 m | ||
| Camera | 5MP front camera (available on 21.5” model) | ||
| Environment | |||
| Certification | CE, FCC | ||
| Operating Temperature | 0°C ~ 35°C (32°F ~ 95°F) | ||
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) | ||
| Storage Humidity | 20% ~ 85% | ||

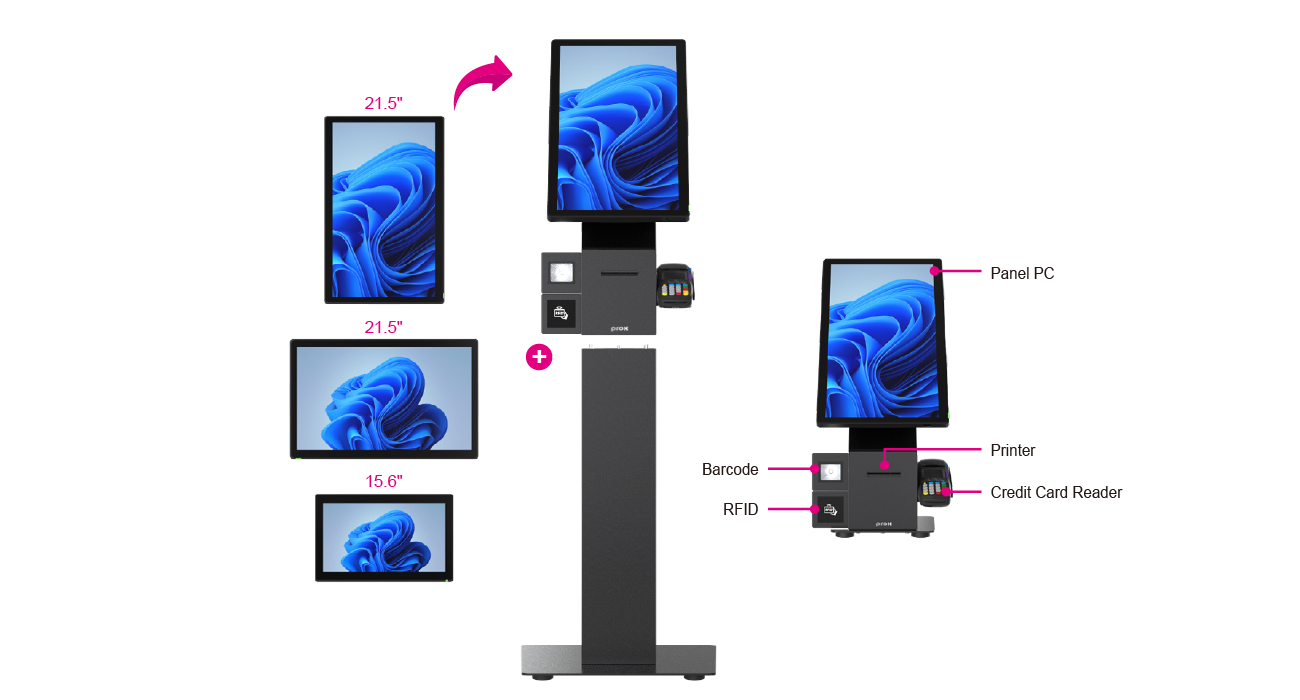

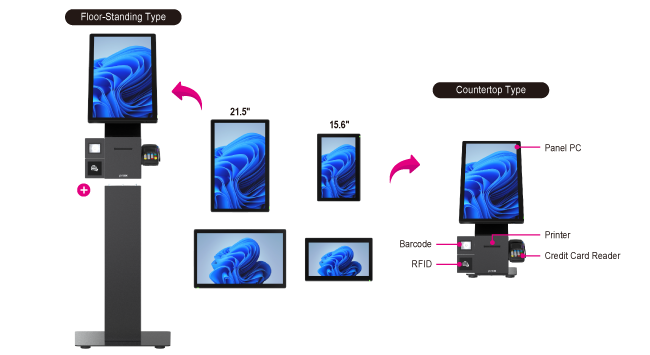

KS-Y600 Highlight

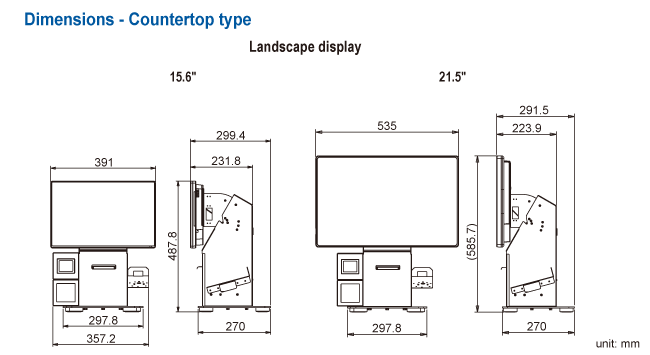

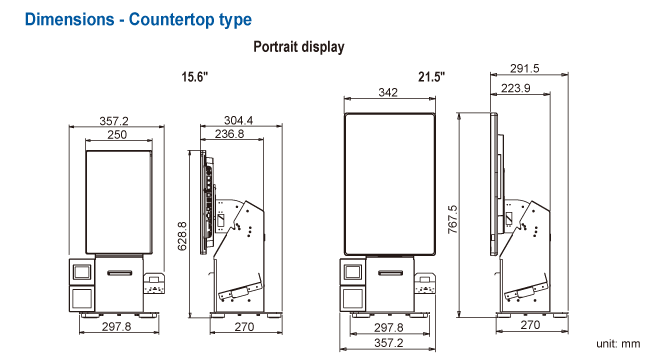

KS-Y600 Dimensions - Countertop type
KS-Y600 Dimensions - Countertop type

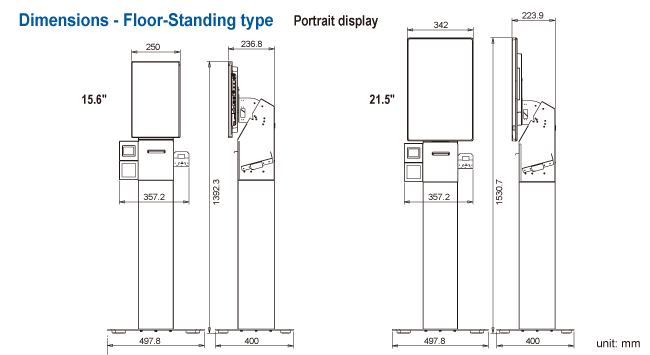

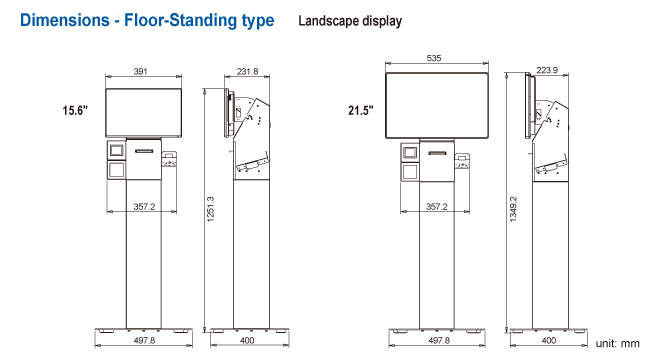

KS-Y600 Dimensions- Floor-Standing type
KS-Y600 Dimensions- Floor-Standing type
| KS-Y600 |
21.5" / 15.6" Configurable Kiosk with Intel® Core™ Processors |
| File type | File Download |
| EDM | KS-Y600_EDM.PDF |
| Pictures | KS-Y600_Pictures.ZIP |
