KS-Y121

21.5" Multi-Functional Self-Service Kiosk
•Powered by Intel® Core™ i5 / i3 / Celeron®
•Full HD display with P-Cap touch panel
•Ergonomic design for best user experience
•Capable of self-service & digital signage
•Stylish & ideal for all scenarios and applications

 System

 CPU Support

Intel® Core i5-1145G7E

Intel® Core i3-1115G4E

Intel® Celeron® 6305E

 Memory 1 x DDR4 SO-DIMM slot (default 4GB)
 HDD

1 x M.2 2280 SATA III or NVME SSD (default 128GB)

 Network

1 x 10/100/1000 Base-T Gigabit Ethernet (RJ45)

2 x RJ45 Reserved Connectors
 Power Supply 100-240V available
 System Weight 35 kg
 Dimensions (W x H x D) 360 x 732 x 218 mm
 O.S. Support Windows 11 / Windows 10
 Operating Display
 LCD 21.5" TFT LCD
 Max. Resolution 1920 x 1080
 Brightness 250 cd/m²
 Touchscreen Projected capacitive touch
 Viewing Angle Horizontal: (R) 89°/ (L) 89°
Vertical: (U) 89°/ (L) 89°

 Add-ons

Barcode Scanner

1D: EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, I2Of5, ITF-14, ITF-6,

Matrix 25, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25,

Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, Code 49,

Code 16K



2D: PDF 417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode,

Chinese Sensible Code, GM Code, Micro PDF417 Code, Code One

Thermal Printer

HPRT TP-808

Resolution 203dpi,8dots/mm

Print Speed 260mm/s

WINPOS K837V

Resolution 203dpi

Print Speed 170mm/s

 Environment
 EMC & Safety CE / FCC
Operating Temp 0°C~40°C
Storage Temp. 0°C~60°C
 Humidity 20%~85% (no condensation)





KS-Y121 Video

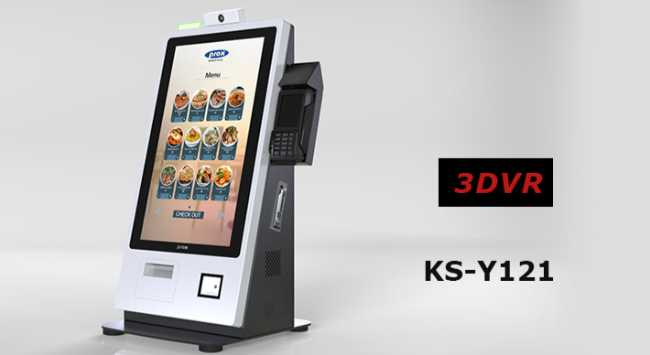

KS-Y121 3DVR


Y121-1300-710

KS-Y121  Highlight

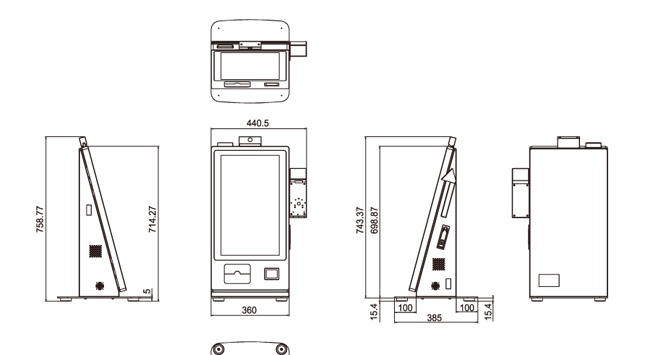

KS-Y121  Dimension


 KS-Y121

21.5" Multi-Functional Self-Service Kiosk

 File type File Download
 EDM KS-Y121_EDM.PDF
 Pictures KS-Y121_Pictures.ZIP
 Manual KS-Y121_Manual.PDF
 QuickGuide KS-Y121_QuickGuide.PDF
 README KS-Y121_README.PDF
 BIOS KS-Y121_BIOS.ZIP
 Device KS-Y121_Device.ZIP
 Platform KS-Y121_Platform.ZIP
