KS-M331

32" Multi-Function Self Ordering Kiosk
•Features
•QSR, fast casual restaurant and ticketing market
•Large screen menu for self ordering application
•Wall-mount / dual-side / floor-stand
•Compact design with 32" touchscreen
•Available with Intel Core-i
•Available with Windows 11 Enterprise, Windows 10 IoT
•Motion sensor for marketing applications
•Easy maintenance via modular design
 System  CPU Type

Intel® Core™ i5-1145G7E

Intel® Core™ i3-1115G4E

Intel® Celeron® 6305E
 Memory 1 x DDR4 SO-DIMM socket (default 4GB)
 HDD

1 x M.2 2280 SATA III or NVMe SSD (default 128GB)

 Network

1 x Gigabit 10/100/1000 Base-T Fast Ethernet (RJ45)

2 x RJ45 reserved connectors
 Power Supply 100-240V available
 System Weight

34 kg without floor stand

63 kg with floor stand
 Dimensions (W x H x D)

With Stand: 440 x 1780 x 550 mm

Without Stand: 478 x 966 x 73 mm
 O.S. Support Windows® 11 / Windows® 10
Operating Display  LCD 32" TFT LCD
 Max. Resolution 1920 x 1080
 Brightness 250 cd/m²
 Touchscreen Projected capacitive touch
 Viewing Angle Horizontal: (R) 89°/ (L) 89°
Vertical: (U) 89°/ (L) 89°
 Add-ons Barcode Scanner

2D:PDF 417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode, Chinese Sensible Code, GM Code, Micro PDF417 Code, Code One

1D:EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, I2Of5, ITF-14, ITF-6, Matrix 25, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K
Thermal Printer



2" or 3" standalone thermal printer for 80 mm paper roll



 Environment  EMC & Safety CE / FCC
Operating Temp 0°C~40°C
Storage Temp. 0°C~60°C
 Humidity 20%~85% (no condensation)





KS-M331 Video

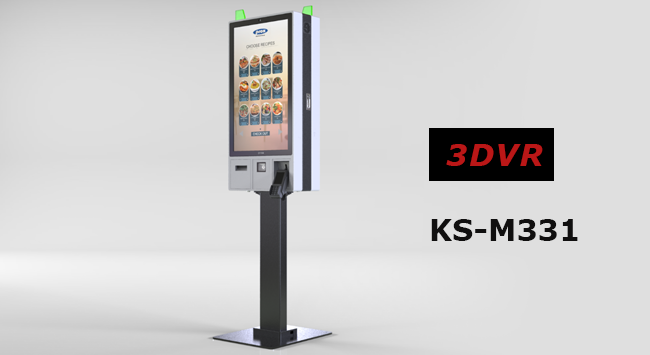

KS-M331 3DVR

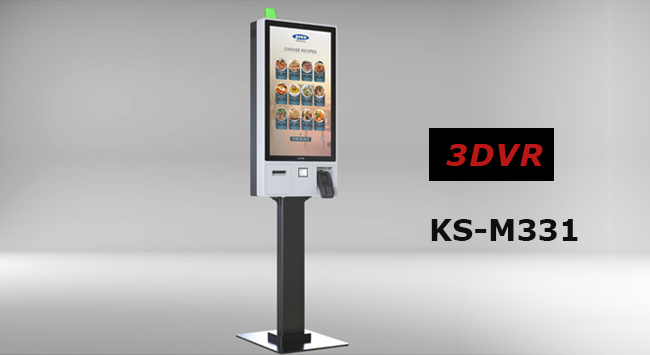

KS-M331 3DVR


KS-M331 Highlight

KS-M331 IO



 KS-M331

32" Multi-Function Self Ordering Kiosk

 File type File Download
 EDM KS-M331_EDM
 Pictures KS-M331_Pictures
 Manual KS-M331_Manual.PDF
 QuickGuide KS-M331_QuickGuide.PDF
 Driver README KS-M331_README.PDF
 BIOS KS-M331_BIOS.ZIP
 Device KS-M331_Device.ZIP
 Platform KS-M331_Platform.ZIP
 Other KS-M331_Other.ZIP
