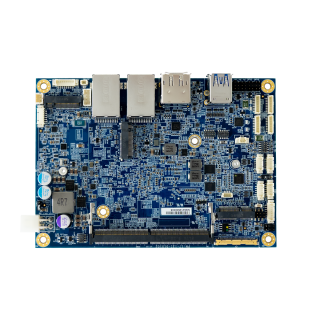

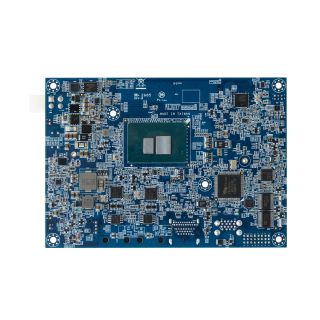

BE-U101
Industrial 3.5" SBC with Intel® Core™ Processor N Series / Atom® Processor X Series
•Supports Intel® Core™ Processor N Series / Atom® Processor X Series
•Flexible connectivity with dual 2.5GbE LAN, 6 x USB, and 4 x COM via rear and onboard I/O
•Dual display support via HDMI™ and DP
•Versatile M.2 expansion
•Wide-range 9–36V DC Input
•Flexible connectivity with dual 2.5GbE LAN, 6 x USB, and 4 x COM via rear and onboard I/O
•Dual display support via HDMI™ and DP
•Versatile M.2 expansion
•Wide-range 9–36V DC Input
| System | ||
| CPU Support |
Intel® Core™ 3 N355 Intel® Core™ i3-N305 Intel® Processor N250 / N200 / N150 / N97 / N50 Intel® Atom® x7433RE / x7213RE / x7211RE |
|
| Graphics |
Intel® UHD Graphics
|
|
| Memory Support | 1 x DDR5 SODIMM 4800MHz (up to 16GB) | |
| Storage | 1 x M.2 2242 M Key (PCIe Gen3 x2) | |
| Display output |
1 x HDMI™ / up to 4096 x 2160 @60Hz (Rear I/O) 1 x DP / up to 4096 x 2304 @60Hz (Rear I/O)
|
|
| Expansion Slot | 1 x M.2 3042 B Key (PCIe, USB 3.0, USB 2.0, and SIM)
1 x M.2 2230 E Key (PCIe and USB 2.0)
|
|
| Power Input | DC-in 9-36V | |
| Dimensions (W x H x D) | 145 x 102 mm (5.71" x 4.02") | |
| Watchdog | 1-255 seconds watchdog timer selectable | |
| TPM |
TPM 2.0 |
|
| Operating System |
Windows 11 IoT Enterprise LTSC 2024 Ubuntu 22.04 LTS |
|
| Certifications |
FCC Class A / CE (EMC, LVD) |
|
|
I/O ports |
||
| USB |
2 x USB 3.2 Gen2 (Rear I/O) 4 x USB 2.0 (onboard header)
|
|
| Serial Ports |
4 x COM (onboard header) COM 3/4: RS-232/422/485 (RI / +5V / +12V selectable) |
|
| Ethernet |
2 x 2.5GbE LAN via Intel® I226-IT (Rear I/O)
|
|
| Audio |
Audio via pin header |
|
| Environment | ||
| Operating Temperature
(Ambient with airflow)
|
0°C~60°C (32°F~140°F) with standard heatsink | |
| Storage Temperature | -40°C - 85°C (-4°F - 185°F) | |
| Storage Humidity | 20% - 95% | |

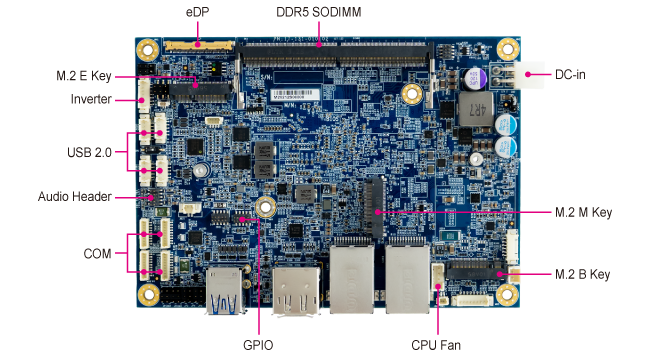

BE-U101 Highlight

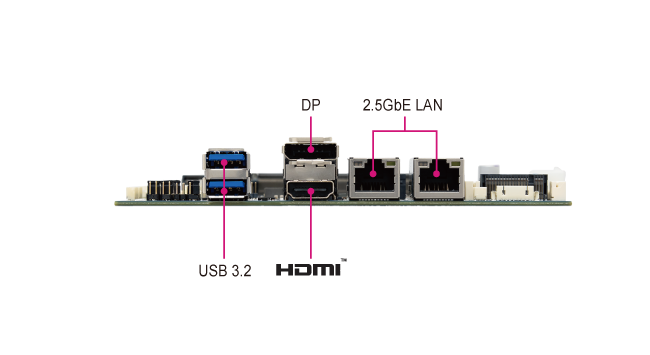

BE-U101 IO

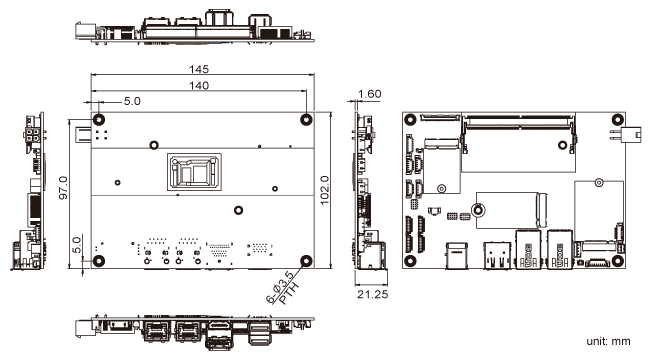

BE-U101 Dimensions
