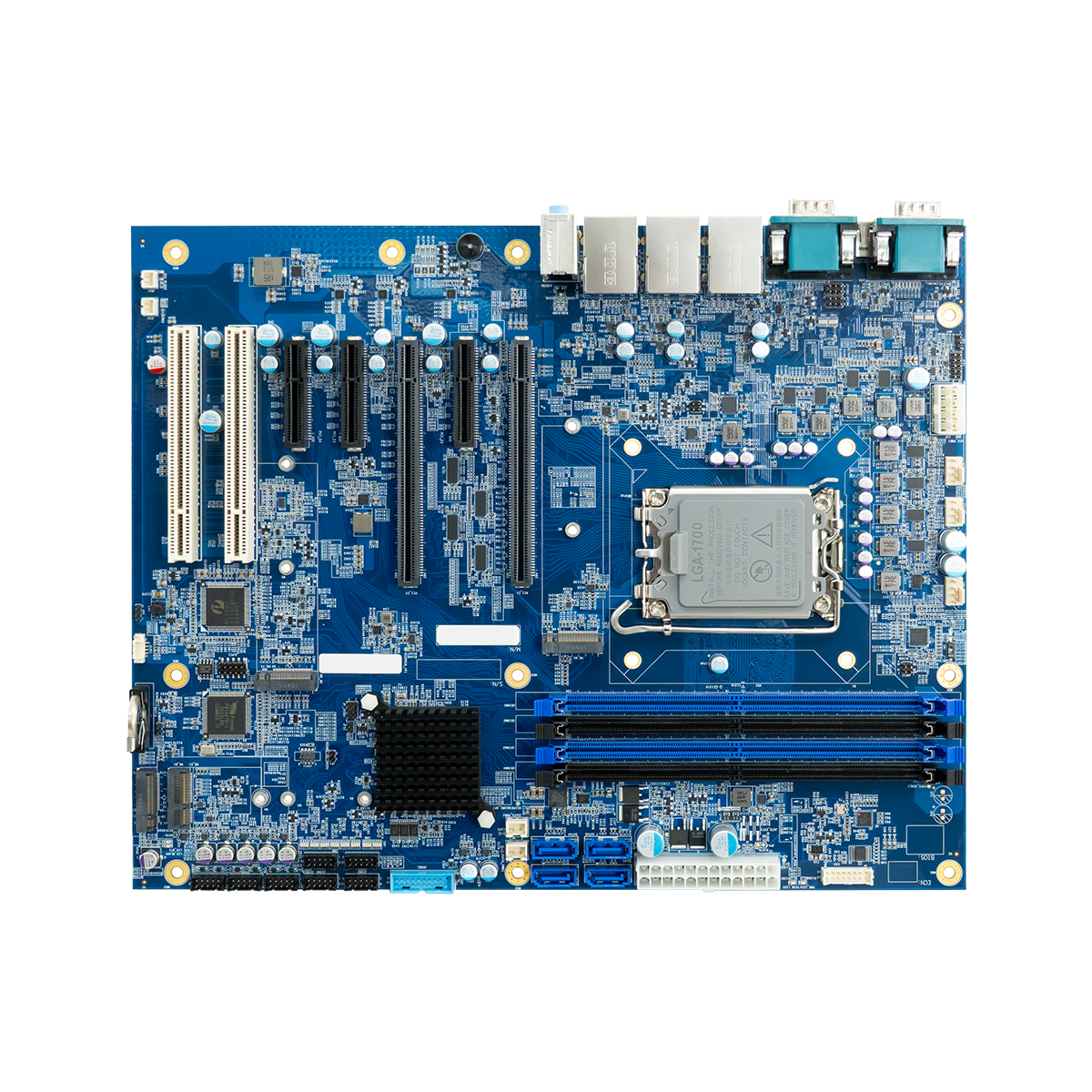

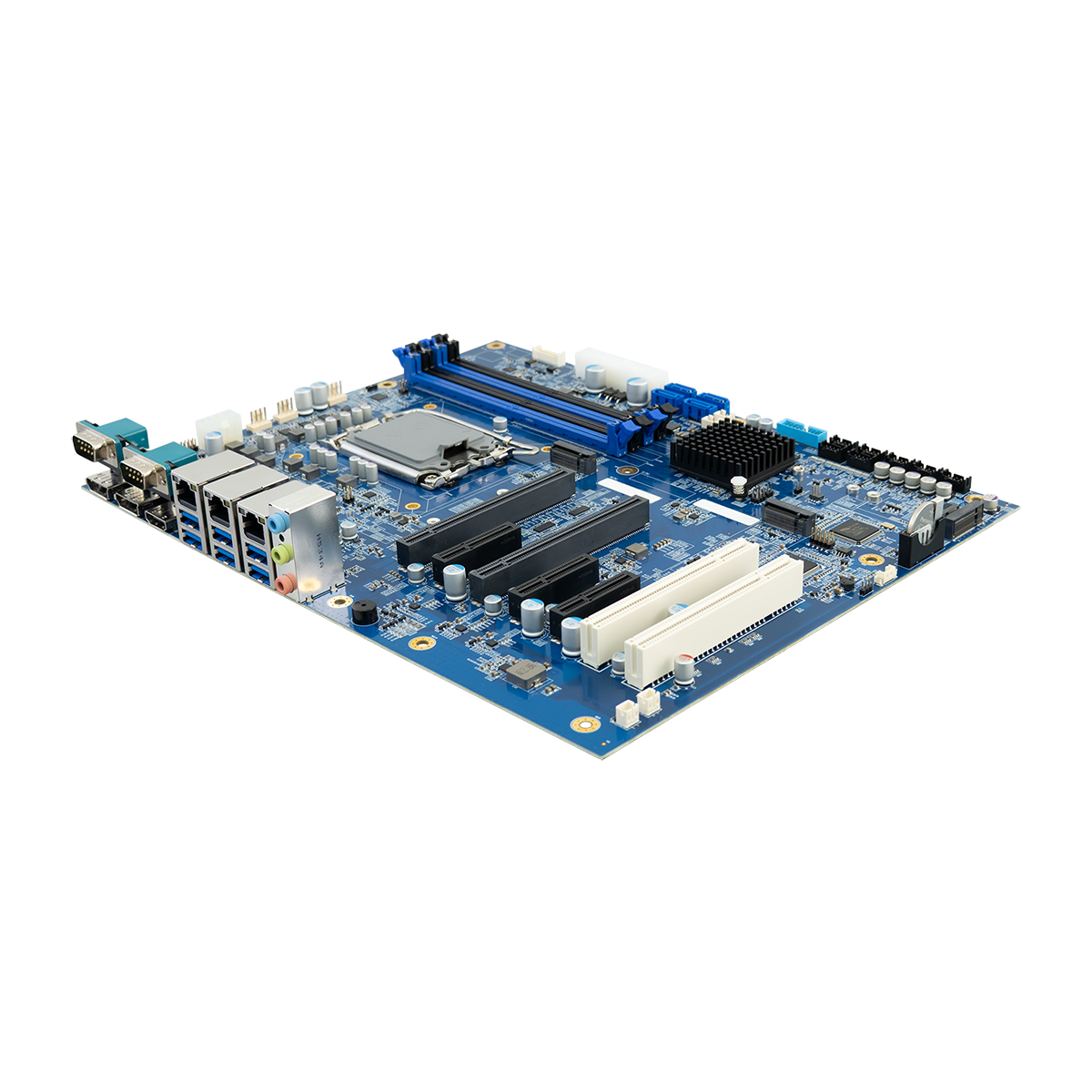

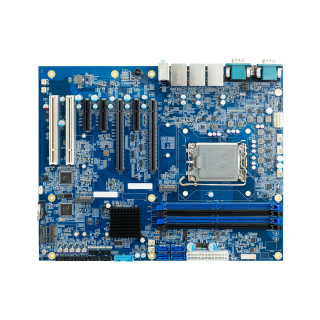

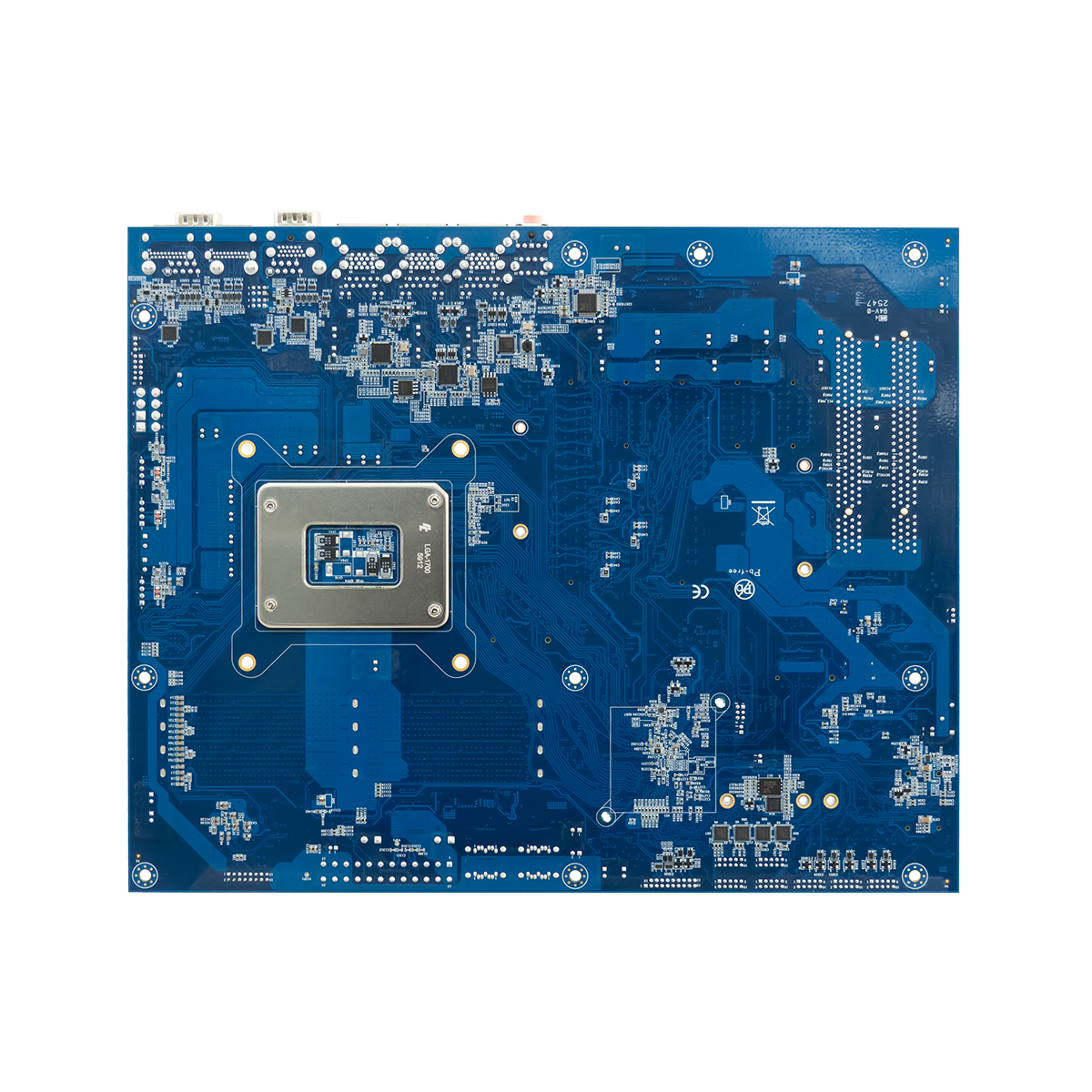

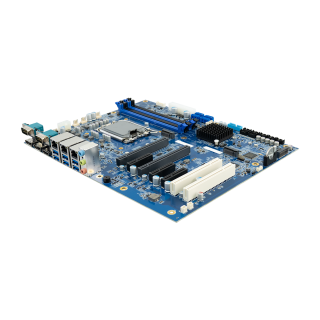

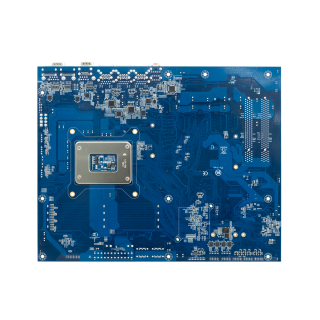

BA-2409
•Intel® R680E PCH
•Flexible connectivity with 2 x COM, 3 x LAN, and 6 x USB rear I/O, supporting up to 6 x COM and 12 x USB in total via onboard headers
•Versatile expansion through 5 x PCIe, 2 x PCI, and 4 x M.2 slots
•Multiple display outputs via 1 x HDMI and 2 x DP
| System | ||
| CPU Support |
14th/13th/12th Gen. Intel® Core™ i9/i7/i5/i3 & Pentium®/Celeron® Processors (Socket LGA1700) |
|
| CPU List |
Intel® Core™ 9 Processor 273PTE/PE
Intel® Core™ 7 Processor 253PE Intel® Core™ 5 Processor 223PE Intel® Core™
i9-14900/T, 13900TE/E, 12900TE/E i7-14700/T, 13700TE/E, 12700TE/E i5-14500/T, 13500TE/E, 12500TE/E i3-14100/T, 13100TE/E, 12100TE/E Pentium® G7400TE/E Celeron® G6900TE/E (TDP 35W/65W) |
|
| Chipset | Intel® R680E | |
| Memory | 4 x DDR5 UDIMM 4400MHz (up to 192GB) | |
| Storage |
4 x SATA 3.0 (6Gb/s) RAID 0/1/5 supported
|
|
| Display Output | 1 x HDMI™ / up to 4096 x 2160 @60Hz (Rear I/O)
2 x DP / up to 4096 x 2304 @60Hz (Rear I/O) 1 x VGA (onboard header) |
|
| BIOS | AMI UEFI BIOS | |
| TPM | TPM 2.0 | |
| Watchdog | 1~255 seconds watchdog timer selectable | |
| FAN |
2 x System Fan (4-pin header with Smart Fan function) 1 x CPU Fan (4-pin header with Smart Fan function)
|
|
| Power Supply |
Flex ATX 20+4 pin |
|
| Dimensions |
305 x 244 mm (12" x 9.6") |
|
| Certifications |
CE / FCC |
|
| O.S. Support |
Windows® 11 IoT Enterprise LTSC 2024 Windows® 10 IoT Enterprise LTSC 2021 Linux (Ubuntu 22.04 LTS) |
|
|
I/O ports |
||
| USB |
6 x USB 3.2 Gen1 (Rear I/O) 1 x USB 3.0 (onboard header) 3 x USB 2.0 (onboard header) |
|
| Serial Ports |
6 x COM - COM1/2 (Rear I/O): RS-232/422/485, +5V/+12V selectable by jumper - COM3/4/5/6 (onboard header): RS-232 |
|
| Ethernet / Wi-Fi |
3 x 2.5GbE LAN (Rear I/O) |
|
| Audio |
1 x Mic-in 1 x Line-in 1 x Line-out (Rear I/O) |
|
| Expansion Slots |
|
|
| PCIe |
2 x PCIe x16 slots (single card: x16; dual cards: x8/x8) 3 x PCIe x4 slots 2 x PCI slots |
|
| M.2 |
2 x M.2 2242 M key 1 x M.2 2242 B key 1 x M.2 2242 E key |
|
| Environment | ||
| Operating Temperature | 0°C~60°C (32°F~140°F) @humidity 20%~90% | |
| Storage Temperature | -40°C~85°C (-40°F~185°F) @humidity 20%~95% | |
BA-2409 Highlight

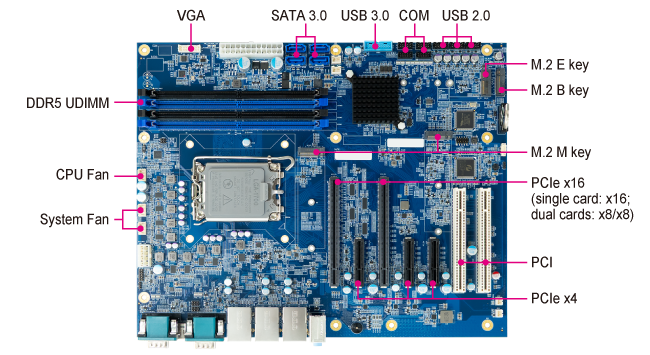

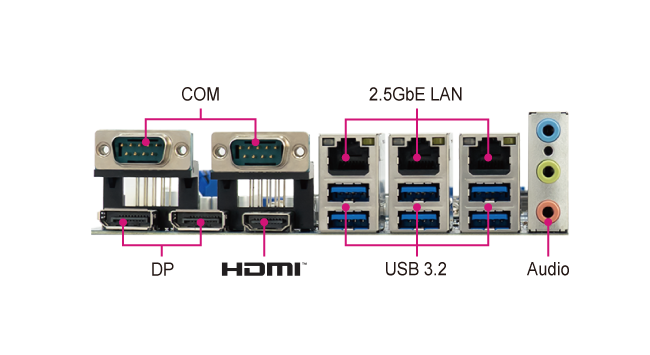

BA-2409 IO

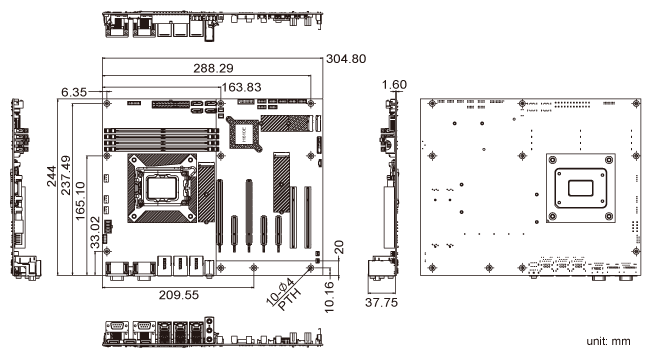

BA-2409 Dimensions
