SP-F219
•Optional Intel® Q670E/H610E PCH
•Front bezel options include stainless steel, aluminum, or open frame for diverse applications
•Optional high-brightness LCD
•6 x USB Type-A, 1 x USB Type-C (Q670E), 6 x COM, 1 x DIO
•4 x LAN ports (Q670E) with optional PoE
•Expansion Side I/O for addtional 4 x COM or 4 x LAN
•Wide-ranged voltage DC 12V-24V input
•Secure platform with TPM 2.0 support
•Fanless design
|
System |
||
| CPU support |
Intel® Core™ i9 14901E(TE)/14900(T)/13900TE Intel® Core™ i7 14701E(TE)/14700(T)/13700E(TE)/12700E(TE) Intel® Core™ i5 14501E(TE)/14500(T)/13500E(TE)/12500E(TE) Intel® Core™ i3 14100(T)/13100E(TE)/12100E(TE) Intel® Pentium G7400E(TE) Intel®Celeron G6900E(TE) |
|
| Chipset | Intel® Q670E / H610E | |
| Memory |
2 x DDR5 4800/5600 MHz SODIMM (up to 64GB) non-ECC
|
|
| Storage |
Q670E: 2 x 2.5" SATA (supports RAID 0/1) 1 x M.2 2280 M key H610E: 1 x 2.5" SATA |
|
| Expansion Slot |
1 x M.2 3042/3052/2280 B key 1 x M.2 3042/3052 B key 1 x M.2 2230 E key 1 x Protech-defined Expansion Side I/O: 4 x COM / 4 x LAN |
|
| IP Rating |
IP65 (for front panel only) |
|
| Watchdog |
1~255 seconds watchdog timer selectable |
|
| Power Input | DC-in 12-24V | |
| System Weight | 11.8 kg | |
| Dimensions (W x H x D) |
561.7 x 353.2 x 124.5 mm (Open Frame) 573.7 x 365.2 x 124.5 mm (with Stainless Steel / Aluminum bezel) |
|
| Mount Type | Wall Mount / VESA 75 / Panel Mount | |
| Certifications | CE, FCC | |
| Operating System | Windows 11 IoT Enterprise LTSC 2024
Windows 10 IoT Enterprise LTSC 2021
|
|
| Display & Touch | ||
| LCD | 21.5" Flat TFT-LCD | |
| Resolution | 1920 x 1080 | |
| Brightness | 400 nits (optional 1,500 nits) | |
| Touchscreen | Projected capacitve / 5-wire analogue resistive | |
| Front Bezel | Stainless Steel / Aluminum / Open Frame | |
| I/O Ports | ||
| USB |
Q670E: 6 x USB 3.2, 1 x USB 3.2 Type-C H610E: 4 x USB 3.2, 2 x USB 2.0, |
|
| Serial Ports |
6 x COM (RS-232/422/485) |
|
| Ethernet |
Q670E: 4 x 2.5GbE LAN (Intel® I226-IT) H610E: 2 x 2.5GbE LAN (Intel® I226-IT) supports Wake-on-LAN and PXE PoE IEEE802.3at, up to 30W (optional) |
|
| Display output |
Q670E: 1 x HDMI™, 2 x DP H610E: 1 x HDMI™, 1 x DP |
|
| Digital I/O | 16-bit DIO (8 DI / 8 DO) | |
| Audio | Line-in / Line-out / Mic-in | |
| Environment | ||
| Operating Temperature
(Ambient with airflow)
|
-20°C ~ 50°C (-4°F~122°F) with wide temperature SSD
|
|
| Storage Temp. | -40°C~80°C (-40°F~185°F) | |
| Humidity | 20%~90% | |

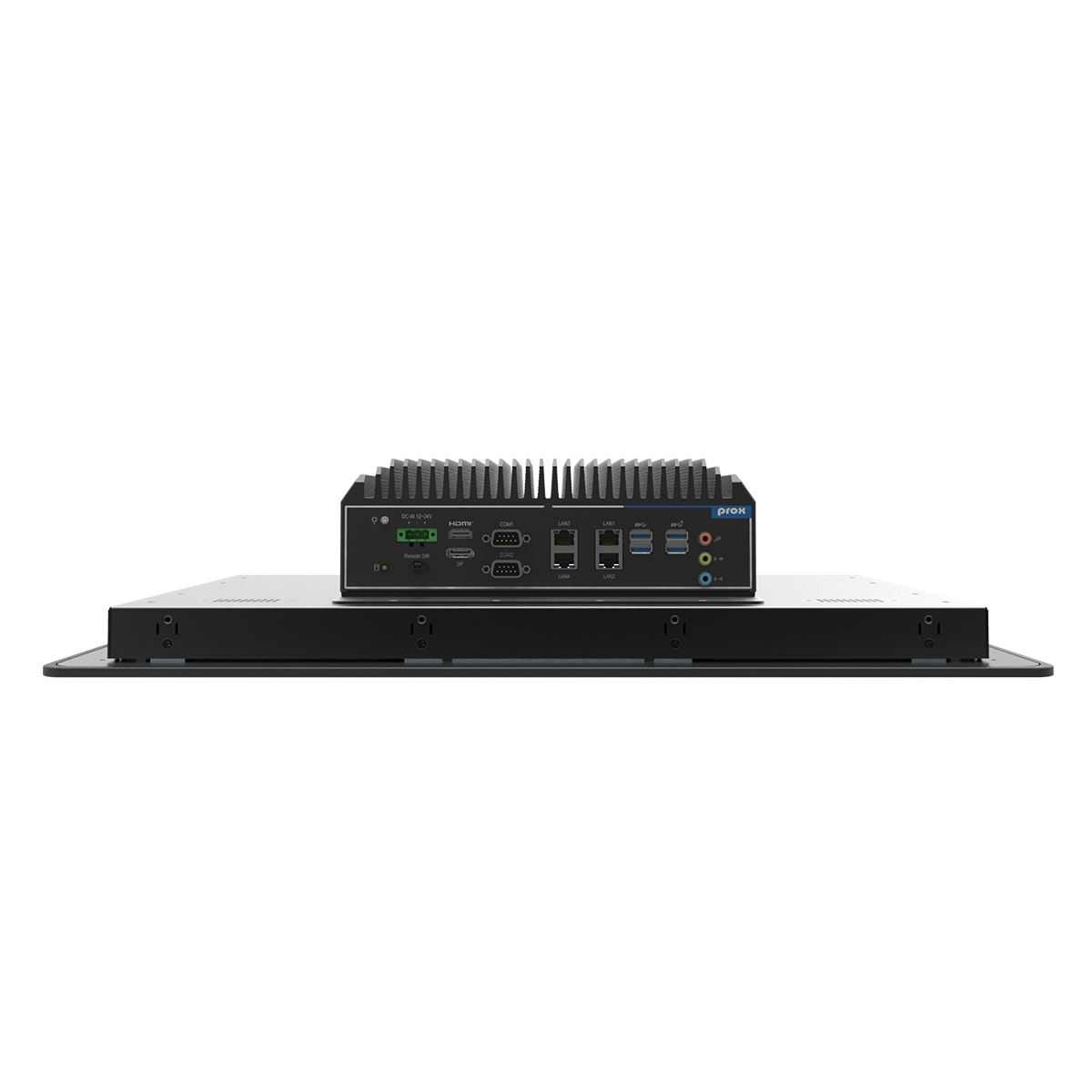

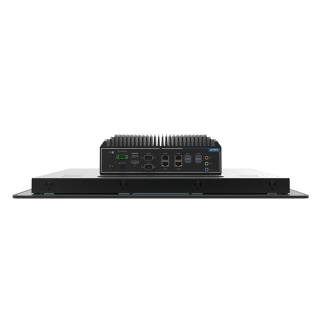

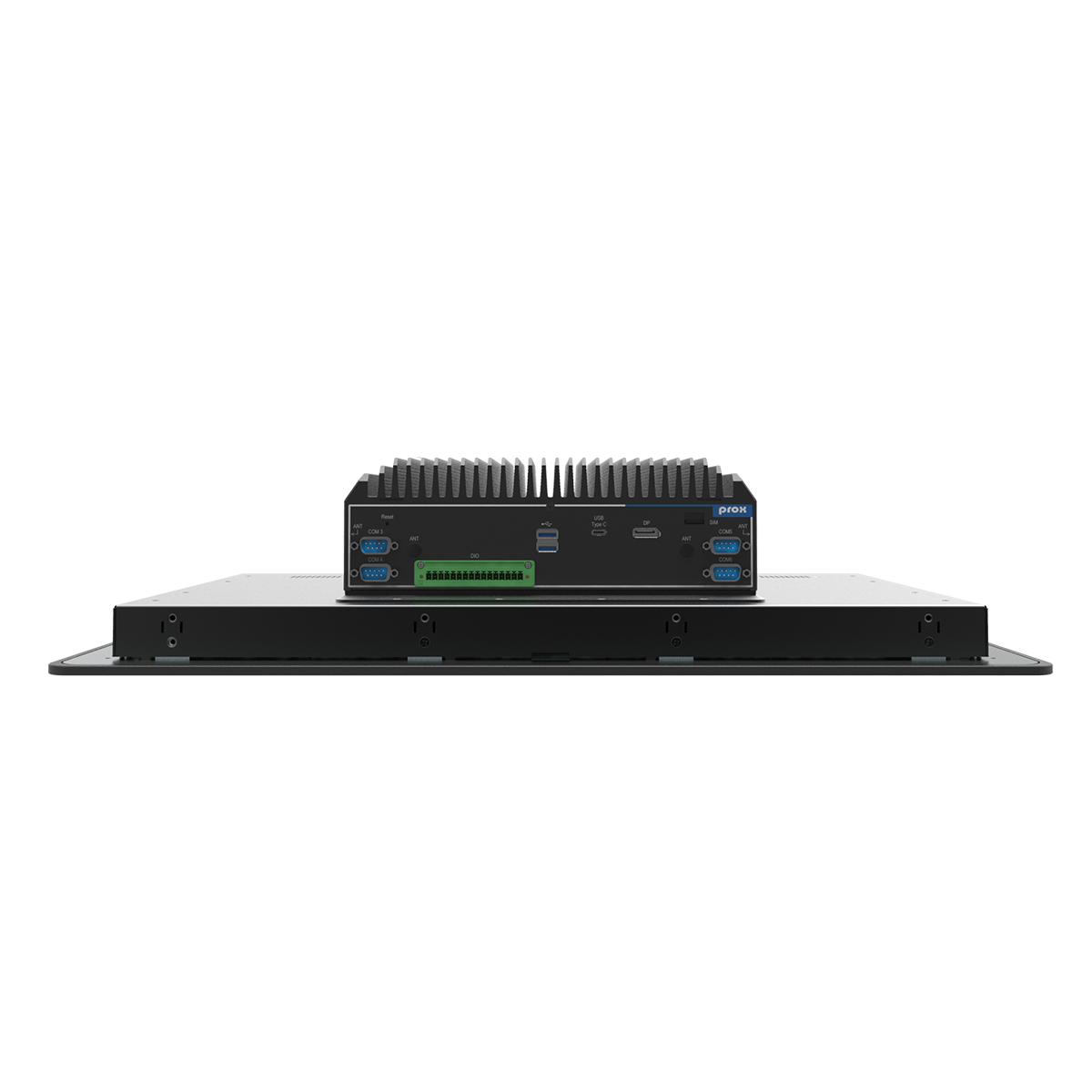

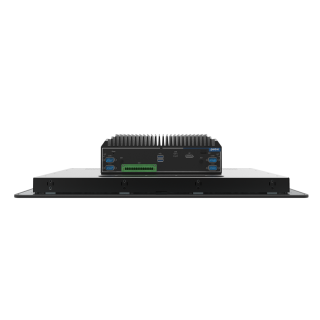

SP-F219 IO

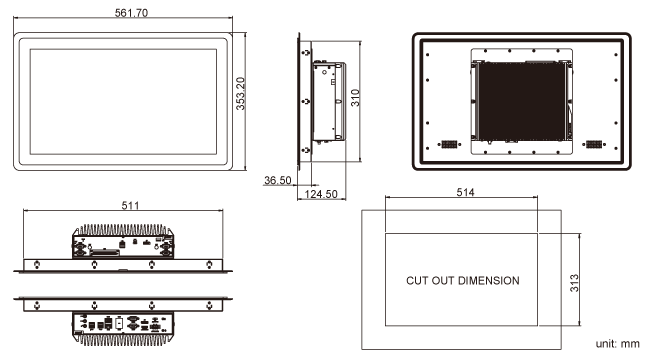

SP-F219 Dimensions
| SP-F219 |
21.5" Fanless Configurable Panel PC with 14th/13th/12th Gen. Intel® Core™ processors |
