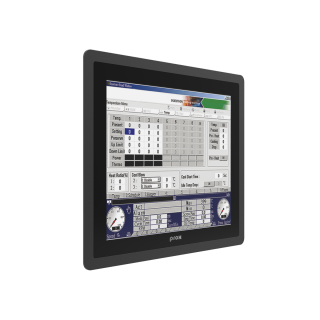

  • SP-F199_front_45-A-1200

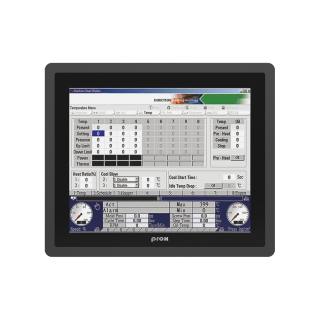

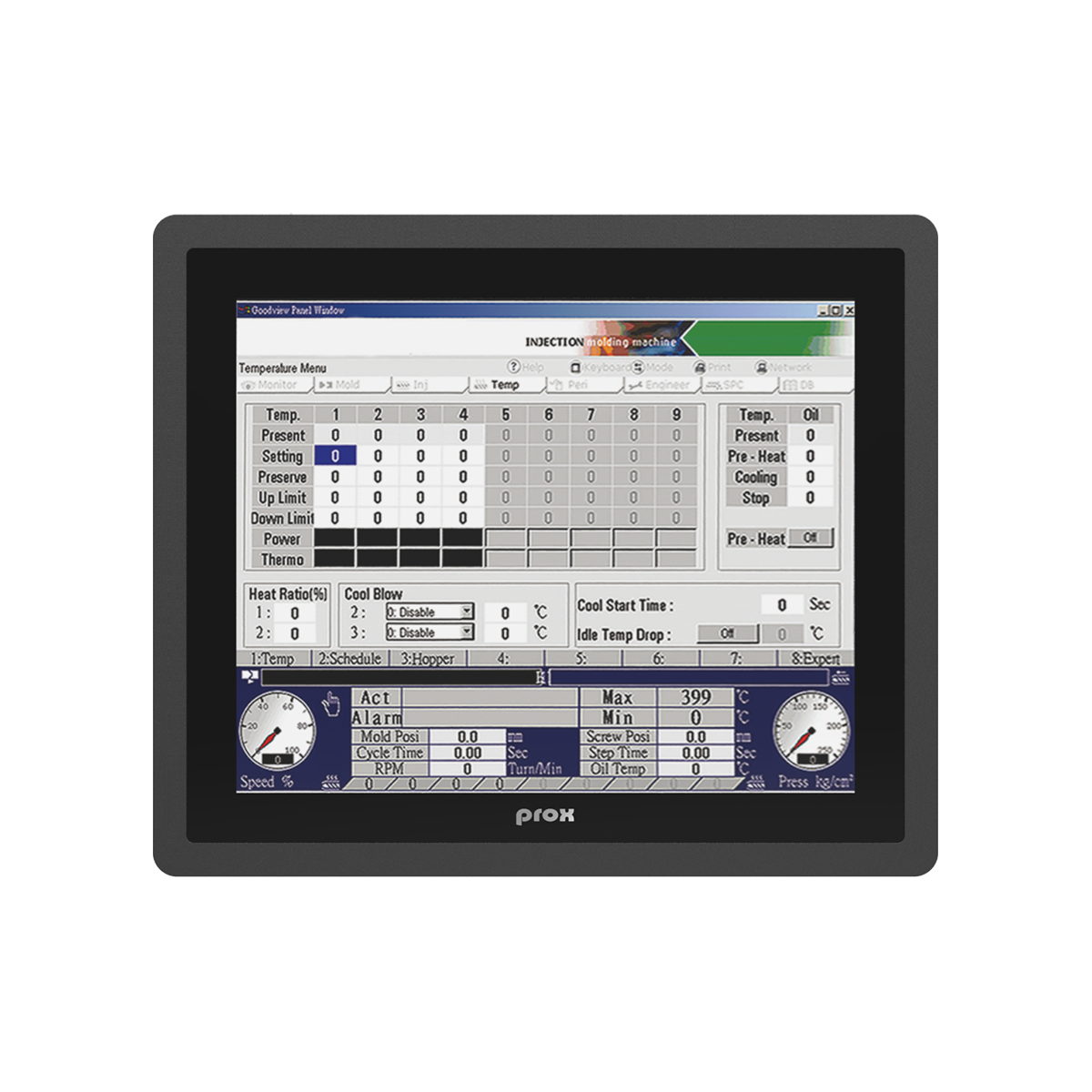

  • SP-F199_front-A-1200

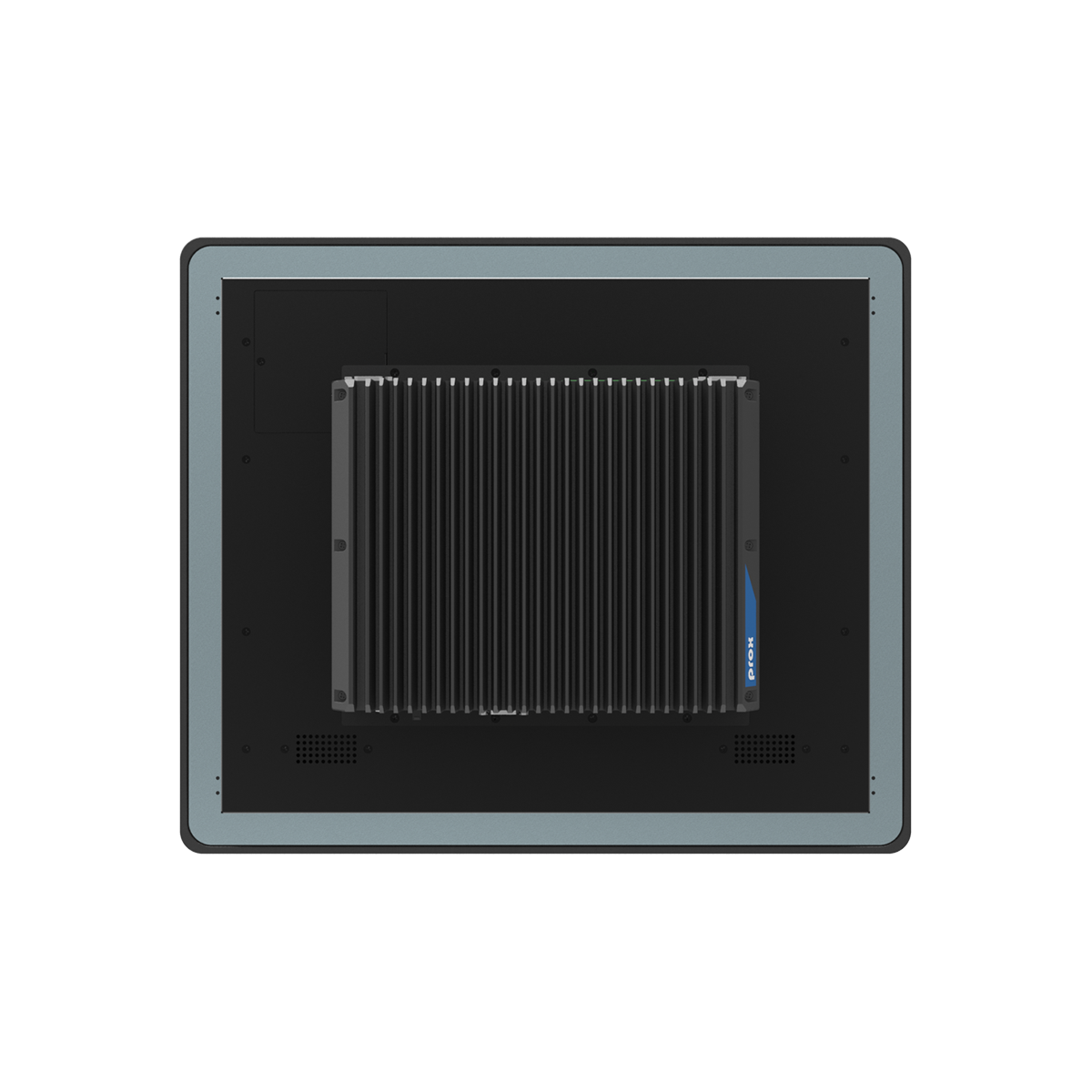

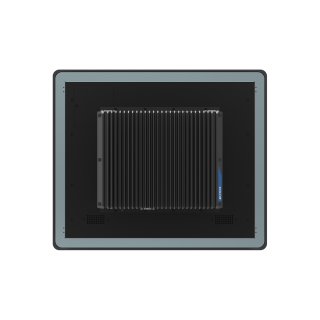

  • SP-F199_back-A-1200

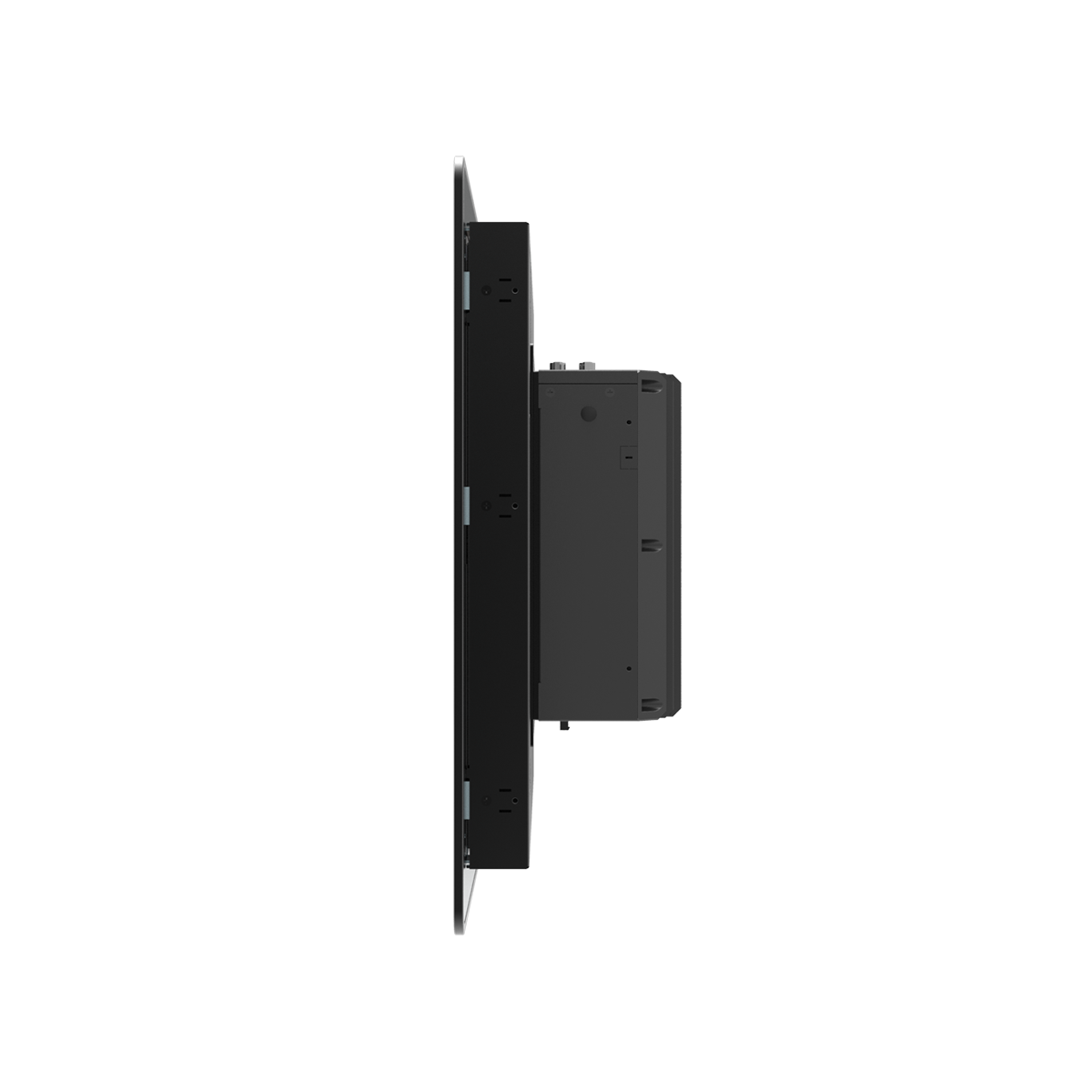

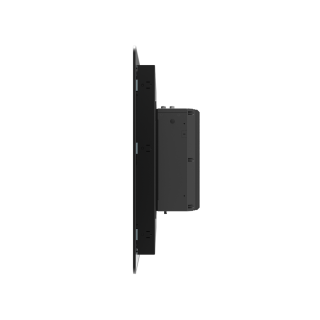

  • SP-F199_side-A-1200

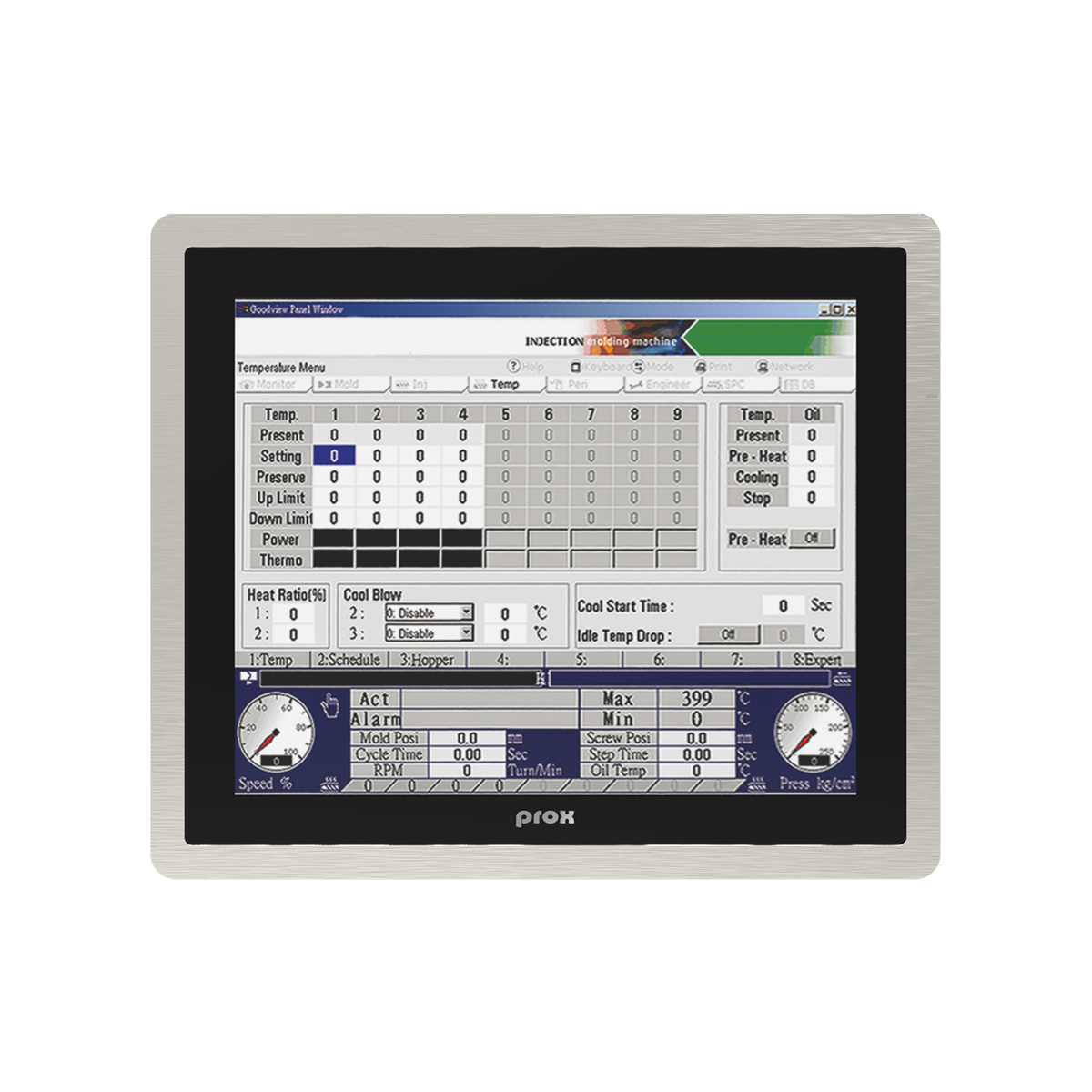

  • SP-F199_front-S-1200

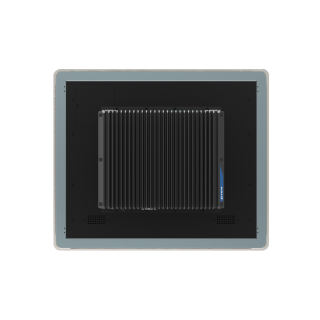

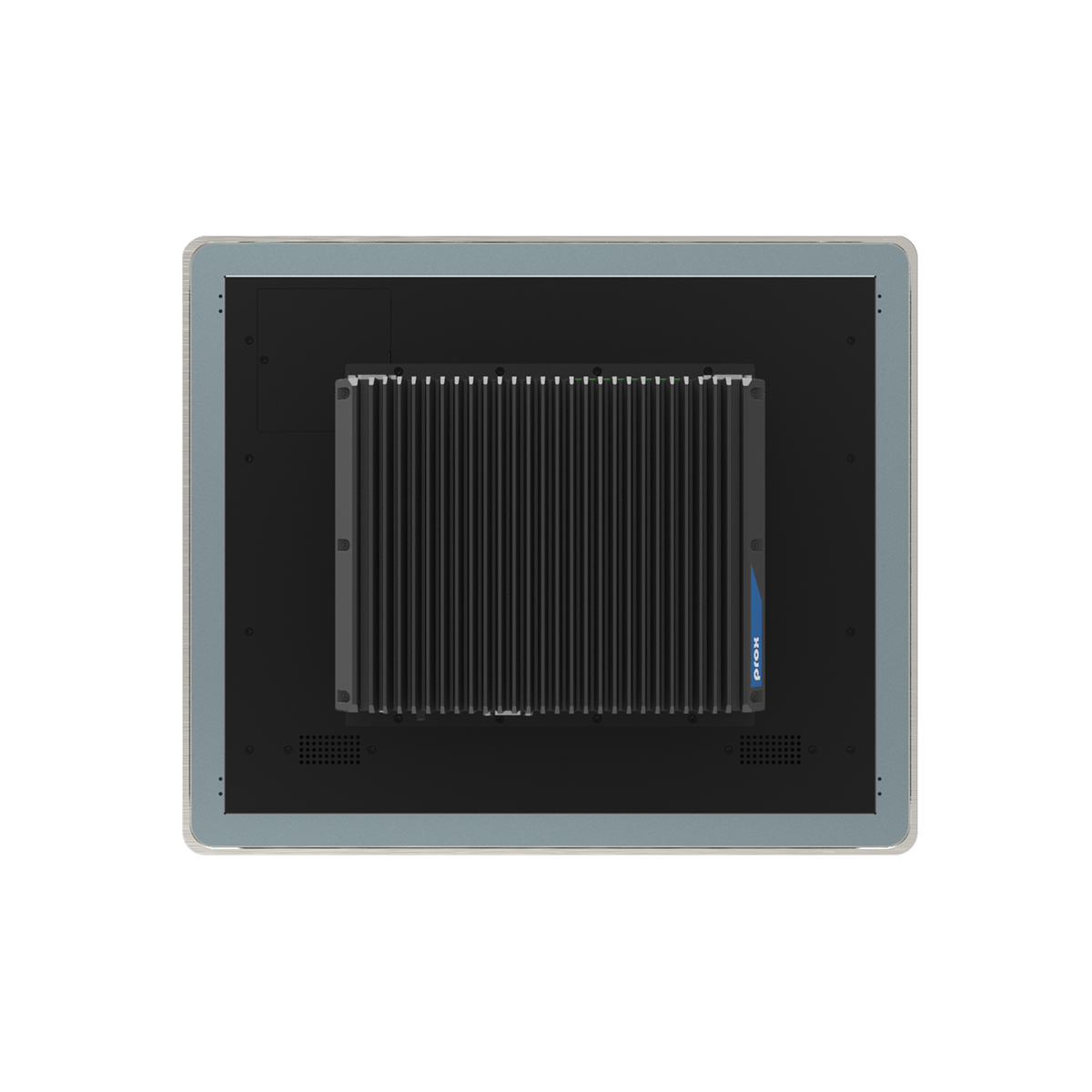

  • SP-F199_back-S-1200

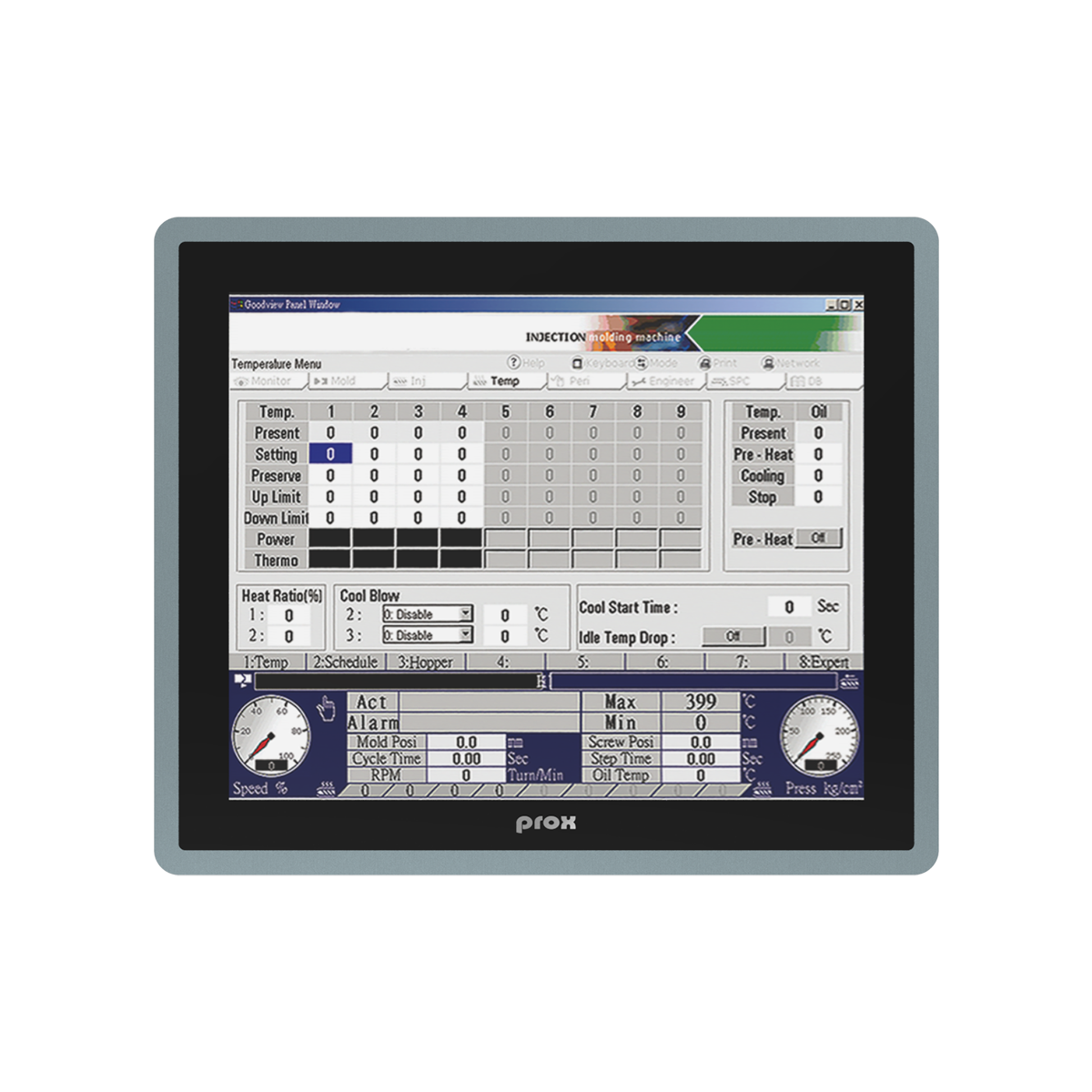

  • SP-F199_front-O-1200

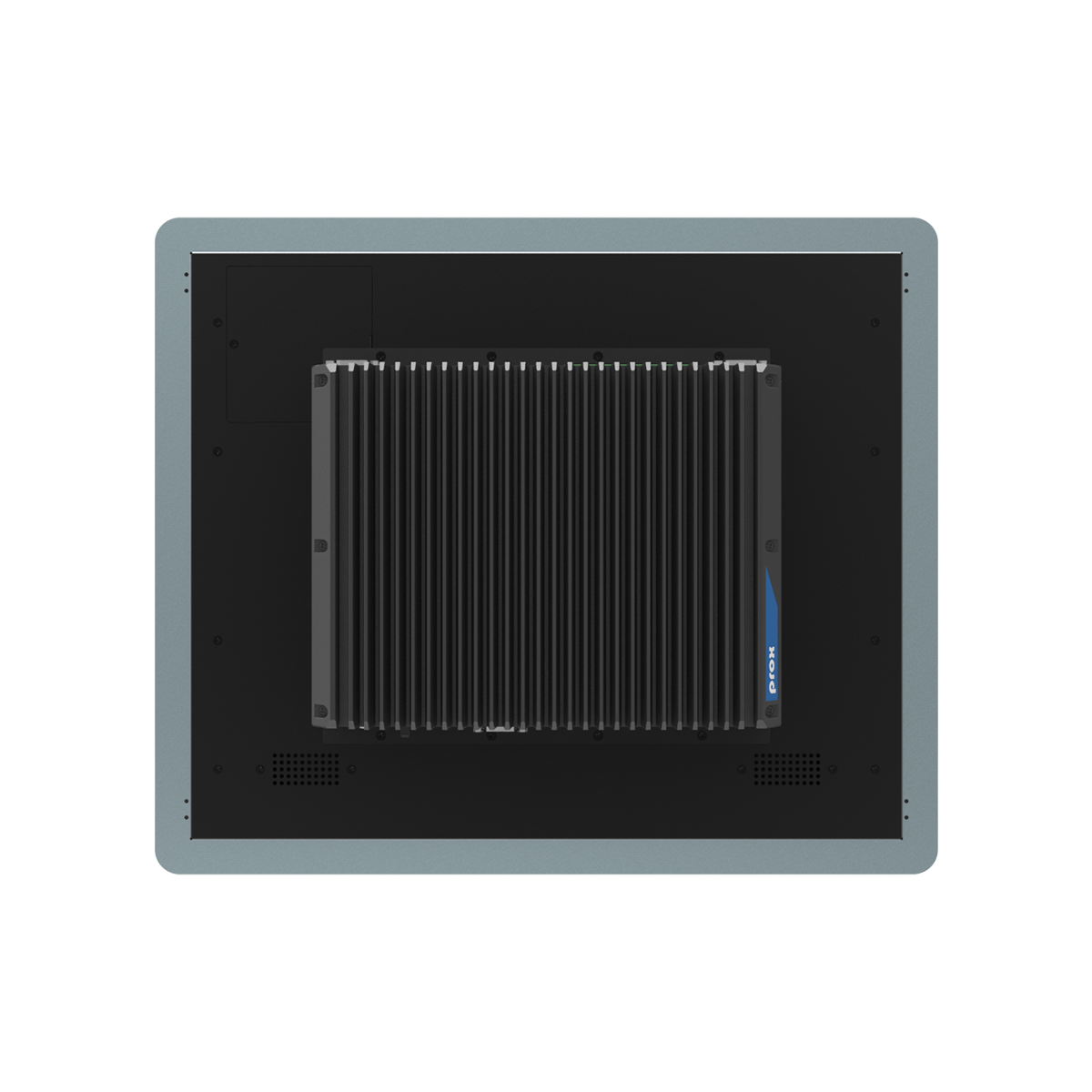

  • SP-F199_back-O-1200
  • SP-F199_IO01-1200

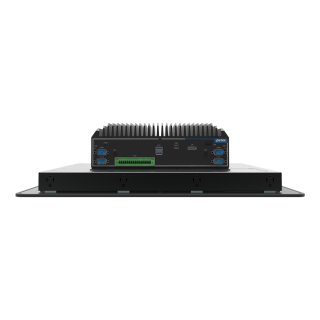

  • SP-F199_IO03-1200

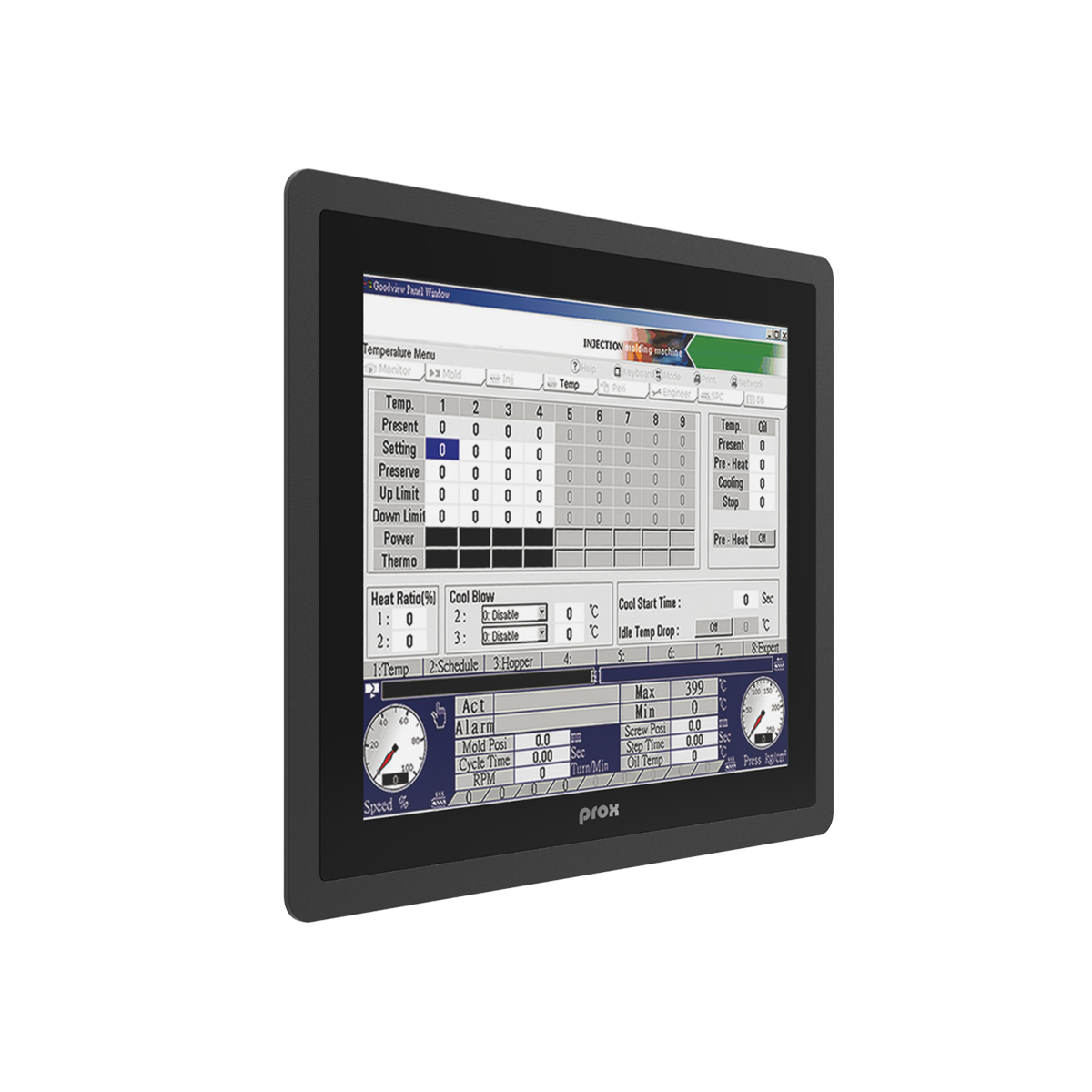

  • SP-F199_front_45-A-1200
  • SP-F199_front-A-1200
  • SP-F199_back-A-1200
  • SP-F199_side-A-1200

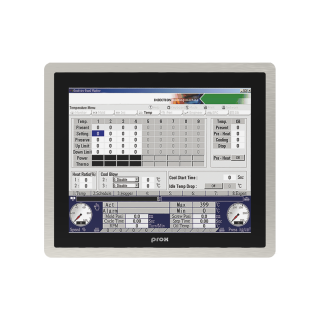

  • SP-F199_front-S-1200
  • SP-F199_back-S-1200

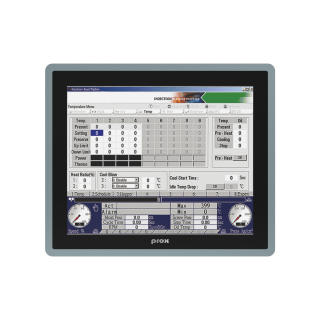

  • SP-F199_front-O-1200

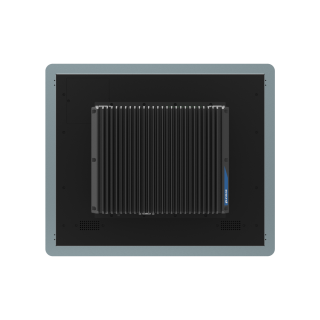

  • SP-F199_back-O-1200

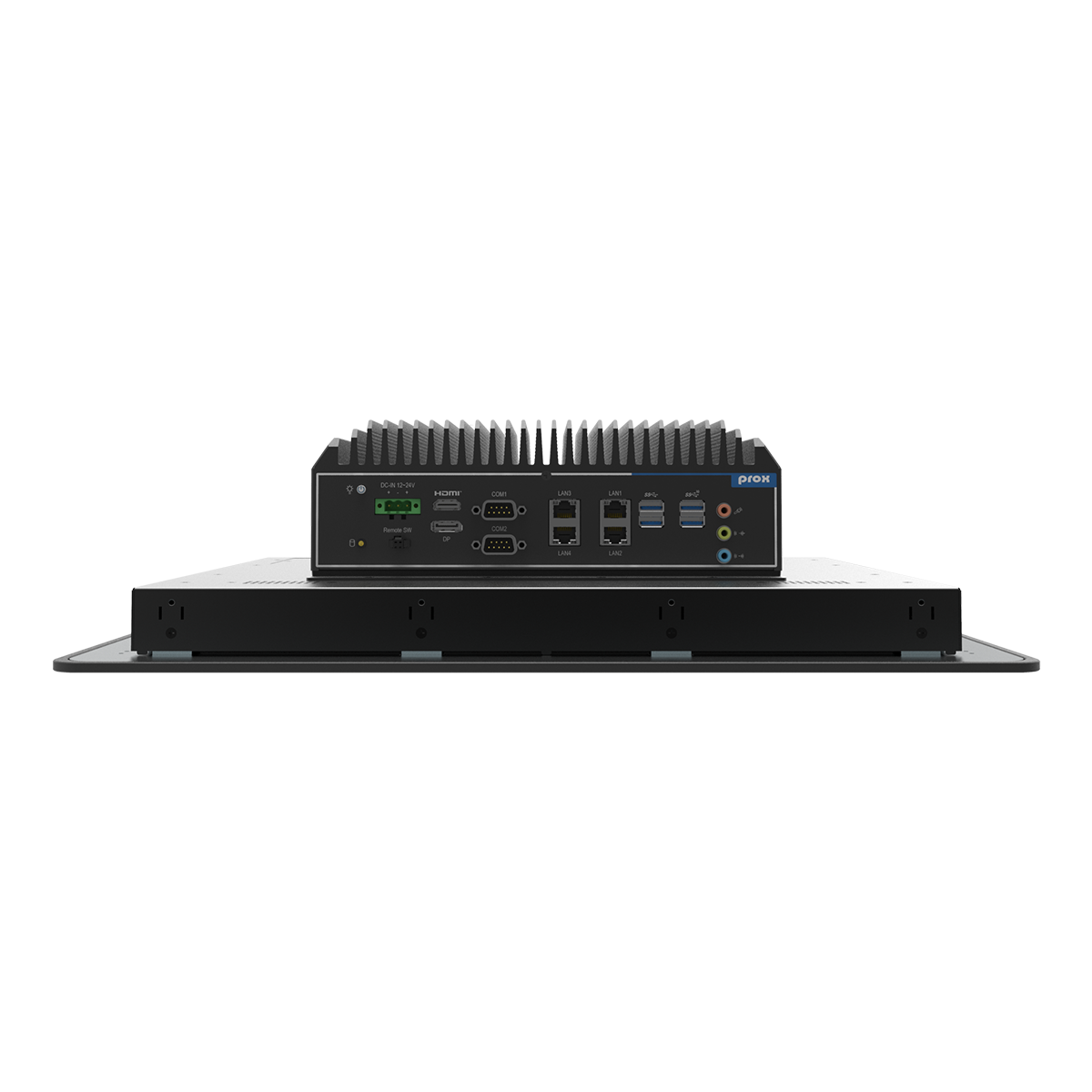

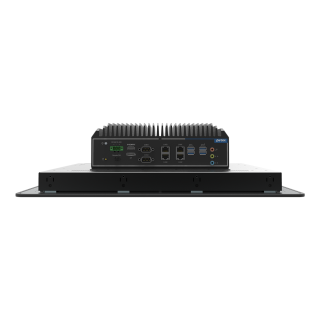

  • SP-F199_IO01-1200

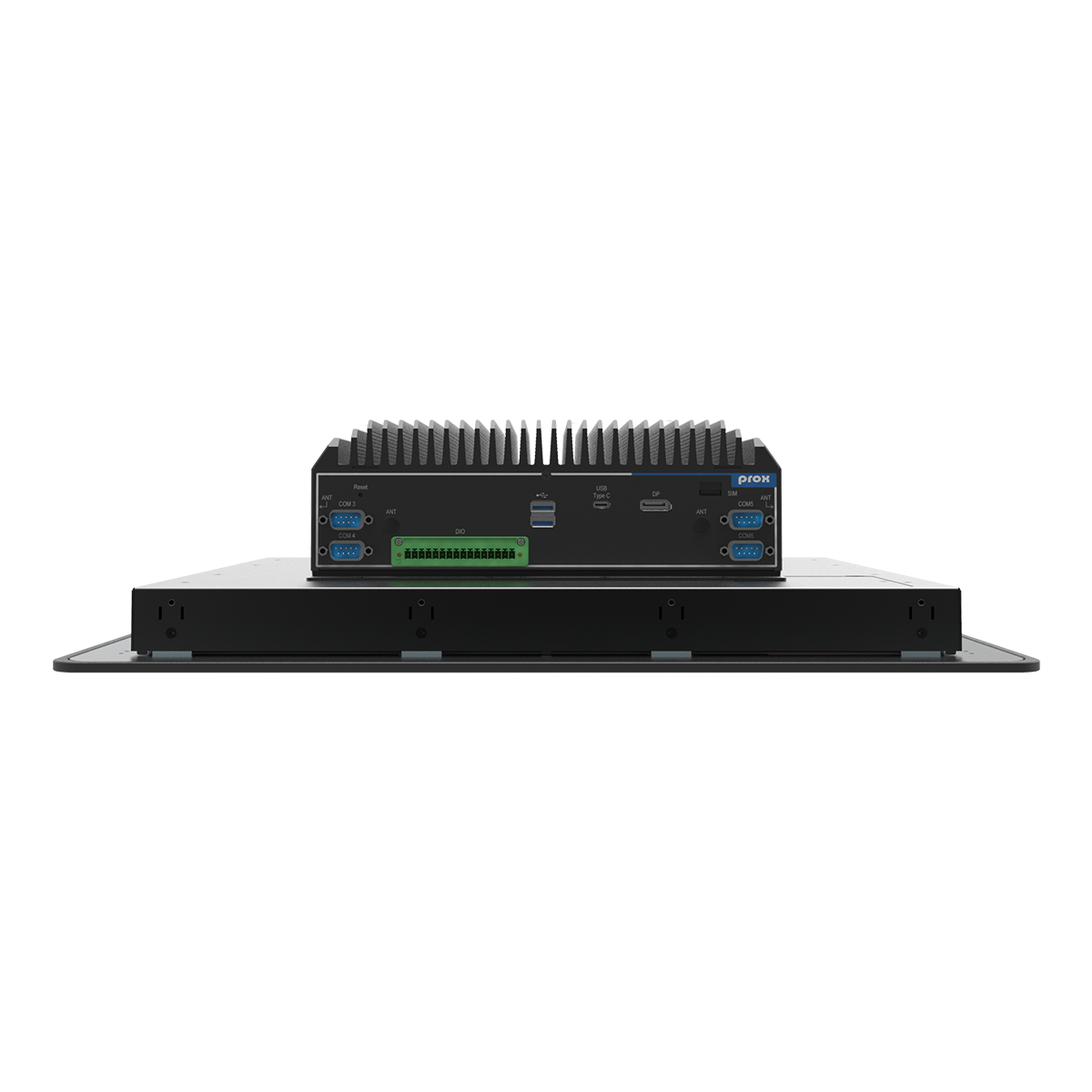

  • SP-F199_IO03-1200
SP-F199_front_45-A-1200 SP-F199_front-A-1200 SP-F199_back-A-1200 SP-F199_side-A-1200 SP-F199_front-S-1200 SP-F199_back-S-1200 SP-F199_front-O-1200 SP-F199_back-O-1200 SP-F199_IO01-1200 SP-F199_IO03-1200

SP-F199

19" Fanless Configurable Panel PC with 14th/13th/12th Gen. Intel® Core™ processors
•Compatible with 14th/13th/12th Gen. Intel® Core™, Pentium®, and Celeron® processors
•Optional Intel® Q670E/H610E PCH
•Front bezel options include stainless steel, aluminum, or open frame for diverse applications
•Optional high-brightness LCD
•6 x USB Type-A, 1 x USB Type-C (Q670E), 6 x COM, 1 x DIO
•4 x LAN ports (Q670E) with optional PoE
•Expansion Side I/O for addtional 4 x COM or 4 x LAN
•Wide-ranged voltage DC 12V-24V input
•Secure platform with TPM 2.0 support
•Fanless design

 System
 CPU support

Intel® Core™ i9 14901E(TE)/14900(T)/13900TE

Intel® Core™ i7 14701E(TE)/14700(T)/13700E(TE)/12700E(TE)

Intel® Core™ i5 14501E(TE)/14500(T)/13500E(TE)/12500E(TE)

Intel® Core™ i3 14100(T)/13100E(TE)/12100E(TE)

Intel® Pentium G7400E(TE)

Intel®Celeron G6900E(TE)
 Chipset Intel® Q670E / H610E
 Memory
2 x DDR5 4800/5600 MHz SODIMM (up to 64GB) non-ECC
 Storage

Q670E:

2 x 2.5" SATA (supports RAID 0/1)

1 x M.2 2280 M key

H610E:

1 x 2.5" SATA
 Expansion Slot

1 x M.2 3042/3052/2280 B key

1 x M.2 3042/3052 B key

1 x M.2 2230 E key

1 x Protech-defined Expansion Side I/O: 4 x COM / 4 x LAN
 IP Rating

 IP65 (for front panel only)
 Watchdog

1~255 seconds watchdog timer selectable
 Power Input DC-in 12-24V
 System Weight 11.6 kg
 Dimensions (W x H x D)

466.9 x 392.6 x 126.6 mm (Open Frame)

479.9 x 404.6 x 126.6 mm (with Stainless Steel / Aluminum bezel)
 Mount Type Wall Mount / VESA 75 / Panel Mount
 Certifications CE, FCC
 Operating System Windows 11 IoT Enterprise LTSC 2024
Windows 10 IoT Enterprise LTSC 2021
 Display & Touch
 LCD 19" Flat TFT-LCD
 Resolution 1280 x 1024
 Brightness 350 nits (optional 1,500 nits)
 Touchscreen Projected capacitve / 5-wire analogue resistive
 Front Bezel Stainless Steel / Aluminum / Open Frame
 I/O Ports
 USB

Q670E: 6 x USB 3.2, 1 x USB 3.2 Type-C

H610E: 4 x USB 3.2, 2 x USB 2.0,
 Serial Ports

6 x COM (RS-232/422/485)
 Ethernet

Q670E: 4 x 2.5GbE LAN (Intel® I226-IT)

H610E: 2 x 2.5GbE LAN (Intel® I226-IT)

supports Wake-on-LAN and PXE

PoE IEEE802.3at, up to 30W (optional)
 Display output

Q670E: 1 x HDMI™, 2 x DP

H610E: 1 x HDMI™, 1 x DP
 Digital I/O 16-bit DIO (8 DI / 8 DO)
 Audio Line-in / Line-out / Mic-in
 Environment
Operating Temperature
(Ambient with airflow)

-20°C ~ 50°C (-4°F~122°F)

with wide temperature SSD
 Storage Temperature -40°C~80°C (-40°F~185°F)
 Storage Humidity  20%~90%

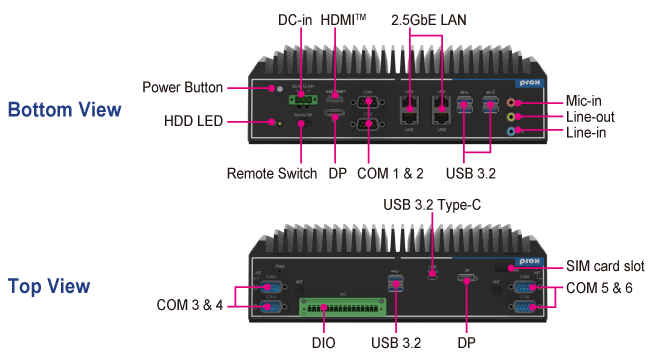

SP-F199_IO-650-355

SP-F199 IO

SP-F199_Dimension-650-355

SP-F199 Dimensions
