SP-C175

17" VESA Mount / Wall Mount Standalone Touch Monitor
•IP65 (front) with Aluminum bezel
•Operating temperature -20°C~60°C
•Modularized I/O: VGA + DVI-D + HDMI®
•Wall mount / VESA 100 mounting
 Customer (2nd) Display
17" SXGA LCD (350 cd/m²)
 Display Resolution 1280 x 1024 (SXGA)
 Dimensions (Panel)
396 x 329 x 54 mm (W x H x D)
 Viewing Angle

Horizontal -80°~80°, Vertical -80°~70°
 I/O Ports VGA
DVI-I cable (support DVI-D signal only)
HDMI®
USB (touch connection)
 Power Supply
 Type DC12V/3.3A/40W/ϕ 2.5 power adapter
 AC Input 90~264 Vac, 47-63 Hz
 Environment
 EMC & Safety  CE
 Operating Temp.  -20°C~60°C (-4°F~140°F)
 Storage Temp.  -30°C~70°C (-22°F~158°F)
 Humidity  5%~95%

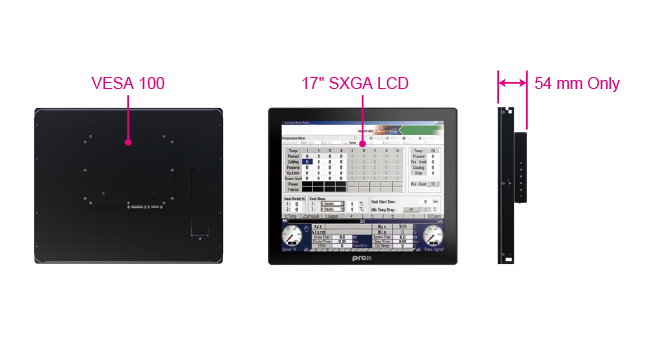

SP-C175 Highlight

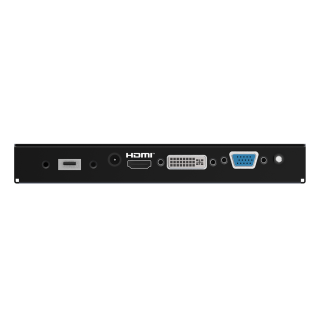

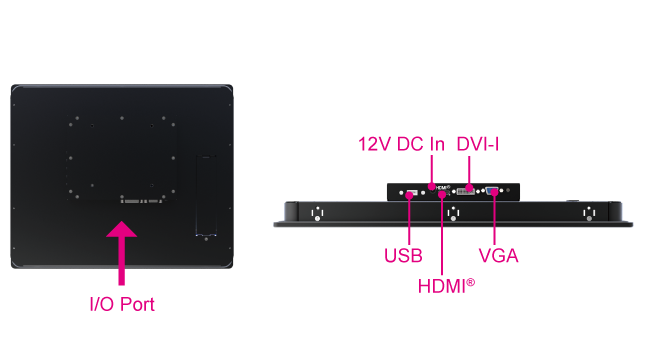

SP-C175 IO

SP-C175 Dimensions


 SP-C175

17" VESA Mount / Wall Mount Standalone Touch Monitor
 File type File Download
 EDM SP-C175_EDM.PDF
 Pictures SP-C175_Pictures.ZIP
 Manual SP-C175_Manual.PDF
 QuickGuide SP-C175_QuickGuide.PDF
 BIOS SP-C175_BIOS.ZIP
 Device SP-C175_Device.ZIP
 Platform SP-C175_Platform.ZIP
 Other SP-C175_Other.ZIP
