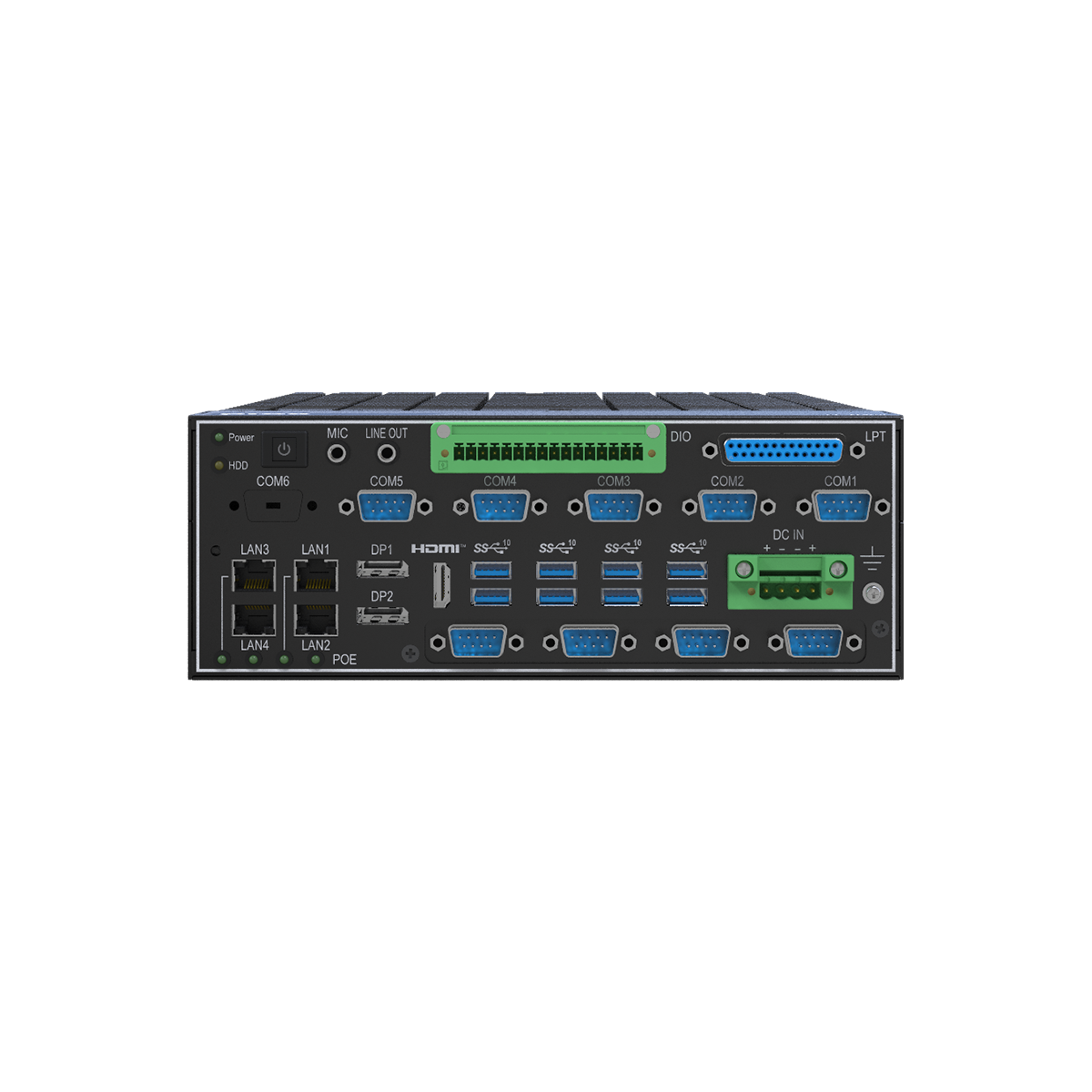

SE-N408
•Rich I/O interfaces with flexible industrial connectivity
•4 x 2.5" Drive Bays with RAID 0/1/5/10 support
•4 x 2.5GbE ports with optional PoE
•Wide-range 9–36V DC Input
•Extended Operating Temperature Range (-20°C to 60°C)
•Optional 2-slot / 4-slot PCIe Expansion Modules
|
System |
|||
| CPU Support |
Intel® Core™ i9 14901E(TE)/14900(T)/13900TE Intel® Core™ i7 14701E(TE)/14700(T)/13700E(TE)/12700E(TE) Intel® Core™ i5 14501E(TE)/14500(T)/13500E(TE)/12500E(TE) Intel® Core™ i3 14100(T)/13100E(TE)/12100E(TE) Intel® Pentium G7400E(TE) Intel®Celeron G6900E(TE) |
||
| Chipset | Intel® R680E | ||
| Memory Support | 2 x DDR5 SODIMM (up to 96GB) | ||
| Storage | 4 x 2.5" SATA Drive Bay (supporting RAID 0/1/5/10)
1 x M.2 2280 M Key (PCIe Gen4 x4)
|
||
| Expansion Slot | 1 x M.2 2230 E Key (for Wi-Fi 5/6 / Bluetooth module)
2 x M.2 3042/3052/2280 B Key 1 x BTB Connector (Protech-defined Expansion Front I/O: 4 x COM / 4 x LAN) |
||
|
PCIe Expansion Module (Configurable) |
2-Slot Expansion Module |
1 x PCIe x16 1 x PCIe x4
|
|
|
2 x PCI |
|||
| 4-Slot Expansion Module | 1 x PCIe x16
2 x PCI
|
||
| 2 x PCIe x16 (x8 signal)
2 x PCI
|
|||
| 1 x PCIe x16 1 x PCIe x4 2 x PCI |
|||
| 1 x PCIe x16
3 x PCIe x4
|
|||
| Wireless Connectivity | 2 x Nano SIM card slots
8 x Antenna holes
|
||
| LED Indicator | 1 x System LED
1 x HDD LED 4 x PoE LED |
||
| Power Switch | 1 x Power Button
1 x Reset Button 1 x Remote Switch |
||
| Power Input | DC-in 9-36V | ||
| Grounding | 1 x M3 hole | ||
| Watchdog | 1~255 seconds watchdog timer selectable | ||
| TPM | TPM 2.0 | ||
| Dimensions (W x H x D) | 280 x 85 x 230 mm (Embedded PC only)
325 x 171 x 230 mm (with 2-slot PCIe Expansion Module) 325 x 210.6 x 230 mm (with 4-slot PCIe Expansion Module) |
||
| Operating System | Windows® 11 IoT Enterprise LTSC 2024
Windows® 10 IoT Enterprise LTSC 2021 Linux (Ubuntu 22.04 LTS) |
||
| Certifications | FCC / CE | ||
| I/O Ports | |||
| USB |
8 x USB 3.2 Gen 1 Type A |
||
| Serial Ports |
5 x COM (up to 4 additional COM ports by Protech defined I/O expansion)
|
||
| Ethernet | 4 x 2.5GbE (optional PoE)
(up to 4 additional GbE ports by Protech defined I/O expansion)
|
||
| Display output | 1 x HDMI™ 2.0 (optional): Max. resolution 4K @ 60Hz
2 x DisplayPort 1.4: Max. resolution 4K @ 60Hz
|
||
| Digital I/O | 1 x DIO (8 DI / 8 DO) | ||
| Parallel Port | 1 x LPT (optional) | ||
| Audio | 1 x Line-out
1 x Mic-in
|
||
| Environment | |||
|
Operating Temperature. (Ambient with airflow) |
(with wide temperature SSD) 65W: -20°C - 50°C (-4°F - 122°F) 45W: -20°C - 60°C (-4°F - 140°F) 65W (with PoE): -20°C - 40°C (-4°F - 104°F) 45W (with PoE): -20°C - 50°C (-4°F - 122°F) |
||
| Storage Temperature | -40°C - 85°C (-4°F - 185°F) | ||
| Storage Humidity | 20% - 90% | ||

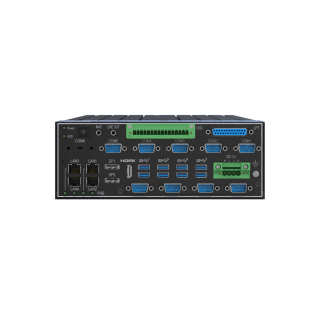

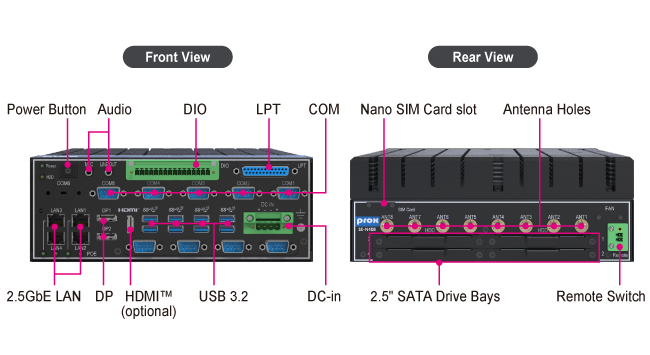

SE-N408 IO

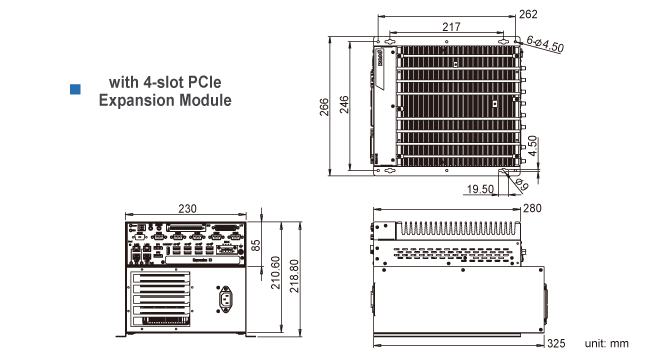

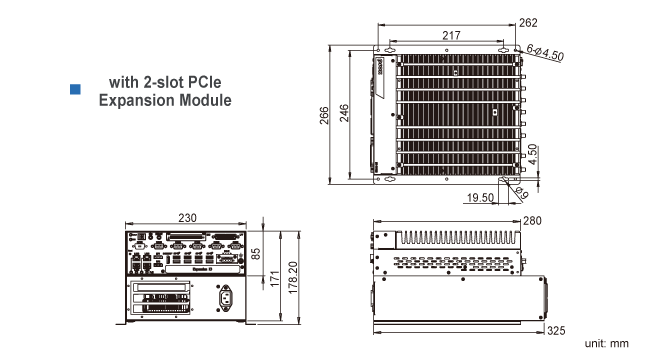

SE-N408 Dimensions
SE-N408 Dimensions
SE-N408 Dimensions
| SE-N408 |
14th/13th/12th Gen. Intel® Core™ Processors Fanless Embedded PC with PCIe Expansion Module |
| File type | File Download |
| EDM | SE-N408_EDM.PDF |
| Pictures | SE-N408_Pictures.ZIP |
