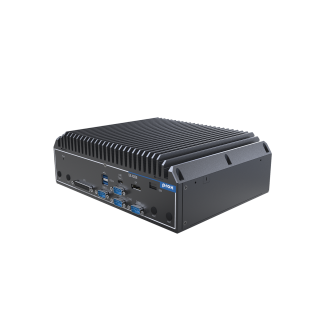

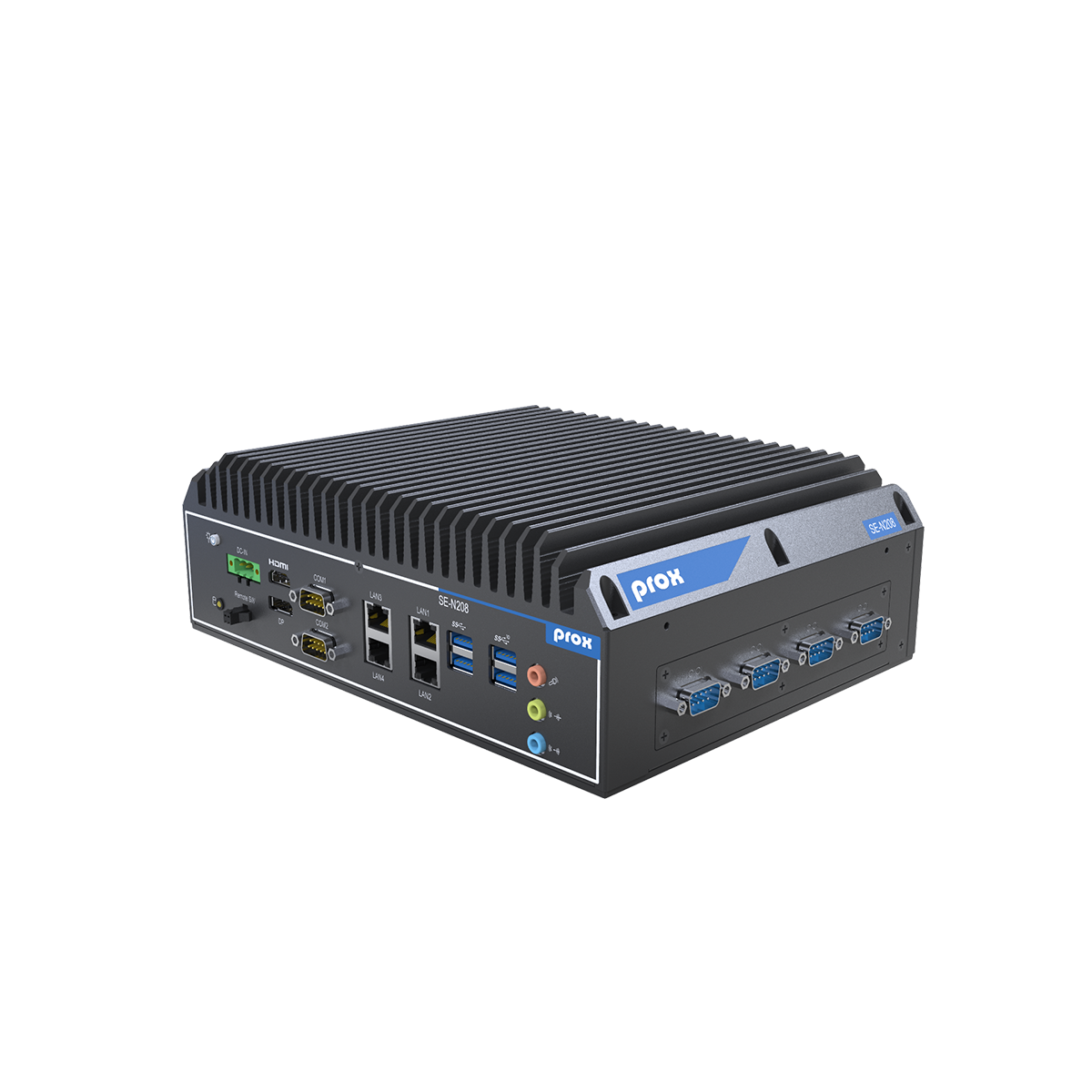

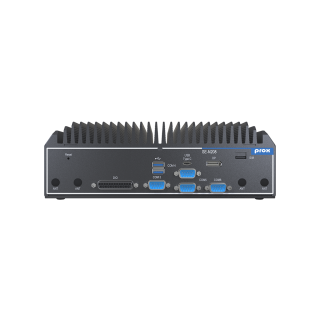

SE-N208
•Dual 2.5 GbE LAN ports with PoE Function (30W) (optional)
•Max. 7 x USB, 3 x RS-232/422/485, 3 x RS-232, 8bit DIO
•Supports remote switch
•Expansion Side I/O for COM, LAN, USB
•Secure platform with TPM 2.0 support
•Wide-ranged voltage DC In 12V/24V
•Fanless design
|
System |
||
| CPU Support |
Intel® Core™ i9-12900TE/13900TE Intel® Core™ i7-12700TE/13700TE Intel® Core™ i5-12500TE/13500TE Intel® Core™ i3-12100TE/13100TE Intel® Pentium® Gold G7400TE Intel®Celeron®G6900TE |
|
| Memory Support | 2 x DDR5 4800/5600 SO-DIMM socket (up to 64GB) | |
| Storage |
1 x 2.5" SATAIII SSD (support RAID 0,1, Q670E only) 1 x M.2 2280 M slot (PCIe Gen4 signal)(Q670E)
|
|
| Expansion Slots |
1 x M.2 2230 E slot (PCIe x1/USB 2.0) for WiFi5, WiFi6/BT module and Google Edge TPU module (TOP Side) 1 x M.2 3042/3052/2280 B slot (PCIe and USB 2.0 and SIM signal) 1 x M.2 2280 M slot (PCIe Gen4x4) (Q670E) 1 x B2B Connector 1 x Protech-defined Expansion Side I/O for COM, LAN, USB |
|
| Power Input | DC In 12V/24V | |
| Mounting | N/A | |
| Dimensions (W x H x D) | 260 x 86.4 x 200.05 mm | |
| Operating System | Windows® 10 IoT Enterprise LTSC 2021, Windows® 11 IoT (LTSC), Linux (Ubuntu 22.04 LTS) |
|
| Certifications | FCC / CE | |

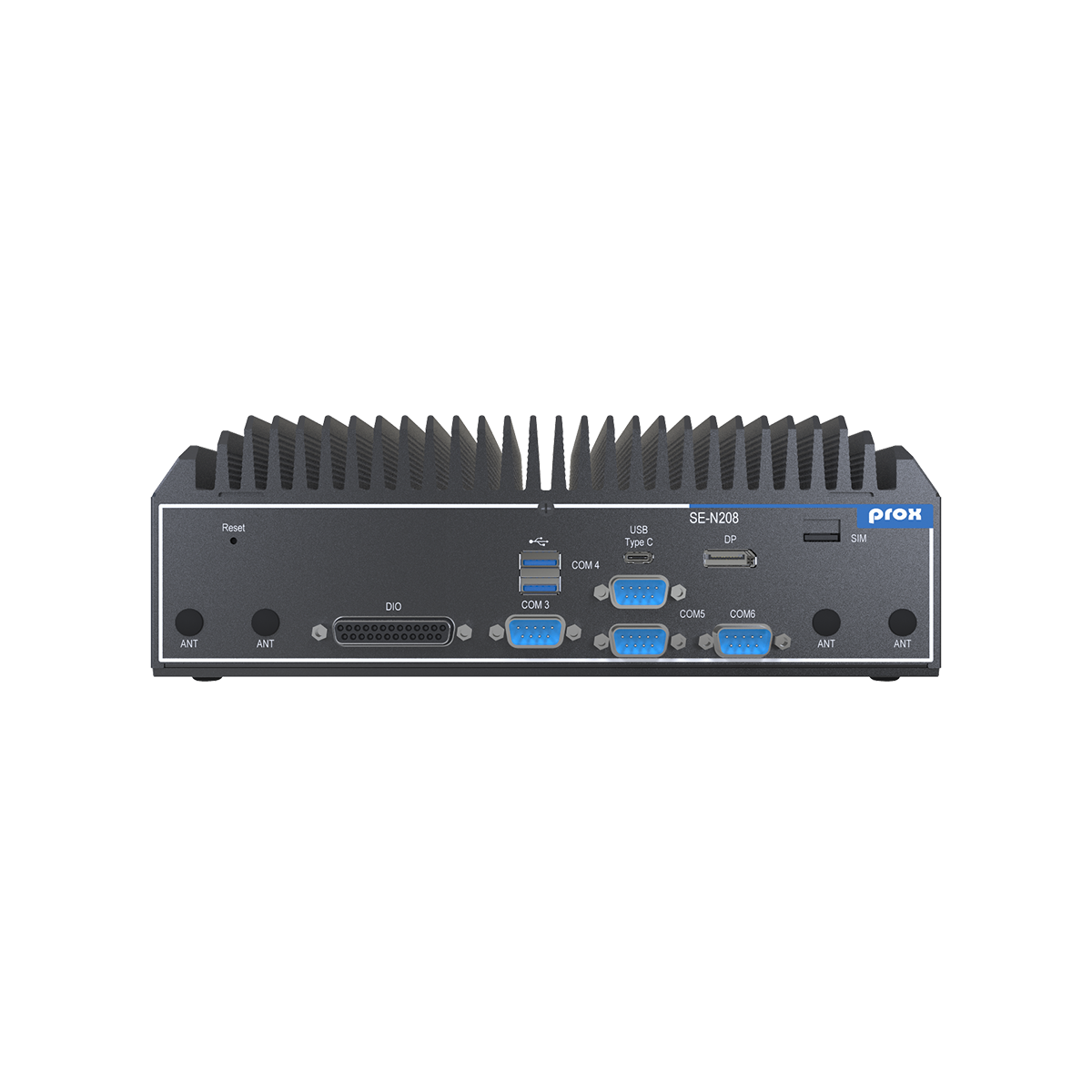

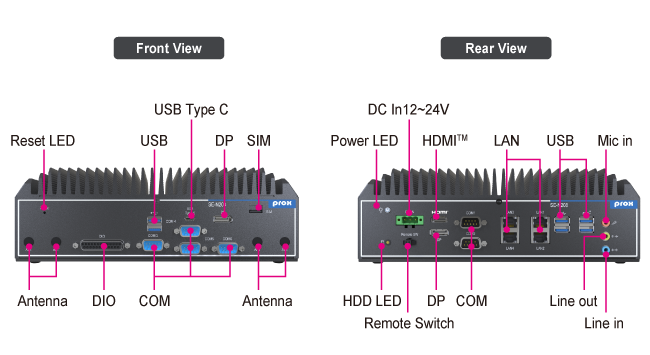

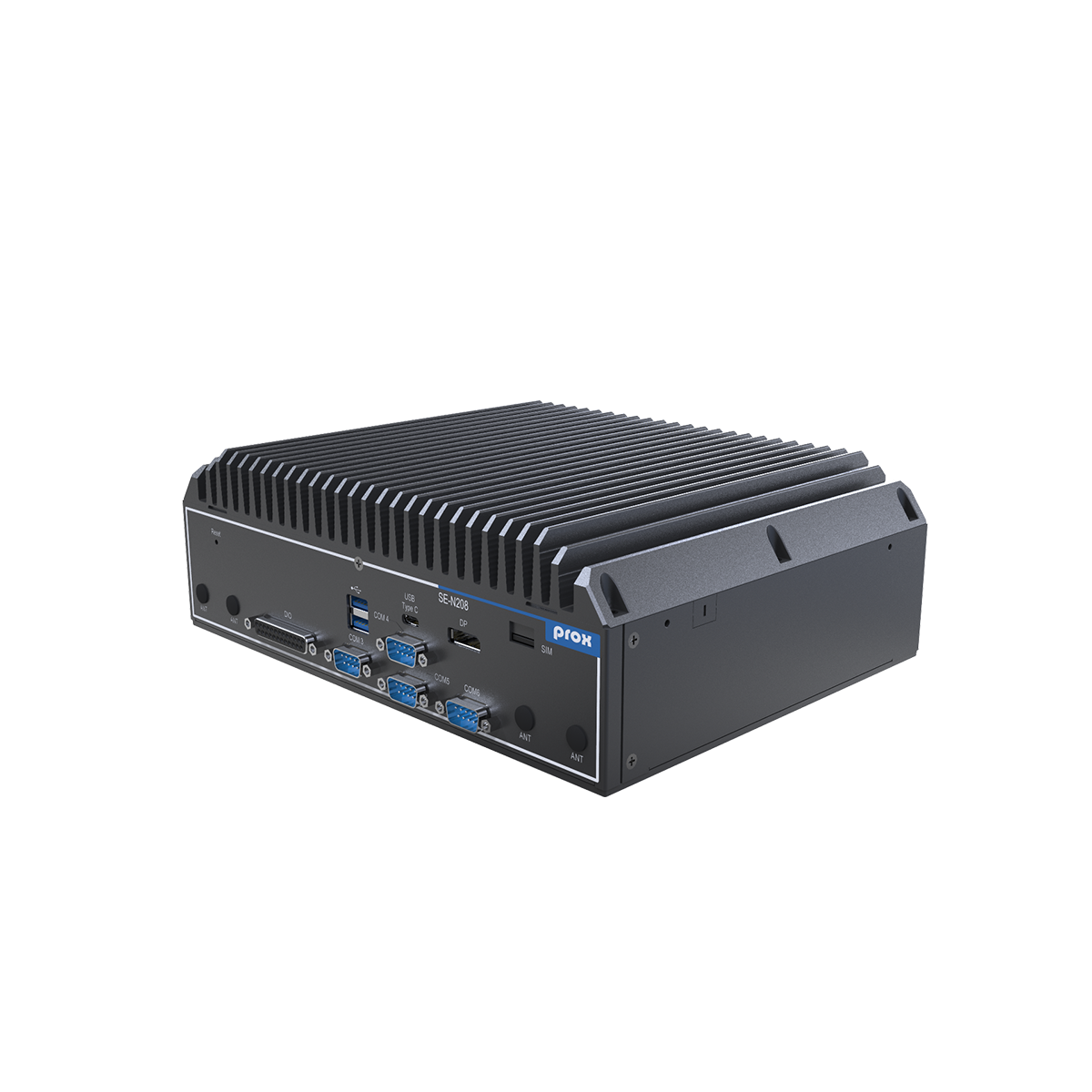

| I/O Ports (Front Side) | ||
| USB |
H610E: 1 x USB 2.0 ports Q670E: 1 x USB 3.2 Gen2x1 ports 1 x USB 3.2 Gen2x2 with type C |
|
| Serial Ports |
1 x COM5, D-sub9, RS-232/422/485 selectable under BIOS 1 x COM6, D-sub9, RS-232 |
|
| Digital I/O | 1 x DIO 16, 8-IN/8-OUT | |
| SIM Slot | 1 x Nano SIM Slot with Tray | |
| Display | 1 x DP (Q670E) | |
| Antenna Holes | 4 x Antenna holes | |

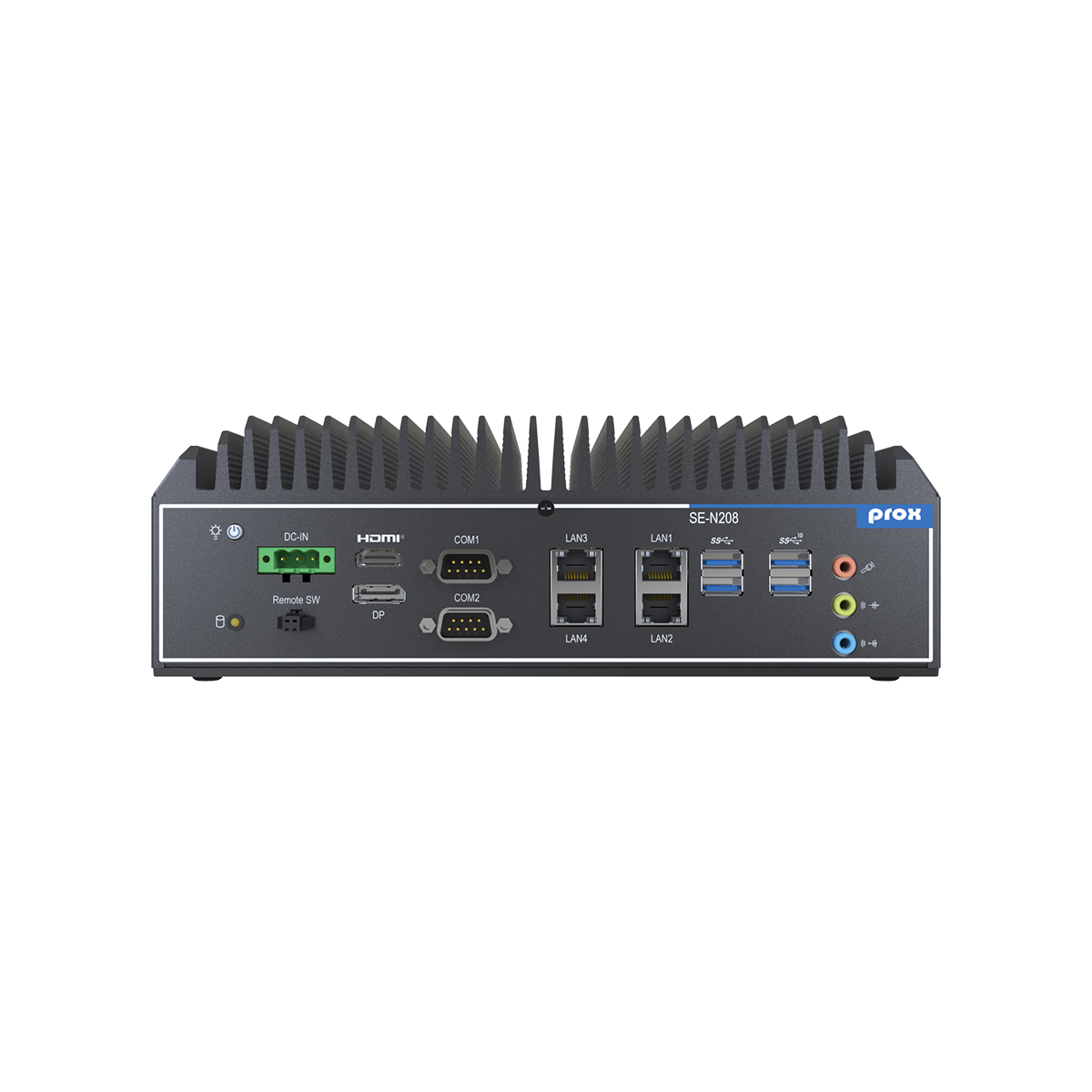

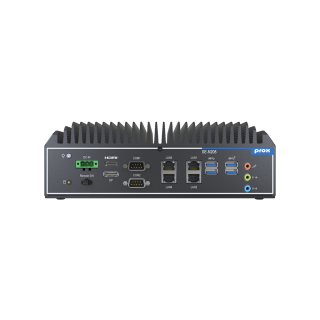

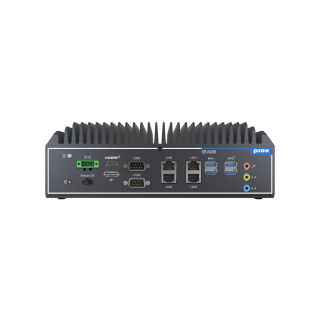

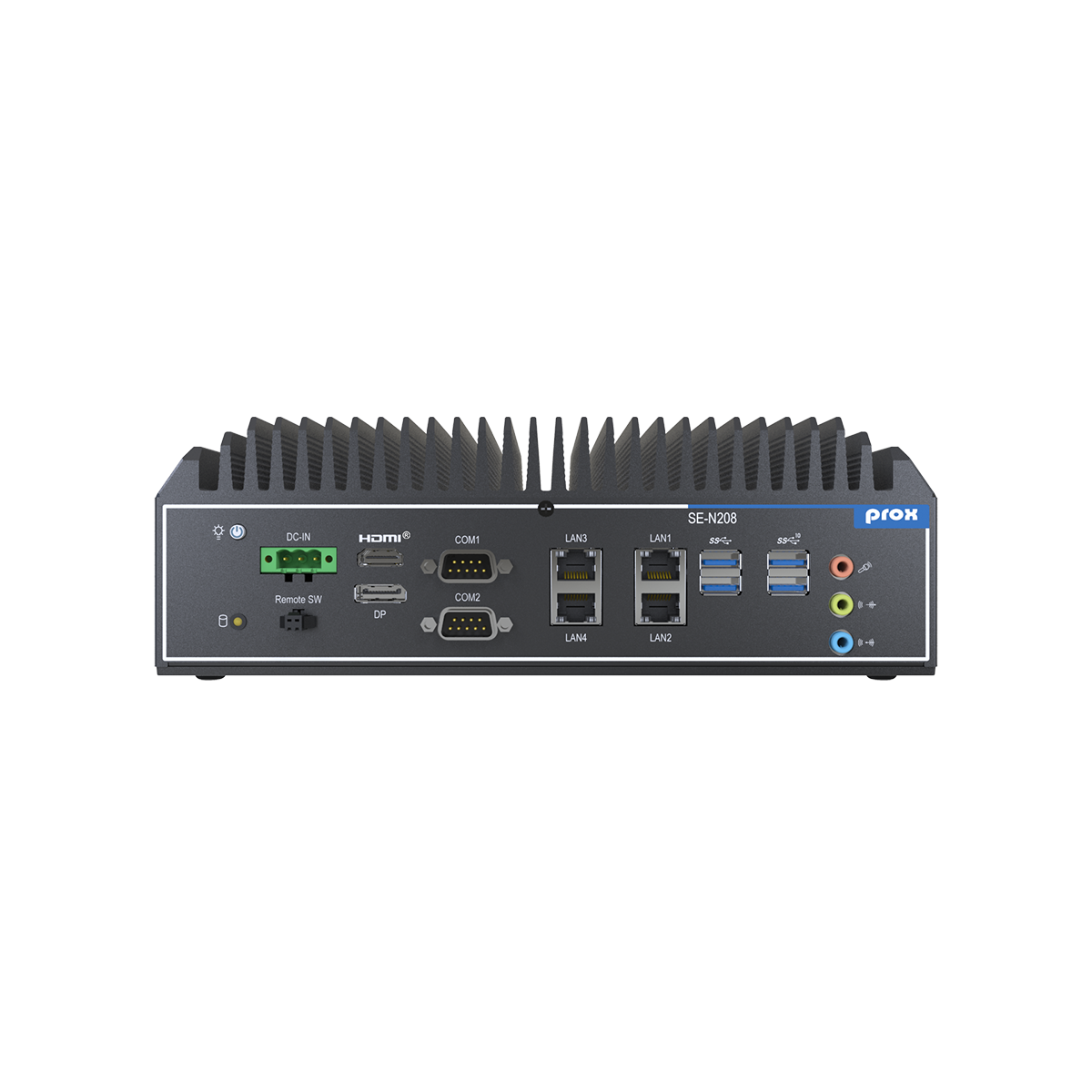

| I/O Ports (Rear Side) | ||
| Power Input | 1 x 3-pin DC power connector supports 12V~24V | |
| Serial Ports |
4 x COM ports 1 x COM1 & 1 x COM2, D-sub9, RS-232/422/485 selectable under BIOS 1 x COM3 & 1 x COM4, D-sub9, RS-232 |
|
| Display | 1 x DP Port / 4K resolution
1 x HDMI® Type A port / 4K resolution
|
|
| LAN | 4 x RJ45 2.5GbE I226IT
Supports PXE and WOL Supports PoE IEEE802.3at (30W) |
|
| USB | H610E :
1 x USB 3.2 Gen2x1 port 1 x USB 3.2 Gen1x1 port 1 x USB 3.2 Gen2x1 port 1 x USB 3.2 Gen1x1 port |
|
| Power Button | 1 x Power Button with LED Indicator | |
| Remote Switch | 1 x 2-pin Remote Switch | |
| LED Indicator | 1 x HDD LED | |
| Audio | 1 x Mic In phone jack
1 x Line In phone jack 1 x Line Out phone jack |
|
| Environment | ||
| Operating Temp.
(Ambient with airflow)
|
-20°C~70°C (without PoE)
-20°C~60°C (with PoE SKU)
|
|
| Storage Temp. | -40°C~85°C (-40°F~185°F) | |
| Humidity | 5% to 95% (non-condensing) | |

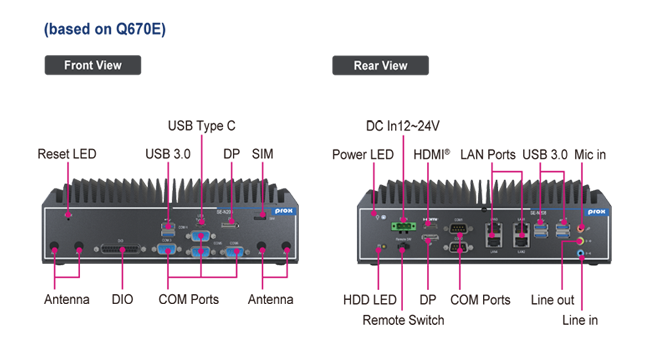

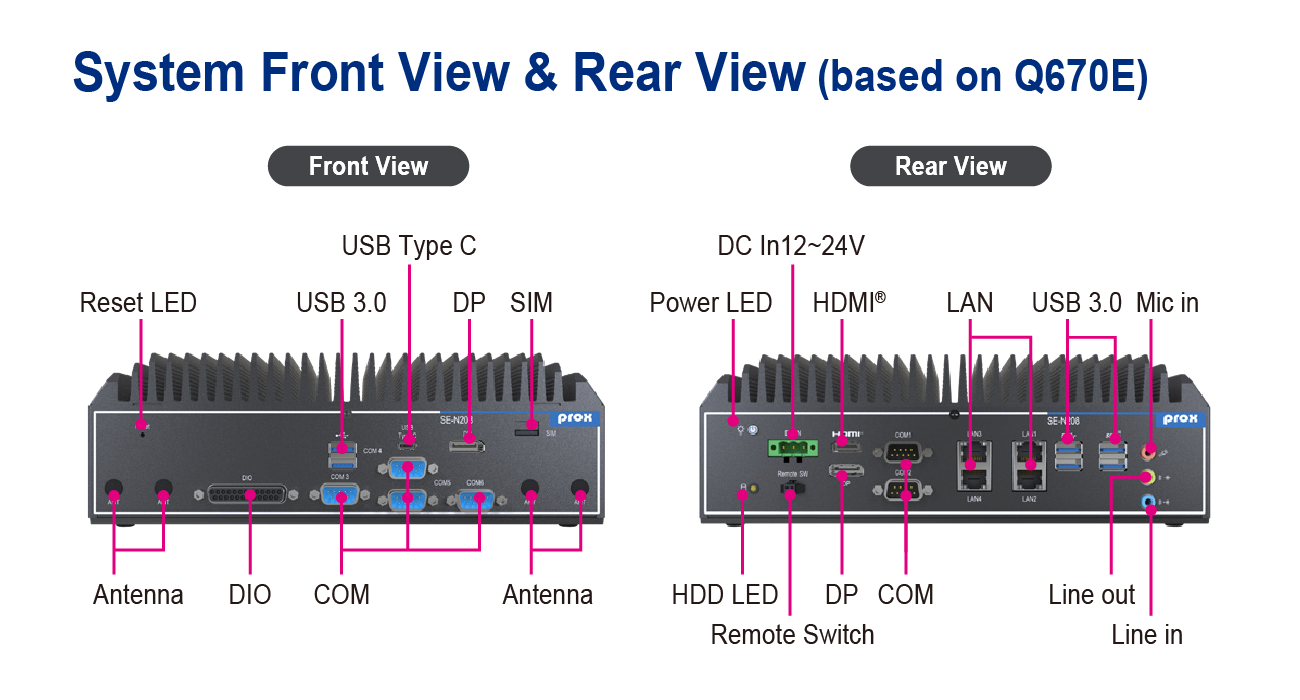

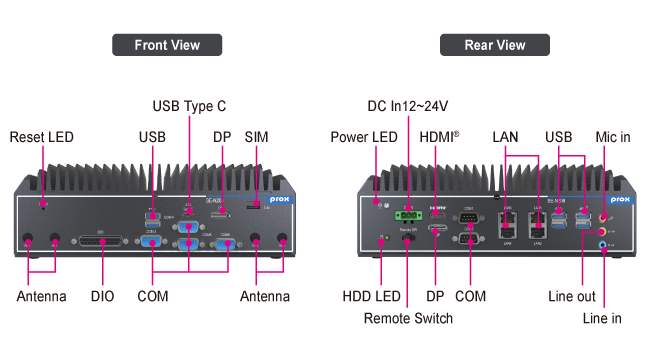

SE-N208 Highlight

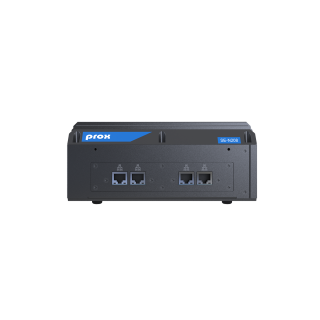

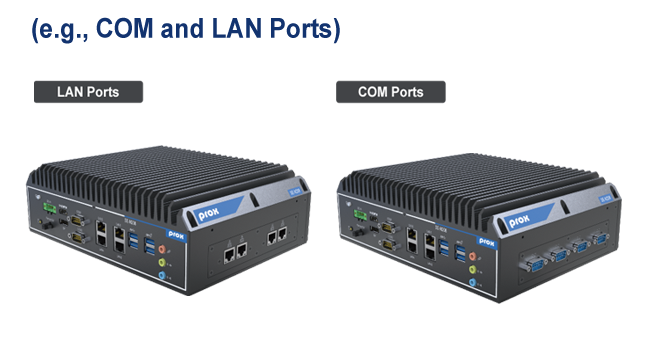

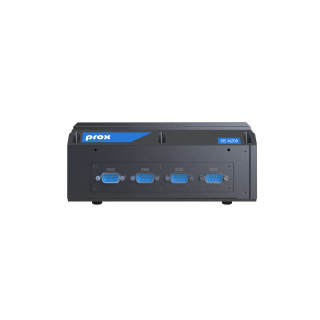

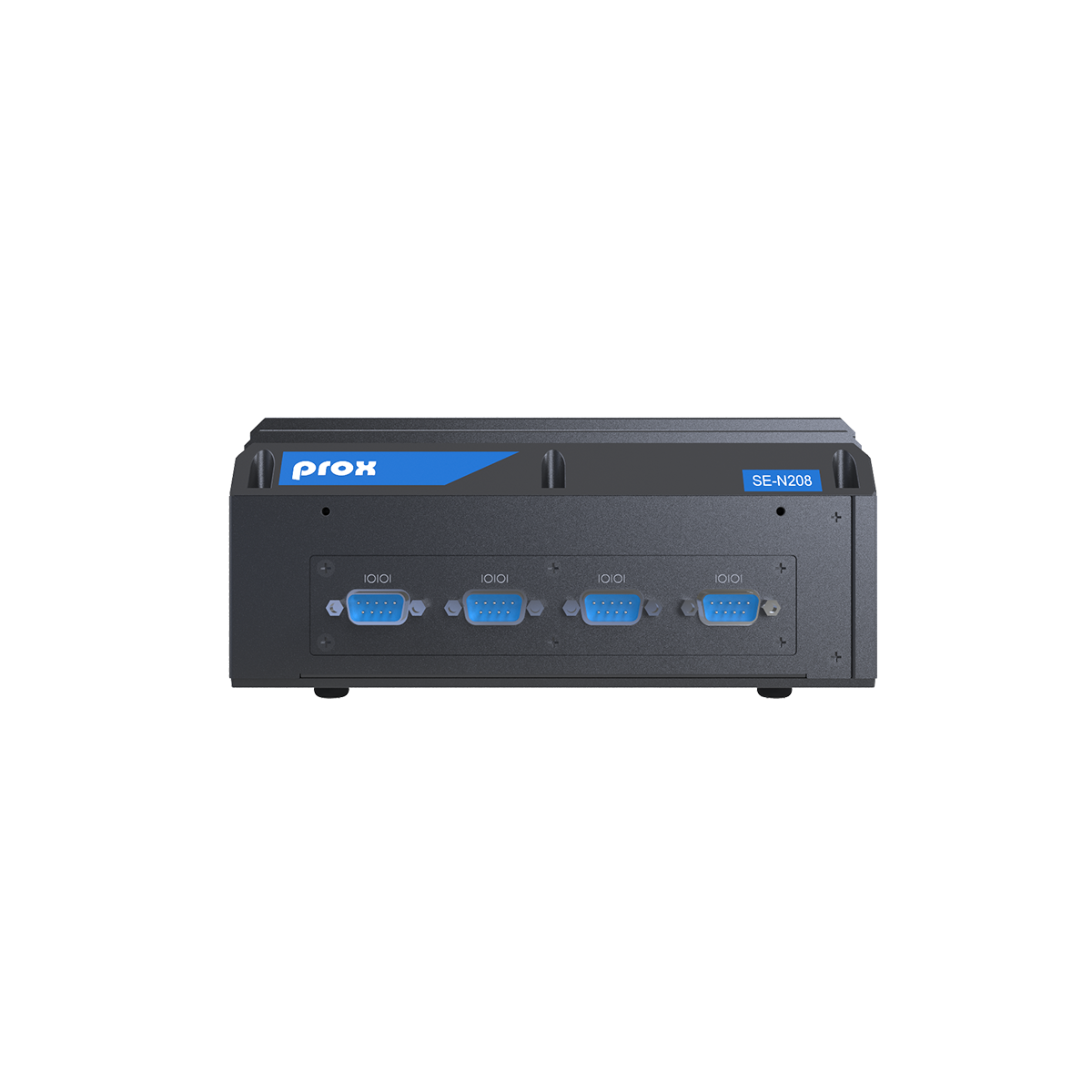

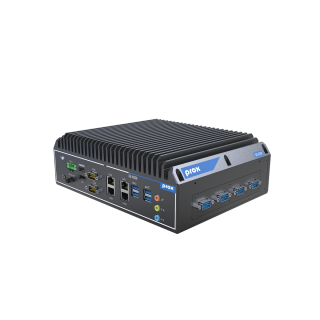

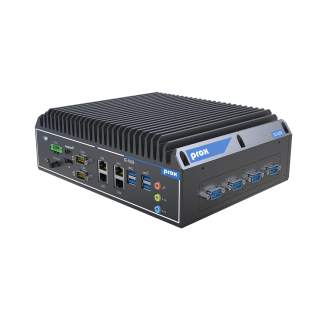

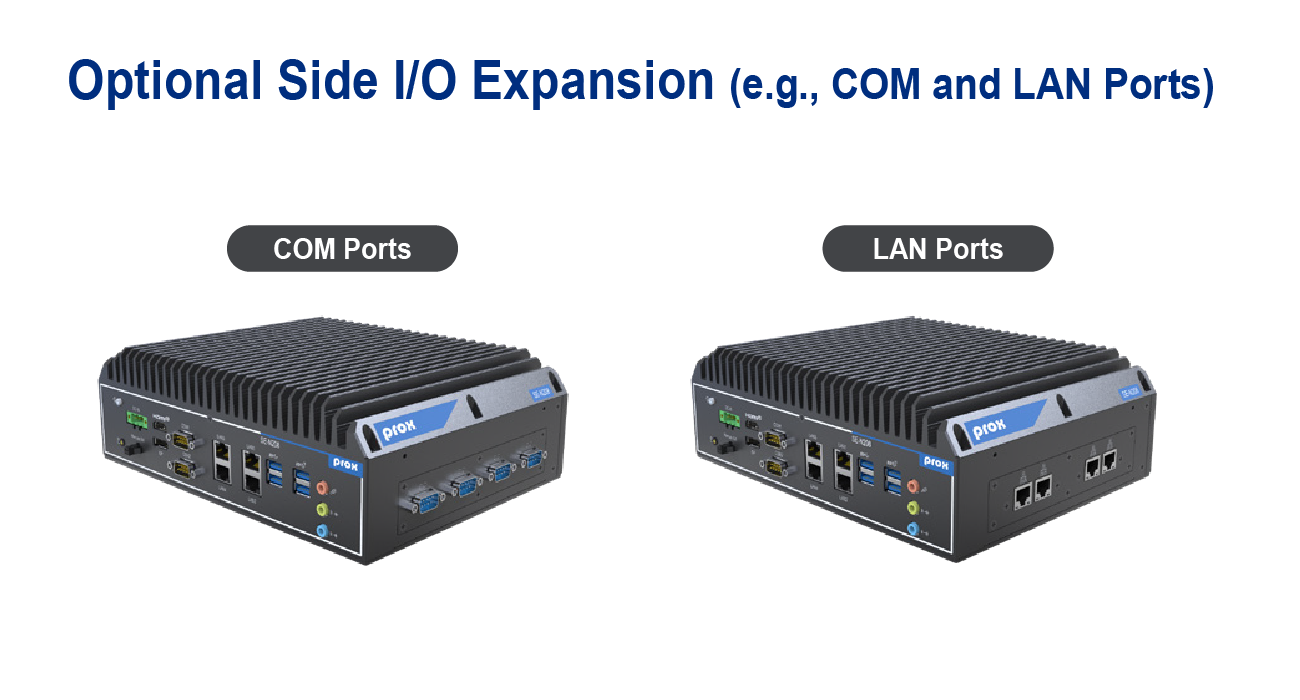

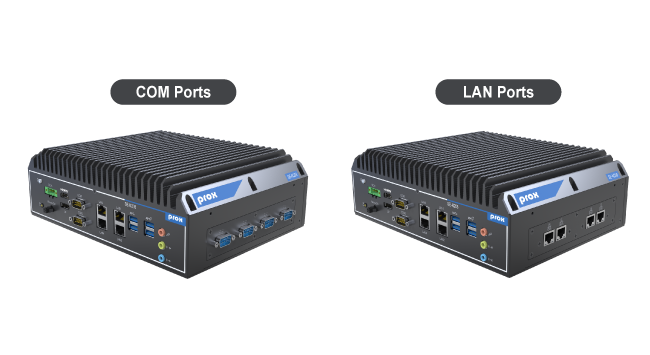

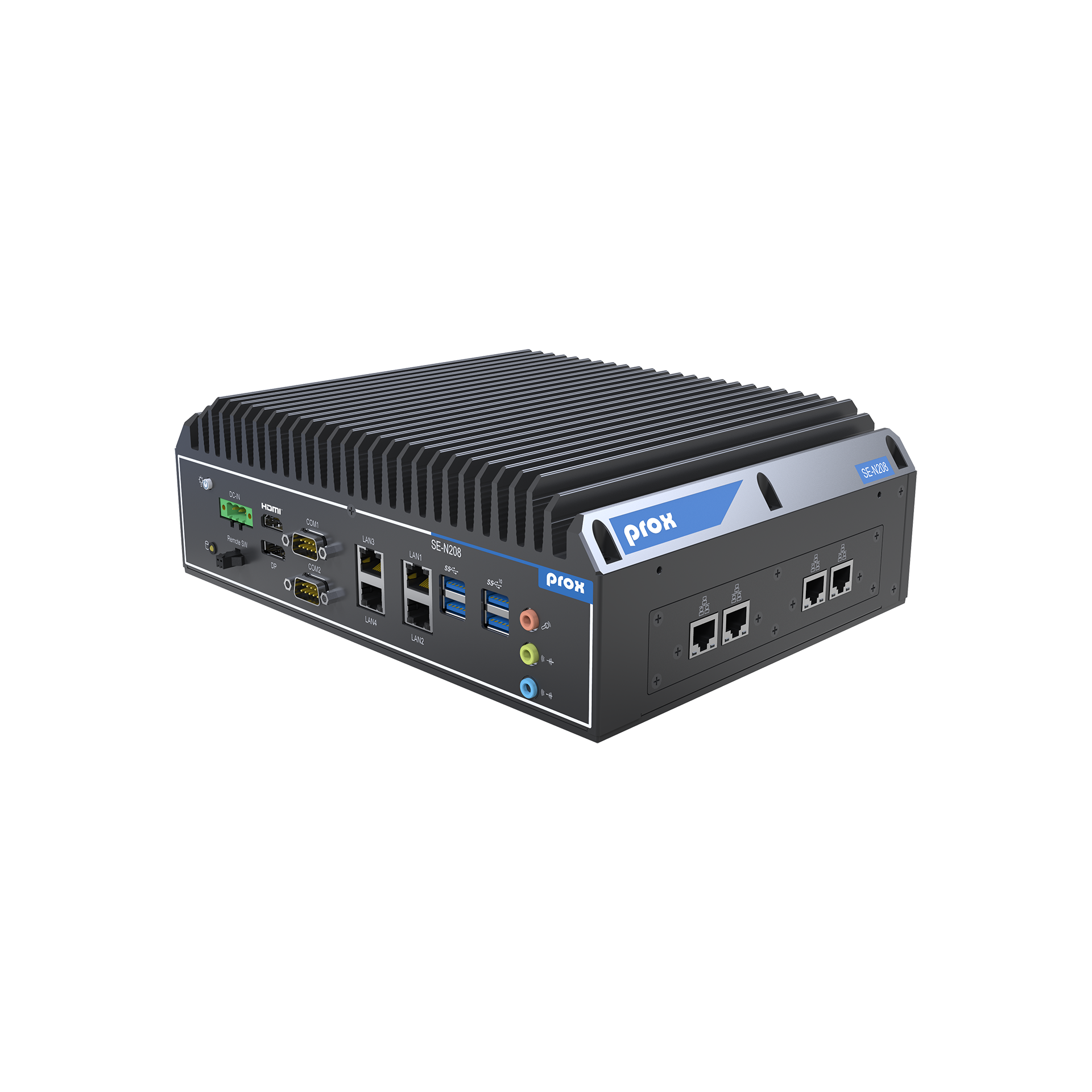

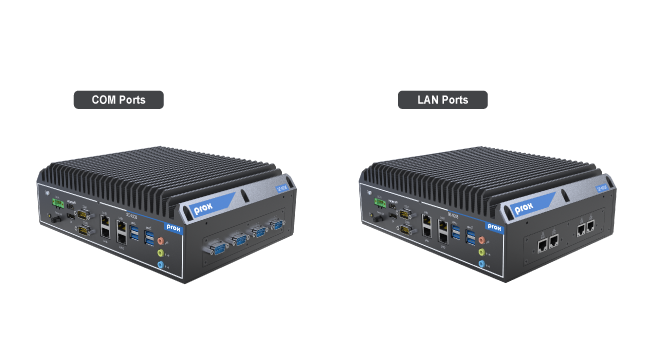

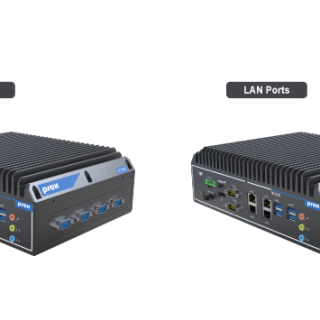

SE-N208 Optional Side I/O Expansion

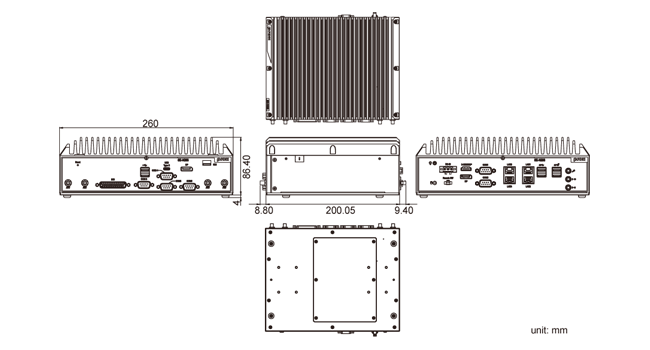

SE-N208 Dimensions
| SE-N208 |
14th/13th/12th Gen. Intel® Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron® Processor Fanless Embedded PC |
