SE-N101
•Flexible Industrial Connectivity
•Dual 2.5GbE Networking
•Wide-range 9–36V DC Input
•Extended Operating Temperature Range (-20°C to 70°C)
•MIL-STD-810H Shock & Vibration tested
| System | ||
| CPU Support |
Intel® Core™ 3 N355 Intel® Core™ i3-N305 Intel® Processor N250 / N200 / N150 / N97 / N50 Intel® Atom® x7433RE / x7213RE / x7211RE |
|
| Graphics |
Intel® UHD Graphics |
|
| Memory Support |
1 x DDR5 4800MHz SODIMM (up to 32 GB) |
|
| Storage |
1 x M.2 2242 M Key (PCIe Gen3 x2) |
|
| Expansion Slot | 1 x M.2 3042 B Key (PCIe, USB 3.0/2.0, and SIM signals)
1 x M.2 2230 E Key (PCIe and USB 2.0 signals)
|
|
| Wireless Connectivity | 1 x Nano SIM card slot
6 x Antenna holes
|
|
| LED Indicator | 1 x HDD LED | |
| Power Switch | 1 x Power Button
1 x Remote Switch
|
|
| Power Input |
DC-in 9-36V (with ignition control) |
|
| System Weight |
1.6 kg |
|
| Dimensions (W x H x D) |
215 x 54.46 x 164.2 mm |
|
| Mounting |
Wall Mount / VESA Mount (75 x 75 mm) |
|
| Watchdog |
1-255 seconds watchdog timer selectable |
|
| TPM |
TPM 2.0 |
|
| Operating System |
Windows 11 IoT Enterprise LTSC 2024 Windows 10 IoT Enterprise LTSC 2021 Ubuntu 22.04 LTS |
|
| Certifications |
FCC Class A / CE (EMC, LVD) |
|
|
I/O Ports |
||
| USB |
2 x USB 3.2 Gen2
2 x USB 2.0 |
|
| Serial Ports |
COM 1/2: RS-232 COM 3/4: RS-232/422/485 |
|
| Ethernet |
2 x 2.5GbE LAN |
|
| Display output |
1 x HDMI™ 2.0 (optional): Max. resolution 4K @ 60Hz |
|
| Digital I/O |
1 x DIO (4 DI / 4 DO), 3 kVrms isolation (optional) |
|
| Audio |
1 x Line-out 1 x Mic-in
|
|
| Environment | ||
| Operating Temperature (Ambient with airflow) |
-20°C - 70°C (32°F - 158°F) | |
| Storage Temperature | -40°C - 85°C (-4°F - 185°F) | |
| Storage Humidity | 20% - 95% | |
| Vibration (Random) | IEC 60068-2-64, 2.5 g, 5–500 Hz, 1 hour/axis (with SSD) | |
| Vibration (Operating) | MIL-STD-810H, Method 514.8, Category 4 | |
| Vibration (Storage) | MIL-STD-810H, Method 514.8, Category 4 | |
| Shock (Operating) | MIL-STD-810H, Method 516.8, Procedure I | |
SE-N101

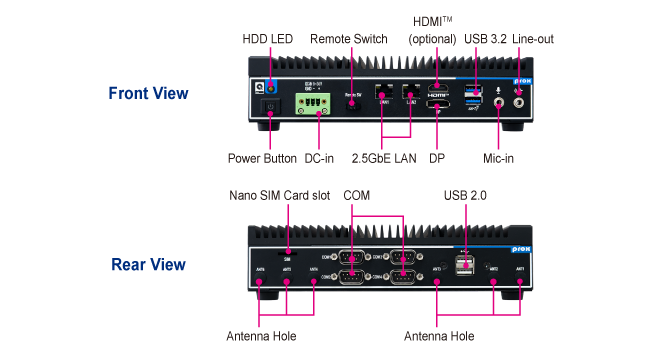

IO
SE-N101
Dimensions
| SE-N101 | Compact Fanless Embedded PC with Intel® Core™ Processor N Series / Atom® Processor X Series |
