SE-8134
•HDD easy maintenance design
•Three independent displays (2 x HDMI™ up to 4K + DVI-D)
•Multiple I/O port (2 x LAN with PoE + 4 x USB 3.0 + 4 x COM + DIO + I²C)
•Expansion slot (2 x full-sized Mini PCIe + SD slot + 2 x SIM slot)
•Support 4 x antenna holes
•Support power remote switch
•Wide-ranged voltage DC In (9~36V)
•Wide-ranged temperature (w/ E3950)
•TPM module (optional)
| CPU Support |
Intel®Celeron N3350, 2C, 2.4GHz Intel® Celeron J3455, 4C, 2.3GHz Intel® Pentium N4200, 4C, 2.5GHz Intel®Atom x7 E3950, 4C, 1.8GHz |
|
| Memory Support |
1 x DDR3L 1600/1867MHz SO-DIMM socket, memory up to 8GB
|
|
| API |
Watchdog / HW monitor / Digit IO / I²C |
|
| Drive Bay |
1 x 2.5" SATAIII HDD or SSD drive space
|
|
| Power Input | DC In 9~36V | |
| Power Adapter | DC In 24V, 72W or 120W (optional) | |
| Operating System |
Windows 10 IoT Enterprise LTSB 2016 64bit / Ubuntu16.04 LTS |
|
| Expansion Slots |
1 x full-sized Mini PCIe (with mSATA or 3G/4G card with USB 2.0 signal)
1 x full-sized Mini PCIe (with PCIe or 3G/4G card with USB 2.0 signal) 1 x SD slot 2 x SIM slot |
|
| System Weight |
2 kg
|
|
| Dimensions (W x H x D) | 217.5 x 45 x 148 mm | |
| Certifications | FCC / CE | |

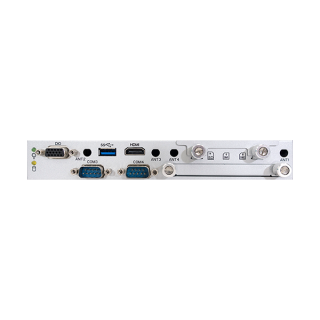

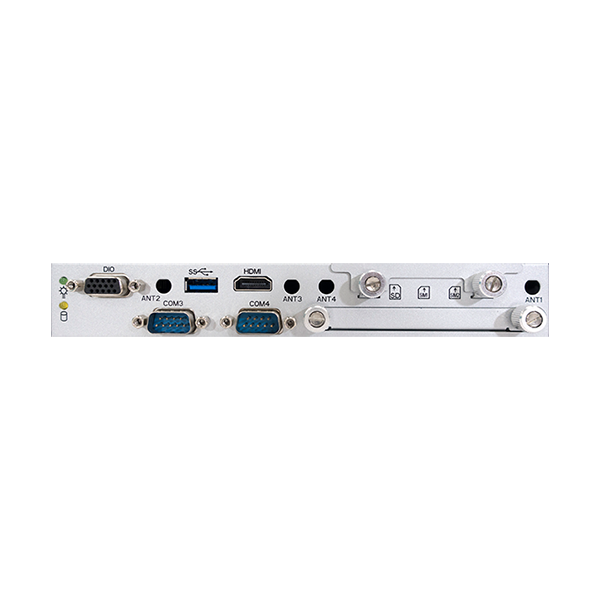

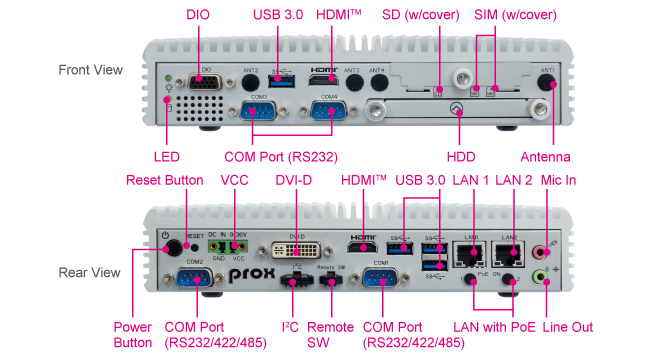

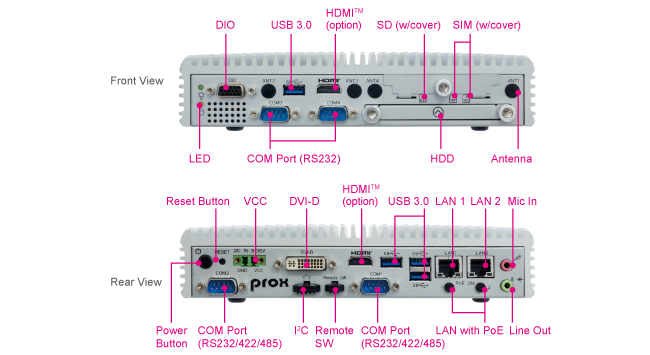

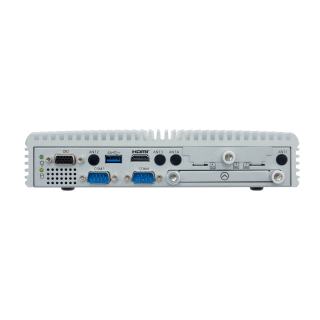

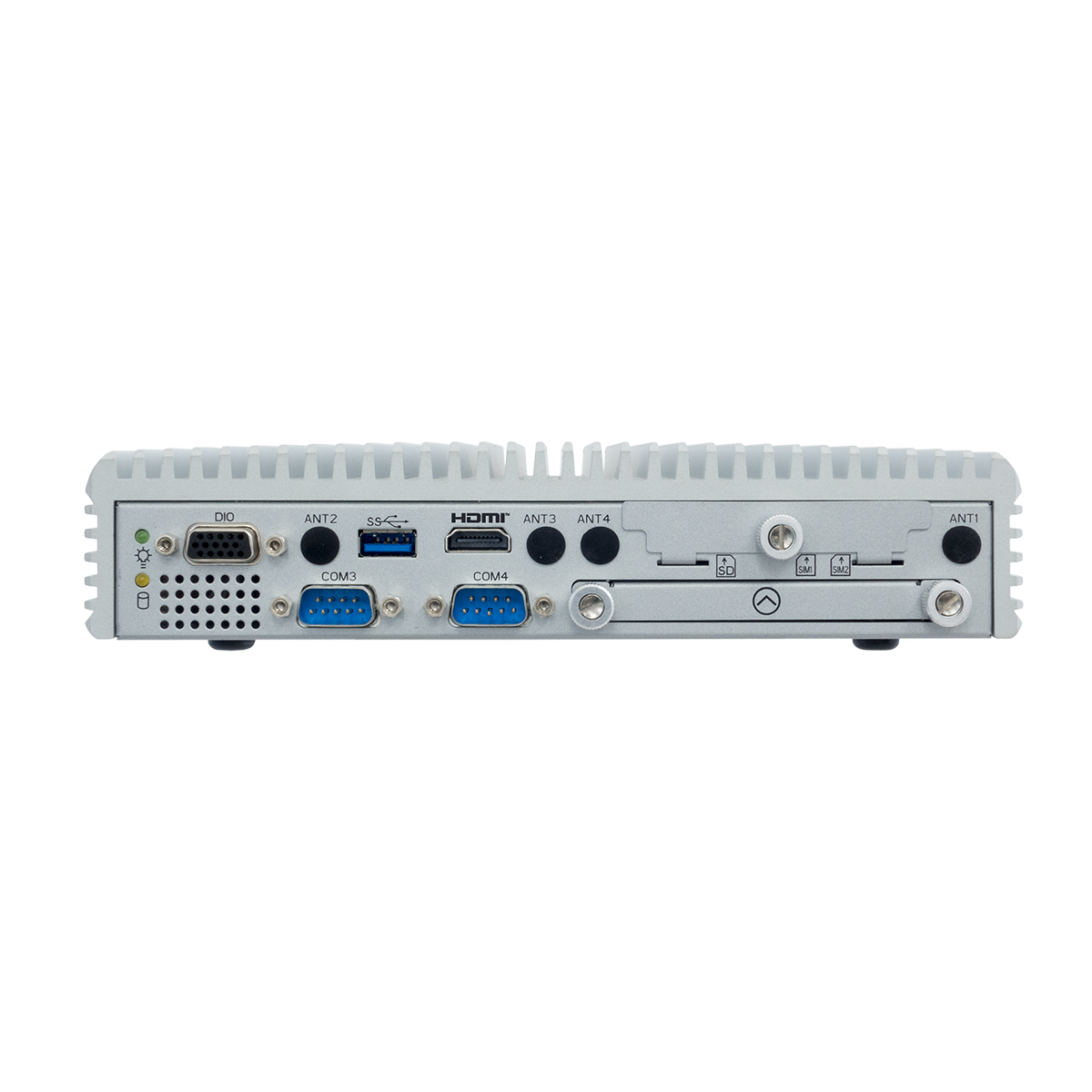

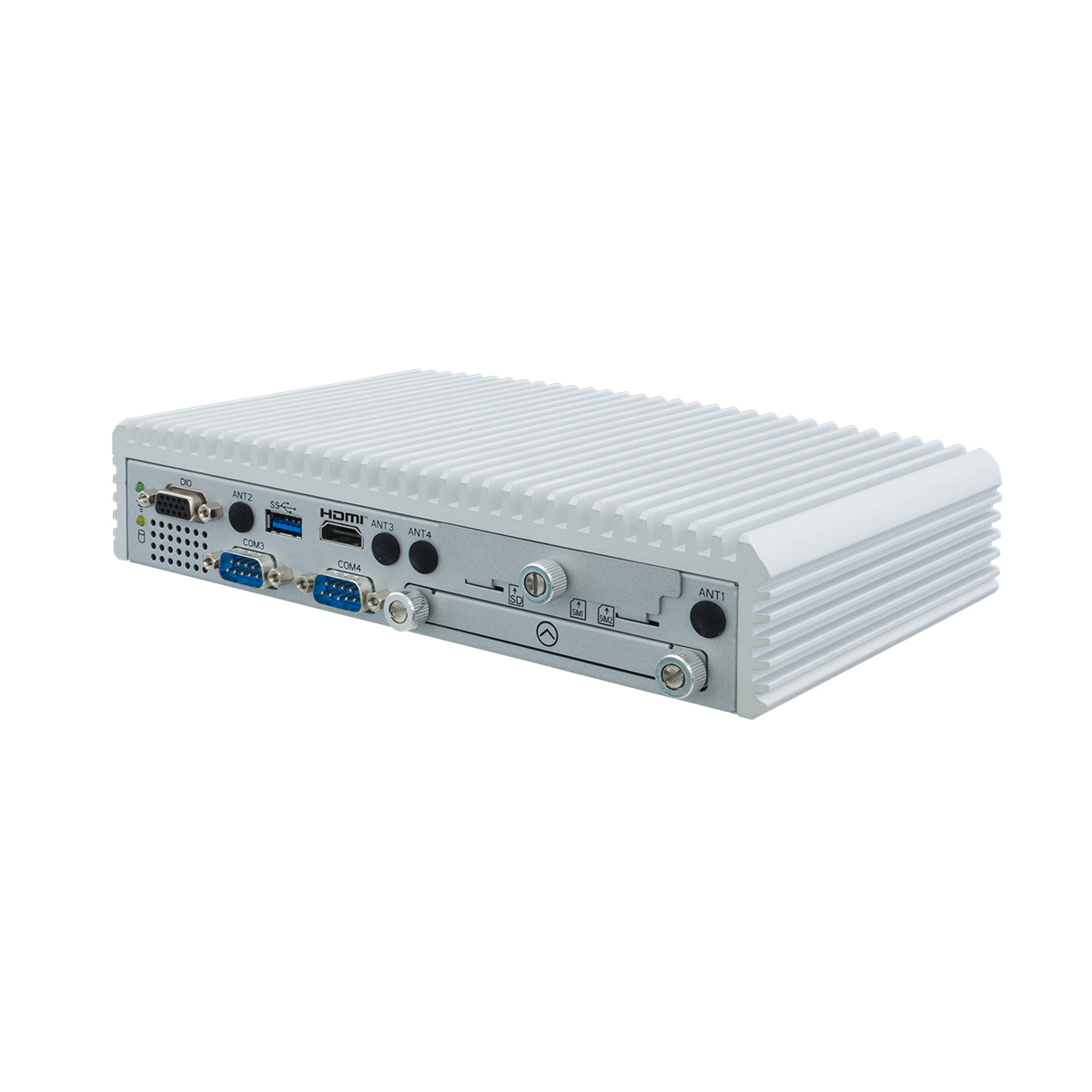

| I/O Ports (Front side) | ||
| USB |
1 x USB 3.0
|
|
| Serial Ports | COM 3/4 for RS232 | |
| Display |
1 x HDMI™ 1.4b (up to 3840 x 2160)
|
|
| LED |
1 x power LED, 1 x HDD LED |
|
| Antenna Hole |
4 x antenna holes
|
|
| Drive Bay |
1 x 2.5" SATAIII HDD or SSD drive space
|
|
| SD Card |
1 x SD slot
|
|
| SIM Card |
2 x SIM slot |
|
| Digital I/O |
4 in / 4 out |
|
|

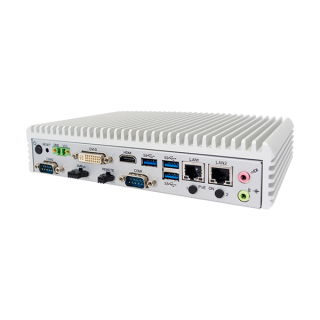

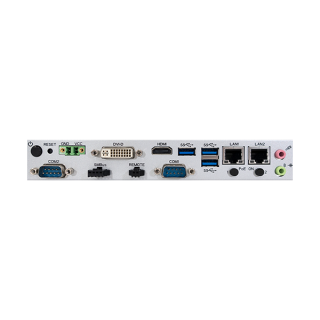

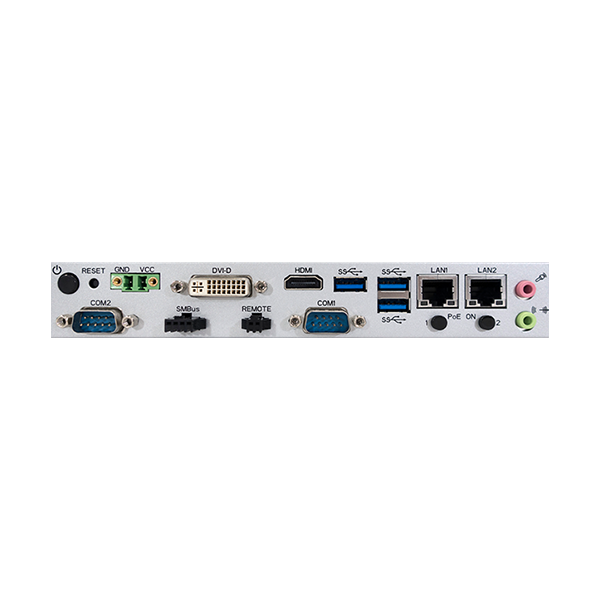

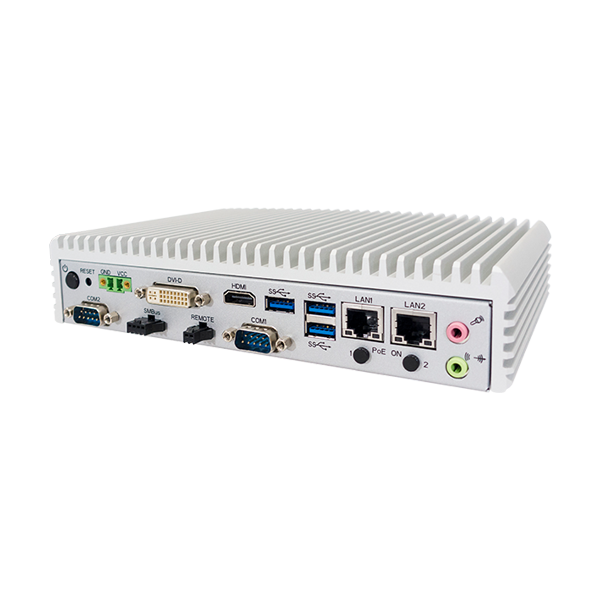

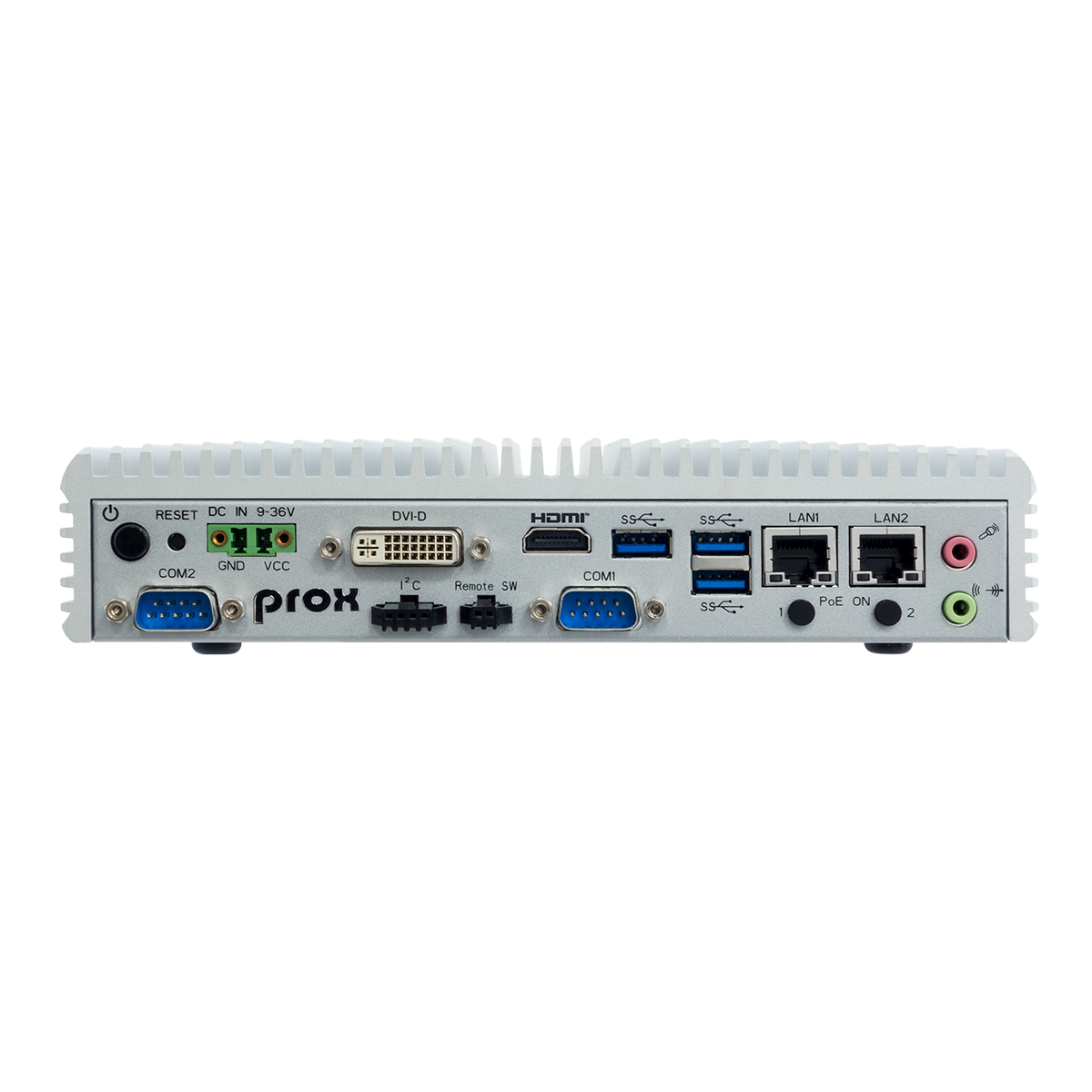

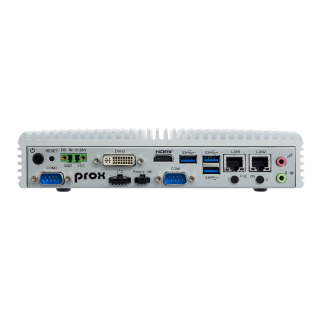

I/O Ports (Rear side) |
||
| USB |
3 x USB 3.0 |
|
| Serial Ports |
COM 1/2 for RS232/422/485 selectable under BIOS, RI/5V/12V selectable by jumper
|
|
| Display |
1 x HDMI™ 1.4b (up to 3840 x 2160), 1 x DVI-D |
|
| LAN |
2 x LANs with PoE (IEEE 802.3af) as option, Wake-On-LAN, PXE LAN 1: Intel® I210IT LAN 2: Intel®I210IT |
|
| Audio |
1 x Line Out / 1 x Mic In |
|
| I²C |
1 x I²C port |
|
| Power Input |
2 pin DC In terminal block, supporting 9~36V DC In |
|
| Power On/Off |
1 x power button 1 x remote switch
|
|
| LED |
2 x PoE LED
|
|
| Environment | ||
| Operating Temp.
(Ambient with airflow)
|
HDD: 0°C~40°C (32°F~104°F) SSD: 0°C~50°C (32°F~122°F) Wide-ranged temperature: 0°C~50°C (32°F~122°F) (w/ N3350) Wide-ranged temperature:-20°C~50°C (-4°F~122°F) (w/ E3950) |
|
| Storage Temp. |
-20°C~80°C (-4°F~176°F)
|
|
| Humidity | 20%~90% | |
SE-8134 IO
| SE-8134 |

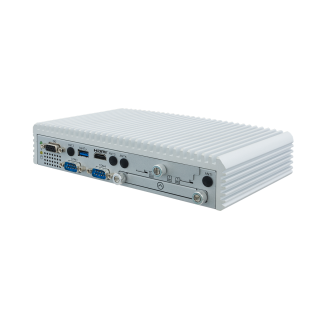

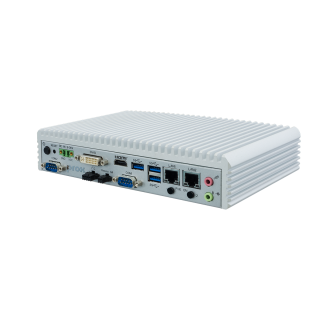

Intel® Atom® / Pentium® / Celeron® Processor Compact and Fanless Embedded PC |
| File type | File Download |
| EDM | SE-8134_EDM.PDF |
| Pictures | |
| Manual | SE-8134_Manual.PDF |
| QuickGuide | SE-8134_QuickGuide.PDF |
| Driver README | SE-8134_README.PDF |
| BIOS | SE-8134_BIOS.ZIP |
| Device | SE-8134_Device.ZIP |
| Platform | SE-8134_Platform.ZIP |
| Other | SE-8134_Other.ZIP |
