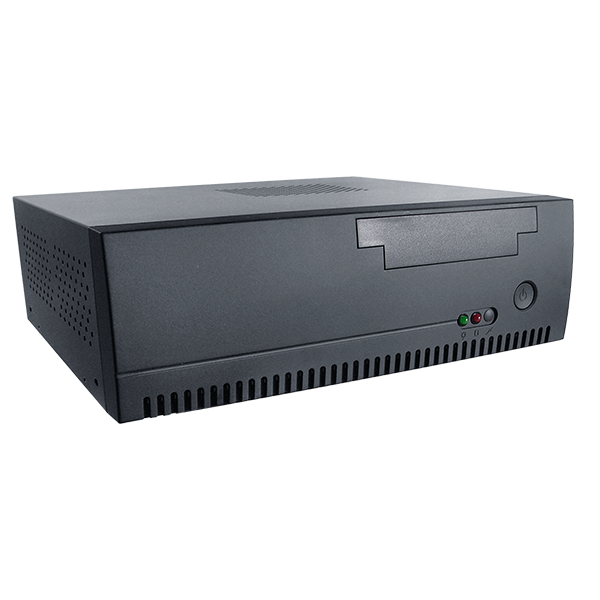

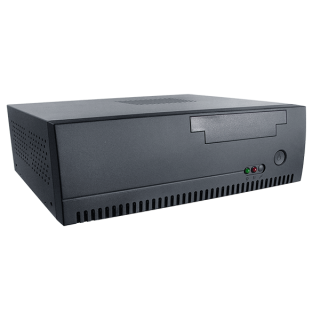

SA-5700

Intel® 7th / 6th Gen. Core™ i7 / i5 / i3 / Pentium®/ Celeron® Processor Book Size PC

•Intel® 7th / 6th Gen. Core™ i7 / i5 / i3 / Pentium® / Celeron® processor (LGA1151)
Built-in Intel® HD graphics
DDR4 2133 memory up to 32GB
•2 x DVI-D / 1 x DP (optional)
•4 x COM ports / 2 x COM ports (optional)
•1 x parallel port (optional)
•4 x USB 2.0 / 4 x USB 3.0
•Expansion slot selection
1 x PCIe (x16) slot / 2 x PCIe (x8) slot / 2 x PCl slot
1 x Mini PCIe slot (half-sized)
•RAID 0/1 (Q170 only)

Tech Spec
Product Info
Download

CPU Support	Intel® Core™ i5-1145G7E Intel® Core™ i3-1115G4E Intel® Pentium® 7505 (fanless) Intel® Celeron® 6305E (fanless)
Chipset	Intel® H110/Q170
Memory Support	2 x DDR4 SO-DIMM sockets (up to 32GB)
Power Supply	ATX 270W
Expansion Slots	1 x PCIe (x16) slot / 2 x PCIe (x8) slot / 2 x PCl slot 1 x Mini PCIe slot
Drive Bay	2 x 2.5" SATA HDDs 2 x 2.5" SSD (optional)
Operating System	Windows 10 IoT / Windows 8.1 / Windows 7 / Ubuntu 16.04
System Weight	5 kg
Dimensions (W x H x D)	300 x 94 x 270 mm
Certifications	FCC / CE
I/O Ports
Display	2 x DVI-D 1 x DP (optional)
USB	4 x USB 3.0 4 x USB 2.0
Serial Ports	Mic In / Line In / Line Out
LAN	2 x GbE LANs. Wake-On-LAN, PXE LAN 1: Intel^® I219LM LAN 2: Intel®I210AT
Serial Ports	COM 1 for RS-232/422/485 COM 2/3/4 for RS-232 (COM 1/2/4 support +5V/+12V/RI by setting jumper) COM 5/6 for RS-232 (optional)
Parallel Port	1 x parallel port (optional)
Environment
Operating Temp. (Ambient with airflow)	HDD: 0°C~40°C (32°F~104°F)
Storage Temp	-20°C~80°C (-4°F~176°F)
Humidity	20%~90%

SA-5700 Video

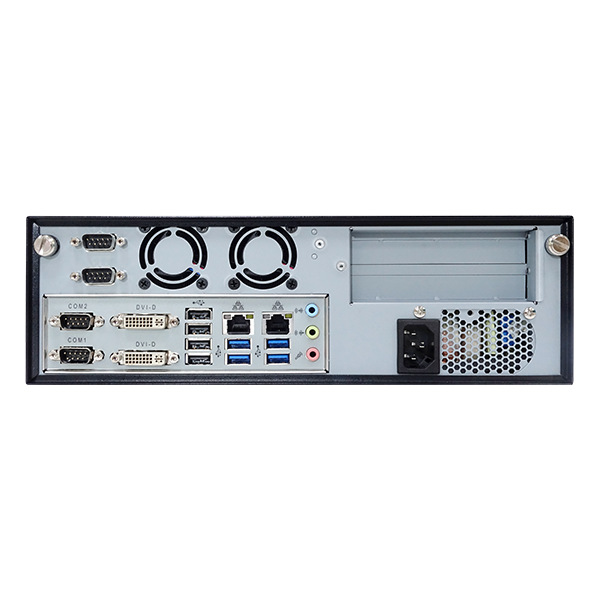

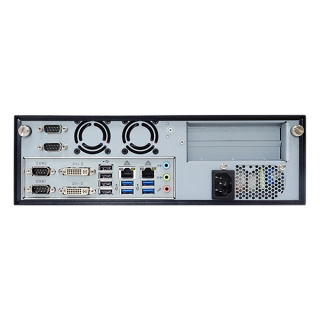

SA-5700 IO
