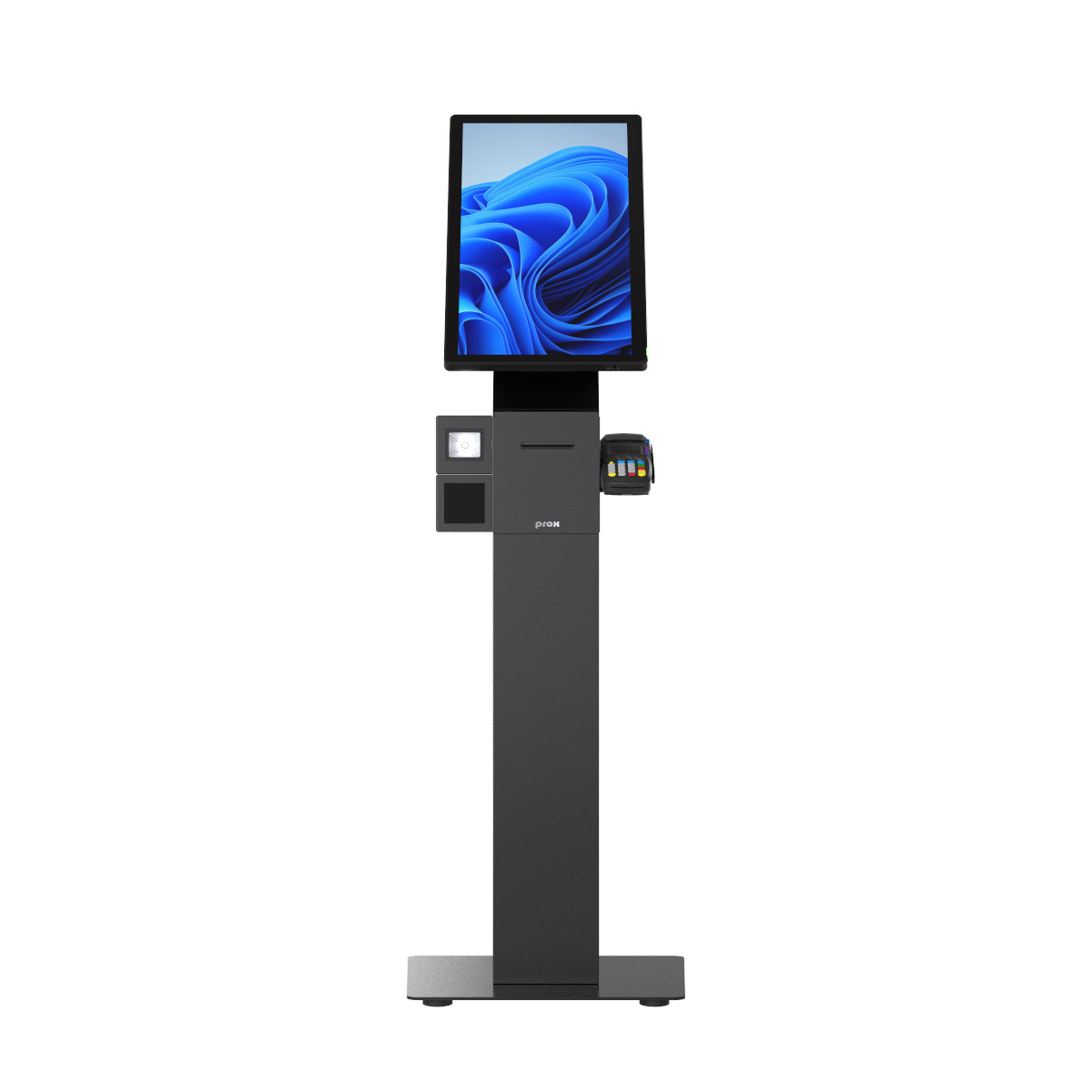

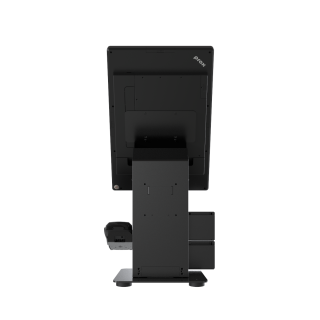

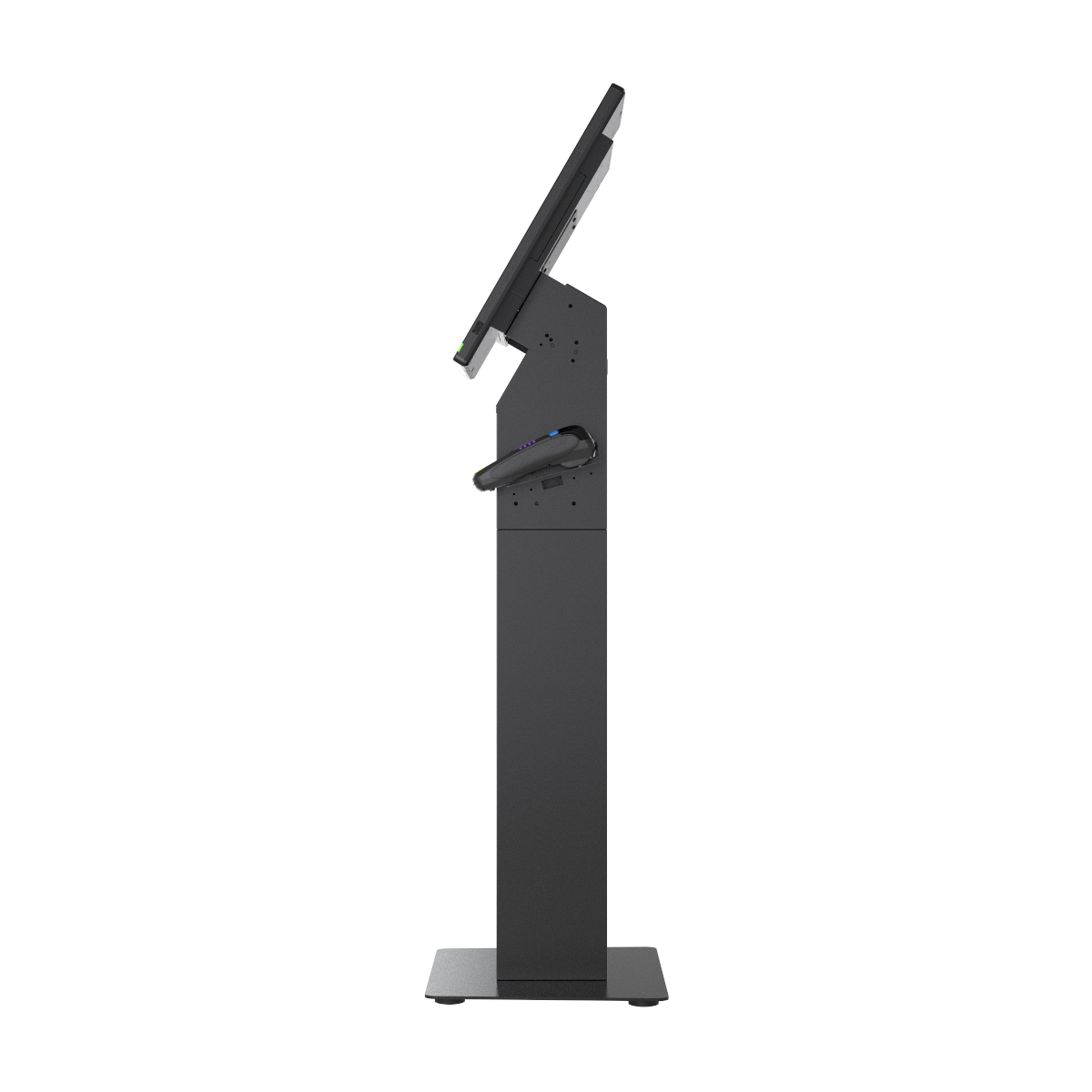

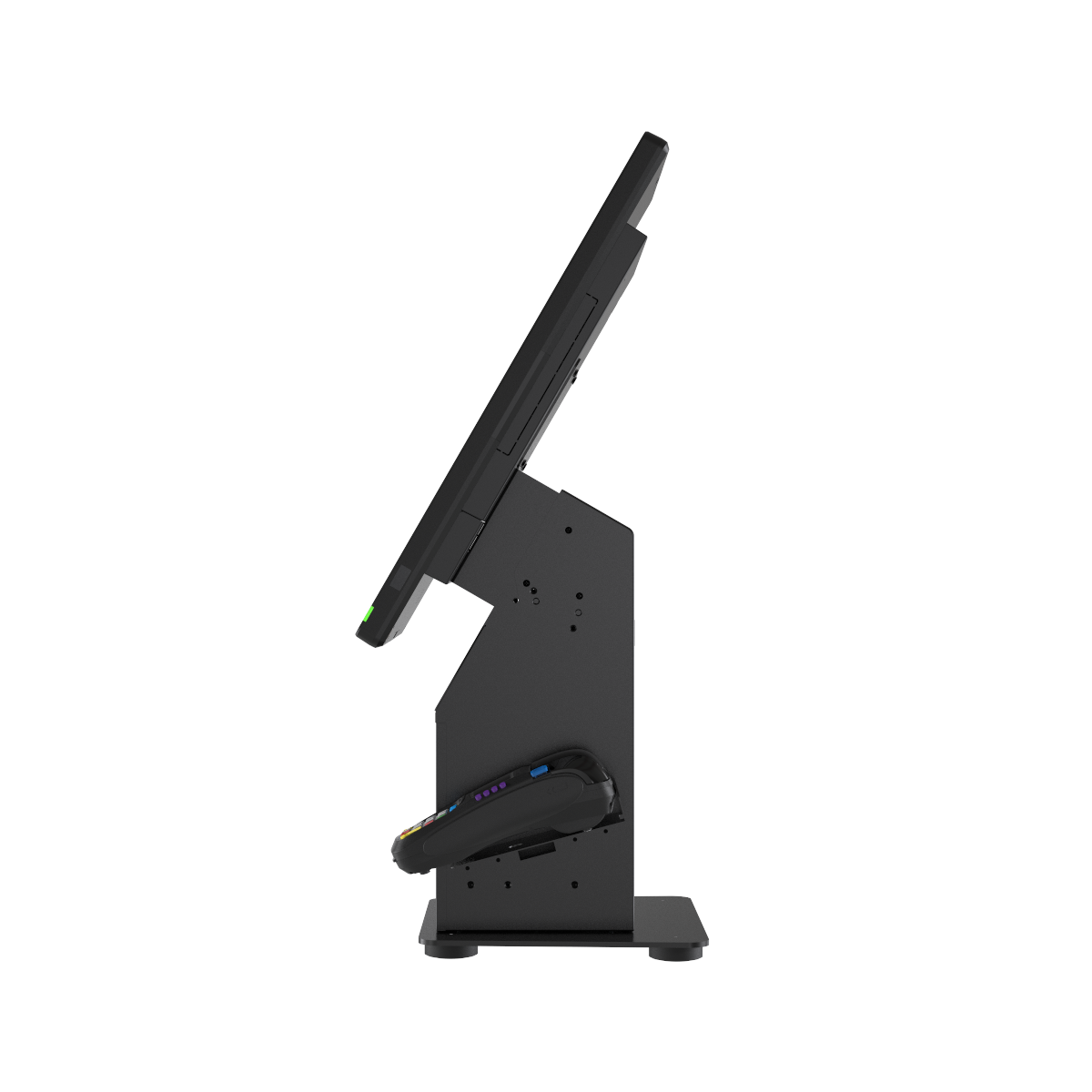

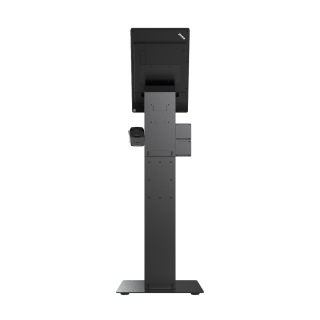

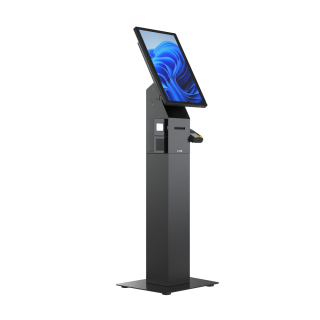

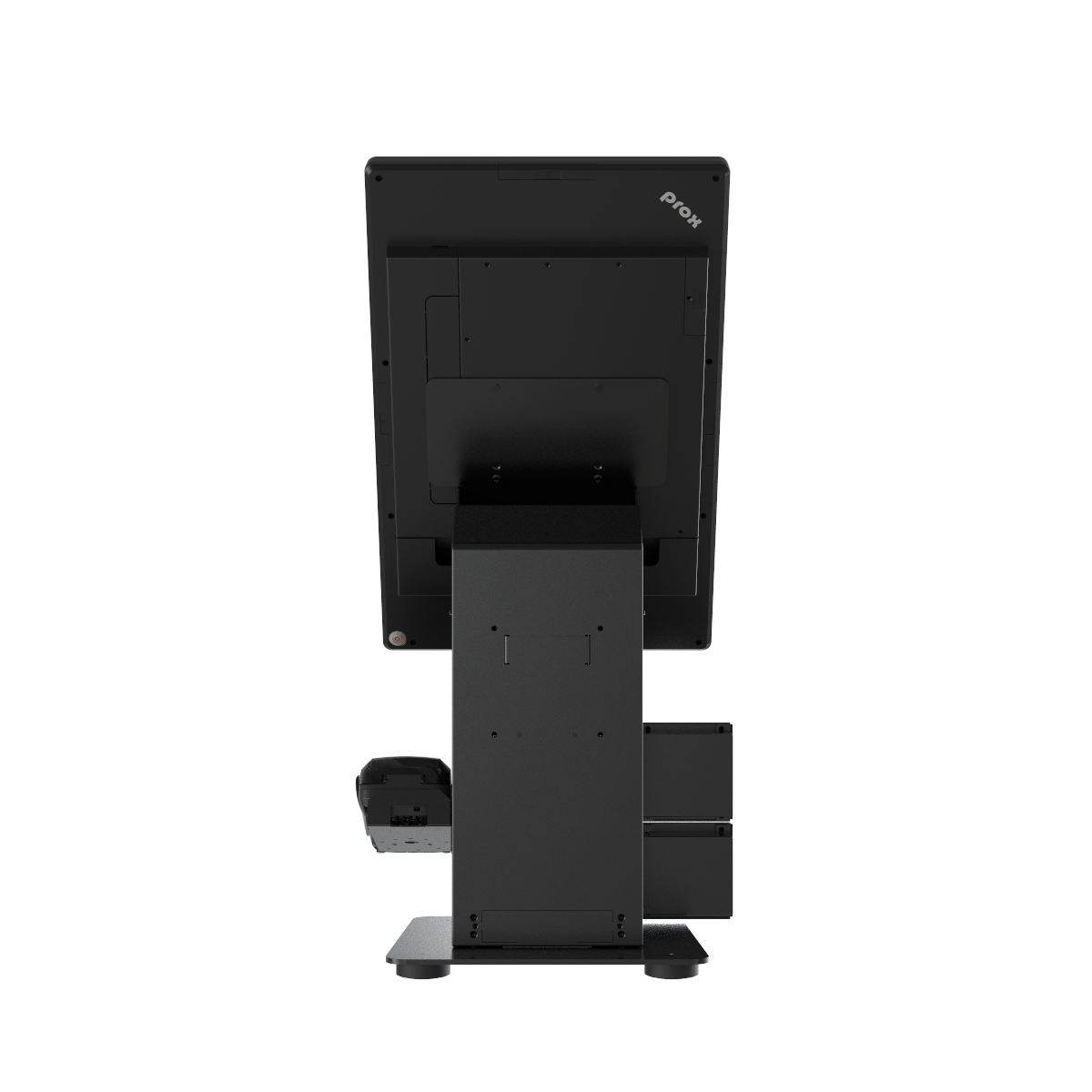

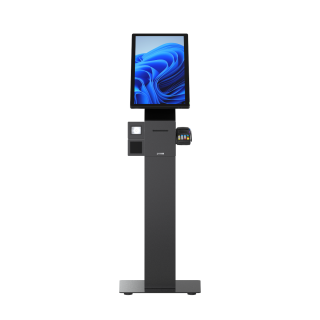

PA-J602E

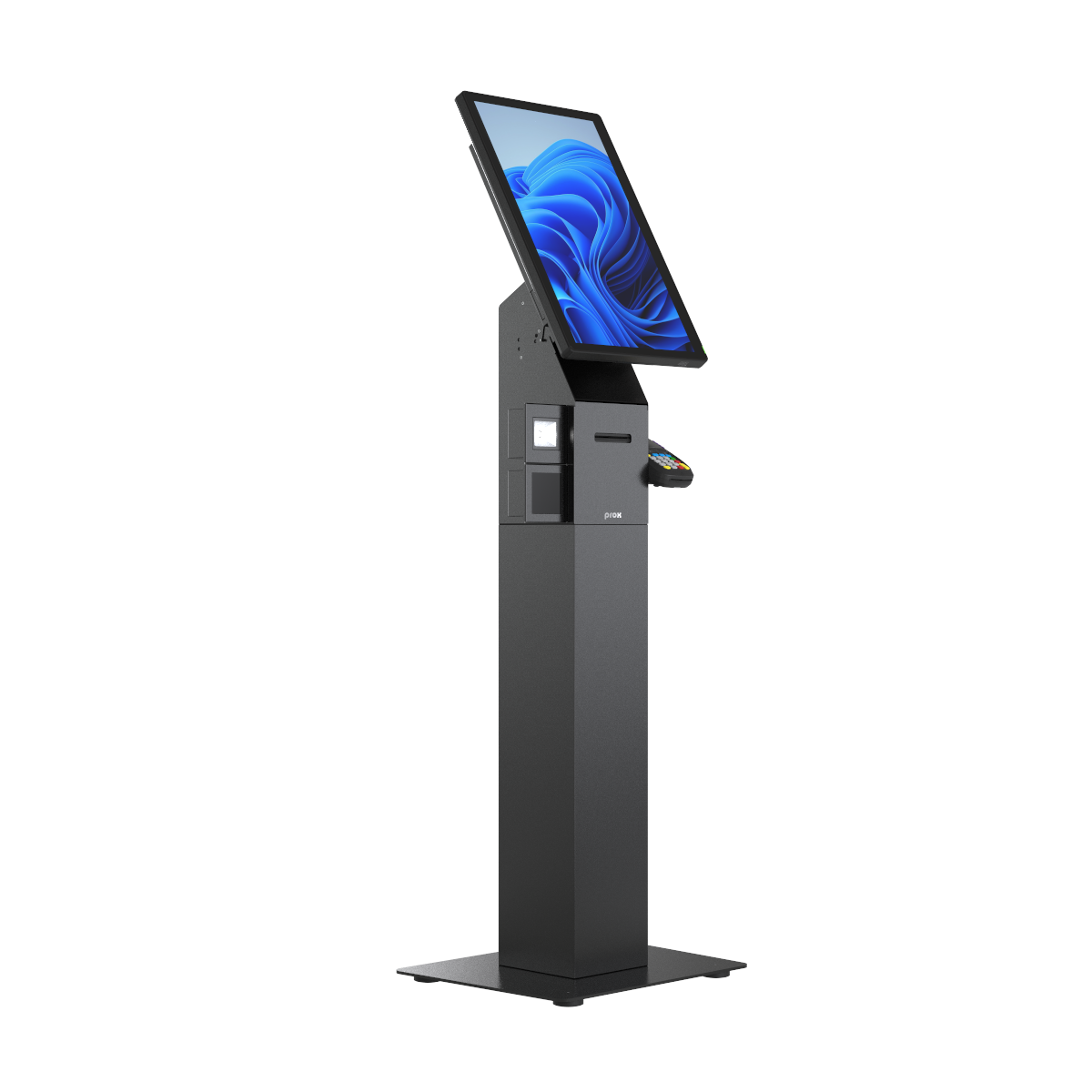

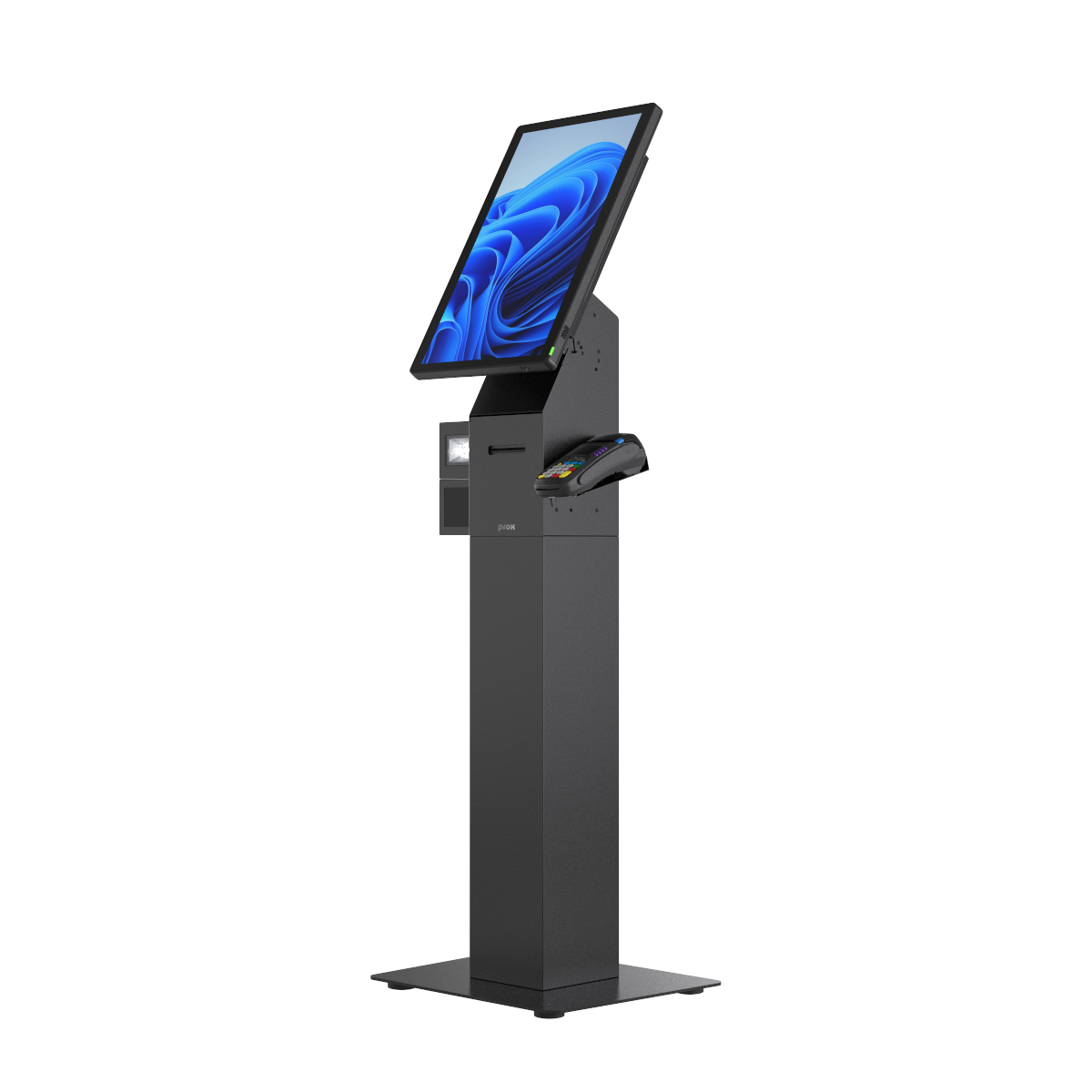

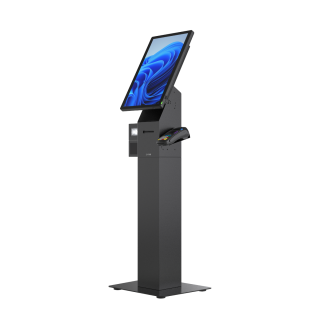

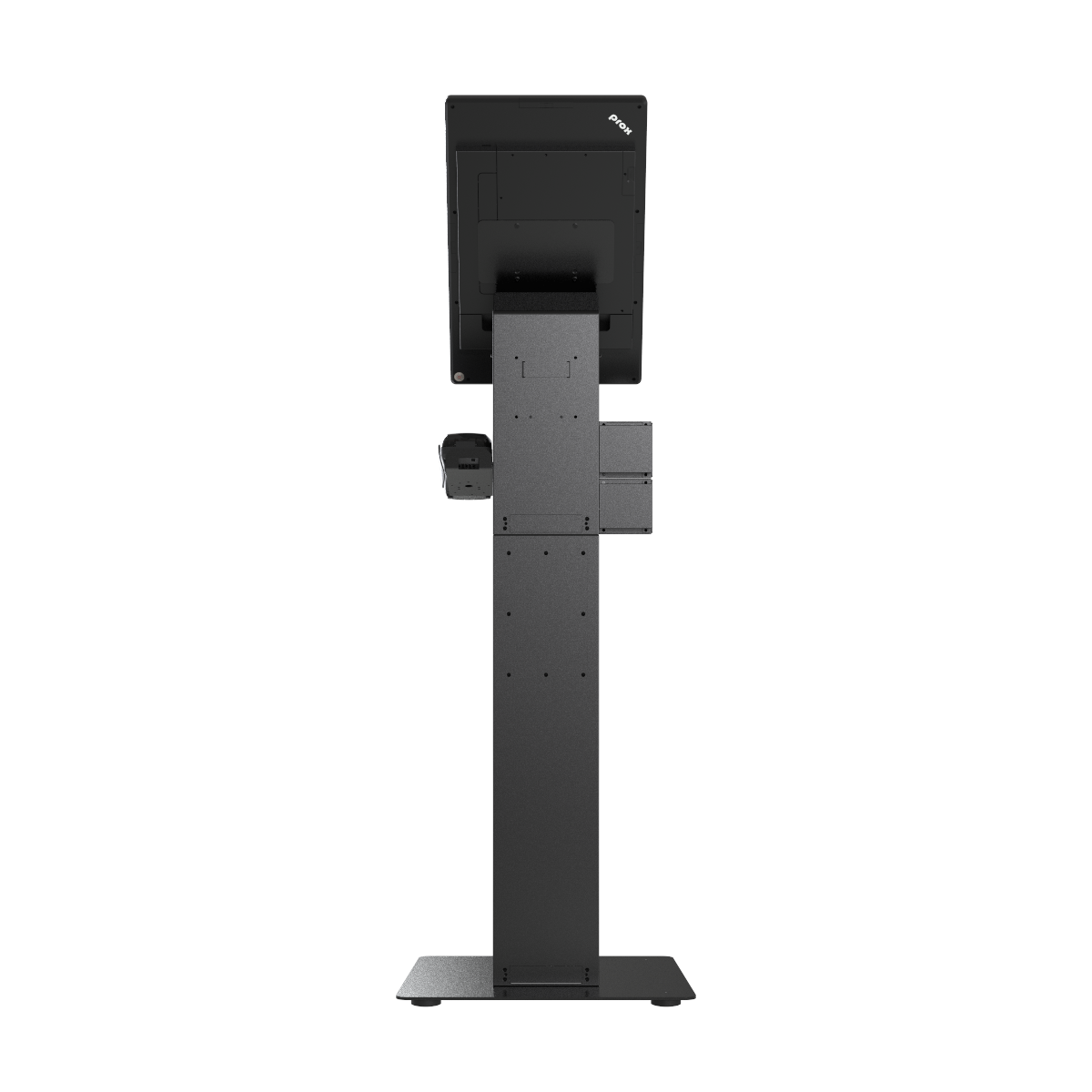

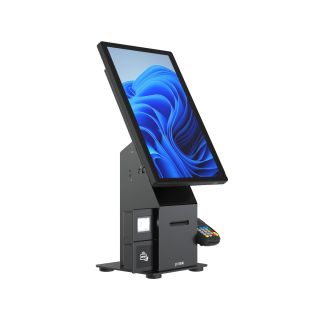

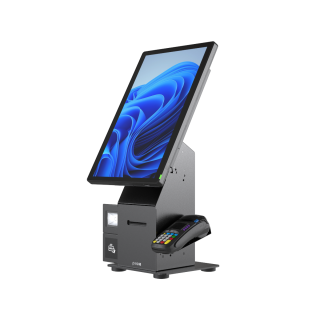

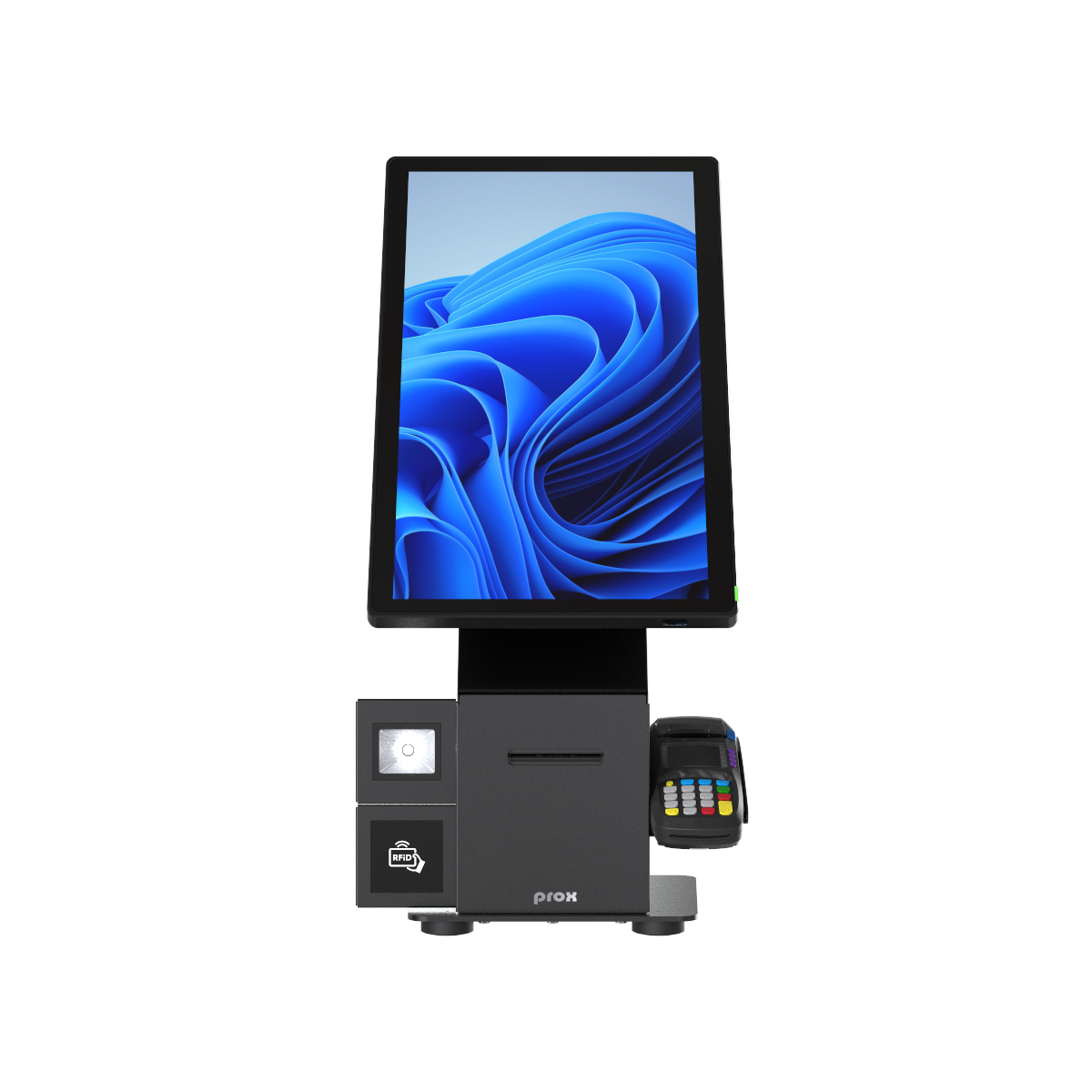

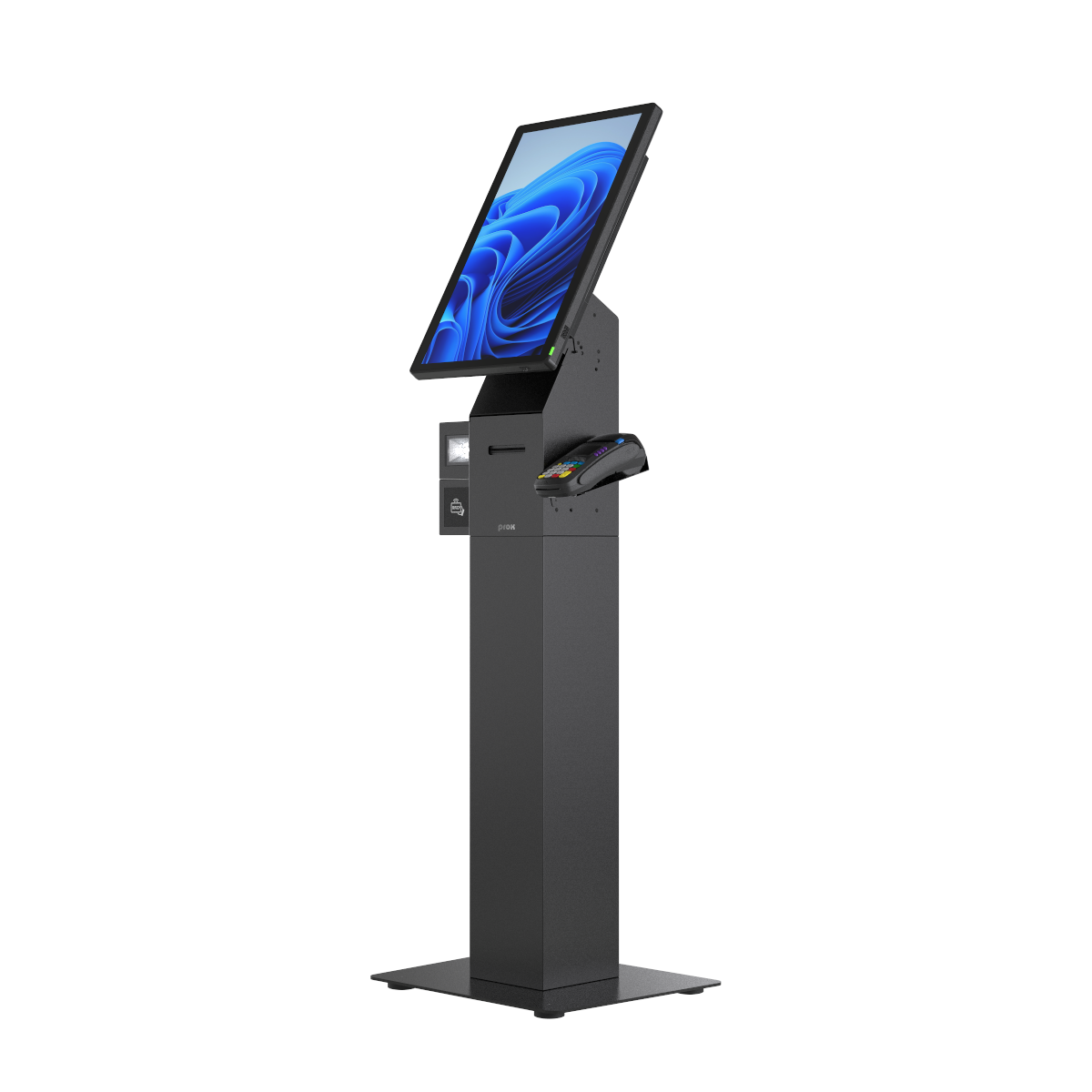

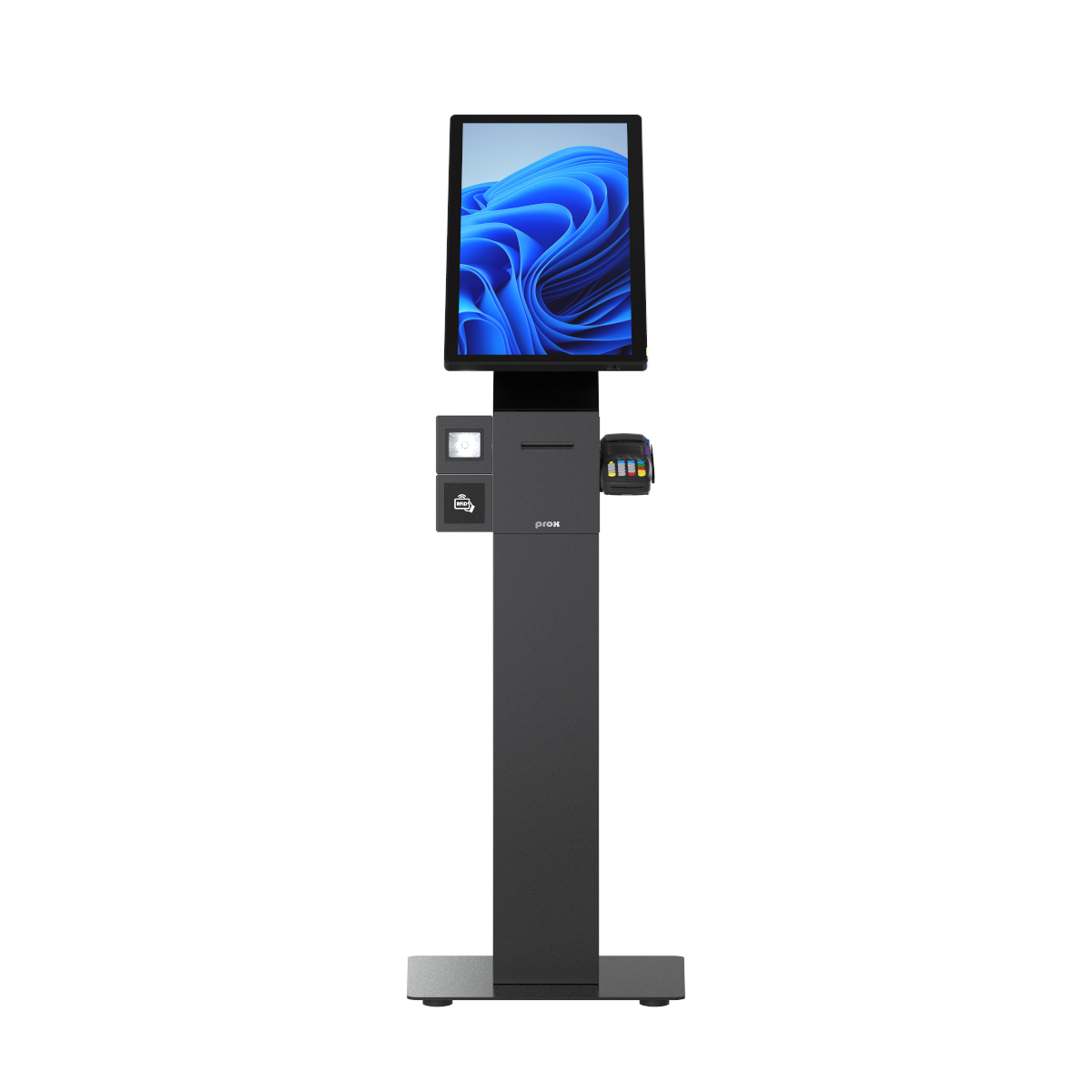

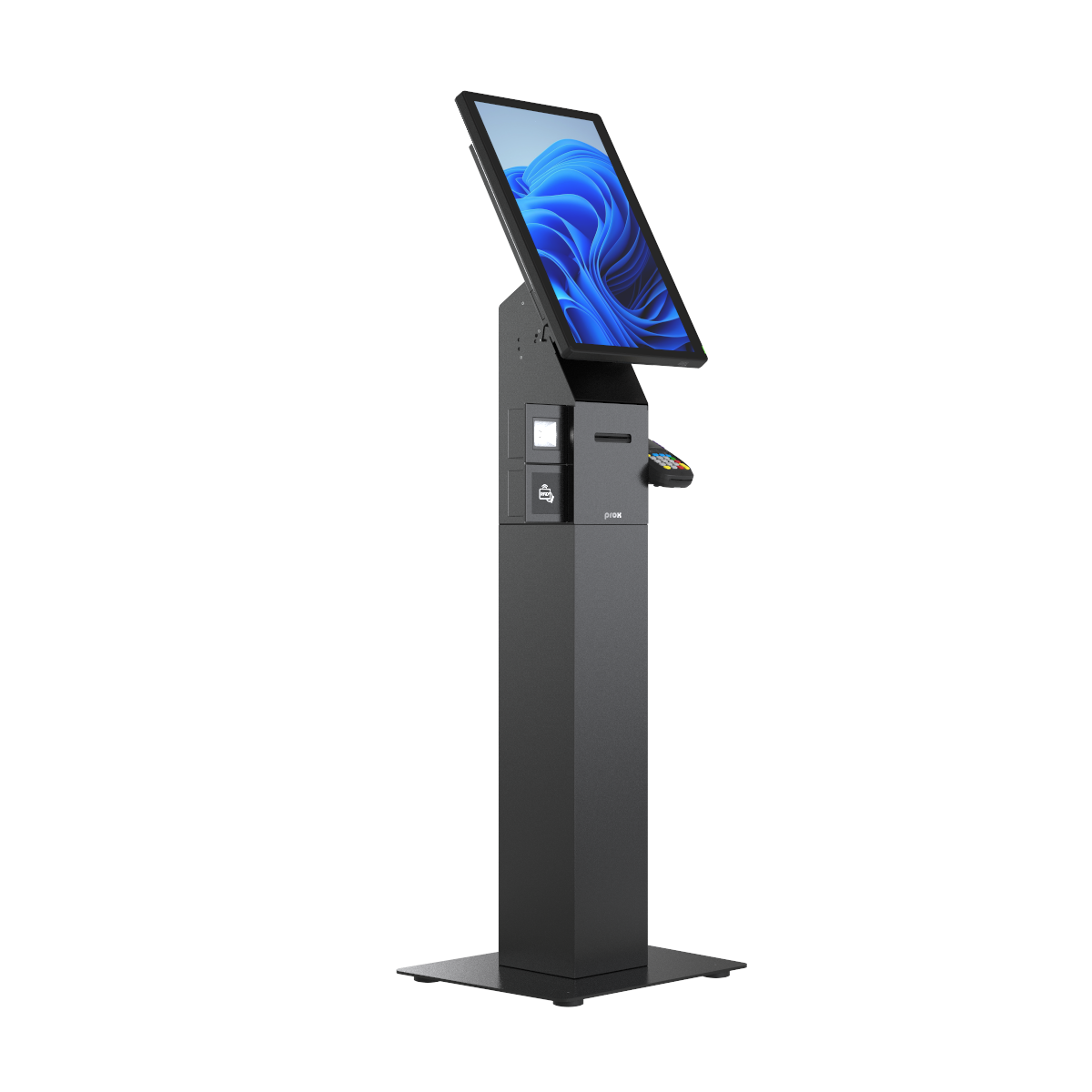

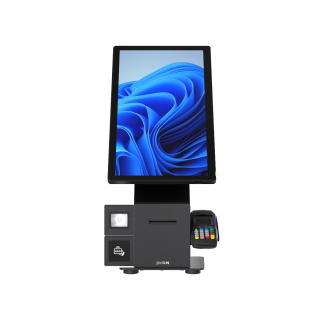

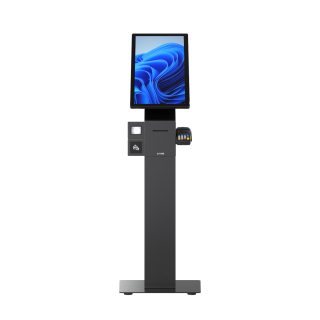

21.5'' FHD Intel® Core™ Processors Fanless Countertop Kiosk / Floor-Standing Kiosk
•Fanless design with Intel® Core™ i5-1245UE / i3-1215UE / Celeron® 7305E
•21.5" LCD display with projected capacitive touchscreen
•Aluminum die casting back cover
•Can be used with Panel PCs of various sizes.
•Available in two module designs: desktop and floor-standing
•VESA 100 x 100 standard
•You can choose different accessories according to different needs
•Applicable to various places (retail, catering, shopping malls, supermarkets, etc.)
•21.5" LCD display with projected capacitive touchscreen
•Aluminum die casting back cover
•Can be used with Panel PCs of various sizes.
•Available in two module designs: desktop and floor-standing
•VESA 100 x 100 standard
•You can choose different accessories according to different needs
•Applicable to various places (retail, catering, shopping malls, supermarkets, etc.)
| CPU Support |
Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE Intel® Celeron® 7305E |
|
| Memory | 1 x DDR4L SO-DIMM (up to 32GB) | |
| Network |
10/100/1000/2.5GBASE-T Ethernet |
|
| Power Supply | 90 watt power adapter | |
| Audio | 2W speaker | |
| Weight | With power adapter approx. 7 kg (POS) / 3.8 kg (PPC) | |
| Dimensions (W x H x D) |
POS type: 551 x 450 x 297 mm PPC type: 535 x 342 x 59.2 mm
|
|
| O.S. Support | Windows® 11 / Windows® 10 | |
| Storage | ||
| SATA | 1 x 2.5" HDD or SSD | |
| I/O Ports | ||
| USB | Rear: 2 x USB 2.0 / 2 x USB 3.1 | |
| Serial Ports | 3 x RJ45 (all support +5V/12V selectable) | |
| LAN | 1 x RJ45 | |
| VGA | 1 x DB15 | |
| Audio |
Line Out: 1 x 3.5 mm phone jack Mic In: 1 x 3.5 mm phone jack |
|
| Cash Drawer | 1 x RJ11 (+12V or +24V selectable) | |
| DC In | 1 x 4-Pin DC power jack | |
| Add-ons | ||
| MSR & i-Button | ISO I,II,III; JIS II and support information key | |
| RFID | ISO14443A read/write; ISO18092 read only | |
| Printer | 203dpi，8dots/mm, Print Speed=260mm/s | |
| Camera | 5.0M pixel CMOS camera module | |
| Barcode Scanner | 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar,
Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11 2D: PDF417, QR Code, Micro QR, Data Matrix. |
|
| Display | ||
| LCD | 21.5" TFT LCD | |
| Max. Resolution | 1920 x 1080 | |
| Brightness | 250 cd/m² | |
| Touchscreen | Bezel-free 5-wire analog resistive or projected capacitive | |
| Tilt Angle | 0~50 degrees | |
| Environment | ||
| Certification | CE / FCC | |
| Operating Temperature | 0°C~35°C | |
| Storage Temperature | -20°C~70°C | |
| Storage Humidity | 20RH~85RH | |

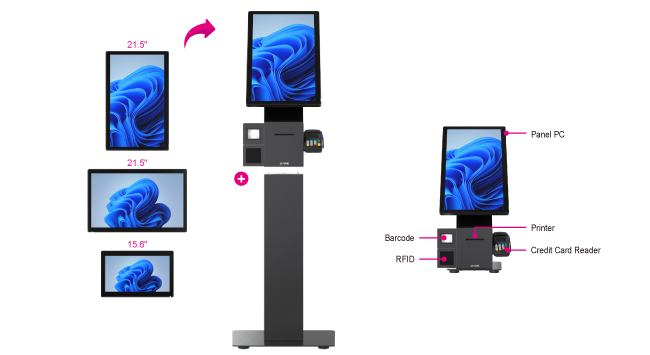

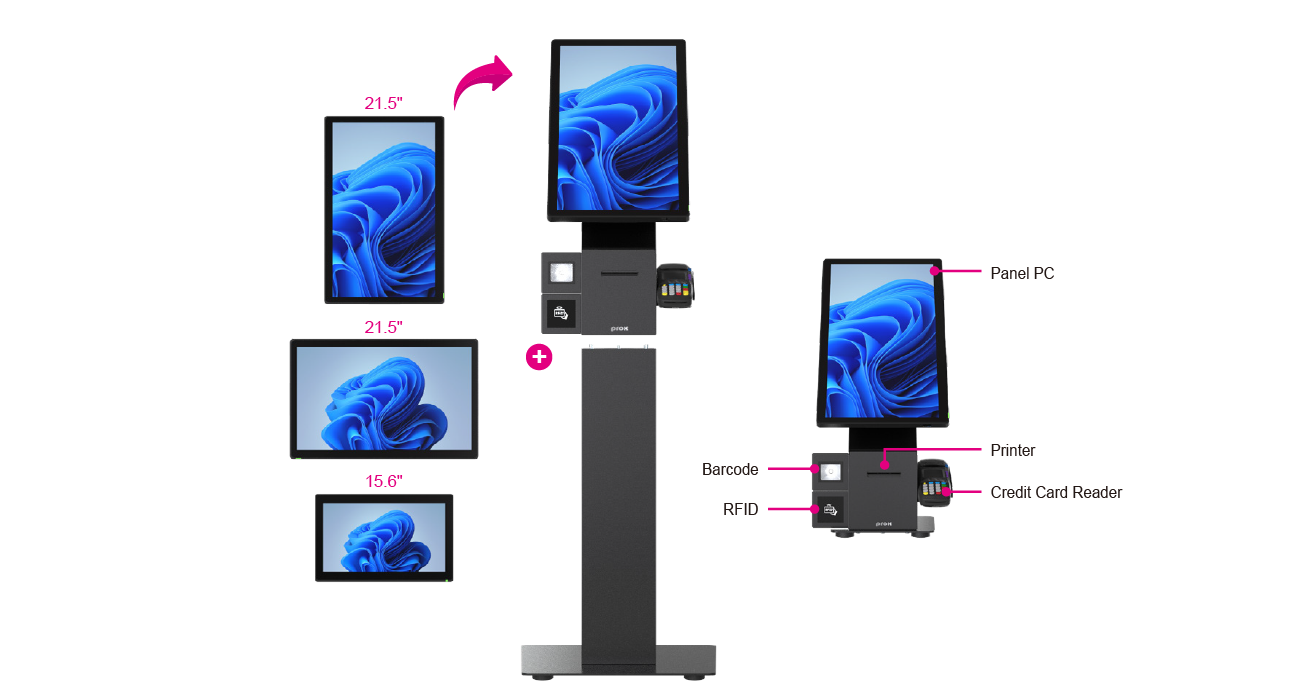

PA-J602E Highlight

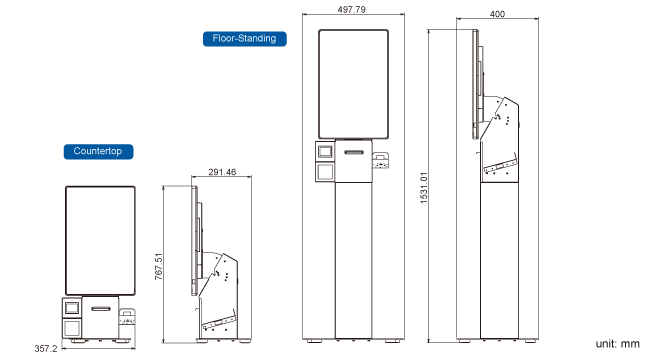

PA-J602E Dimensions
