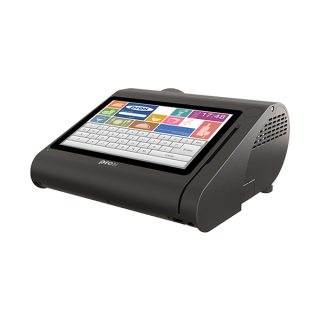

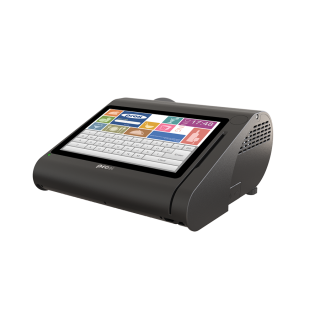

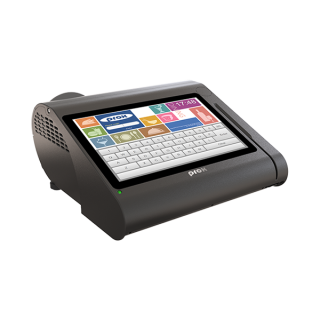

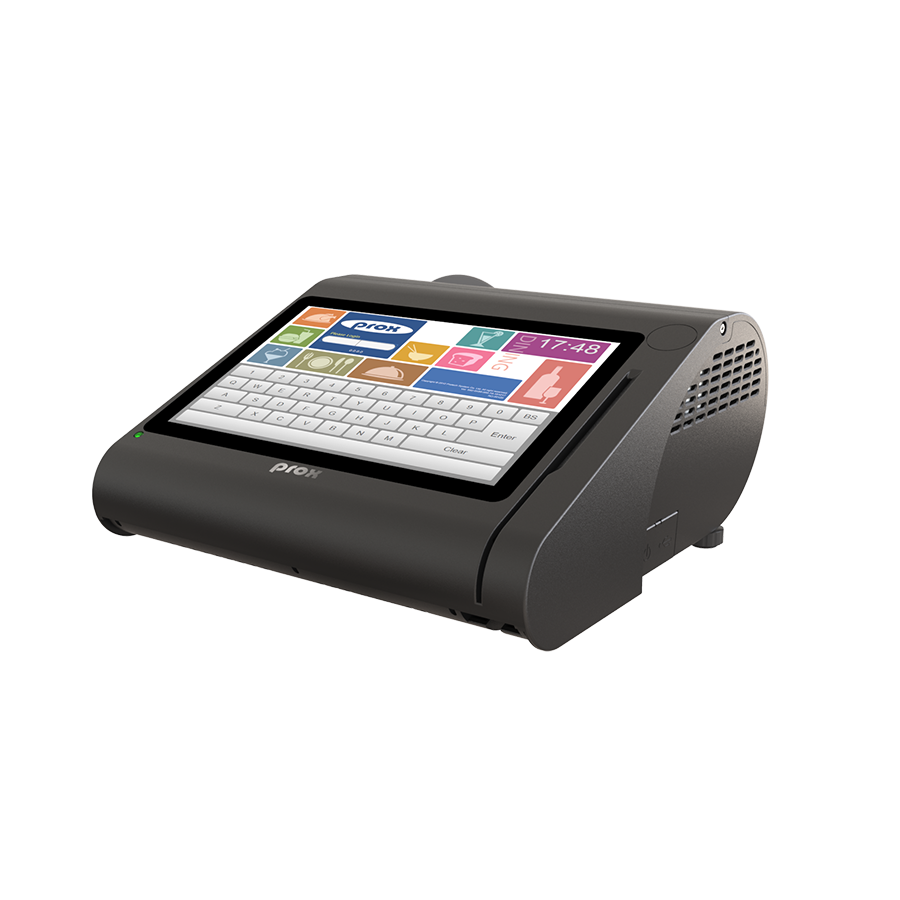

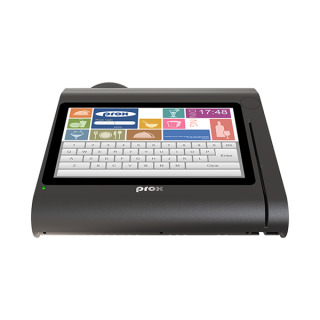

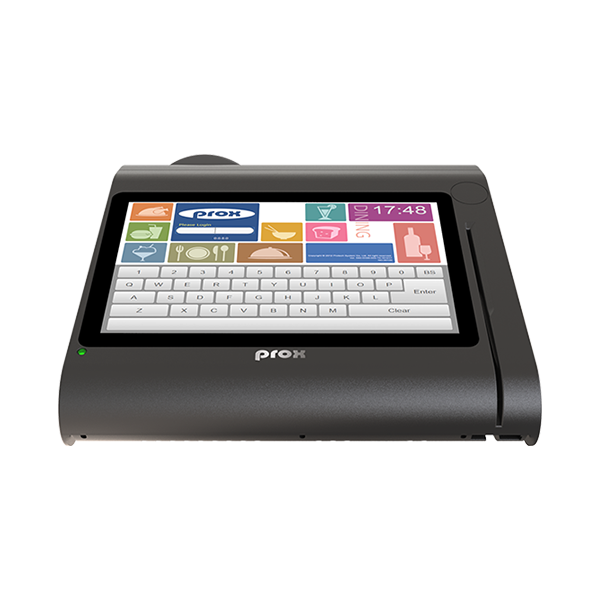

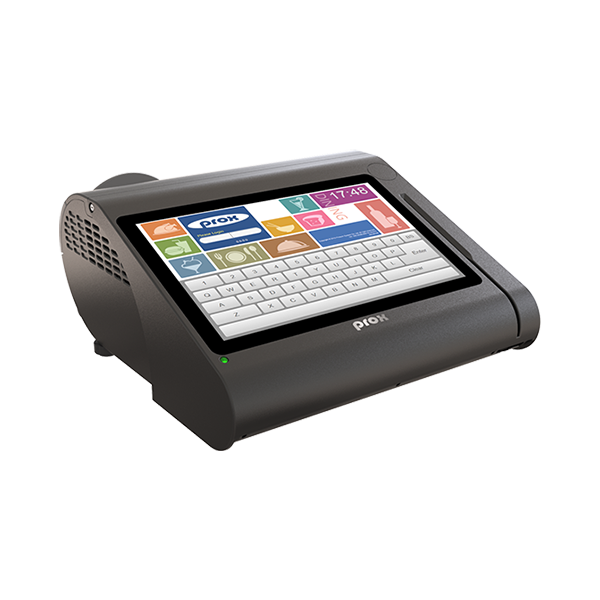

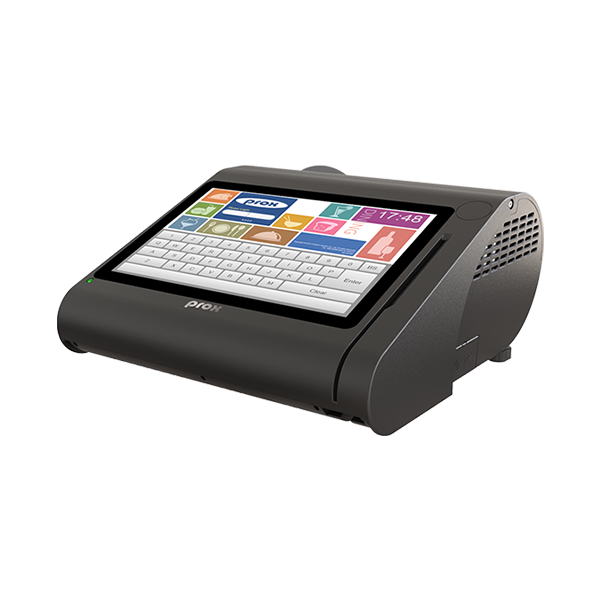

PA-A311
10.1" Fanless Slim POS Terminal
•Fanless design with Intel® Celeron® J6412
•10.1" LCD display with projected capacitive touchscreen
•Versatile design for multiple applications
•MSR / VFD / i-Button/ 2” or 3” Thermal printer/ Fingerprint (Optional)
•10.1" LCD display with projected capacitive touchscreen
•Versatile design for multiple applications
•MSR / VFD / i-Button/ 2” or 3” Thermal printer/ Fingerprint (Optional)
| System | ||
| CPU Support |
Intel® Celeron® J6412 |
|
| Memory | 1 x DDR4L SO-DIMM (up to 16GB) | |
| Network |
10/100/1000/2.5GBASE-T Ethernet
|
|
| Power Supply | 60/90 watt power adapter | |
| Audio | 2W speaker | |
| System Weight | With power adapter approx. 3.3 kg | |
| Dimensions (W x H x D) |
299 x 148 x 300
|
|
| O.S. Support |
Windows® 11 / Windows® 10
|
|
|
Storage
|
||
| SATA |
1 x 2.5" HDD or SSD
|
|
| I/O Ports | ||
| USB |
Rear: 2 x USB 2.0 / 2 x USB 3.1 Side: 1 x USB 2.0
|
|
| Serial Ports | 3 x RJ-45 (COM1,2 support 5V/12V selectable by jumper), RS232 interface | |
| LAN | 1 x RJ45 | |
| HDMI | 1 x HDMI® | |
| Audio | Line-out: 1 x 3.5 mm phone jack | |
| Cash Drawer | 1 x RJ11 (+12V or +24V selectable) | |
| DC In | 1 x 4 pin DC power jack | |
| Add-ons | ||
| MSR & i-Button | ISO I,II,III; JIS II | |

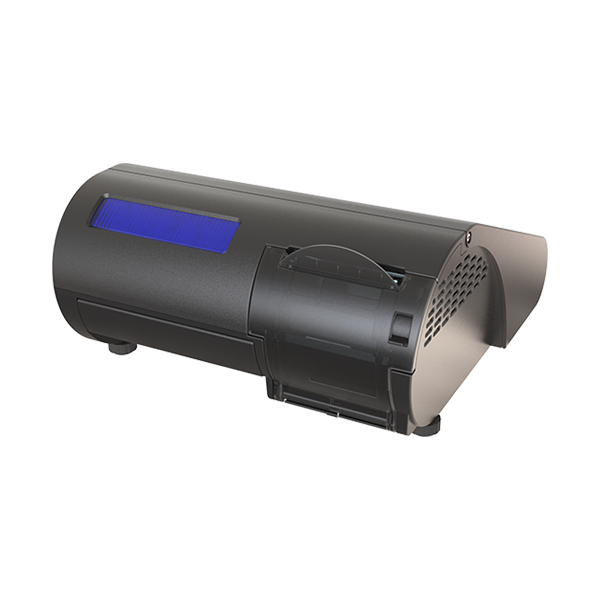

| Thermal Printer | 2"/3" easy loading thermal printer with auto cutter | |
| Customer Display | VFD, 20 Columns and 2 lines, each column is 5 x 7 dots | |
| Fingerprint | 8-bit grayscale reader | |
| Display | ||
| LCD | 10.1" TFT LCD | |
| Resolution | 1280 x 800 | |
| Brightness | 400 cd/m² | |
| Touchscreen | Bezel-free projected capacitive | |
| Tilt Angle | 0~50 degrees | |
| Environment | ||
| EMC & Safety | CE / FCC | |
| Operating Temp. | 0°C~35°C | |
| Storage Temp. | -20°C~70°C | |
| Humidity | 20RH~85RH | |
PA-A311 Highlight

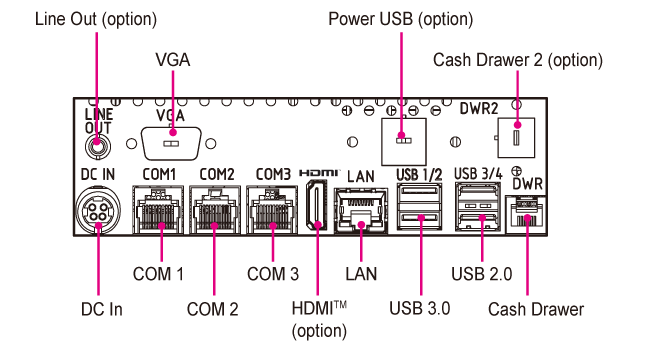

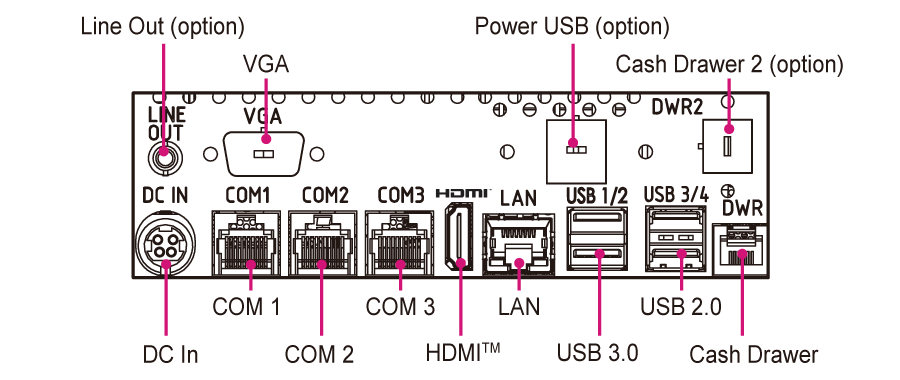

PA-A311 IO
PA-A311 Dimensions
