MH-5105
10.1" Industrial Tablet with Intel® Processor N Series
•Featuring Intel® Processor N series with low power consumption and stable performance
•10.1" FHD display (500 nits / 30,000 hrs) OCA direct bonded P-Cap touch with anti-fingerprint coating
•Removable battery up to 8 hours operating
•Versatile peripheral options for diverse applications
•Built with IP65 rated front panel and 1.2m drop-tested per MIL-STD-810H
•Lightweight design for easy portability
•10.1" FHD display (500 nits / 30,000 hrs) OCA direct bonded P-Cap touch with anti-fingerprint coating
•Removable battery up to 8 hours operating
•Versatile peripheral options for diverse applications
•Built with IP65 rated front panel and 1.2m drop-tested per MIL-STD-810H
•Lightweight design for easy portability
|
System |
||
| Processor |
Intel® Alder Lake-N processor N200 |
|
| Display | Size |
10.1"
|
| Resolution |
1920 x 1200
|
|
| Brightness |
500 nits
|
|
| Operating System |
Windows 11 IoT Enterprise |
|
| Memory |
LPDDR5 8GB / 16GB |
|
| Storage | 128GB / 256GB eMMC | |
| Battery Type & Capacity |
1 x removable 7.7V / 4290 mAh Li-ion battery
|
|
| Battery Operation | 8 hours (based on JEITA 2.0) | |
| Cooling | Fanless | |
| IP Rating | IP65 (Front panel only) | |
| Sensor & Vibrator | G-sensor / Gyroscope / Ambient Light Sensor / Vibrator | |
| Button |
1 x Power Button 2 x Programmable Function keys |
|
| Speaker | 1 x 1W | |
| Wireless Connectivity |
WiFi 6E Bluetooth 5.2 5G/4G with GNSS |
|
| TPM | TPM 2.0 | |
| Camera |
8MP auto focus rear camera with flash light (optional) 2MP fixed focus front camera (optional, supports Windows Hello authentication) |
|
| Peripherals | 2D/1D barcode scanner (optional) 1 x MSR or 1 x RFID reader (optional) 1 x smart card reader (optional) |
|
| Dimensions (W x H x D) | 268.1 x 188.7 x 25.2 mm (tablet only) | |
| Power adapter | USB Type-C Power adapter for Tablet (Minimum 45W) USB Type-C Power adapter for Cradle (100W) |
|
| Weight | 888g (tablet only) | |
| Certifications | CE, FCC, UKCA | |
| Docking Station / Cradle (optional) | Desktop Cradle (Charging / I/O expansion) | |
| Accessory (optional) | Hand strap / Shoulder strap | |
| Tablet I/O Ports | ||
| Card slot |
1 x microSD slot |
|
| USB |
2 x nano-SIM slots |
|
| Audio | 1 x USB 3.0 Type-A | |
| Cradle connector |
1 x USB Type-C (charging / data transmission / display) |
|
| Environment | ||
| Operation Temperature |
-10°C~50°C (AC mode) (14°F~122°F) 0°C~50°C (battery mode) (32°F~122°F) |
|
| Storage Temperature |
-20°C~60°C (-4°F~140°F)
|
|
| Humidity | Operation humidity 10%~90% Storage humidity 10%~95% |
|
| Vibration | MIL-STD-810H | |
| Drop | 1.2m (MIL-STD-810H) | |

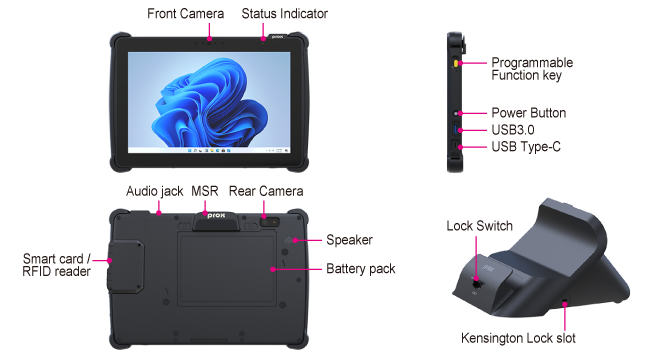

MH-5105 Highlight

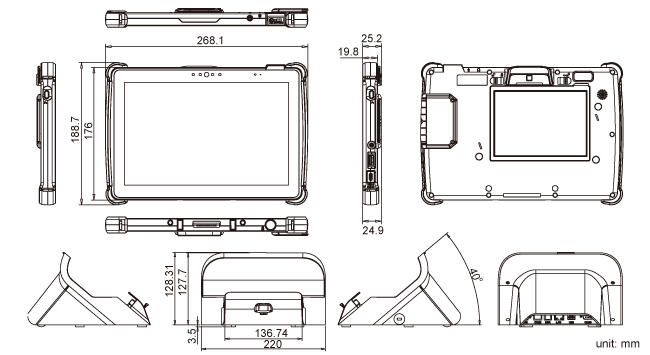

MH-5105 Dimensions
| MH-5105 |
10.1" Industrial Tablet with Intel® Processor N Series |
| File type | File Download |
| EDM | MH-5105_EDM.PDF |
| Pictures | MH-5105_Pictures.ZIP |
