KS-M340
32” FHD Intel® Core™ Processors Floor-Standing Kiosk
•Built-in voice navigation for ADA compliance
•Optimized for self-service, self-checkout, ticketing, and information kiosks
•Ready for AI-driven services with optional microphone and camera modules
•Available in wall-mounted or floor-standing setup, with total height options of 165cm/175cm/195cm (including stand)
•Supports a wide range of cashless payment methods via barcode scanner and credit card reader
•Compatible with thermal printing for receipts, tickets, and more
•Optimized for self-service, self-checkout, ticketing, and information kiosks
•Ready for AI-driven services with optional microphone and camera modules
•Available in wall-mounted or floor-standing setup, with total height options of 165cm/175cm/195cm (including stand)
•Supports a wide range of cashless payment methods via barcode scanner and credit card reader
•Compatible with thermal printing for receipts, tickets, and more
|
System |
||
| CPU |
Intel® Core™ i9-13900TE Intel® Core™ i7-13700TE / Intel® Core™ i7-12700TE Intel® Core™ i5-13500TE / Intel® Core™ i5-12500TE Intel® Core™ i3-13100TE / Intel® Core™ i3-12100TE Intel® Pentium® Gold G7400TE Intel® Celeron® G6900TE |
|
| Memory | 1 x DDR4 SO-DIMM slot (support 8GB/16GB/32GB) | |
| Storage |
1 x M.2 NVMe SSD |
|
| Network |
2 x Gigabit 10/100/1000 Base-T Fast Ethernet 1 x RJ45 reserved for credit card reader
|
|
| Power Supply |
AC88~264V (Optional miniature circuit breaker & earth leakage device) |
|
| Weight |
35kg (without stand) 64kg (with stand, based on 175cm total height design) |
|
| Dimensions (W x H x D) |
480 x 970 x 156mm (without stand) 480 x 1793mm x 550mm (with stand, based on 175cm total height design) |
|
| O.S. Support |
Windows®11 / Windows®10 |
|
| Certification |
CE, FCC, LVD |
|
| Display | ||
| LCD |
32" TFT LCD
|
|
| Max. Resolution | 1920 x 1080 | |
| Brightness | 500 cd/m² | |
| Touchscreen | Projected Capacitive | |
| Viewing Angle
(up / down / left / right)
|
89° / 89° / 89° / 89° |
|
| Add-ons | ||
| Face Camera | 2.1M FHD Camera | |
| Barcode Scanner | 1D / 2D Barcode | |
| Thermal Printer |
2" or 3" Standalone thermal printer for 80mm paper roll w/ paper near end sensor Resolution: 203dpi Printing speed: 170mm/sec |
|
| Wi-Fi | Dual-band (2.4/5GHz) IEEE 802.11a/b/g/n/ac/ax 2T/2R MIMO | |
| Environment | ||
| Operating Temperature | 0°C ~ 40°C | |
| Storage Temperature | 0°C ~ 60°C | |
| Storage Humidity | 20%~ 85% (no condensation) | |

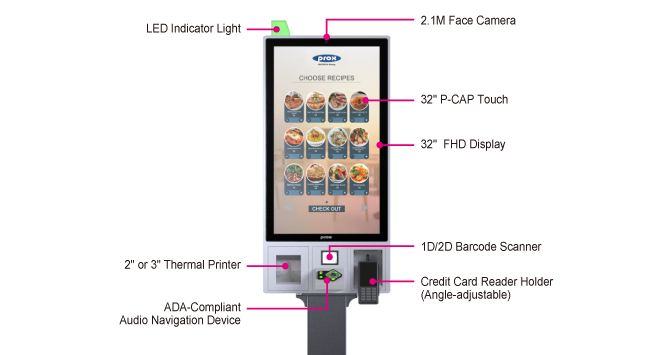

KS-M340 Highlight
KS-M340 Dimensions
| KS-M340 |
32” FHD Intel® Core™ Processors Floor-Standing Kiosk |
| File type | File Download |
| EDM | KS-M340_EDM.PDF |
| Pictures | KS-M340_Pictures.ZIP |
| Manual | KS-M340_Manual.PDF |
| QuickGuide | KS-M340_QuickGuide.PDF |
| README | KS-M340_README.PDF |
| BIOS | KS-M340_BIOS.ZIP |
| API | For API request, please contact us |
| Device | KS-M340_Device.ZIP |
| Platform | KS-M340_Platform.ZIP |
