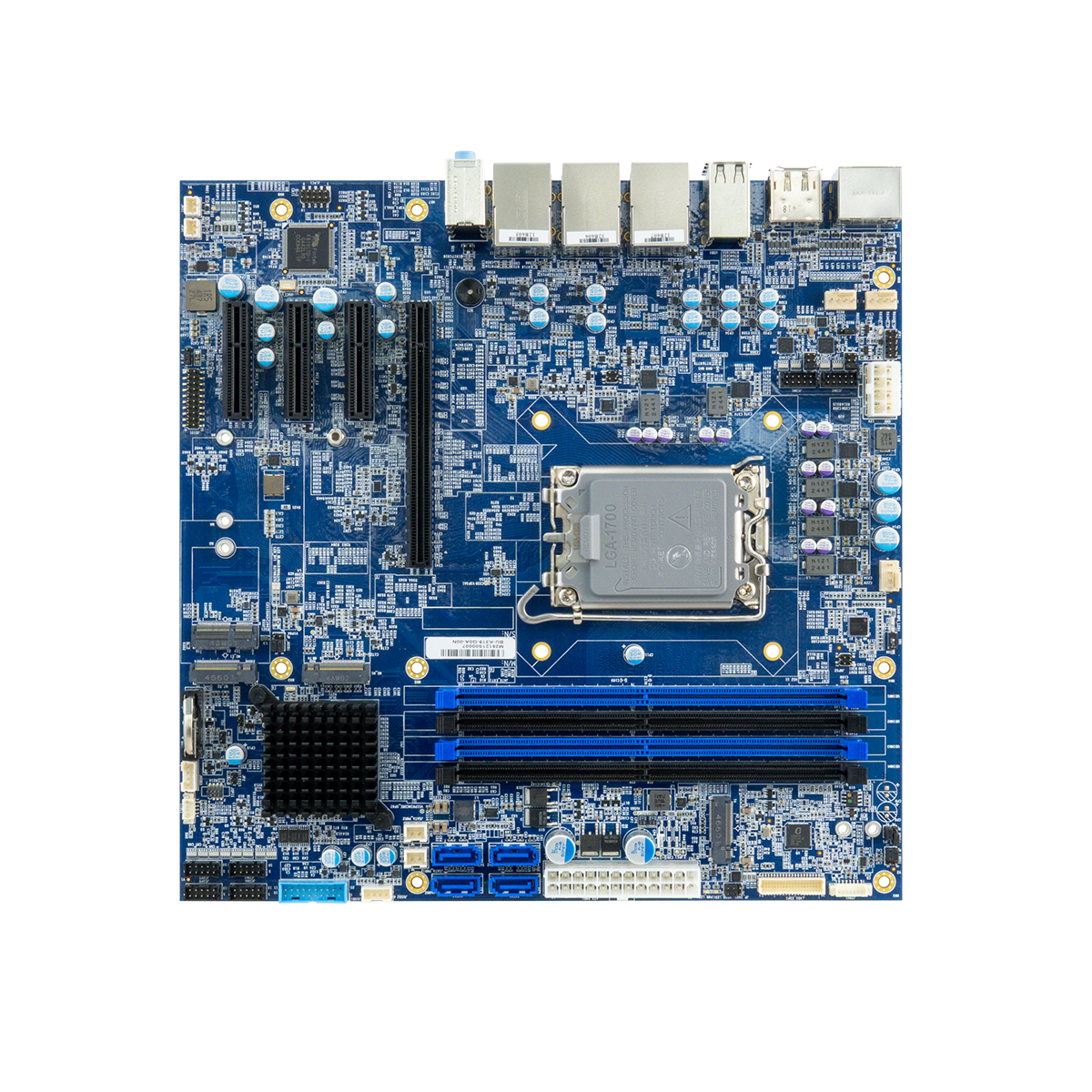

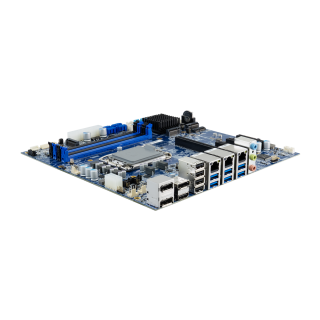

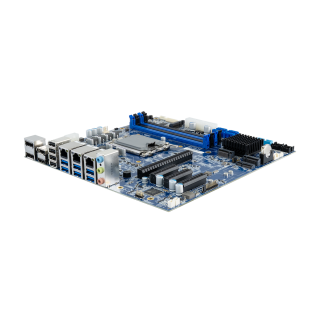

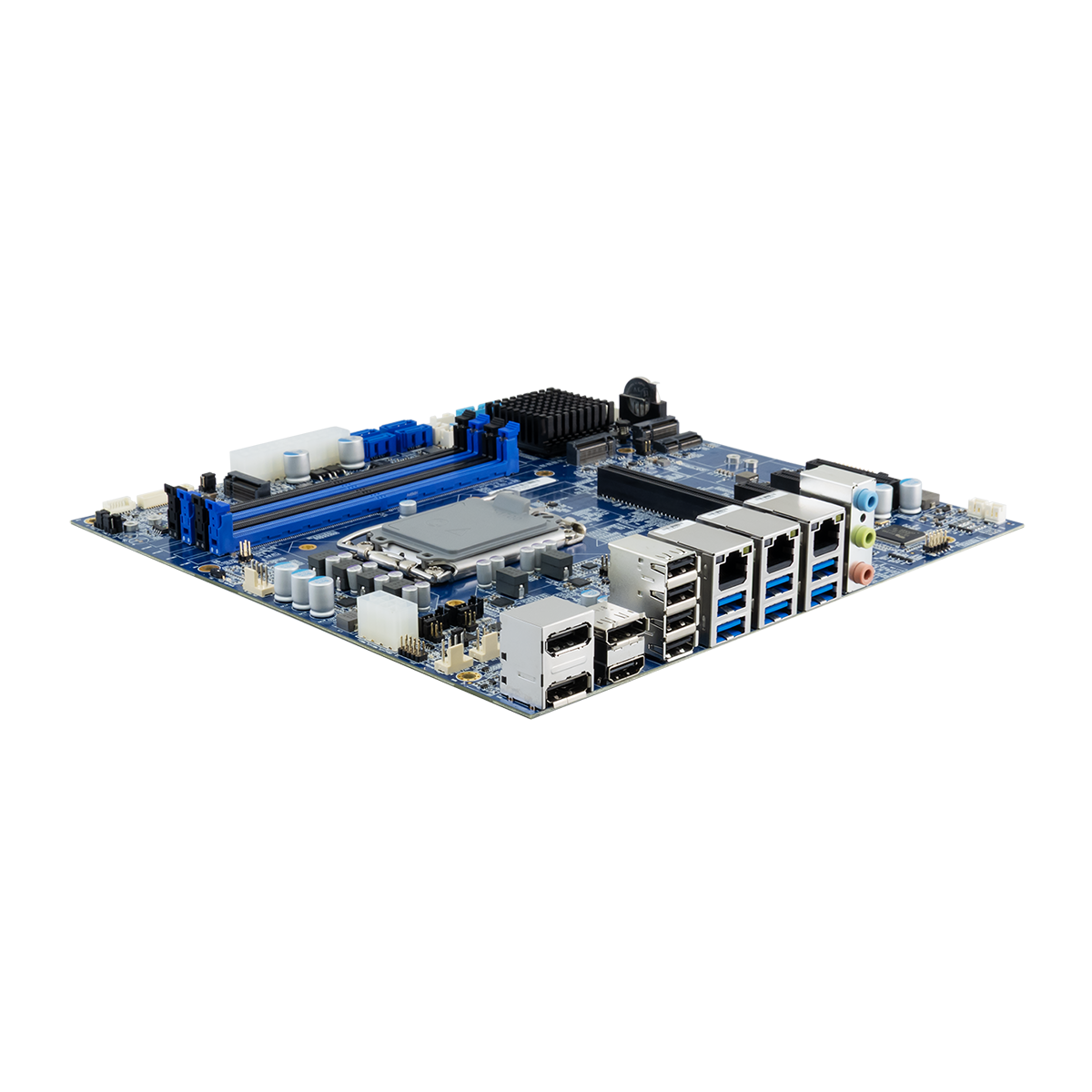

BU-K319
•Optional Intel® R680E/Q670E/H610E PCH
•Max. 6 x COM, 3 x LAN, and 14 x USB ports (R680E/Q670E)
•1 x HDMI® & 3 x DP
•4 x PCIe & 4 x M.2 slots for versatile expansion (R680E/Q670E)
| System | ||
| CPU Support | Intel® 14th/13th/12th Gen. (Socket LGA1700)
Core™ i9/i7/i5/i3 & Pentium®/Celeron® Processors
|
|
| CPU List |
Intel® Core™
i9-14900/T, 13900TE/E, 12900TE/E i7-14700/T, 13700TE/E, 12700TE/E i5-14500/T, 13500TE/E, 12500TE/E i3-14100/T, 13100TE/E, 12100TE/E Pentium® G7400TE/E Celeron® G6900TE/E (TDP 35W/65W) |
|
| Chipset | Intel® R680E/Q670E/H610E PCH | |
| Memory Support | R680E:
4 x DDR5 UDIMM 4400MHz (ECC/non-ECC, up to 192GB) Q670E: 4 x DDR5 UDIMM 4400MHz (non-ECC, up to 192GB) H610E: 2 x DDR5 UDIMM 4400MHz (non-ECC, up to 96GB) |
|
| Storage |
4 x SATA3.0 ports RAID 0/1/5 supported (R680E/Q670E only) |
|
| BIOS | AMI UEFI BIOS | |
| TPM | TPM 2.0 | |
| Watchdog | 1~255 seconds watchdog timer selectable | |
| FAN | 2 x System Fan (4-pin wafer with Smart Fan function)
1 x CPU Fan (4-pin wafer with Smart Fan function)
|
|
| Power Supply |
Flex ATX 20+4 pin |
|
| Dimensions |
244 x 244 mm (9.6" x 9.6") |
|
| Certifications |
CE, FCC |
|
| O.S. Support |
Windows® 11 IoT Enterprise LTSC 2024 Windows® 10 IoT Enterprise LTSC 2021 Linux (Ubuntu 22.04 LTS) |
|
|
I/O |
||
| USB |
R680E/Q670E: 6 x USB 3.2 Gen2 (Rear I/O) 4 x USB 2.0 (Rear I/O) 2 x USB 3.2 Gen 2 (wafer) 2 x USB 2.0 (1 x USB 2.0 shared with M.2 E-Key slot) (wafer) H610E: 4 x USB 3.2 Gen1 (Rear I/O) 4 x USB 2.0 (Rear I/O) 2 x USB 2.0 (1 x USB 2.0 shared with M.2 E-Key slot) (wafer) |
|
| Serial Ports |
6 x COM (wafer) COM1/2: RS-232/422/485, +5V/+12V selectable by jumper COM3/4/5/6: RS-232/422/485 |
|
| Ethernet |
R680E/Q670E: 3 x RJ-45 2.5GbE LAN ports (Rear I/O) H610E: 2 x RJ-45 2.5GbE LAN ports (Rear I/O) Wake-On-LAN/PXE supported |
|
| Digital I/O |
1 x Digital I/O (8-in/8-out) (pin header) |
|
| I2C |
1 x I2C (wafer) |
|
| Audio |
1 x Mic-in 1 x Line-in 1 x Line-out (Rear I/O) |
|
| LPC |
1 x LPC (2x5 pin header) for debug only. |
|
| Case Open |
1 x Case Open Detection (wafer) |
|
| Expansion Slots |
|
|
| PCIe |
R680E/Q670E: 1 x PCIe x16 (Gen5) 2 x PCIe x4 (Gen4) 1 x PCIe x4 (Gen3) H610E: 1 x PCIe x16 (Gen5) 1 x PCIe x4 (Gen3) |
|
| M.2 |
R680E/Q670E: 1 x M.2 2230 E key (PCIe x1 / USB 2.0) 1 x M.2 2242 B key (PCIe x2 / SATA 3.0) 1 x M.2 2280 B key (PCIe x2 / SATA 3.0) (M.2 B Key supports RAID 0/1) 1 x M.2 2280 M key slot (PCIe x4) H610E: 1 x M.2 2230 E key (PCIe x1 / USB 2.0) |
|
|
Display |
||
| Flexible Display |
Quadruple independent displays supported |
|
| DisplayPort |
3 x DisplayPort / up to 4096 x 2304 @60Hz (Rear I/O) |
|
| HDMI® |
1 x HDMI® / up to 4096 x 2160 @60Hz (Rear I/O) |
|
| eDP / LVDS | 1 x eDP/LVDS (optional) (pin header)
-eDP up to 3840 x 2160 @60Hz -LVDS up to 1920 x 1200 @60Hz |
|
| Environment | ||
| Operating Temperature | 0°C~60°C (32°F~140°F) @humidity 20%~90% | |
| Storage Temperature | -40°C~85°C (-40°F~185°F) @humidity 20%~95% | |

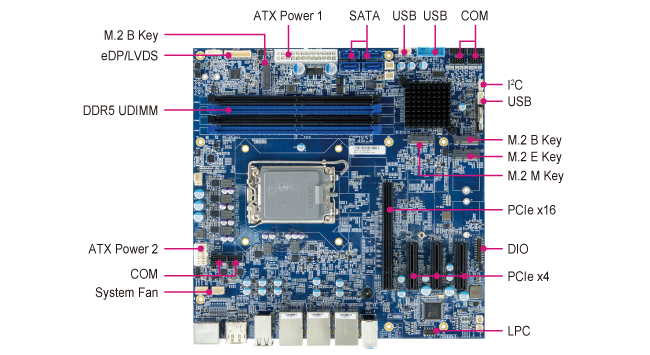

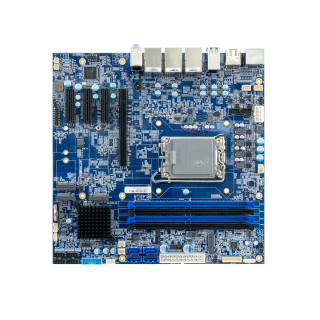

BU-K319 Highlight

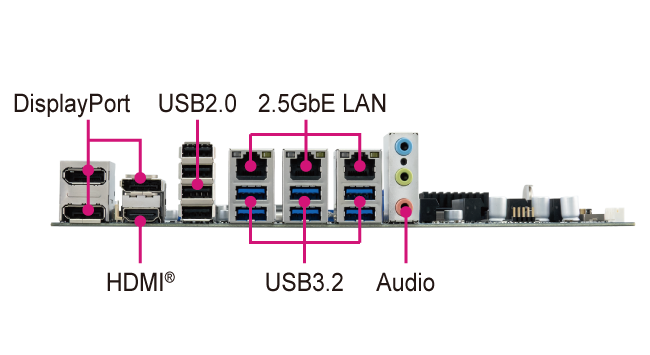

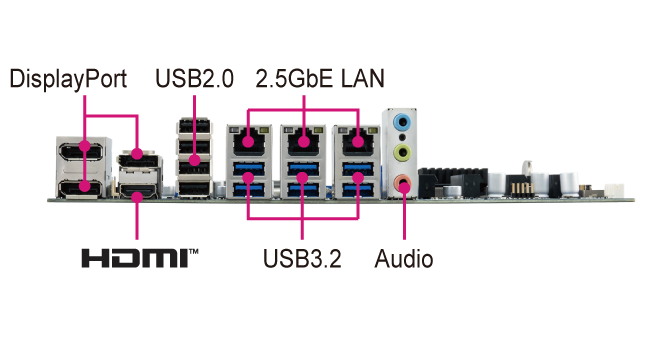

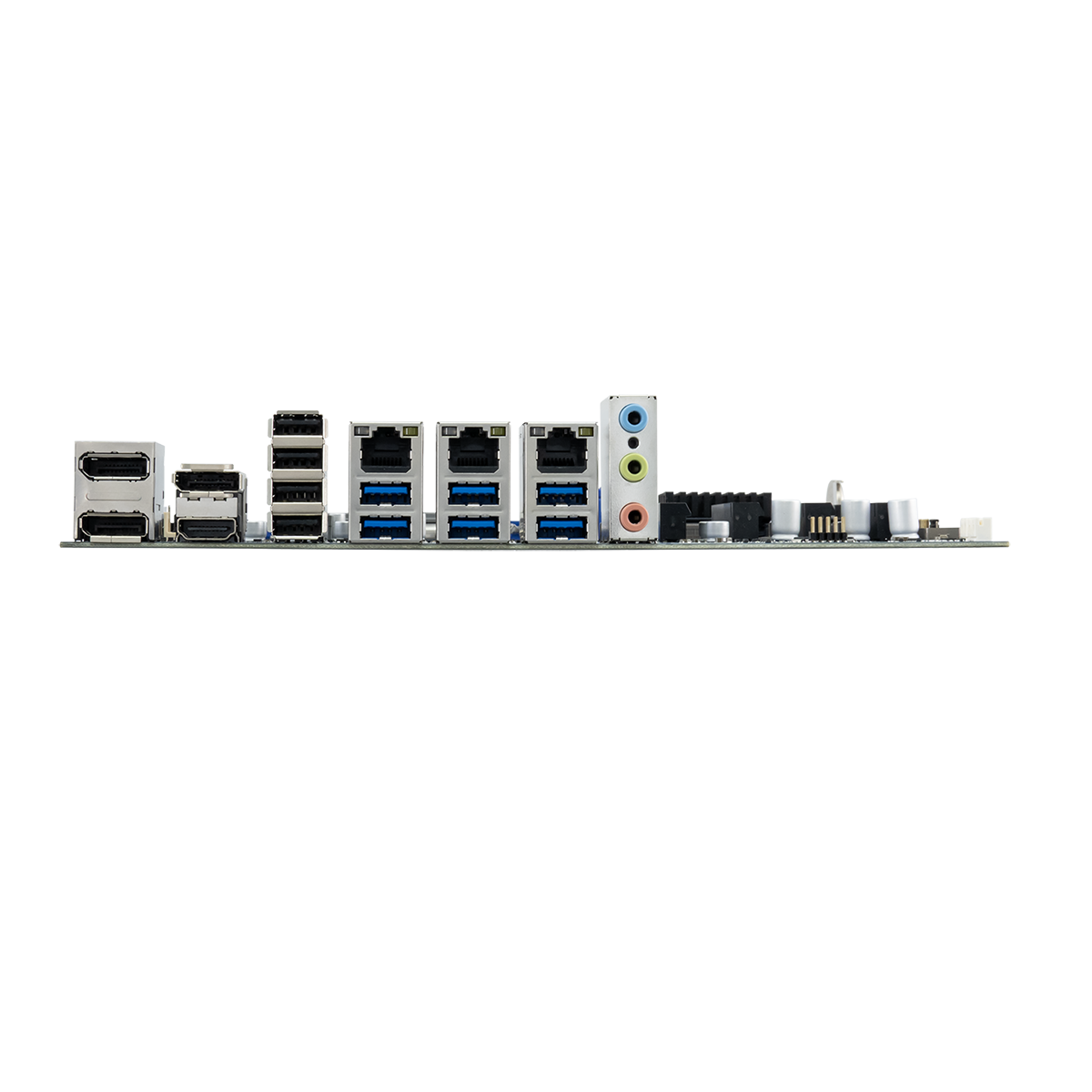

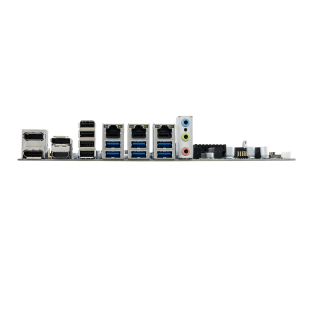

BU-K319 IO

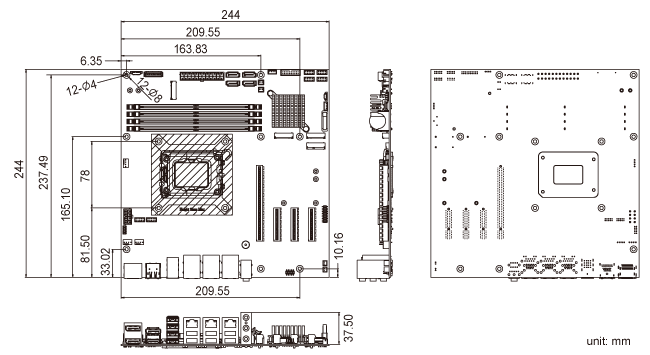

BU-K319 Dimensions
