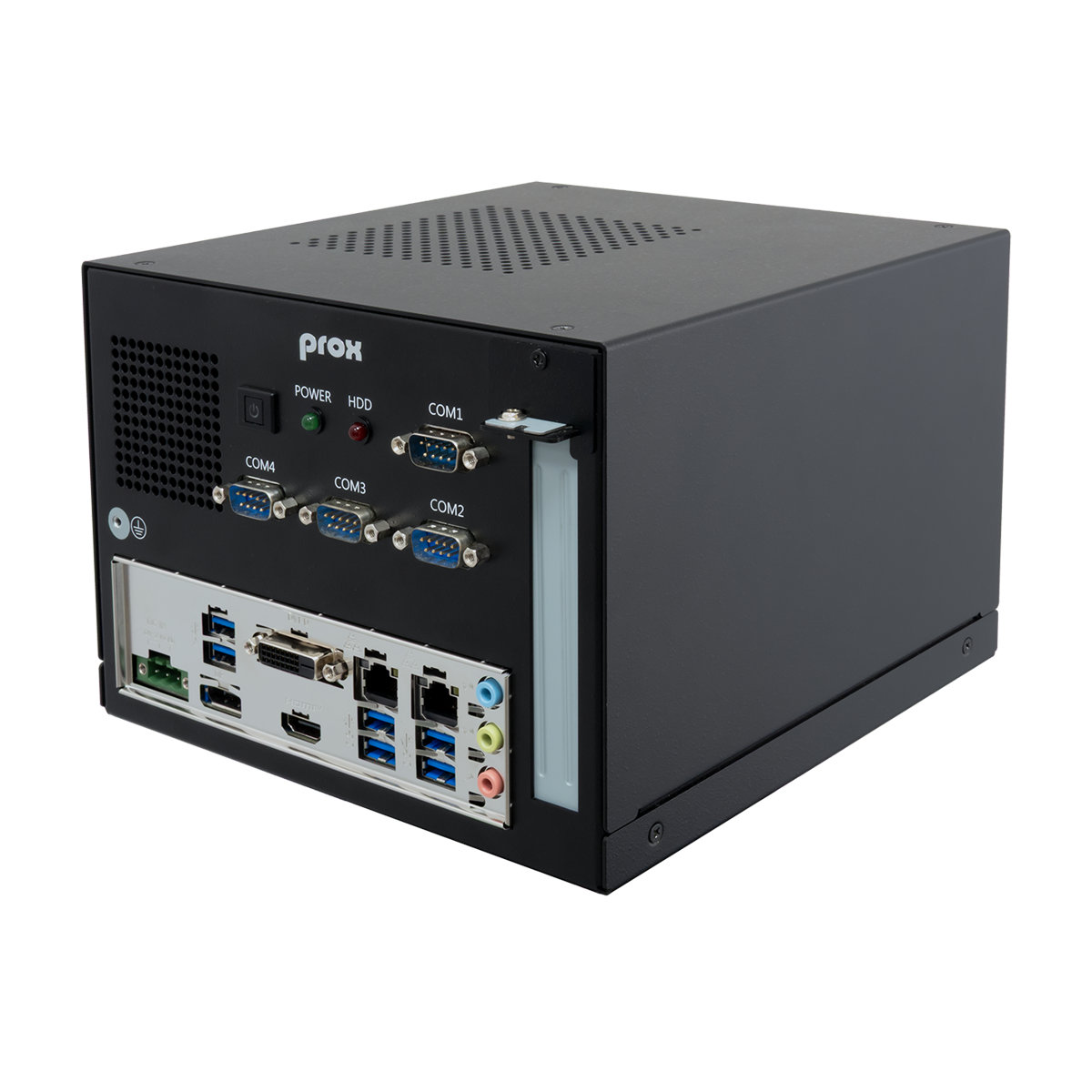

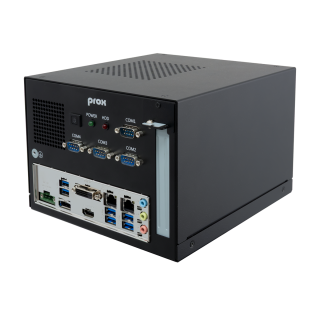

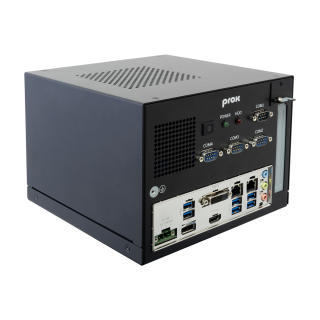

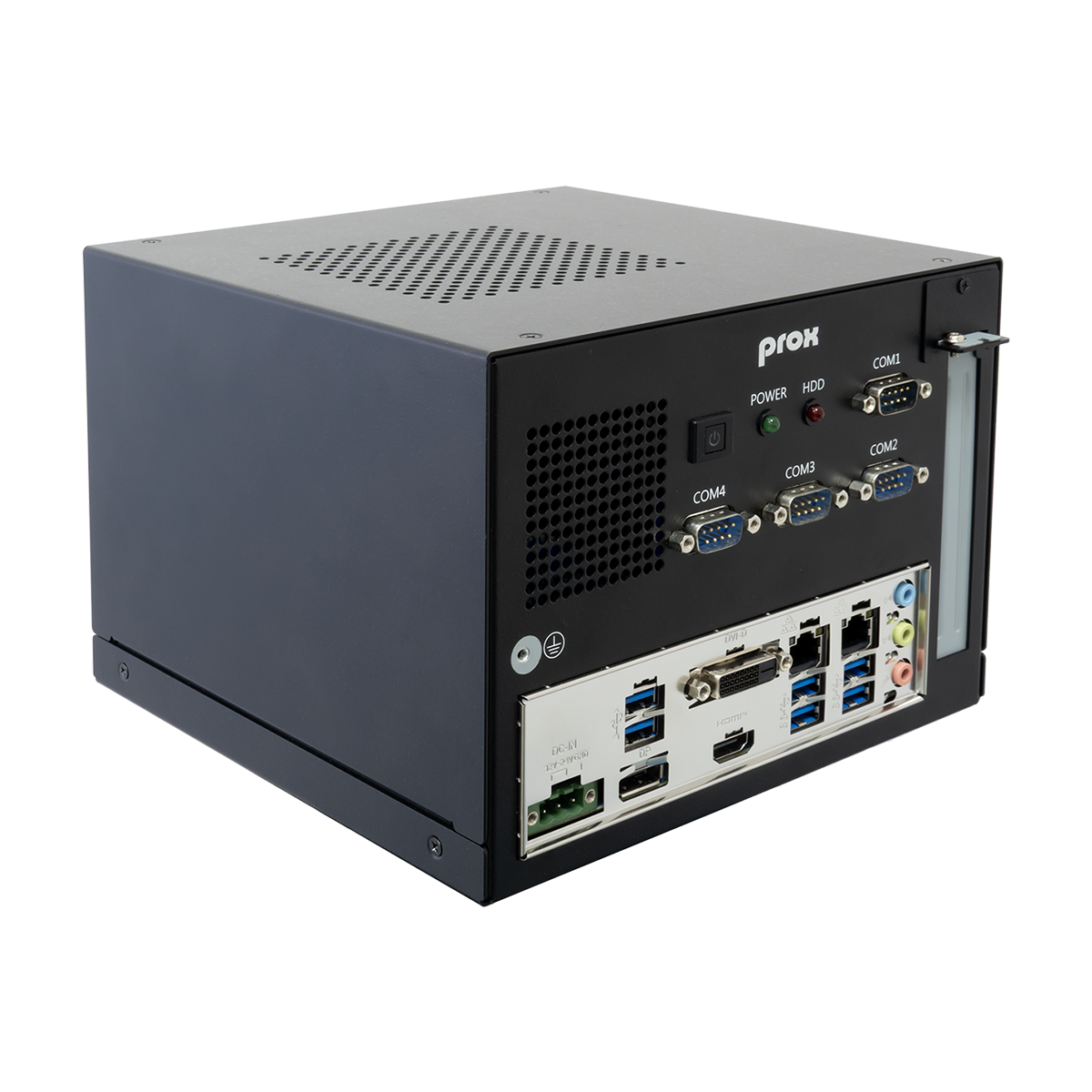

BC-K600
14th/13th/12th Gen. Intel® Core™ Processors Box PC
•Intel® 14th/13th/12th Gen. Core™ i9/i7/i5/i3 and Pentium®/Celeron® processors
•Optional Intel® Q670E / H610E PCH

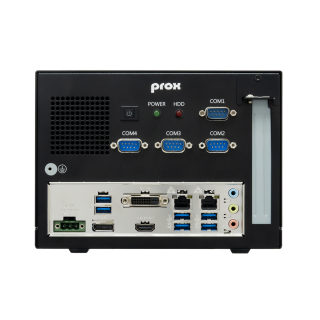

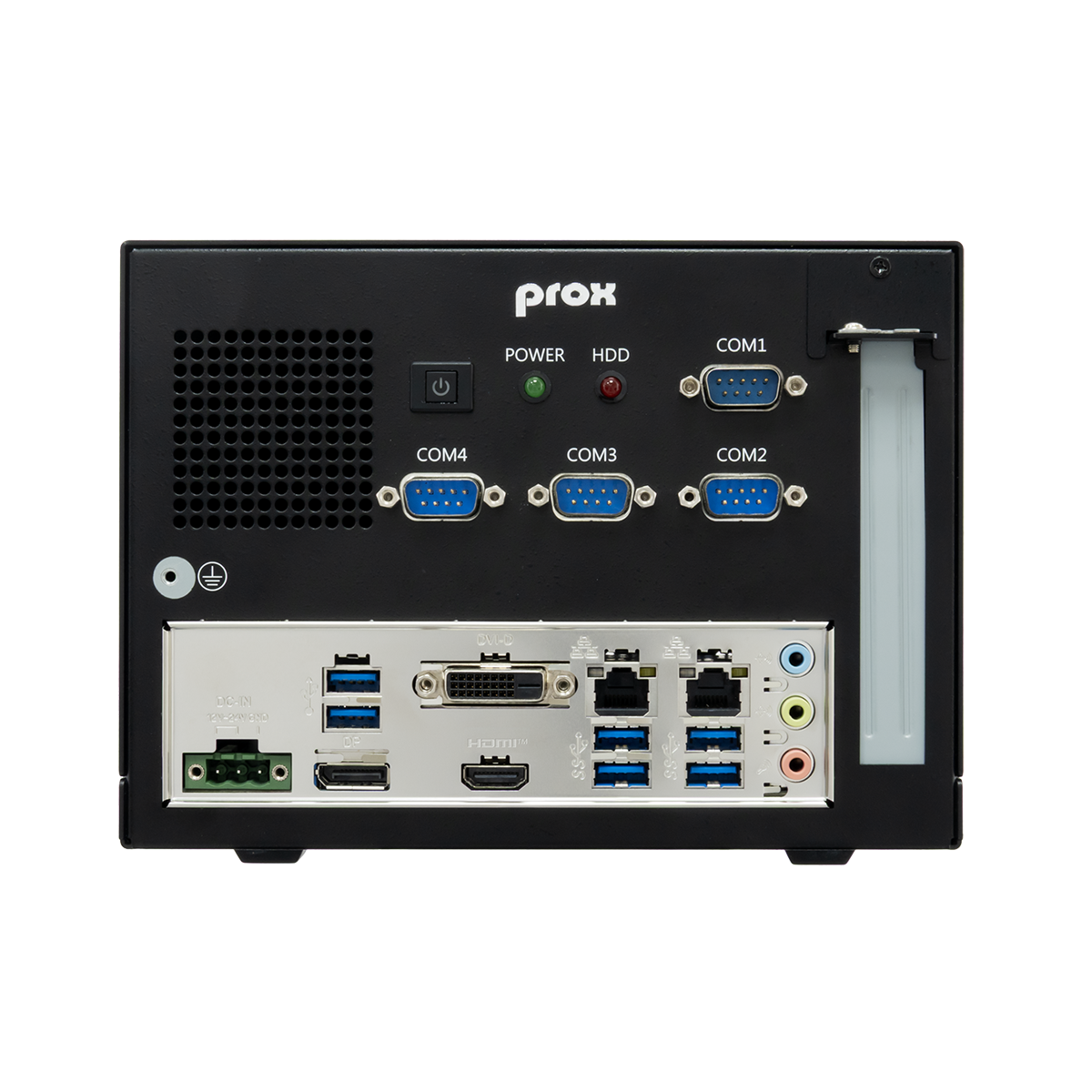

•Front-accessible I/O: 6 x USB, 4 x COM, 2 x LAN
•Multiple display outputs: 1 x HDMI™, 1 x DisplayPort, 1 x DVI-D
•Expansion slots: 1 x PCIe x16, 1 x M.2 B-Key (Q670E only), 1 x M.2 E-Key
•Optional Intel® Q670E / H610E PCH
•Front-accessible I/O: 6 x USB, 4 x COM, 2 x LAN
•Multiple display outputs: 1 x HDMI™, 1 x DisplayPort, 1 x DVI-D
•Expansion slots: 1 x PCIe x16, 1 x M.2 B-Key (Q670E only), 1 x M.2 E-Key
| CPU Support |
Intel® Core™ i9-14900/T, 13900TE/E, 12900TE/E i7-14700/T, 13700TE/E, 12700TE/E i5-14500/T, 13500TE/E, 12500TE/E i3-14100/T, 13100TE/E, 12100TE/E Pentium® G7400TE/E Celeron® G6900TE/E (TDP 35W/65W) |
|
| Chipset | Intel® Q670E / H610E PCH | |
| Graphics |
Intel® UHD Graphics 770 (Core™ i9/i7/i5) Intel® UHD Graphics 730 (Core™ i3) Intel®UHD Graphics 710 (Pentium®/ Celeron®) |
|
| Memory Support |
2 x DDR5 SODIMM 5600MHz or DDR4 SODIMM 3200MHz (depending on model) up to 64GB, non-ECC |
|
| Storage |
2 x SATA for 2.5" SSD/HDD (RAID 0/1 supported - Q670E only) |
|
| TPM |
TPM 2.0 |
|
| Watchdog | 1~255 seconds watchdog timer selectable | |
| FAN | 1 x System Fan(4-pin wafer with Smart Fan function)
1 x CPU Fan (4-pin wafer with Smart Fan function)
|
|
| Power Input | 3-pin terminal block DC-In 12V/24V power connector | |
| Grounding | 1 x M3 grounding hole | |
| System Weight | 3 kg | |
| Dimensions (W x H x D) | 200 x 145 x 200 mm | |
| Certifications | CE, FCC | |
| Operating System | Windows® 11 IoT Enterprise LTSC 2024
Windows® 10 IoT Enterprise LTSC 2021 Linux (Ubuntu 22.04 LTS) |
|
| I/O Ports | ||
| Display |
4 x USB 3.2
|
|
| Serial Ports |
4 x COM ports
COM1/2: RS-232/422/485 |
|
| Ethernet |
2 x RJ45 2.5GbE LAN Ports (Intel® I226)
Wake-On-LAN / PXE supported |
|
| Display | 1 x HDMI™
1 x DisplayPort 1 x DVI-D |
|
| Audio |
1 x Mic-in
1 x Line-in 1 x Line-out |
|
| LED |
1 x Power LED 1 x HDD LED |
|
| Power On/Off | 1 x Power Button | |
| Expansion Slots | ||
| PCIe | 1 x PCIe x16 | |
| M.2 |
1 x M.2 2242/3042/3052 B Key (Q670E) 1 x M.2 2230 E Key |
|
| Environment | ||
| Operating Temperature
(Ambient with airflow)
|
0°C ~ 40°C (32°F ~ 104°F) | |
| Storage Temperature | -20°C ~ 60°C (-4°F ~ 140°F) | |
| Humidity | 20%~ 90% (non-condensing) | |

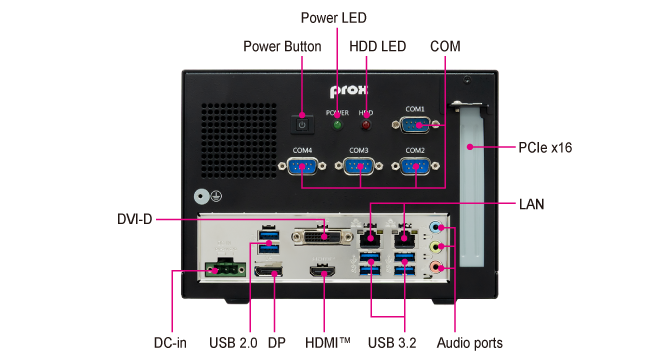

BC-K600 IO

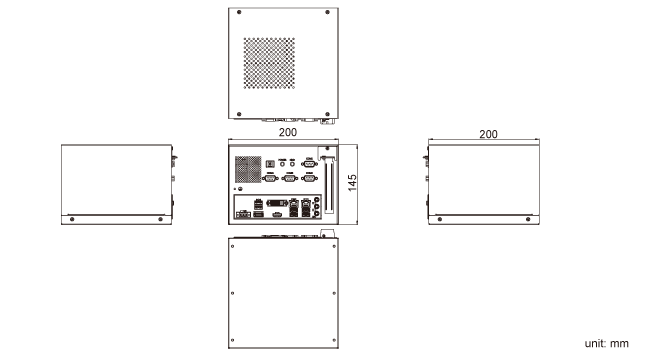

BC-K600 Dimensions
| BC-K600 |
14th/13th/12th Gen. Intel® Core™ Processors Box PC |
| File type | File Download |
| EDM | BC-K600_EDM.PDF |
| Pictures | BC-K600_Pictures.ZIP |
