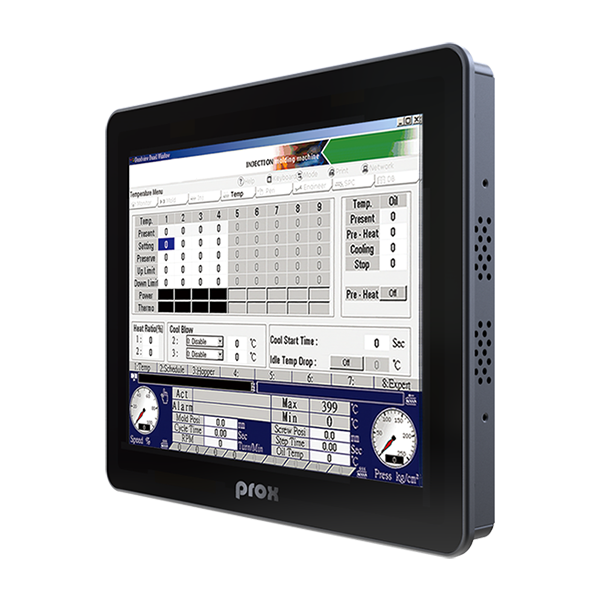

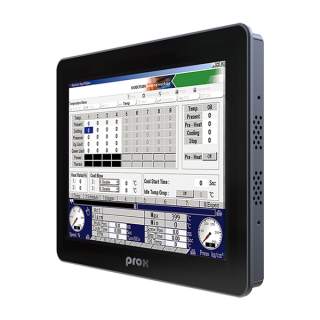

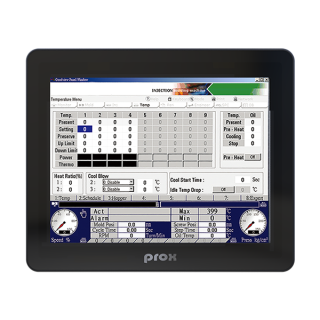

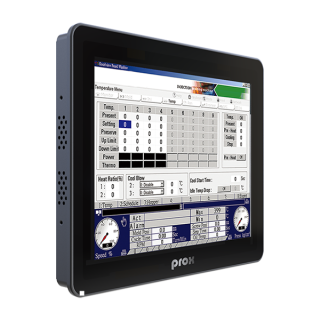

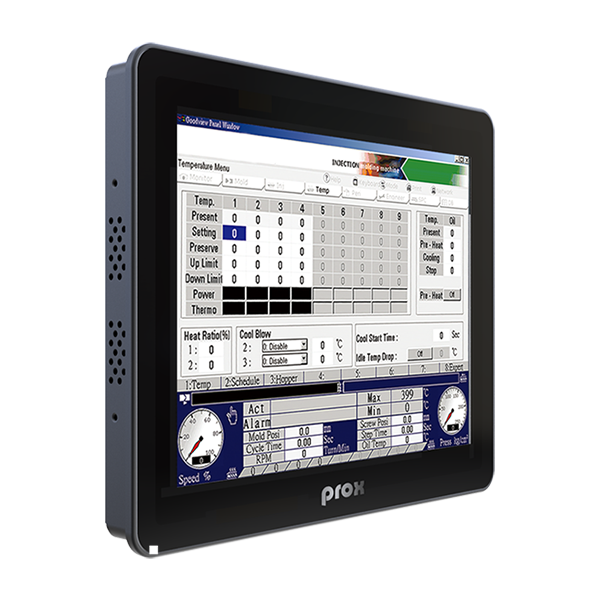

SP-C105

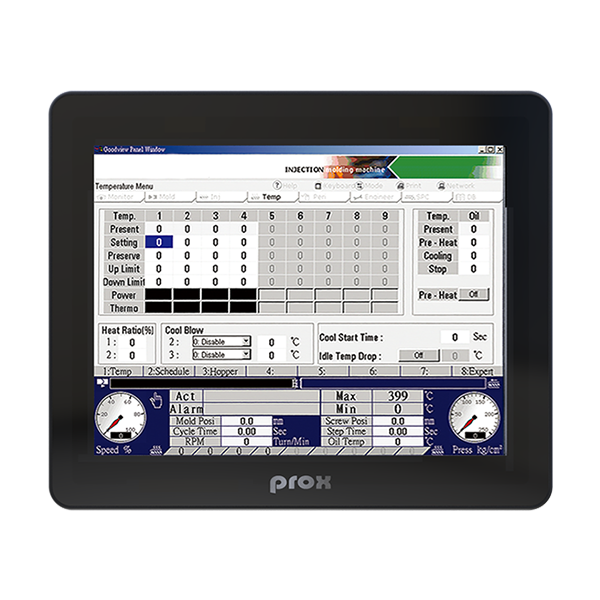

10.4" VESA Mount / Wall Mount Standalone Touch Monitor
•IP65 (front) with Aluminum bezel
•Operating temperature -20°C~60°C
•Modularized I/O: VGA + DVI-D + HDMI®

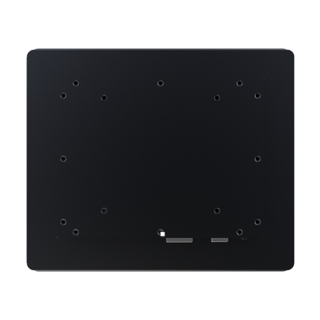

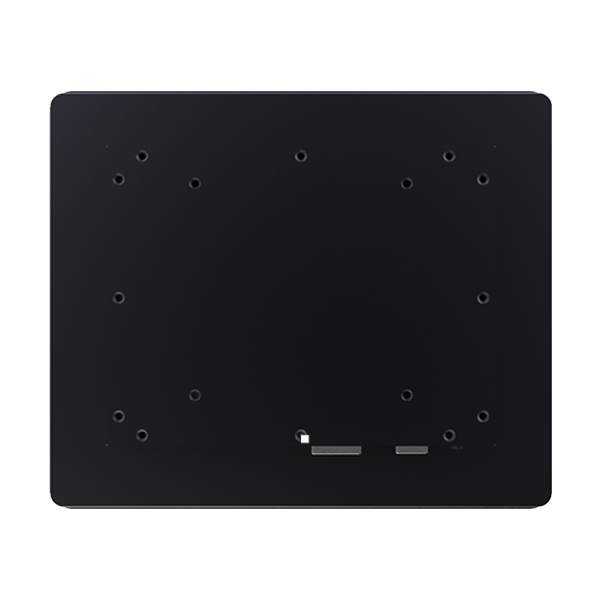

•Wall mount / VESA 100 mounting
•Operating temperature -20°C~60°C
•Modularized I/O: VGA + DVI-D + HDMI®
•Wall mount / VESA 100 mounting
| Customer (2nd) Display |
10.4" SVGA LCD (400 cd/m²)
|
|
| Display Resolution | 800 x 600 (SVGA) | |
| Dimensions (Panel) |
261 x 217 x 49 mm (W x H x D)
|
|
| Viewing Angle |
Horizontal -80°~80°, Vertical -80°~70° |
|
| I/O Ports | VGA DVI-I cable (support DVI-D signal only) HDMI® USB (touch connection) |
|
| Power Supply | ||
| Type | DC12V/3.3A/40W/ϕ 2.5 power adapter | |
| AC Input | 90~264 Vac, 47-63 Hz | |
| Environment | ||
| EMC & Safety | CE | |
| Operating Temp. | -20°C~60°C (-4°F~140°F) | |
| Storage Temp. | -30°C~70°C (-22°F~158°F) | |
| Humidity | 5%~95% | |
SP-C105 Highlight

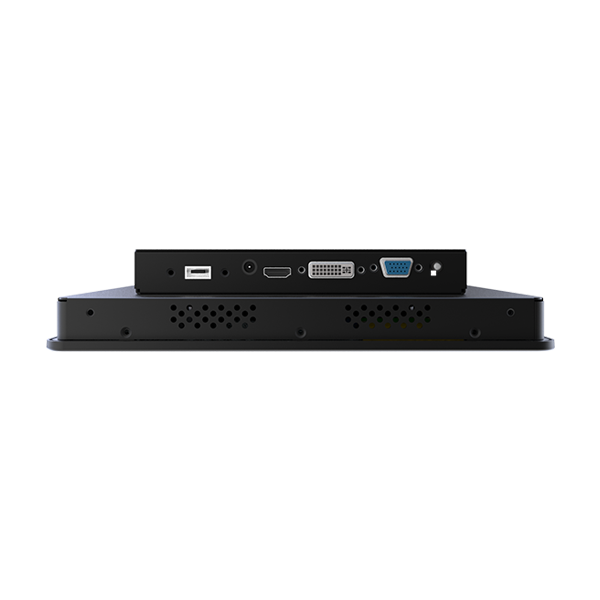

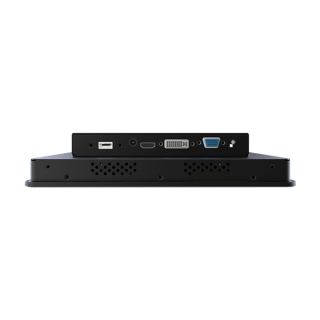

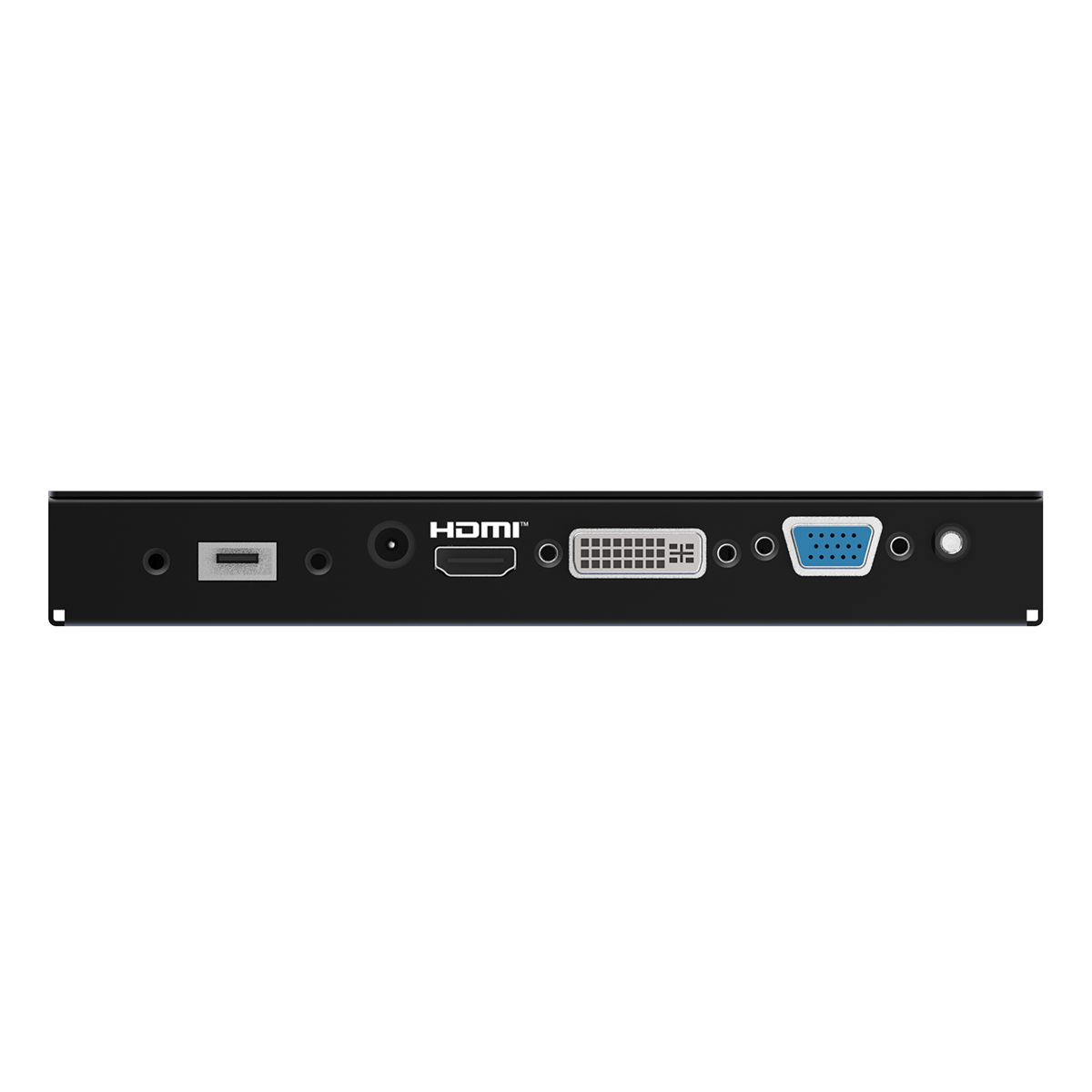

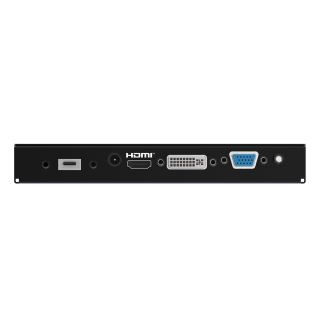

SP-C105 IO
SP-C105 Dimensions
| SP-C105 |
10.4" VESA Mount / Wall Mount Standalone Touch Monitor |
| File type | File Download |
| EDM | SP-C105_EDM.PDF |
| Pictures | SP-C105_Pictures.ZIP |
| Manual | SP-C105_Manual.PDF |
| QuickGuide | SP-C105_QuickGuide.PDF |
| BIOS | SP-C105_BIOS.ZIP |
| Device | SP-C105_Device.ZIP |
| Platform | SP-C105_Platform.ZIP |
| Other | SP-C105_Other.ZIP |
