SP-C085

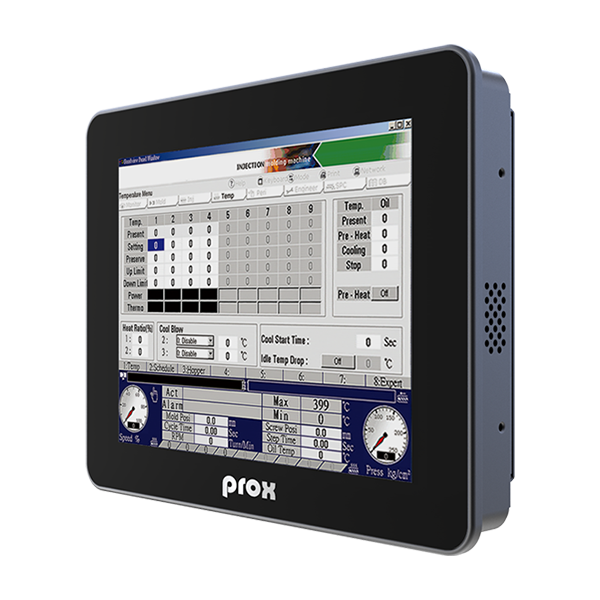

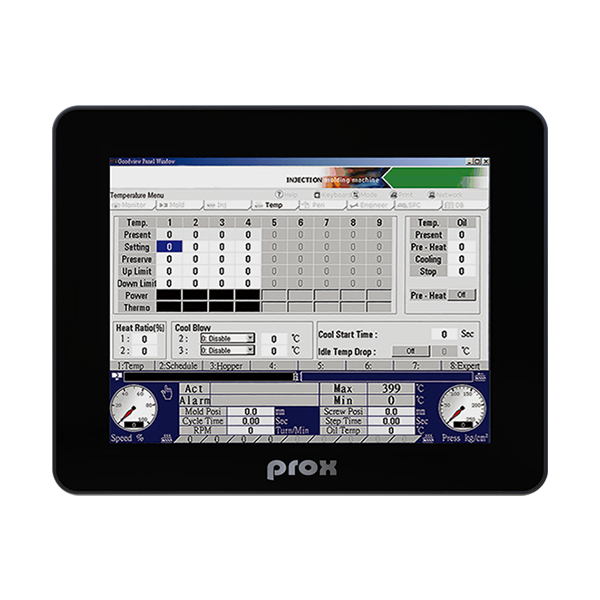

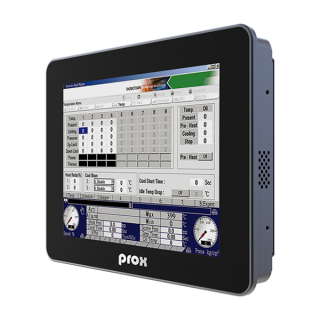

8.4" VESA Mount / Wall Mount Standalone Touch Monitor
•IP65 (front) with Aluminum bezel
•Operating temperature -20°C~60°C
•Modularized I/O: VGA + DVI-D + HDMI®

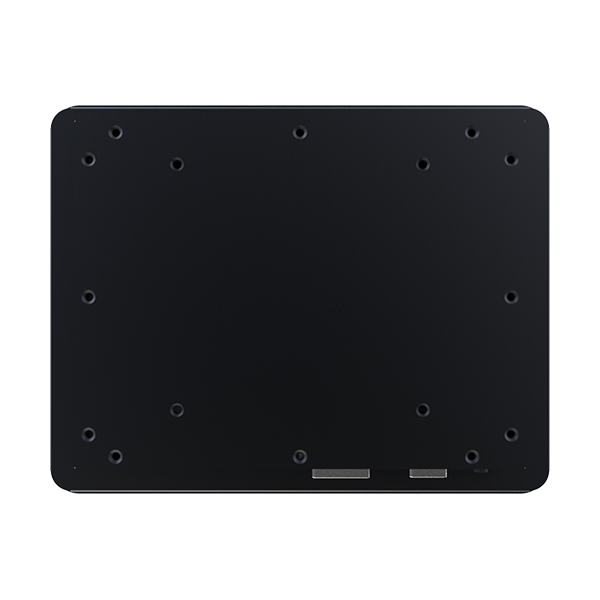

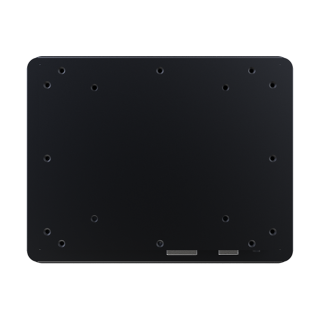

•Wall mount / VESA 100 mounting
•Operating temperature -20°C~60°C
•Modularized I/O: VGA + DVI-D + HDMI®
•Wall mount / VESA 100 mounting
| Customer (2nd) Display | 8.4" SVGA LCD (600 cd/m²) | |
| Display Resolution |
800 x 600 (SVGA)
|
|
| Dimensions (Panel) |
225 x 177 x 49 mm (W x H x D) |
|
| Viewing Angle | Horizontal -80°~80°, Vertical -80°~70° | |
| I/O Ports | VGA | |
| DVI-I cable (support DVI-D signal only) | ||
| HDMI® | ||
| USB (touch connection) | ||
| Power Supply | ||
| Type | DC12V/3.3A/40W/ϕ 2.5 power adapter | |
| AC Input | 90~264 Vac, 47-63 Hz | |
| Environment | ||
| EMC & Safety | CE | |
| Operating Temp. | -20°C~60°C (-4°F~140°F) | |
| Storage Temp | -30°C~70°C (-22°F~158°F) | |
| Humidity | 5%~95% | |

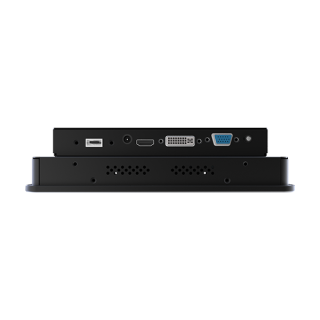

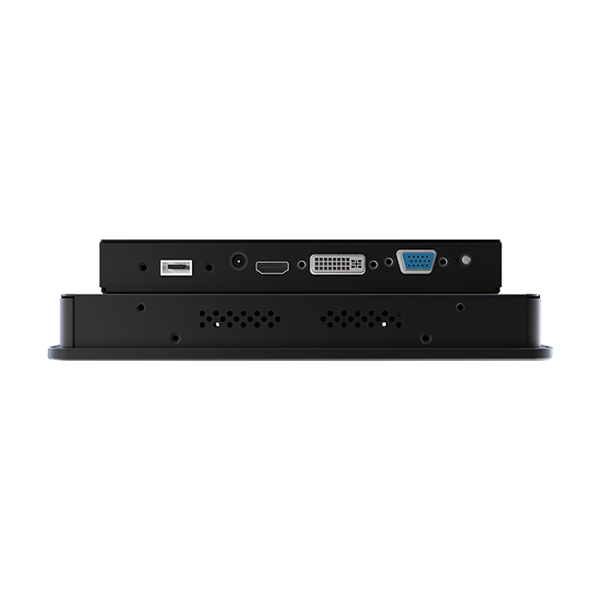

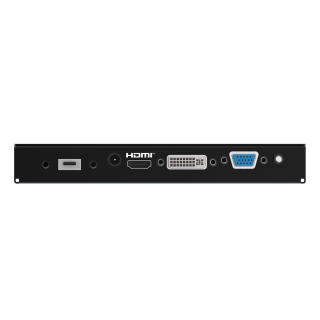

SP-C085 IO

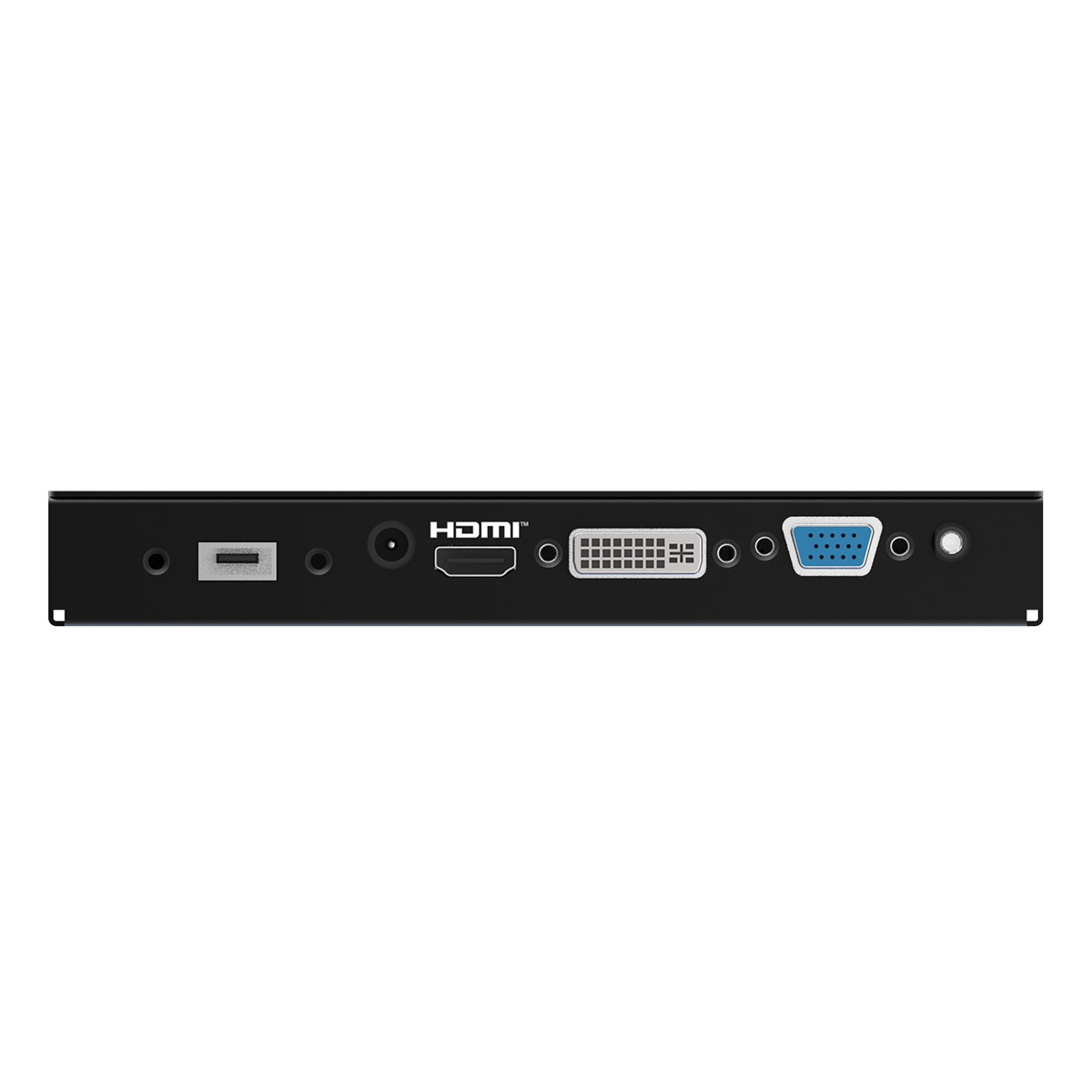

SP-C085 IO
SP-C085 Dimensions
