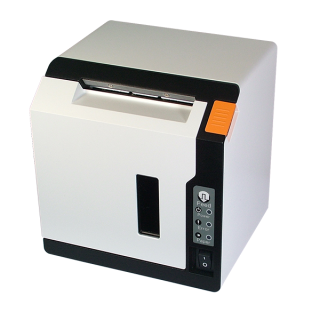

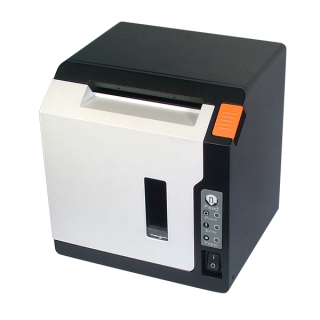

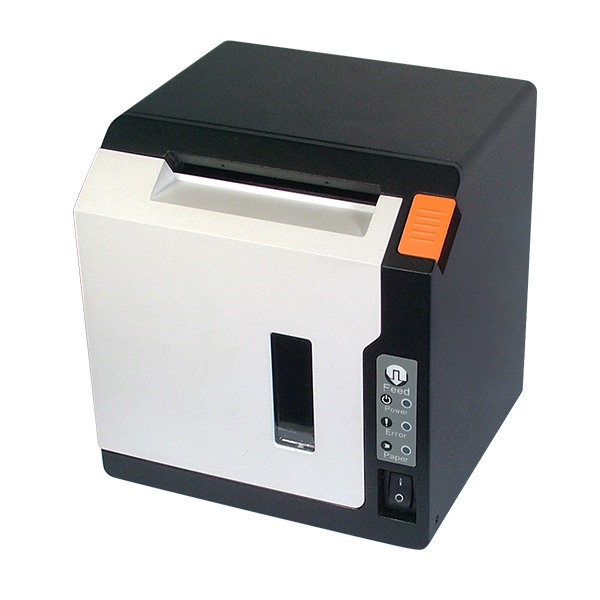

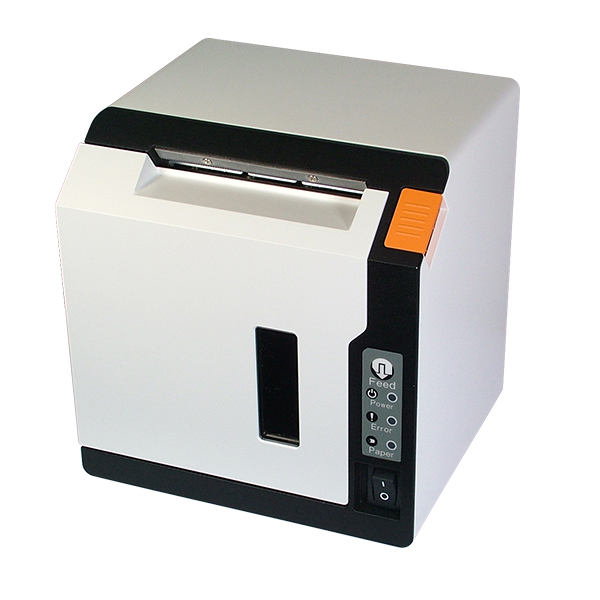

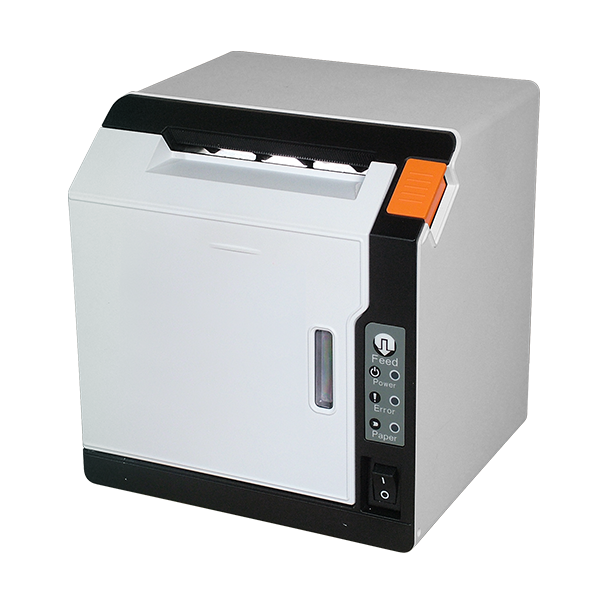

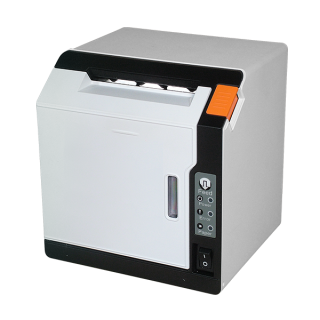

MP-1060
Printer
•Printing speed 200 mm/sec
•RS232+USB/Ethernet interface available
•Ease-of-use features including drop-in paper loading
•ESC/POS command compatible
•Two drawer kick-out
•Wall mountable with optional kit
•Drop & print paper loading
•Print alarm buzzer
•Various interface options
•OPOS driver supported
•Stores/Prints logo Images
•Barcode and bitmap printing capability
•Paper-end sensor and paper near-end sensor available
•Accessories and options with melody box, splash proof cover, wall-mount and cable cover, etc.
•RS232+USB/Ethernet interface available
•Ease-of-use features including drop-in paper loading
•ESC/POS command compatible
•Two drawer kick-out
•Wall mountable with optional kit
•Drop & print paper loading
•Print alarm buzzer
•Various interface options
•OPOS driver supported
•Stores/Prints logo Images
•Barcode and bitmap printing capability
•Paper-end sensor and paper near-end sensor available
•Accessories and options with melody box, splash proof cover, wall-mount and cable cover, etc.
| Printer Method |
Thermal line |
|
| Paper Width | 80+0, -1 mm | |
| Interface |
Combo with USB/Serial
|
|
| Number of Columns |
64 (12 x 24) / 48 (9 x 17) / 24 (24 x 24) C/L |
|
| Buffer |
4K |
|
| SRAM | 128K | |
| Flash | 2MB | |
| Print Speed | 200 mm/sec | |
| Fast Feed Speed | 200 mm/sec | |
| Character Structure | Alphanumeric 95 | |
| International 32 128 x 8 graphic, Big-5, Japanese | ||
| Head | 100KM | |
| Cutter | 1.5 million cuts | |
| Power Supply | 24V | |
| Environmental Condition | Humidity | |
| Operating | 10%~90% RH | |
| Storage | 10%~ 90% RH expect for paper | |
| Weight | Approx. 1.6 kg | |
| Detect Sensor | Paper end and near end sensor | |
| Dimensions (W x H x D) | 140 x 146 x 123 mm | |
