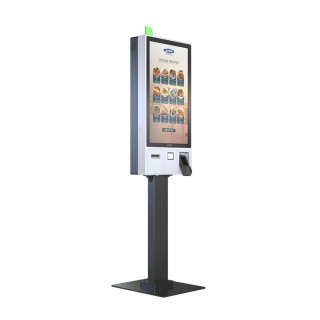

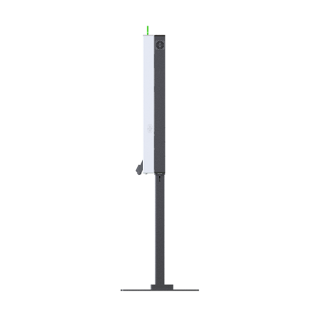

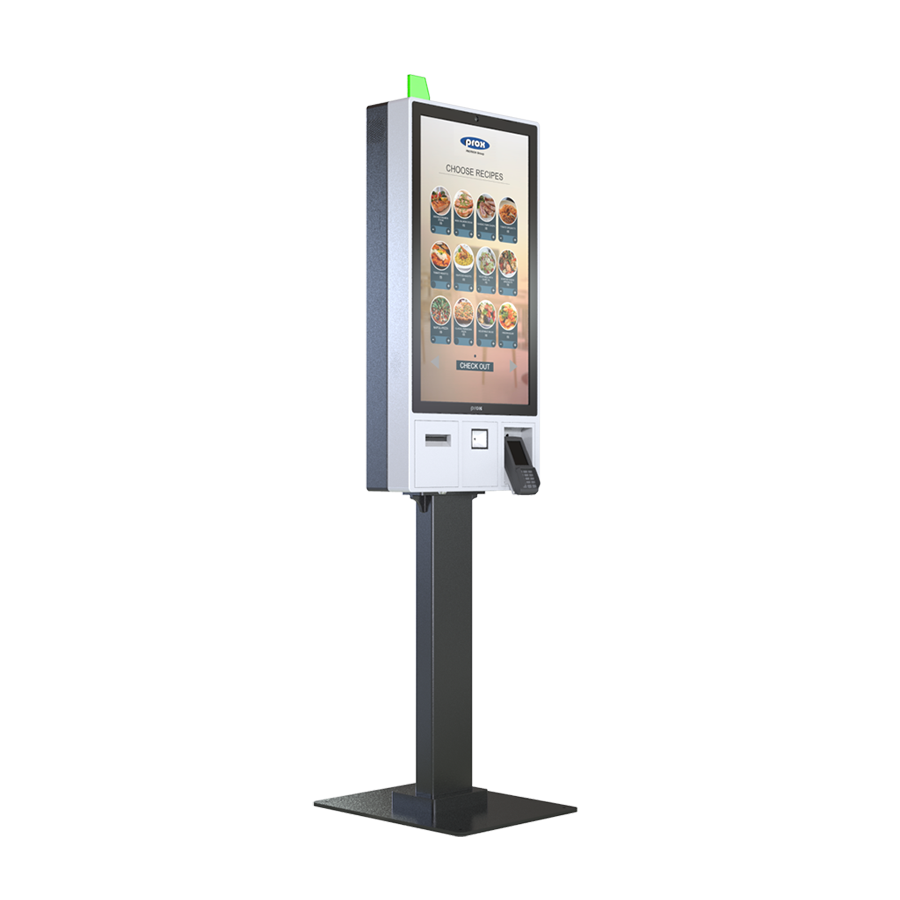

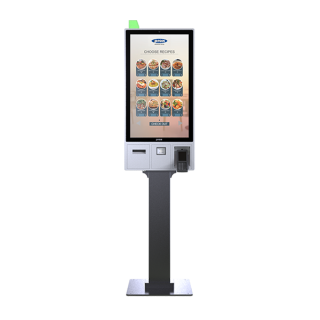

KS-M331
32" Multi-Function Self Ordering Kiosk
•QSR, fast casual restaurant and ticketing market
•Large screen menu for self ordering application

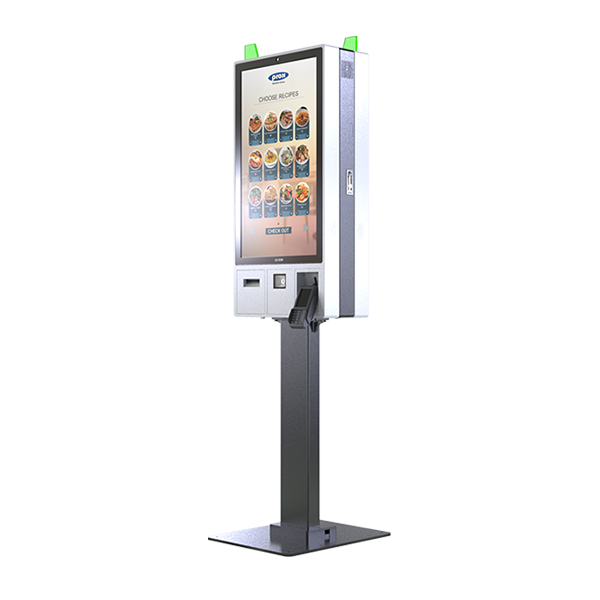

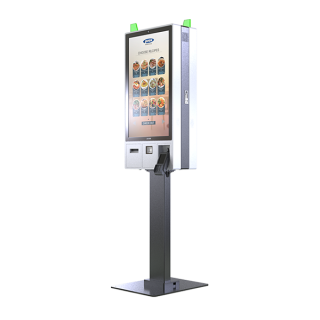

•Wall-mount / dual-side / floor-stand
•Compact design with 32" touchscreen
•Available with Intel Core-i
•Available with Windows 11 Enterprise, Windows 10 IoT
•Motion sensor for marketing applications
•Easy maintenance via modular design
•Large screen menu for self ordering application
•Wall-mount / dual-side / floor-stand
•Compact design with 32" touchscreen
•Available with Intel Core-i
•Available with Windows 11 Enterprise, Windows 10 IoT
•Motion sensor for marketing applications
•Easy maintenance via modular design
| System | CPU Type |
Intel® Core™ i5-1145G7E Intel® Core™ i3-1115G4E Intel® Celeron® 6305E |
| Memory | 1 x DDR4 SO-DIMM socket (default 4GB) | |
| HDD |
1 x M.2 2280 SATA III or NVMe SSD (default 128GB) |
|
| Network |
1 x Gigabit 10/100/1000 Base-T Fast Ethernet (RJ45) 2 x RJ45 reserved connectors |
|
| Power Supply | 100-240V available | |
| System Weight |
34 kg without floor stand 63 kg with floor stand |
|

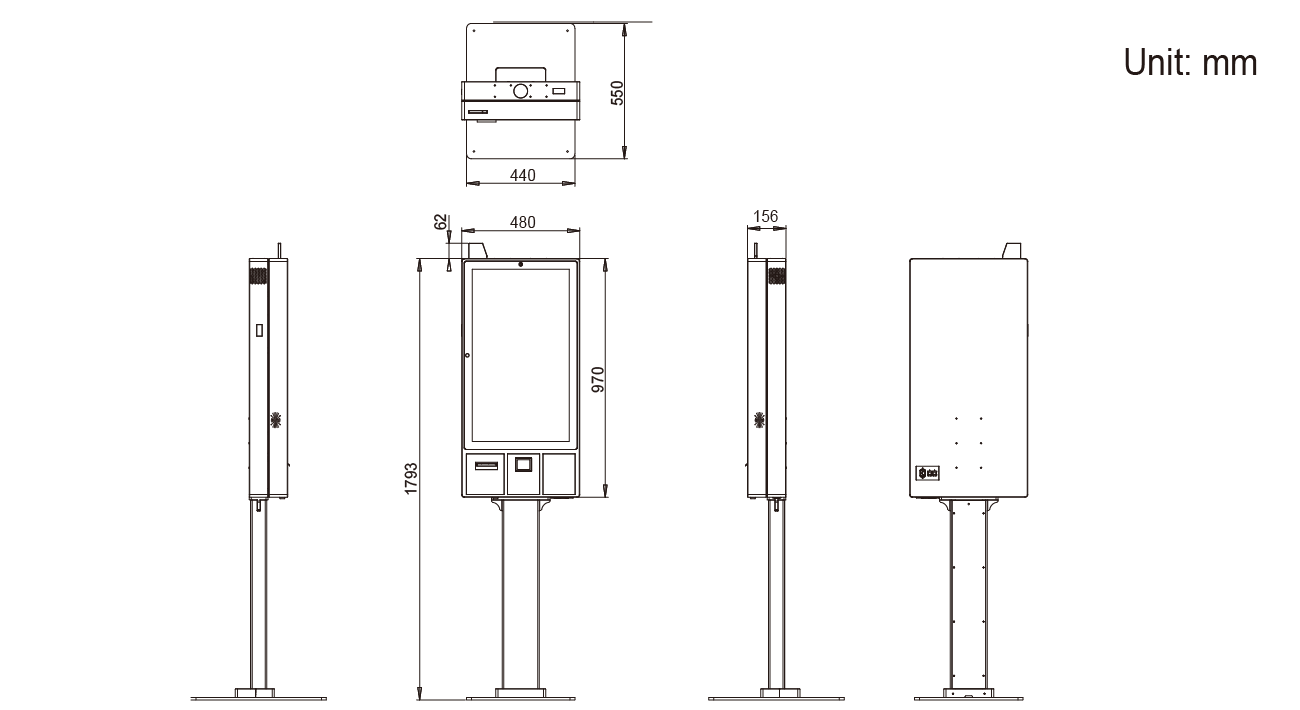

| Dimensions (W x H x D) |
With Stand: 440 x 1780 x 550 mm Without Stand: 478 x 966 x 73 mm |
|
| O.S. Support | Windows® 11 / Windows® 10 | |
| Operating Display | LCD | 32" TFT LCD |
| Max. Resolution | 1920 x 1080 | |
| Brightness | 250 cd/m² | |
| Touchscreen | Projected capacitive touch | |
| Viewing Angle | Horizontal: (R) 89°/ (L) 89°
Vertical: (U) 89°/ (L) 89°
|
|
| Add-ons | Barcode Scanner |
2D：PDF 417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode, Chinese Sensible Code, GM Code, Micro PDF417 Code, Code One 1D：EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, I2Of5, ITF-14, ITF-6, Matrix 25, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K |
| Thermal Printer |
2" or 3" standalone thermal printer for 80 mm paper roll
|
|
| Environment | EMC & Safety | CE / FCC |
| Operating Temp | 0°C~40°C | |
| Storage Temp. | 0°C~60°C | |
| Humidity | 20%~85% (no condensation) |
KS-M331 Video

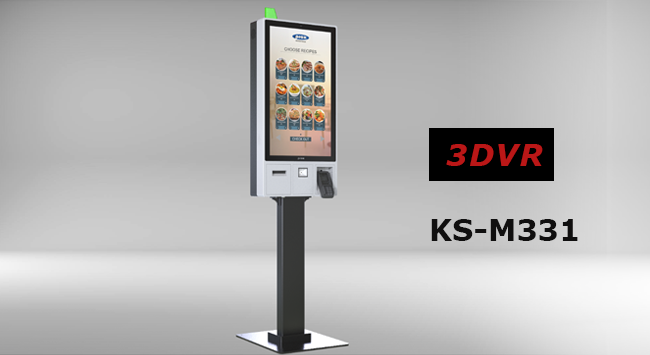

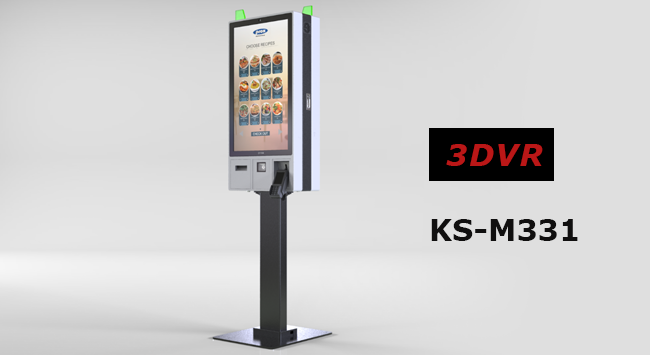

KS-M331 3DVR
KS-M331 3DVR

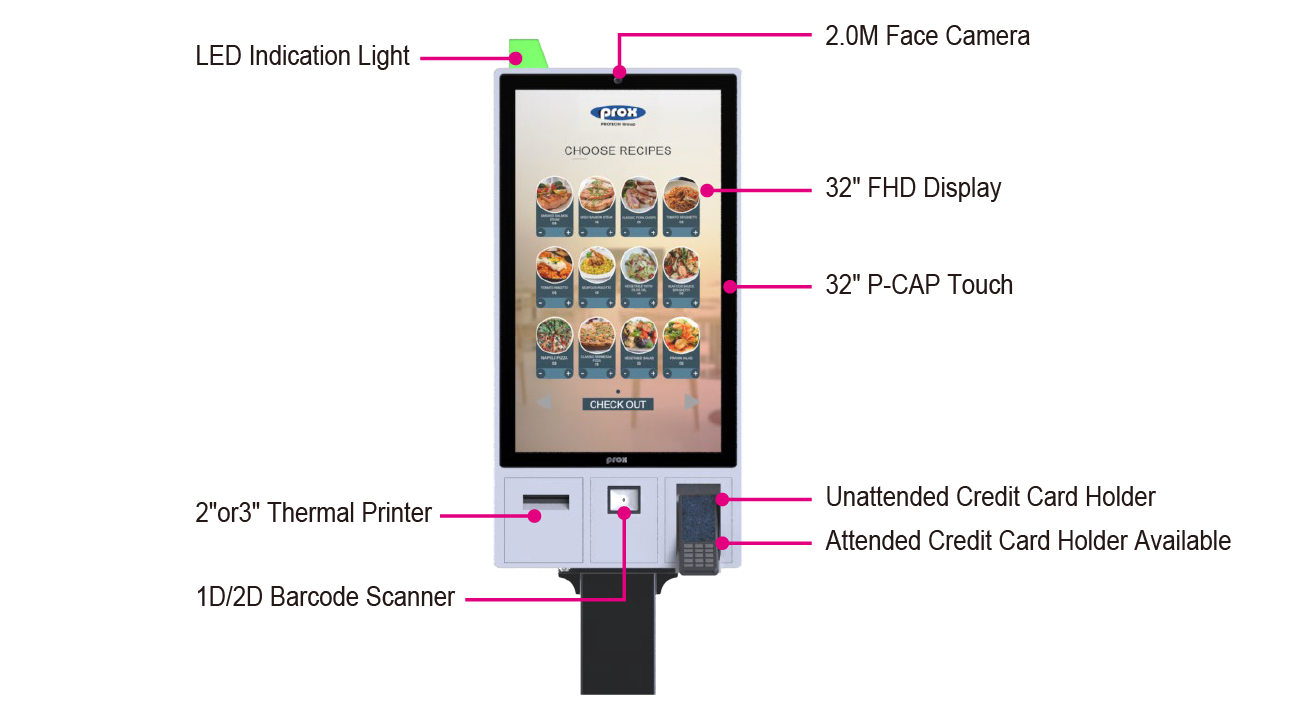

KS-M331 Highlight
KS-M331 IO
| KS-M331 |
32" Multi-Function Self Ordering Kiosk |
| File type | File Download |
| EDM | KS-M331_EDM.PDF |
| Pictures | KS-M331_Pictures.ZIP |
| Manual | KS-M331_Manual.PDF |
| QuickGuide | KS-M331_QuickGuide.PDF |
| Driver README | KS-M331_README.PDF |
| BIOS | KS-M331_BIOS.ZIP |
| Device | KS-M331_Device.ZIP |
| Platform | KS-M331_Platform.ZIP |
| Other | KS-M331_Other.ZIP |
